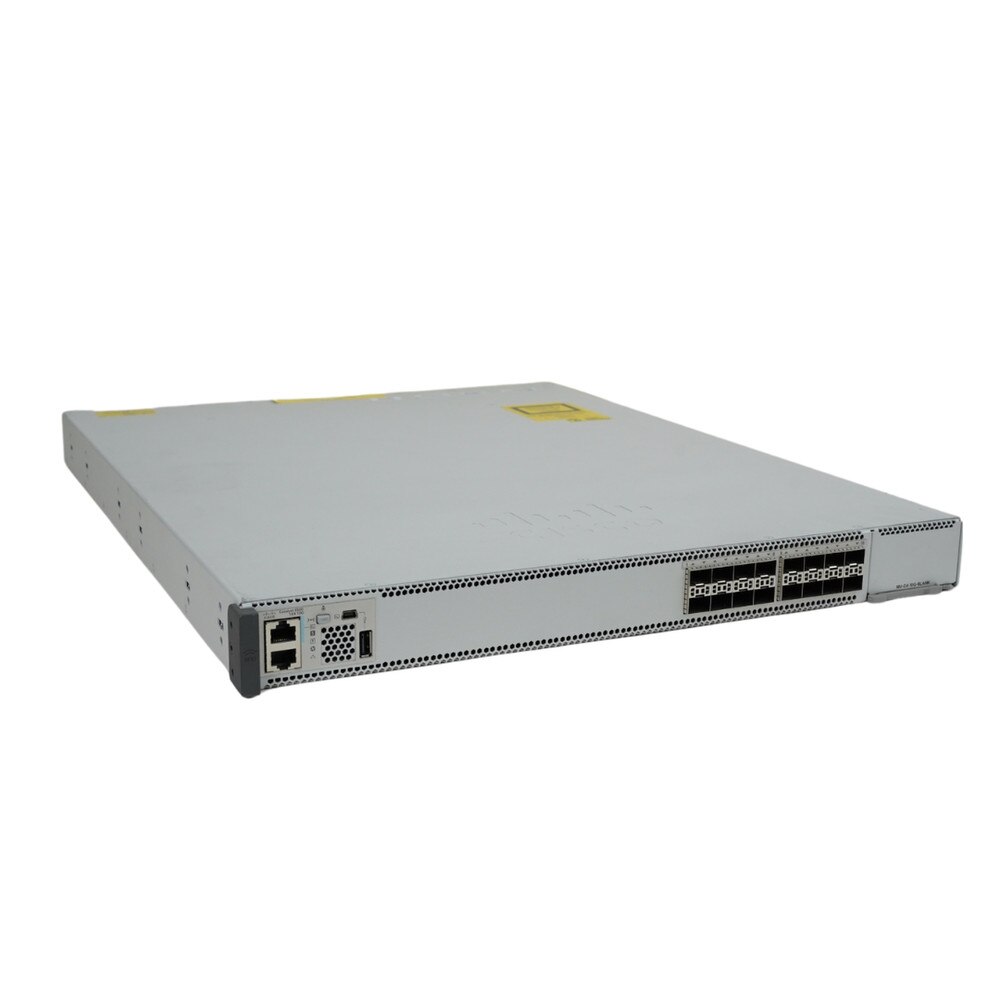

Overview of Cisco Catalyst C9500-16X-A Network Advantage 16-port Switch | Like New
The Cisco Catalyst 9500 Series, including the C9500-16X-A model, represents the next generation of enterprise-class switching. It is specifically built for handling modern demands such as security, the Internet of Things (IoT), and cloud applications. This switch is part of Cisco's Software-Defined Access framework, which enhances network programmability and serviceability.
Cisco Catalyst C9500-16X-A Network Advantage 16-port Switch Features:
- Port Configuration: The C9500-16X-A features 16 ports of 10 Gigabit Ethernet (SFP+), allowing for high-speed connections and flexibility in network design.
- High Capacity: It has a switching capacity of up to 240 Gbps and a forwarding rate of 360 Mpps, supporting a large number of MAC addresses (up to 64,000) and IPv4/IPv6 routes.
- Advanced Routing Services: Supports advanced features such as Multiprotocol Label Switching (MPLS), Layer 2/3 VPNs, Multicast VPNs (MVPN), and Network Address Translation (NAT)
- High Availability: The switch includes features for high availability like Graceful Insertion and Removal (GIR), Nonstop Forwarding with Stateful Switchover (NSF/SSO), and redundant power supplies
- Programmability: Built on an x86 CPU architecture with 16 GB DDR4 memory and 16 GB internal storage, it supports full programmability for advanced network management
- Security Features: Incorporates secure segmentation with Cisco SD-Access, enhancing network security by isolating different segments
- Enterprise Campuses: Its robust performance makes it suitable for large enterprise networks that require high throughput and reliability.
- Data Centers: With its ability to handle significant traffic loads and advanced routing capabilities, it fits well in data center environments.
- Cloud Services: The switch is optimized for cloud-based applications, making it a good choice for organizations leveraging cloud technologies.
- IoT Deployments: Its support for IoT applications allows businesses to integrate various connected devices seamlessly into their networks.
Specifications
Specifications for Cisco Catalyst C9500-16X-A Network Advantage 16-port Switch | Like New
| Manufacturer | Cisco |
| Manufacturer Part Number | C9500-16X-A |
| Product Name | Cisco Catalyst C9500-16X-A Network Advantage 16-port Switch |
| Product Type | Switch |

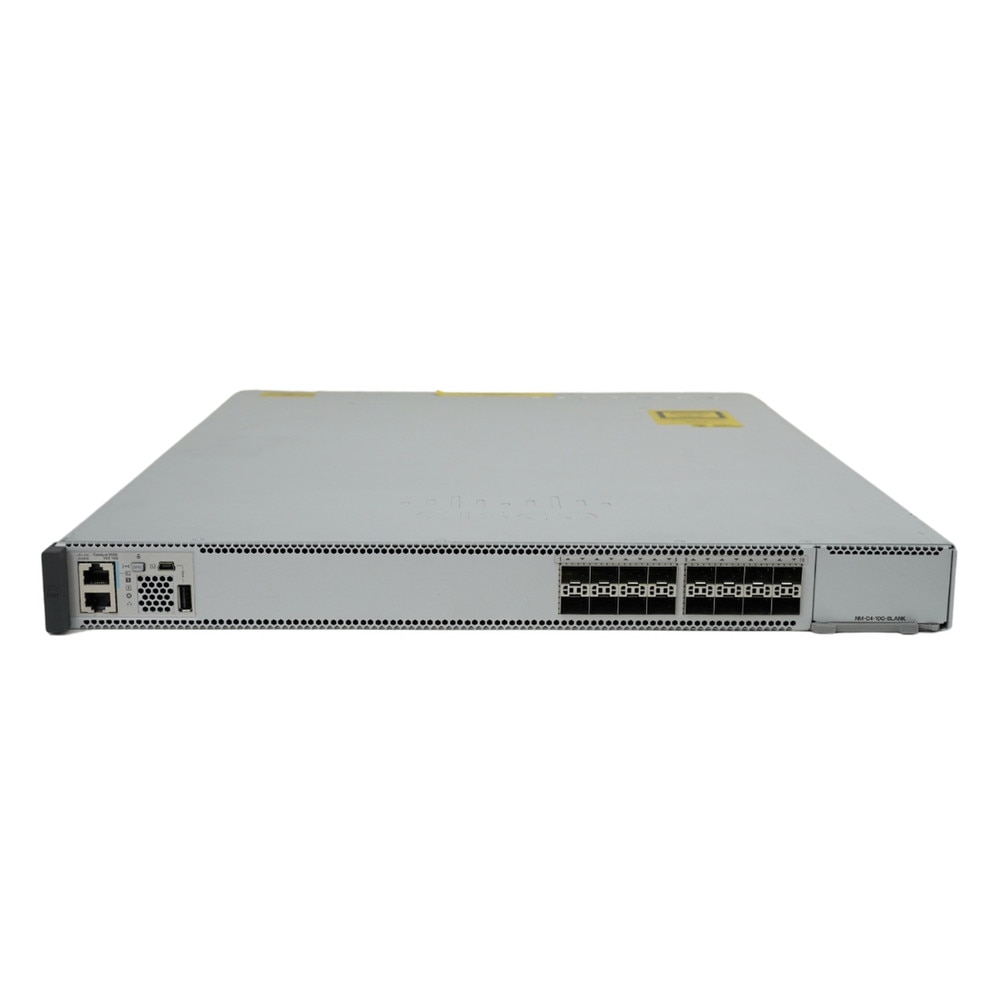

| Network Ports | 16x 10 Gigabit Ethernet SFP+ |
| Management Ports | 1x USB, 1x Mini USB, 1x RJ45 Console, 1x Gigabit Management |
| Stacking Cable Options | The user can stack 2x C9500 switches together using a high speed Ethernet cable. |
| Module Slots | 1x Expansion Module Slot - Sold Separately |
| Module Options | C9500-NM-8X, C9500-NM-2Q |
| Switch Version | Network Advantage |
| AirFlow Direction | Front-to-Back Airflow |

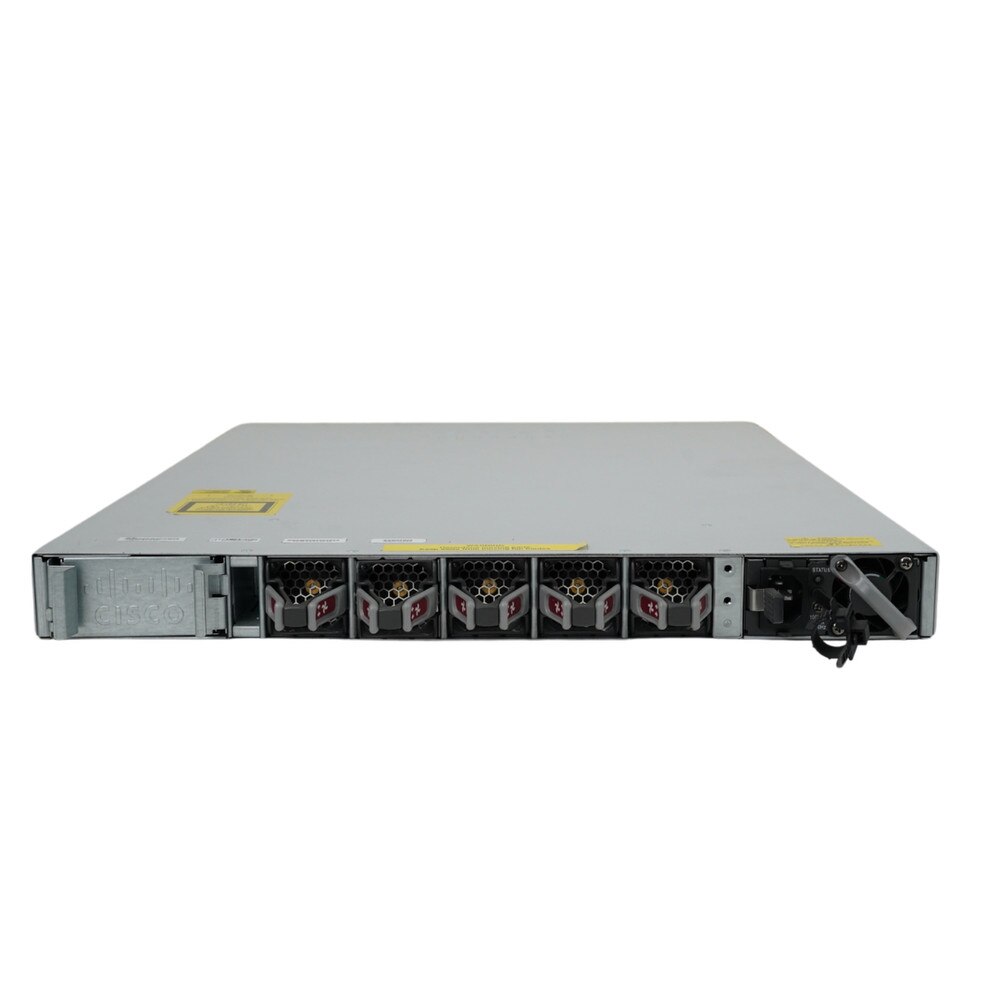

| Fan Module Options | 5x FAN-T4-R Fans Modules - Front-to-Back Airflow |
| Power Supplies Included | 1x PWR-C4-950WAC-R Power Supply included - 2x Slot - 2nd Power Supply ordered separately |
| Power Supply Options | PWR-C4-950WAC-R, PWR-C4-950WDC-R |
| Total number of IPv4 routes | Up to 64,000 indirect - Up to 80,000 host |
| Switching Capacity | Up to 480 Gbps |
| Forwarding Rate | Up to 360 Mpps |
| MAC Address Table Size | 64000 |
| VLAN ID's | 4000 |
| DRAM and Flash | 4GB DDR2 SDRAM, 16GB Flash |
User Guides
Frequently Asked Questions
Cisco Catalyst C9500-16X-A Network Advantage 16-port Switch
Frequently Asked Questions (FAQ's)
What is the purpose of the Cisco Catalyst C9500-16X-A switch? The Cisco Catalyst C9500-16X-A is designed for high-performance core and aggregation layer functions in enterprise networks.
How many ports does the Cisco C9500-16X-A switch support? The Cisco Catalyst C9500-16X-A has 16 fixed 10 Gigabit Ethernet ports.
What type of architecture does the Cisco C9500-16X-A use? It is built on a high-performance, modular architecture designed for scalability and reliability.
Is the Cisco Catalyst C9500-16X-A suitable for enterprise environments? Yes, it is ideal for large enterprise networks needing robust core and aggregation switching.
What software runs on the Cisco C9500-16X-A? The switch operates on Cisco IOS XE, offering advanced features for enterprise networking.
Can the Cisco C9500-16X-A switch handle Layer 3 routing? Yes, it provides extensive Layer 3 routing capabilities, including BGP, OSPF, and EIGRP.
Does the Cisco Catalyst C9500-16X-A support network segmentation? Yes, it supports VLANs, VRFs, and segmentation for enhanced security and traffic management.
How much power does the Cisco C9500-16X-A consume? The exact power consumption varies based on the configuration but generally operates efficiently for enterprise standards.
Can I use the Cisco C9500-16X-A in a redundant network setup? Yes, it supports redundancy protocols like HSRP and VRRP to ensure network resilience.
What management options are available with the Cisco C9500-16X-A? The switch can be managed via Cisco DNA Center, CLI, or web-based tools, providing flexible management options.
Does the Cisco Catalyst C9500-16X-A support stacking? No, but it supports network virtualization with features like Cisco StackWise Virtual.
What is the throughput capacity of the Cisco C9500-16X-A? The switch offers a high throughput capacity of up to 480 Gbps.
What security features does the Cisco C9500-16X-A offer? It includes features like MACsec encryption, access control lists (ACLs), and segmentation for security.
Is Quality of Service (QoS) supported on the Cisco C9500-16X-A? Yes, it provides advanced QoS to prioritize traffic for critical applications.
What kind of memory does the Cisco Catalyst C9500-16X-A have? It comes with 16 GB of DRAM and 16 GB of flash memory for high performance and storage.
Does the Cisco C9500-16X-A support multicast routing? Yes, it supports multicast routing protocols like PIM for optimized video and data delivery.
What type of applications is the Cisco Catalyst C9500-16X-A best suited for? It’s best for enterprise core/aggregation layers, data centers, and high-performance campus deployments.
Can the Cisco Catalyst C9500-16X-A integrate with Cisco DNA Center? Yes, it integrates seamlessly with Cisco DNA Center for software-defined networking (SDN) capabilities.
Does the Cisco C9500-16X-A support IPv6? Yes, it fully supports IPv6, ensuring compatibility with modern network standards.
How does the Cisco C9500-16X-A facilitate network automation? With Cisco DNA Center integration and API support, the switch offers robust automation capabilities for efficient network management.
