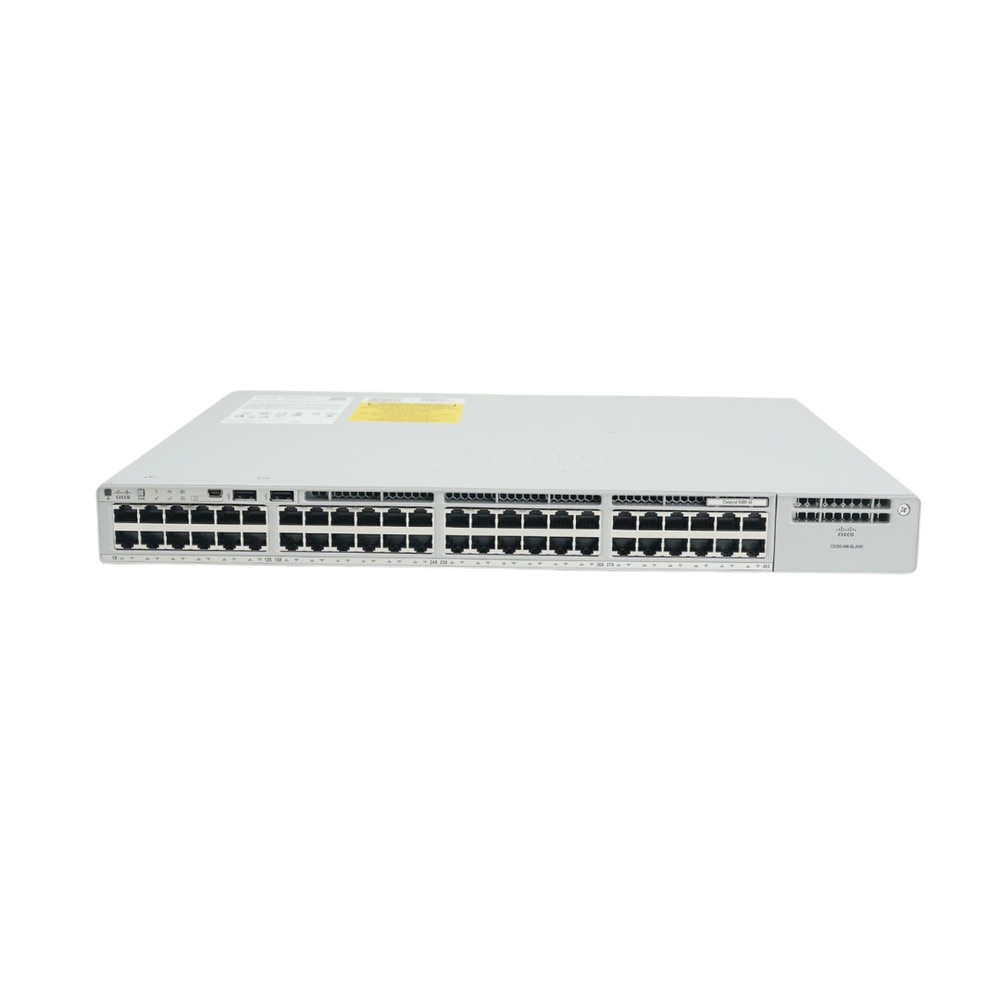

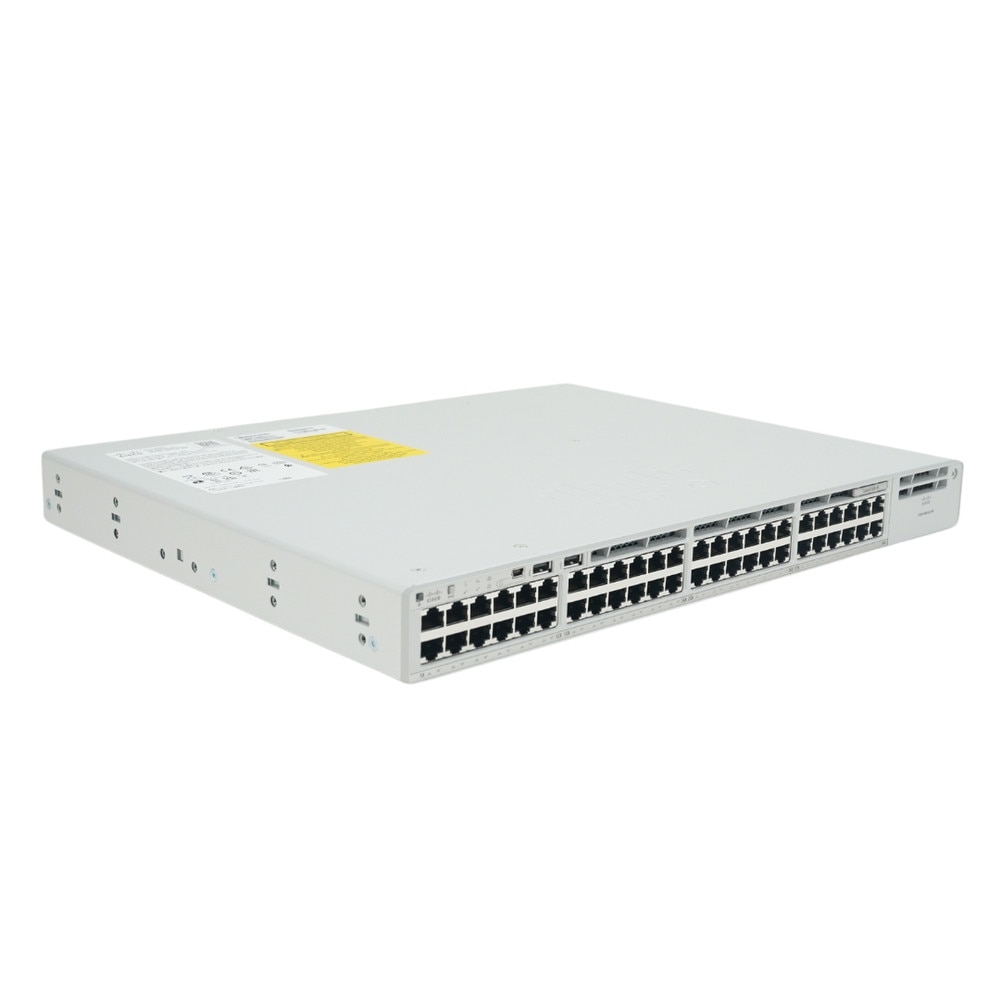

Overview of Cisco Catalyst C9200-48T-E 48-Port Data Only Network Essentials Switch | New
The Cisco Catalyst C9200-48T-E 48-Port Data Only Network Essentials Switch is a high-performance networking device that provides fast and dependable connectivity. Its 48x 1GB RJ45 ports are ample enough to connect multiple devices in your network. This switch has one module slot for convenient expansion. The C9200-48T-E has impressive switching capabilities of up to 176 Gbps (or an even higher capacity of 336 Gbps when stacked), ensuring fast and seamless data transfer throughout your network infrastructure. It also has a forwarding rate of up to 130.95 Mpps (which can be increased to 250 Mpps with stacking), ensuring seamless traffic flow. With a MAC Address Table Size of 32,000 entries, this Cisco Catalyst switch allows for efficient address handling and management in your network environment.
Key Features of Cisco Catalyst C9200-48T-E 48-Port Data Only Network Essentials Switch
● Up to 48 ports of full Power over Ethernet Plus (PoE+) capability
● Resiliency with Field-Replaceable Units (FRU) and redundant power supply, fans, and modular uplinks
● Flexible downlink options with data or PoE+
● Operational efficiency with optional backplane stacking, supporting stacking bandwidth up to 160 Gbps
● UADP 2.0 Mini with integrated CPU offers customers optimized scale with better cost structure
● Enhanced security with AES-128 MACsec encryption, policy-based segmentation, and trustworthy systems
● Layer 3 capabilities, including OSPF, EIGRP, ISIS, RIP, and routed access
● Advanced network monitoring using Full Flexible NetFlow
● Cisco Software-Defined Access (SD-Access):
◦ Simplified operations and deployment with policy-based automation from edge to cloud managed with Cisco Identity Services Engine (ISE)
◦ Network assurance and improved resolution time through Cisco DNA Center™
● Plug and Play (PnP) enabled: A simple, secure, unified, and integrated offering to ease new branch or campus device rollouts or updates to an existing network
● Cisco IOS XE: A Common Licensing based operating system for the enterprise Cisco Catalyst 9000 product family with support for model-driven programmability and streaming telemetry
● ASIC with programmable pipeline and micro-engine capabilities, along with template-based, configurable allocation of Layer 2 and Layer 3 forwarding, Access Control Lists (ACLs), and Quality of Service (QoS) entries
Specifications
Specifications for Cisco Catalyst C9200-48T-E 48-Port Data Only Network Essentials Switch | New
| Manufacturer | Cisco |
| Manufacturer Part Number | C9200-48T-E |
| Product Name | Cisco Catalyst C9200-48T-E 48-Port Data Only Network Essentials Switch |
| Product Type | Networking Switch |
Enclosure Type | Rack-mountable |
Subtype | Gigabit Ethernet |
Ports | 48 x 10/100/1000 |
Performance | Stacking bandwidth: 160 Gbps ¦ Switching bandwidth: 176 Gbps ¦ Forwarding rate: 261.9 Mpps |
Capacity | Virtual networks: 4 ¦ IPv4 routing table entries: 4000 ¦ IPv6 routing table entries: 2000 ¦ Flexible NetFlow entries: 16000 ¦ Packet buffer size: 6 MB ¦ VLAN IDs: 4096 ¦ Switched virtual interfaces (SVIs): 1000 |
MAC Address Table Size | 32000 entries |
Jumbo Frame Support | 9198 bytes |
Routing Protocol | OSPF, RIP, IS-IS, RIP-1, RIP-2, EIGRP, VRRP, PIM-SM, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng, MSTP |
Remote Management Protocol | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF |
Encryption Algorithm | 128-bit AES |
Features | ARP support, Spanning Tree Protocol (STP) support, Quality of Service (QoS), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Remote Switch Port Analyzer (RSPAN), Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), Flexible NetFlow (FNF), Cisco StackWise-160 technology, DiffServ Code Point (DSCP) support, MACsec support, Control plane protection (CoPP), Switched Port Analyzer (SPAN), Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR) |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP) |
RAM | 4 GB |
Flash Memory | 4 GB |

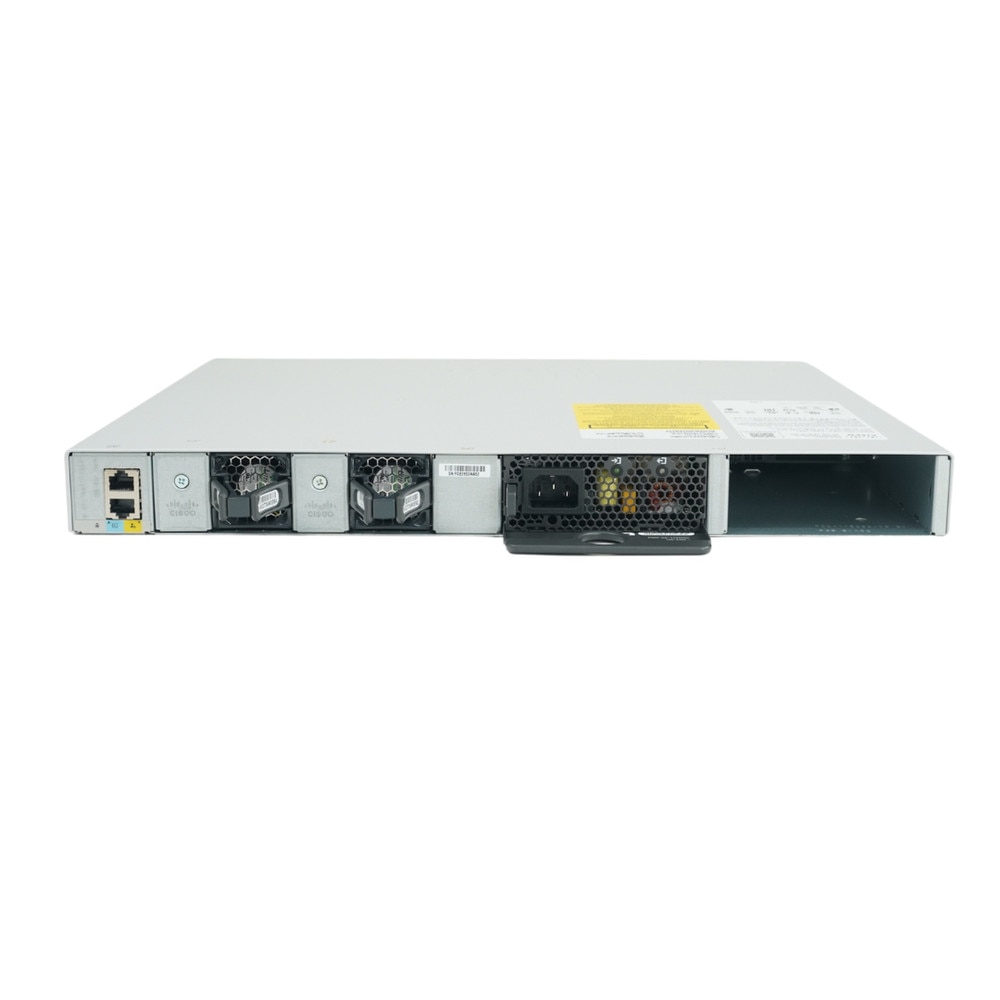

Interfaces | 48 x 10/100/1000 Base-T RJ-45 ¦ 1 x network stack device ¦ 1 x management (LAN) RJ-45 ¦ 1 x console RJ-45 |
Expansion Slots | 1 (total) / 1 (free) x expansion slot |
Power Device | Internal power supply - hot-plug |
Max Supported Qty | 2 |
Power Redundancy | Optional |
Power Provided | 125 Watt |
Voltage Required | AC 100-240 V (50 - 60 Hz) |
MTBF | 571,440 hours |
Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CNS 13438, EN 55022 Class A, FCC CFR47 Part 15 B Class A, EN 300 386, KN32, KN35, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317, CISPR 35 |
Width | 17.5 in |
Depth | 13.8 in |
Height | 1.7 in |
Weight | 11.02 lbs |
Humidity Range Operating | 5 - 90% (non-condensing) |
Min Storage Temperature | -40 °F |
Max Storage Temperature | 158 °F |
Humidity Range Storage | 5 - 90% (non-condensing) |
User Guides
Frequently Asked Questions
Cisco Catalyst C9200-48T-E 48-Port Data Only Network Essentials Switch
Frequently Asked Questions (FAQ's)
How many 10/100/1000 copper ports does the C9200-48T-E have? The C9200-48T-E has 48 10/100/1000 copper ports.
What is the uplink configuration for this switch? It features modular uplink options.
What is the default primary AC power supply? The default primary AC power supply is PWR-C6-125WAC.
Are the fans field-replaceable? Yes, the fans are FRU (Field Replacement Unit) redundant.
What software package does it come with? It includes the Network Essentials software bundle.
What are the chassis dimensions? The chassis dimensions are 1.73 x 17.5 x 13.8 inches (4.4 x 44.5 x 35.0 cm).
How many virtual networks does it support? It supports 4 virtual networks.
What is the stacking bandwidth? The stacking bandwidth is 160 Gbps.
How many MAC addresses can it support? It can support up to 32,000 MAC addresses.
What is the IPv4 routing capacity? It supports 4,000 IPv4 routing entries.
What is the IPv6 routing capacity? It supports 2,000 IPv6 routing entries.
How many multicast routing entries can it handle? It can handle 1,000 multicast routing entries.
What is the QoS scale entry capacity? It has a capacity of 1,000 QoS scale entries.
How many ACL scale entries does it support? It supports 1,600 ACL scale entries.
What is the packet buffer size? It has 6 MB buffers for 24- or 48-port Gigabit Ethernet models.
How much DRAM and Flash memory does it have? It has 4 GB of DRAM and 4 GB of Flash memory.
How many VLAN IDs does it support? It supports 4,096 VLAN IDs.
What is the maximum jumbo frame size? It supports jumbo frames up to 9,198 bytes.
What is the switching capacity? The switching capacity is 176 Gbps.
What is the forwarding rate? The forwarding rate is 261.9 Mpps (Million packets per second)
