Cisco Catalyst C9130AXI Series Access Point (C9130AXI-B) | New
SKU: C9130AXI-B-N
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us
Same Day Shipping - Arrives in 3-5 Business Days 30-day Returns Overview
Overview of Cisco Catalyst C9130AXI Series Access Point (C9130AXI-B) | New
With the Cisco® Catalyst® 9130AXI Wireless Access Point, you can create high-performance wireless networks. This wireless access point, which is suitable for networks of all sizes, supports IoT applications and assists businesses in reaping the full benefits of Wi-Fi® 6 technology. System administrators can use this access point to divide bandwidth into smaller frequency packets and assign them to individual customers in both the downlink and uplink directions. This decreases network overhead and latency, resulting in increased efficiency.
This Cisco Catalyst access point maximizes throughput by including eight spatial streams and a multiuser multiple input, multiple output (MU-MIMO) framework. The Flexible Radio Assignment (FRA) function assists the device in determining operating modes based on the radio frequency environment and traffic demands. This Cisco wireless access point includes an in-built wireless controller that enables extensive wireless LAN functionality without the use of a hardware controller. This switch provides faster data transmission and over-the-air downloads thanks to the embedded Bluetooth® Low Energy (BLE) 5 radio.
Specifications
Specifications for Cisco Catalyst C9130AXI Series Access Point (C9130AXI-B) | New
| Brand | Cisco |
| Product Line | Cisco Catalyst |
| Model | 9130AXI |
| Manufacturer | Cisco Systems |
| Flash Memory Installed | 1 GB |
| RAM Installed | 2 GB |

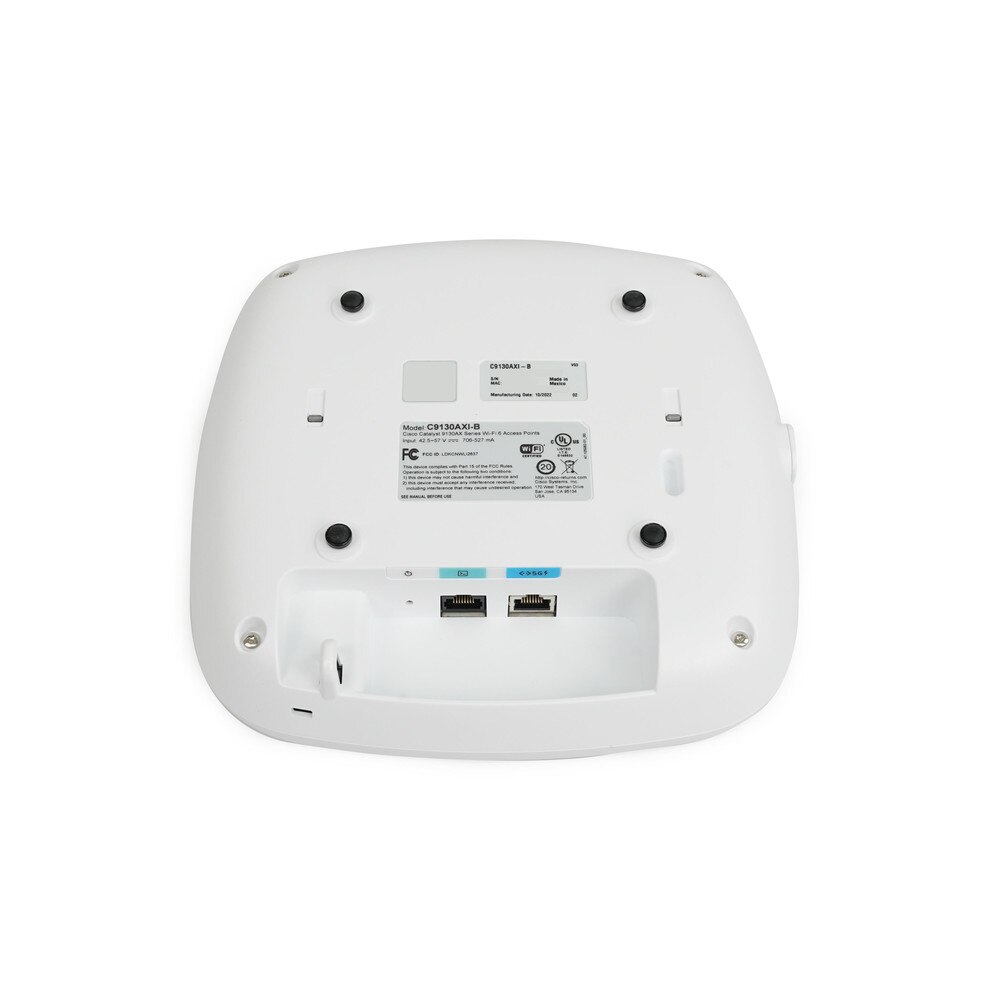

| Interface Provided | 1 x 1/2.5/5GBase-T (UPOE) - RJ-45, 1 x management - RJ-45, 1 x USB 2.0 |
| Antenna Form Factor | Internal |
| Encryption | AES, EAP-FAST, EAP-SIM, PEAP, TLS, TTLS, WPA2, WPA3 |
| Internet of Things (IoT) Compatible | Yes |
| Line Coding Format | OFDMA |
| Max Operating Temperature | 122 degree Fahrenheit |
| Min Operating Temperature | 32 degree Fahrenheit |
| Operating Humidity | 10 - 90% (non-condensing) |
| Country | United States |
| IoT Communications Technology | Bluetooth Low Energy (LE), Zigbee |
| Packaged Quantity | 1 |
| Ruggedized Design | Indoor |
| Service Activation | No |

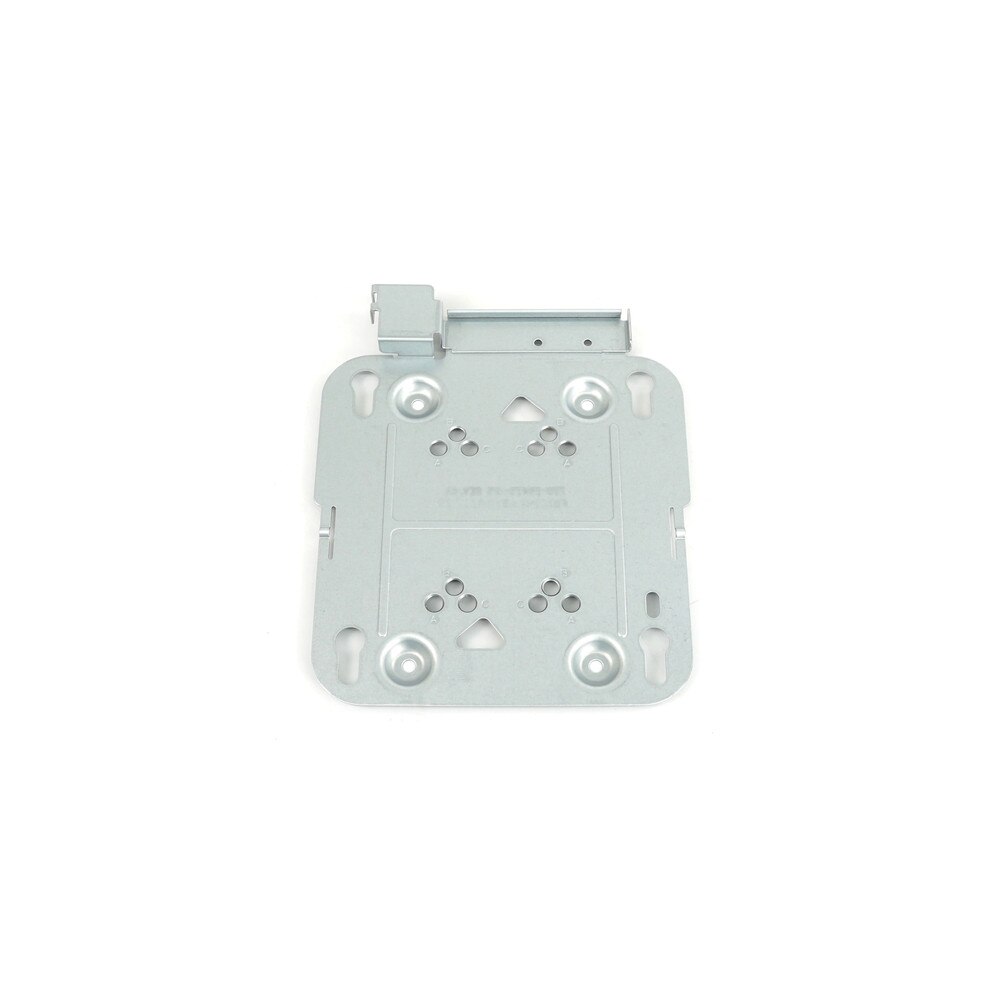

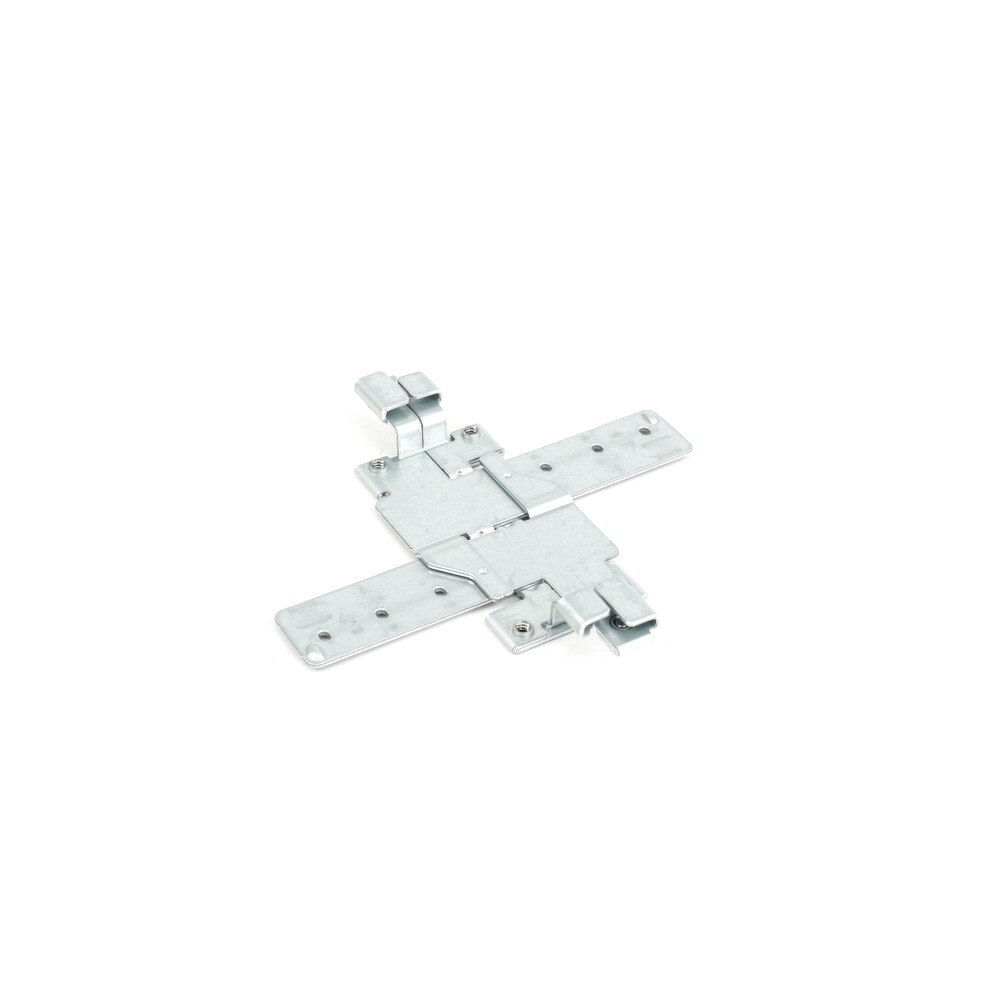

| Included Accessories | Ceiling grid clip, Low profile bracket |
| Height | 1.9 inch |
| Weight | 3.2 lbs |
| Width | 8.9 inch |
| Depth | 8.9 inch |
| Color Category | White |
User Guides
Frequently Asked Questions
Cisco Catalyst C9130AXI Access Point
Frequently Asked Questions (FAQ's)
What is the Cisco Catalyst C9130AXI Access Point? The Cisco Catalyst C9130AXI is a next-generation Wi-Fi 6 (802.11ax) access point designed for high-density environments, offering improved performance, security, and scalability for modern wireless networks.
What is the maximum number of access points supported in a Cisco wireless deployment with C9130AXI? The maximum number of access points that can be supported in a Cisco wireless network depends on the Cisco Wireless Controller used. For example, Cisco’s Catalyst 9800 Series Wireless Controllers can manage up to 1,000 access points per controller in a high-density deployment
What is the maximum data rate of the C9130AXI Access Point? The C9130AXI can deliver up to 5.38 Gbps of aggregate throughput across multiple bands (2.4 GHz, 5 GHz).
Does the C9130AXI support Wi-Fi 6 (802.11ax)? Yes, the C9130AXI supports Wi-Fi 6, which enables faster speeds, increased capacity, and better performance in dense environments compared to previous Wi-Fi standards.
How many radios does the Cisco C9130AXI have? The C9130AXI has a total of 4 radios: one for 2.4 GHz, two for 5 GHz, and a dedicated radio for Bluetooth Low Energy (BLE) and Zigbee.
What is the purpose of the BLE and Zigbee radios in the C9130AXI? The BLE and Zigbee radios enable the access point to support Internet of Things (IoT) devices, such as smart sensors, wearables, and beacons, which use these protocols.
What type of power is required for the Cisco C9130AXI? The C9130AXI requires Power over Ethernet (PoE) for operation, specifically 802.3at (PoE+) or 802.3bt (PoE++). It also supports a 5GbE Ethernet uplink for high-speed backhaul.
What are the Ethernet ports available on the Cisco C9130AXI? The C9130AXI features a 1 x 5GbE (multi-gigabit) port and a 1 x 2.5GbE port for uplink and downlink connectivity.
Can the C9130AXI be used in outdoor environments? No, the C9130AXI is an indoor access point designed for use in enterprise environments. Cisco has other models, like the Catalyst 9100 series, that are specifically designed for outdoor deployment.
How many clients can the C9130AXI support? The C9130AXI can support up to 1024 clients simultaneously, depending on the deployment scenario and client behavior.
What is the Cisco CleanAir technology in the C9130AXI? Cisco CleanAir is a feature that helps to identify and mitigate RF interference from non-Wi-Fi sources, optimizing wireless performance and reducing disruptions in high-density areas.
Does the C9130AXI support MU-MIMO (Multi-User MIMO)? Yes, the C9130AXI supports MU-MIMO, allowing it to handle multiple devices simultaneously, improving efficiency and capacity in dense environments.
What is Target Wake Time (TWT) and how is it supported on the C9130AXI? TWT is a Wi-Fi 6 feature that improves battery life on client devices by scheduling when they should wake up and communicate with the access point. The C9130AXI fully supports TWT for enhanced energy efficiency in IoT and mobile devices.
What are the management options available for the C9130AXI? The C9130AXI can be managed through Cisco DNA Center for centralized network management or using Cisco Meraki Cloud Management. It also supports traditional management via Cisco IOS and Cisco Prime Infrastructure.
Can the C9130AXI be deployed in a mesh network? Yes, the C9130AXI supports wireless mesh technology, enabling it to extend network coverage and provide wireless backhaul in challenging environments where wired connections are not feasible.
Does the C9130AXI support WPA3 encryption? Yes, the C9130AXI supports WPA3, the latest Wi-Fi security standard that provides stronger encryption and enhanced protection against brute-force attacks compared to WPA2.
CWhat is the Cisco Catalyst 9800 Series Wireless Controller? The Cisco Catalyst 9800 Series Wireless Controllers are designed to work with the Catalyst C9130AXI Access Points, providing centralized management, security, and scalability for large wireless networks.
What is Cisco's intent-based networking for the C9130AXI? Intent-based networking leverages machine learning and automation to optimize network performance. The C9130AXI works seamlessly with Cisco’s DNA Center to implement intent-based policies, ensuring that the network is always aligned with business goals.
How do I upgrade the firmware on the Cisco C9130AXI? Firmware on the C9130AXI can be upgraded via Cisco DNA Center, Cisco Prime Infrastructure, or manually using a TFTP/FTP server. Ensure that you download the latest release from Cisco's official website for optimal performance and security.
Does the C9130AXI support Wi-Fi 6 (802.11ax)? Yes, the C9130AXI supports Wi-Fi 6, which enables faster speeds, increased capacity, and better performance in dense environments compared to previous Wi-Fi standards.
