Cisco Catalyst C1300-48T-4G 48-Port Gigabit Managed Network Switch | Refresh

Cisco Catalyst C1300-48T-4G 48-Port Gigabit Managed Network Switch | Refresh

SKU: C1300-48T-4G-RF
(0)No Reviews yet
Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns
$399.99 $399.99
Available Quantity:
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

Overview of Cisco Catalyst C1300-48T-4G 48-Port Gigabit Managed Network Switch | Refresh

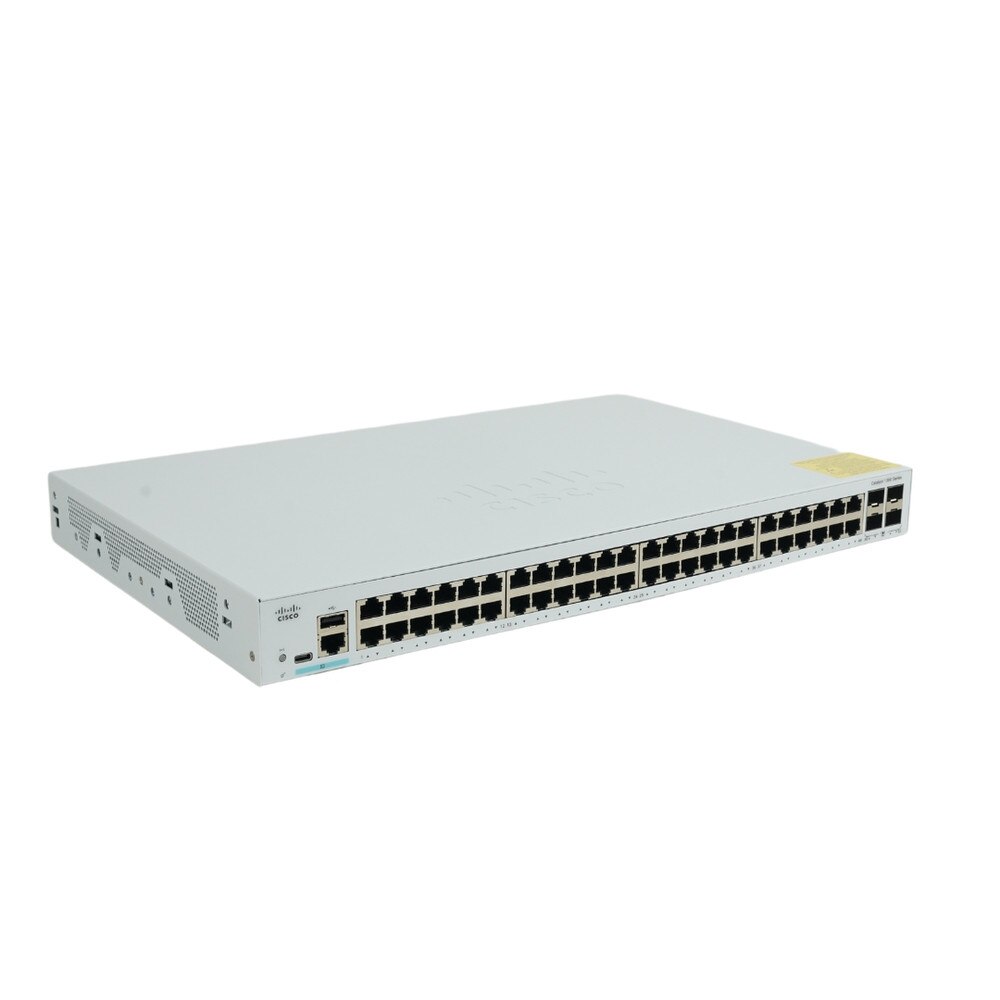

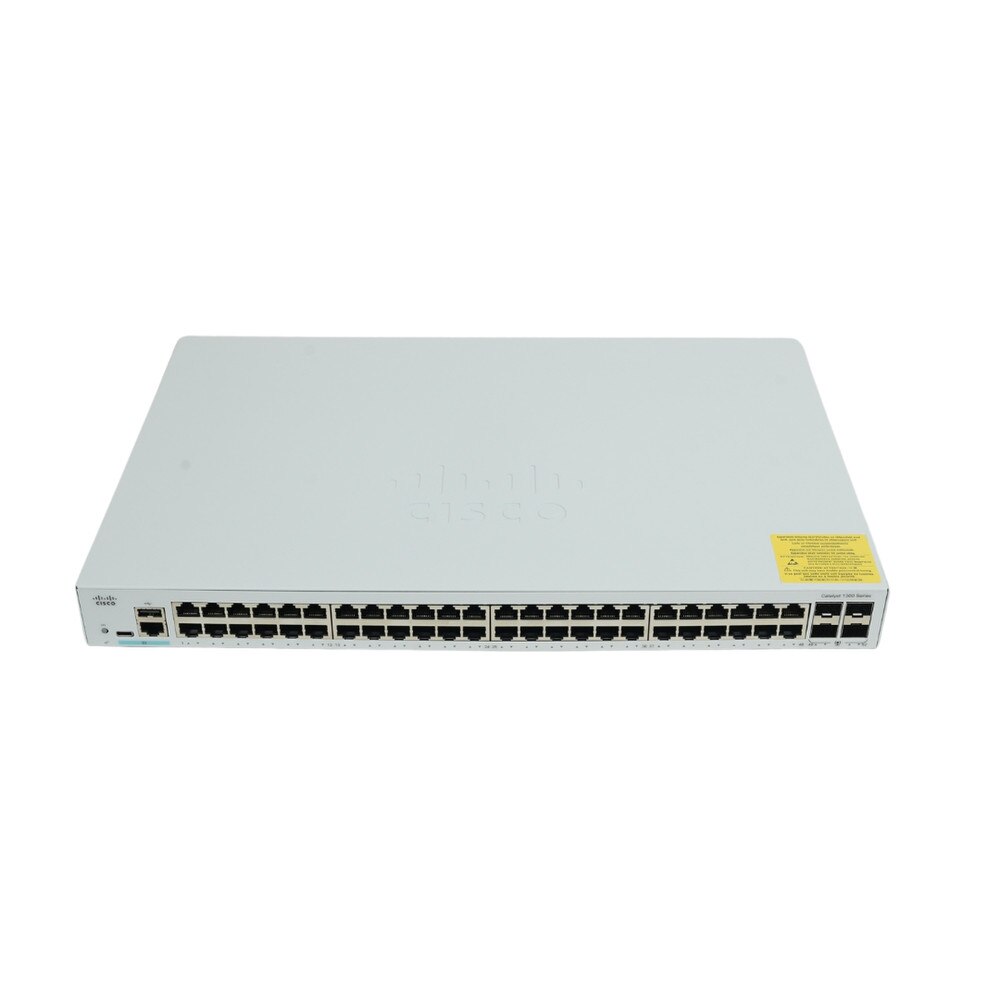

The Cisco Catalyst C1300-48T-4G 48-Port Gigabit Managed Network Switch is a powerful networking solution designed for small and medium-sized businesses. This switch combines high-performance connectivity, advanced management features, and strong security, making it ideal for modern network environments that demand scalability and dependability. The C1300-48T-4G is designed to connect IP cameras, wireless access points, and other critical network devices. This switch, which has 48 Gigabit Ethernet ports and four 1G SFP uplink ports, delivers power and data over a single cable, making installation easier and reducing clutter. The C1300-48T-4G is intended to serve as a strong foundation for your business network. Its extensive features and intelligent management capabilities make it an excellent choice for businesses looking to efficiently upgrade their network infrastructure.


Key Features of Cisco Catalyst C1300-48T-4G 48-Port Gigabit Managed Network Switch


• 48 Gigabit Ethernet Ports offers high-speed connectivity for various network devices, ensuring seamless data transfer and communication.

• Features four SFP ports for flexible uplink options, enabling easy integration with existing network infrastructure and enhancing scalability.

• Supports essential Layer 2 features, including VLANs, Quality of Service (QoS), and link aggregation, as well as Layer 3 routing capabilities for efficient data traffic management.

• Incorporates IP-MAC port binding to detect and block deliberate network attacks, along with IPv6 First Hop Security to protect against address spoofing and man-in-the-middle attacks.

• Compliant with IEEE 802.3az Energy Efficient Ethernet, optimizing power usage to lower operational costs. The fanless design ensures silent operation, making it suitable for noise-sensitive environments.

• Managed through Cisco's intuitive web interface or Cisco Business mobile app, providing centralized control and visibility for easy configuration and monitoring without requiring extensive IT expertise.

• Engineered for high reliability and performance, ensuring consistent network uptime and productivity for critical applications.

• Backed by Cisco's limited lifetime warranty and ongoing firmware updates, providing peace of mind and long-term investment protection.

Specifications

Specifications for Cisco Catalyst C1300-48T-4G 48-Port Gigabit Managed Network Switch | Refresh

Manufacturer Cisco
Manufacturer Part Number C1300-48T-4G-RF
Product Name Cisco Catalyst C1300-48T-4G 48-Port Gigabit Managed Network Switch
Product Type Switch
Enclosure Type
Rack-mountable
Subtype
Gigabit Ethernet
Ports
48 x 10/100/1000Base-T + 4 x 10 Gigabit SFP+
Performance
Forwarding rate (64‑byte packets): 77.38 Mpps ¦ Switching capacity: 100.4 Gbps
Capacity
MSTP instances: 8 ¦ RPVST+ instances: 126 ¦ Link aggregation groups: 8 ¦ Link aggregation ports: 8 ¦ VLAN IDs: 4093 ¦ IGMP multicast groups: 2000 ¦ IPv4 routes (static): up to 990 ¦ IPv4 interfaces: 128 ¦ ACL rules: 1024 ¦ Priority queues: 8 ¦ Packet buffer size: 3 MB
MAC Address Table Size
16000 entries
Jumbo Frame Support
9000 bytes
Routing Protocol
RIP-2, IGMPv2, IGMP, static IP routing, IGMPv3, policy-based routing (PBR), MLDv2, MLD, CIDR, MSTP, RSTP, STP, Bounjour
Remote Management Protocol
SNMP, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, ICMP, DHCP, RADIUS, Syslog
Encryption Algorithm
MD5, SSL
Authentication Method
RADIUS, TACACS+
Features
BOOTP support, VLAN support, IGMP snooping, DoS attack prevention, port mirroring, DiffServ support, Broadcast Storm Control, High Availability, Multicast Storm Control, Unicast Storm Control, sFlow, DHCP snooping, DHCP server, MLD snooping, reset button, STP Root Guard, DHCP relay, Port Security, DHCP client, IGMP proxy, Protocol-based VLANs support, Storm Control, MLD proxy, IP source guard, ARP inspection, MAC address authentication, IGMP querier, VLAN mirroring, DNS client, 1 fan, VLAN management, LLDP-MED, Private VLAN, RA guard, Guest VLAN, STP loop guard, EEE, DSCP based CoS, MAC based VLAN, loopback detection, Telnet server, Telnet client, Unknown Storm Control, BPDU Guard, router advertisement guard, DHCPv6 guard, Q-in-Q tunneling, IPv4 and IPv6 dual stack, Zero-Touch Deployment, cable length detection, Web authentication, PoE scheduling, trustworthy systems, layer 3 routing, dynamic routing, ACL support, eco-friendly button, Address Resolution Protocol, Auto Surveillance VLAN, CPE VLAN, TCP congestion, iSCSI traffic optimization, chip guard, boot integrity, persistent PoE, time-based port operation, MSTP support, QoS, PVST+, LACP, GARP, GVRP, ToS, SCP, SCT, SSD, UDP, DoS protection, WRR, HoL Blocking Prevention, LAG, RPVST+, DAD, LLDP, path MTU discovery, STP support, CLI management, ATP, FHS, IPMB, NDP, RSTP, PVE, MVR, TPID, UDLD, DAI, Cisco NG PnP Protocol, RSPAN
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3an, IEEE 802.3az
Processor
X ARM: 1.4 GHz
RAM
1 GB DDR4 SDRAM
Flash Memory
512 MB
Status Indicators
System, link/activity/speed
Interfaces
48 x 1000Base-T RJ-45 ¦ 4 x 10GBase-X SFP+ ¦ 1 x console RJ-45 ¦ 1 x USB-C console
Power Device
Internal power supply
Voltage Required
AC 100-240 V (50 - 60 Hz)
Included Accessories

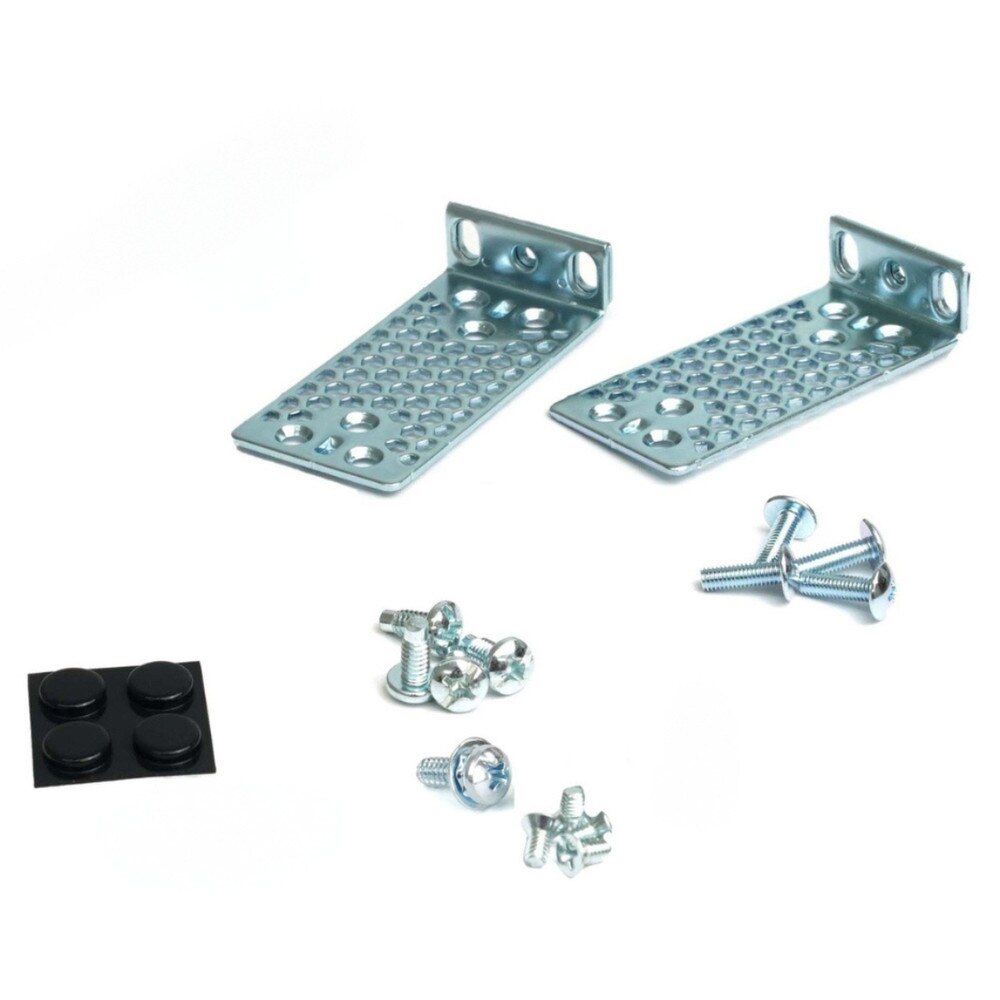

Mounting kit, pointer card
MTBF
1,452,667 hours
Compliant Standards
Plug and Play, FCC CFR47 Part 15, WEEE, CSA 22.2, RFC1213, RFC1493, RFC1757, RFC2674, RFC768, RFC791, RFC1157, RFC2460, RFC2011, RFC1643, RFC2012, RFC2013, UL 62368, RFC783, RFC792, RFC2863, RFC793, RFC826, RFC854, RFC2131, RFC2132, RFC1907, RFC1215, RFC2233, RFC2665, RFC951, RFC1542, RFC2618, RFC4443, RFC1981, RFC4861, RFC4862, RFC4291, RFC813, RFC879, RFC896, RFC855, RFC856, RFC858, RFC894, RFC919, RFC920, RFC922, RFC950, RFC1042, RFC1071, RFC1123, RFC1141, RFC1155, RFC1286, RFC1350, RFC1442, RFC1451, RFC1533, RFC1541, RFC1573, RFC1624, RFC1700, RFC1867, RFC2030, RFC2576, RFC2616, RFC2666, RFC2737, RFC2819, RFC3164, RFC3176, RFC3411, RFC3412, RFC3413, RFC3414, RFC3415, RFC3416, RFC4330, RFC4007, RFC3484, RFC5214, RFC4293, RFC3595
Width
17.5 in
Depth
11.3 in
Height
1.7 in
Weight
8.71 lbs
Service & Support
Limited warranty - lifetime - response time: next business day ¦ Technical support - consulting - 1 year
Min Operating Temperature
23 °F
Max Operating Temperature
122 °F
Humidity Range Operating
10 - 90% RH (non-condensing)
Min Storage Temperature
-13 °F
Max Storage Temperature
158 °F
Humidity Range Storage
10 - 90% RH (non-condensing)

User Guides

Cisco Catalyst 1300 Series Switches Data Sheet

Frequently Asked Questions

Cisco Catalyst C1300-48T-4G 48-Port Gigabit Managed Network Switch
Frequently Asked Questions (FAQ's)



What is the Cisco Catalyst C1300-48T-4G?
  • It is a 48-port managed Gigabit Ethernet network switch with 4 Gigabit SFP uplink ports that is intended for medium to large networks.
    • What are the key features of the Cisco Catalyst C1300-48T-4G?
  • The main features are 48 Gigabit Ethernet ports, 4 Gigabit SFP uplink ports, advanced Layer 2 and Layer 3 features, network security, and scalability options.
    • What is the maximum forwarding capacity of the Cisco Catalyst C1300-48T-4G?
  • The switch is capable of forwarding up to 176 Gbps.
    • Does the Cisco Catalyst C1300-48T-4G support PoE (Power over Ethernet)?
  • Unfortunately, this model does not support PoE.
    • What types of ports are available on the Cisco Catalyst C1300-48T-4G?
  • It features 48 Gigabit Ethernet ports and four Gigabit SFP uplink ports.
    • What is the form factor of the Cisco Catalyst C1300-48T-4G?
  • The switch can be mounted in a 1U rack.
    • Can the Cisco Catalyst C1300-48T-4G be used in a stack configuration?
  • Unfortunately, this model does not support stacking.
    • What security features does the Cisco Catalyst C1300-48T-4G offer?
  • It supports Access Control Lists (ACLs), 802.1X authentication, DHCP Snooping, and port security.
    • What Layer 3 features are supported by the Cisco Catalyst C1300-48T-4G?
  • It works with static routing, Routing Information Protocol (RIP), and Enhanced Interior Gateway Routing Protocol (EIGRP).
    • What is the power consumption of the Cisco Catalyst C1300-48T-4G?
  • The switch draws approximately 90 watts.
    • Does the Cisco Catalyst C1300-48T-4G support VLANs?
  • Yes, it supports VLANs and can create and manage multiple VLANs.
    • What is the maximum number of MAC addresses supported by the Cisco Catalyst C1300-48T-4G?
  • It can handle up to 16,000 MAC addresses.
    • Is the Cisco Catalyst C1300-48T-4G compatible with Cisco's network management software?
  • Yes, it works with Cisco DNA, Prime Infrastructure, and other Cisco network management tools.
    • What are the cooling requirements for the Cisco Catalyst C1300-48T-4G?
  • The switch includes internal fans for cooling and should be installed in a well-ventilated rack.
    • How is the Cisco Catalyst C1300-48T-4G powered?
  • It is powered by an AC power supply with an input voltage of 100-240V.
    • What are the dimensions of the Cisco Catalyst C1300-48T-4G?
  • The dimensions are about 44.5 x 30.5 x 4.4 cm (17.5 x 12 x 1.7 in.).
    • Can the Cisco Catalyst C1300-48T-4G be used in a data center environment?
  • Yes, it is suitable for both data center and enterprise network
    • What are the software requirements for managing the Cisco Catalyst C1300-48T-4G?
  • To manage and configure it, Cisco IOS software is required.
    • Does the Cisco Catalyst C1300-48T-4G support QoS (Quality of Service)?
  • Yes, it includes QoS features for prioritizing traffic and ensuring peak performance for critical applications.
    • What management options are available for the Cisco Catalyst C1300-48T-4G?
  • It provides management through a web-based GUI, CLI (Command Line Interface), and SNMP (Simple Network Management Protocol).
