Overview of Cisco Catalyst C1300-24FP-4X 24-Port Gigabit PoE+ Managed Network Switch | Refresh

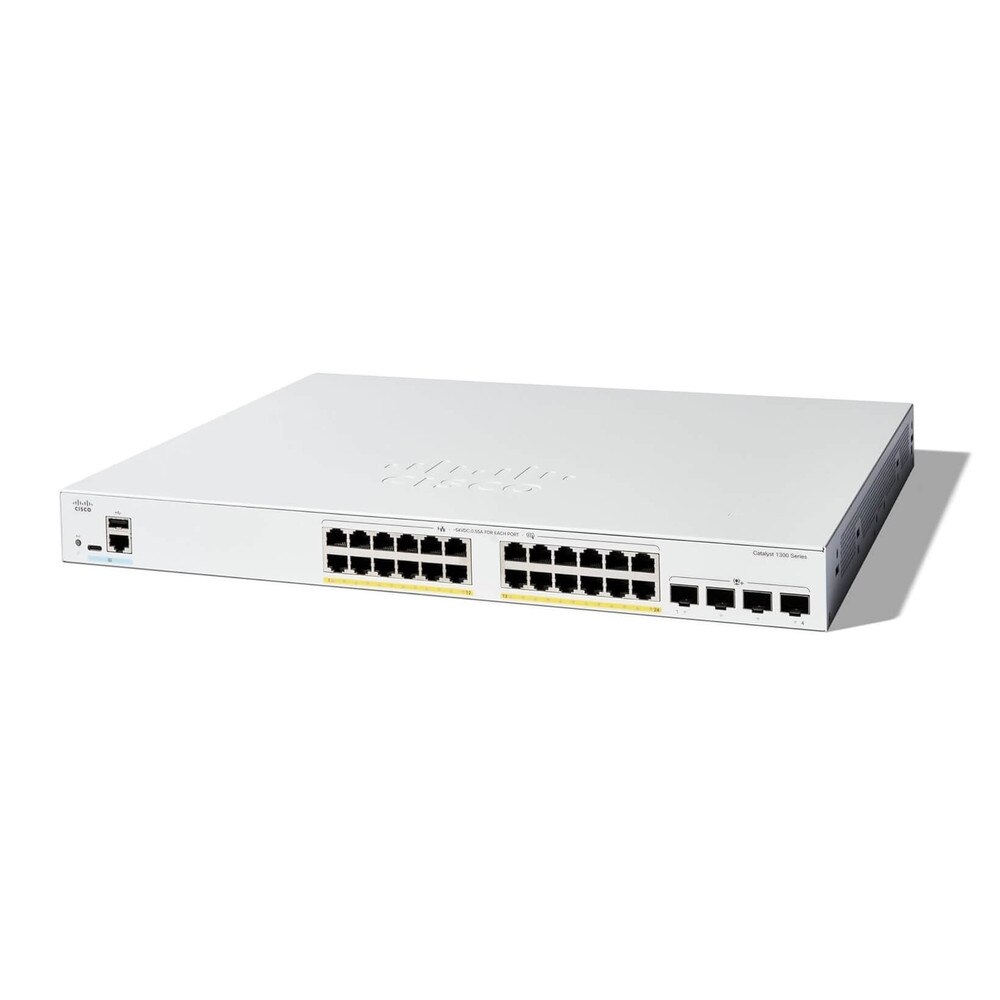

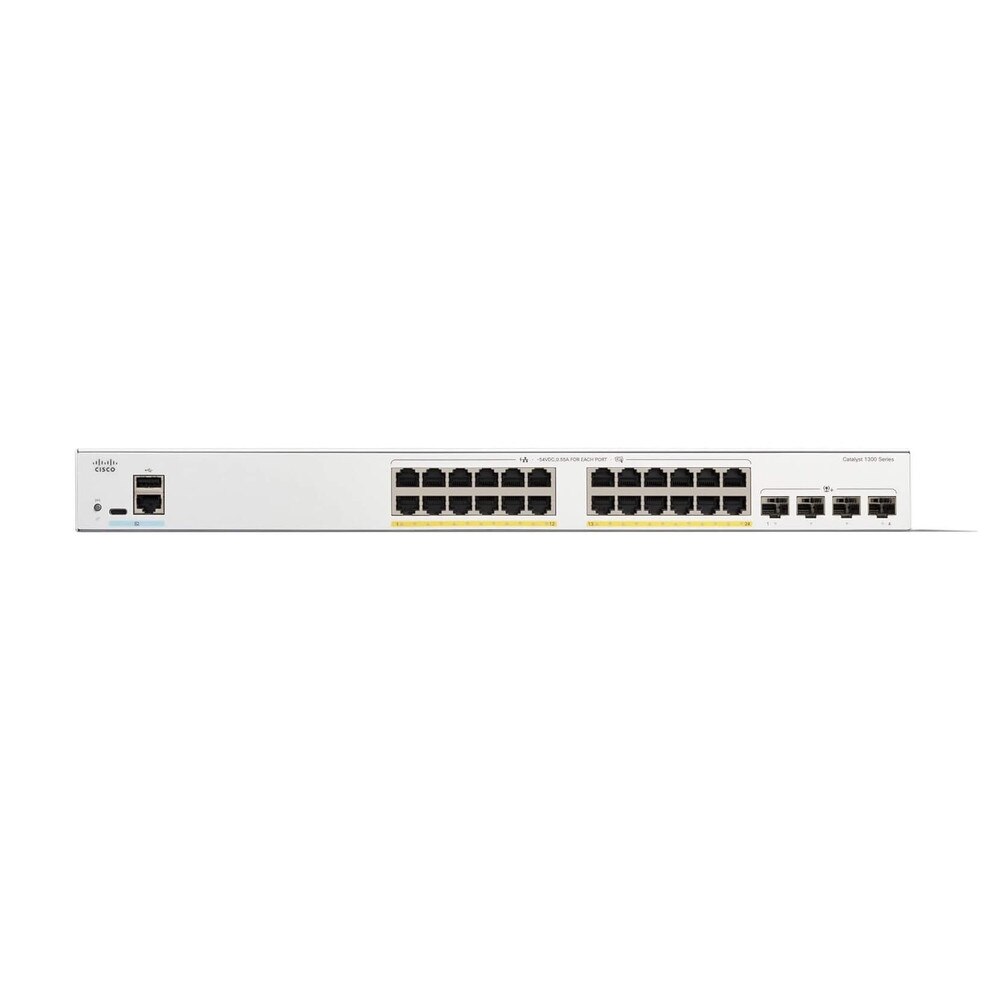

The Cisco Catalyst C1300-24FP-4X 24-Port Gigabit PoE+ Managed Network Switch is an enterprise-grade, Layer 3 switch designed for expanding companies. It has 24 auto-sensing 10/100/1000 PoE+ ports and a strong 370W PoE power budget, making it perfect for high-density IP phones, cameras, access points and other powered devices. In addition to offering lightning-fast fiber connectivity and seamless network growth, four dedicated 10G SFP+ uplinks also simplify operations across campuses, branches and smart offices with sophisticated stacking, security and user-friendly administration tools.
Key Features of Cisco Catalyst C1300-24FP-4X 24-Port Gigabit PoE+ Managed Network Switch
• 24 x Gigabit PoE+ ports with 370W total PoE+ budget powers APs, VoIP phones and security cameras directly over Ethernet cables.
• 4 x 10G SFP+ uplinks with dedicated high-speed fiber uplinks deliver uninterrupted backbone and stacking scalability.
• Advanced Layer 2/3 management with VLAN support, static/dynamic routing, link aggregation and broadcast/multicast control for traffic reliability.
• Stacking support that seamlessly stack up to eight switches for unified, failover-protected management and hardware-level resilience.
• Secure network operations with 802.1X, ACLs, MAC-based authentication and role-based administration enhance data and user protection.
• Energy-efficient architecture that low idle power and dynamic PoE allocation reduce heat and operational costs.
• User-friendly dashboard that deploy, configure and monitor the switch with web GUI, CLI and SNMP support for easy administration.
• Enterprise build quality with compact 1U rackmount (445 x 345 x 44 mm, 4.92 kg) with internal power supply for streamlined server rooms.
• Comprehensive status indicators that system, PoE and port LEDs enable rapid troubleshooting and uptime assurance.
Benefits of Cisco Catalyst C1300-24FP-4X 24-Port Gigabit PoE+ Managed Network Switch
🗹 Power more, manage less that consolidate PoE+ power and network connectivity for all critical devices, simplifying infrastructure and cabling.
🗹 Scale fast and flexibly that instantly add ports or switches, aggregate bandwidth and boost backbone performance as teams and technologies grow.
🗹 Reliable, high-speed access with dedicated uplinks and advanced switching keep business applications, voice and video traffic running smoothly.
🗹 Future-ready, secure operation: Multi-layer security and intelligent management guard data integrity and compliance as your network evolves.
🗹 Reduce operating costs with low power use, efficient cooling and centralized management tools cut total cost-of-ownership for savvy businesses.
🗹 Ideal for business of all sizes with robust capabilities and affordable pricing deliver enterprise switching for SMBs and expanding branches.
Specifications
Specifications for Cisco Catalyst C1300-24FP-4X 24-Port Gigabit PoE+ Managed Network Switch | Refresh
| Manufacturer | Cisco |
| Manufacturer Part Number | C1300-24FP-4X-RF |
| Product Name | Cisco Catalyst C1300-24FP-4X 24-Port Gigabit PoE+ Managed Network Switch |
| Product Type | Switch |
| Enclosure Type | Rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 24 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 375 W |
| Performance | Forwarding rate (64‑byte packets): 95.23 Mpps | Switching capacity: 128 Gbps |
| Capacity | MSTP instances: 8 | RPVST+ instances: 126 | Link aggregation groups: 8 | Link aggregation ports: 8 | VLAN IDs: 4093 | IGMP multicast groups: 2000 | IPv4 routes (static): up to 990 | IPv4 interfaces: 128 | ACL rules: 1024 | Priority queues: 8 | Packet buffer size: 1.5 MB |
| MAC Address Table Size | 16000 entries |
| Jumbo Frame Support | 9000 bytes |
| Max Units In A Stack | 8 |
| Routing Protocol | RIP-2, IGMPv2, IGMP, static IP routing, IGMPv3, policy-based routing (PBR), MLDv2, MLD, CIDR, MSTP, RSTP, STP, Bounjour |
| Remote Management Protocol | SNMP, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, ICMP, DHCP, RADIUS, Syslog |
| Encryption Algorithm | MD5, SSL |
| Authentication Method | RADIUS, TACACS+ |
| Features | BOOTP support, VLAN support, IGMP snooping, DoS attack prevention, port mirroring, DiffServ support, Broadcast Storm Control, High Availability, Multicast Storm Control, Unicast Storm Control, sFlow, DHCP snooping, DHCP server, MLD snooping, reset button, STP Root Guard, DHCP relay, Port Security, DHCP client, IGMP proxy, Protocol-based VLANs support, Storm Control, MLD proxy, IP source guard, ARP inspection, MAC address authentication, IGMP querier, VLAN mirroring, DNS client, 1 fan, VLAN management, LLDP-MED, Private VLAN, RA guard, Guest VLAN, STP loop guard, EEE, DSCP based CoS, MAC based VLAN, loopback detection, Telnet server, Telnet client, Unknown Storm Control, BPDU Guard, router advertisement guard, DHCPv6 guard, Q-in-Q tunneling, IPv4 and IPv6 dual stack, Zero-Touch Deployment, cable length detection, Web authentication, PoE scheduling, trustworthy systems, layer 3 routing, dynamic routing, ACL support, eco-friendly button, Address Resolution Protocol, Auto Surveillance VLAN, CPE VLAN, TCP congestion, iSCSI traffic optimization, chip guard, boot integrity, persistent PoE, time-based port operation, MSTP support, QoS, PVST+, LACP, GARP, GVRP, ToS, SCP, SCT, SSD, UDP, DoS protection, WRR, HoL Blocking Prevention, LAG, RPVST+, DAD, LLDP, path MTU discovery, STP support, CLI management, ATP, FHS, IPMB, NDP, RSTP, PVE, MVR, TPID, UDLD, DAI, Cisco NG PnP Protocol, RSPAN |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.3an, IEEE 802.3at, IEEE 802.3az |
| Processor | X ARM: 1.4 GHz |
| RAM | 1 GB DDR4 SDRAM |
| Flash Memory | 512 MB |
| Status Indicators | System, PoE, link/activity/speed |
| Interfaces | 24 x 10/100/1000 Base-T (PoE+) RJ-45 | 4 x 10GBase-X SFP+ | 1 x console RJ-45 | 1 x USB-C console |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V (50 - 60 Hz) |
| Included Accessories | Mounting kit, pointer card |
| MTBF | 698,220 hours |
| Compliant Standards | Plug and Play, FCC CFR47 Part 15, WEEE, CSA 22.2, RFC1213, RFC1493, RFC1757, RFC2674, RFC768, RFC791, RFC1157, RFC2460, RFC2011, RFC1643, RFC2012, RFC2013, UL 62368, RFC783, RFC792, RFC2863, RFC793, RFC826, RFC854, RFC2131, RFC2132, RFC1907, RFC1215, RFC2233, RFC2665, RFC951, RFC1542, RFC2618, RFC4443, RFC1981, RFC4861, RFC4862, RFC4291, RFC813, RFC879, RFC896, RFC855, RFC856, RFC858, RFC894, RFC919, RFC920, RFC922, RFC950, RFC1042, RFC1071, RFC1123, RFC1141, RFC1155, RFC1286, RFC1350, RFC1442, RFC1451, RFC1533, RFC1541, RFC1573, RFC1624, RFC1700, RFC1867, RFC2030, RFC2576, RFC2616, RFC2666, RFC2737, RFC2819, RFC3164, RFC3176, RFC3411, RFC3412, RFC3413, RFC3414, RFC3415, RFC3416, RFC4330, RFC4007, RFC3484, RFC5214, RFC4293, RFC3595 |
| Width | 17.5 in |
| Depth | 13.6 in |
| Height | 1.7 in |
| Weight | 10.14 lbs |
| Service & Support | Limited warranty - lifetime - response time: next business day | Technical support - consulting - 1 year |
| Min Operating Temperature | 23 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 90% RH (non-condensing) |
| Min Storage Temperature | -13 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 5 - 90% RH (non-condensing) |
User Guides
Frequently Asked Questions
Cisco Catalyst C1300-24FP-4X 24-Port Gigabit PoE+ Managed Network Switch
Frequently Asked Questions (FAQ's)
What is the total PoE power budget of the Cisco Catalyst C1300-24FP-4X? The switch offers a total PoE power budget of up to 370W, which is distributed across 24 PoE+ ports.
Does the Cisco Catalyst C1300-24FP-4X support Layer 3 routing? No, this switch is Layer 2 managed and does not have Layer 3 routing capabilities.
Can the Cisco Catalyst C1300-24FP-4X be managed remotely? Yes, the switch can be managed remotely using a web-based interface, CLI, or Cisco's network management tools.
What types of uplink ports are available on the Cisco Catalyst C1300-24FP-4X? The switch has four 10 Gigabit SFP+ uplink ports for fast network connections.
Is the Cisco Catalyst C1300-24FP-4X stackable? No, this switch is not stackable; it is intended to function as a standalone switch with extensive management capabilities.
What security features are included in the Cisco Catalyst C1300-24FP-4X? The switch includes security features like 802.1X authentication, Access Control Lists (ACLs), and port security.
Does the switch support VLAN configuration? Yes, the Cisco Catalyst C1300-24FP-4X supports VLANs, which enables effective network segmentation.
What is the maximum data throughput of the Cisco Catalyst C1300-24FP-4X? The switch can switch at full-duplex Gigabit Ethernet speeds of up to 56 Gbps.
Does the Cisco Catalyst C1300-24FP-4X support energy-efficient features? Yes, the switch includes Cisco's Energy Efficient Ethernet (EEE) technology, which reduces power consumption.
Can the PoE ports be prioritized for critical devices? Yes, you can set up PoE port prioritization to ensure power delivery to critical devices such as IP phones and cameras.
How many VLANs can be configured on the Cisco Catalyst C1300-24FP-4X? The switch can handle up to 256 active VLANs for network segmentation.
Does the switch support Quality of Service (QoS)? Yes, the switch supports QoS, which prioritizes critical network traffic and improves performance for voice and video applications.
Is the Cisco Catalyst C1300-24FP-4X suitable for high-density deployments? Yes, with 24 PoE+ ports and high-speed uplinks, it is ideal for high-density network configurations.
What management options are available for the Cisco Catalyst C1300-24FP-4X? Management can be performed using a web-based GUI, a CLI, or one of Cisco's network management solutions, such as Cisco DNA Center.
What is the operating temperature range of the Cisco Catalyst C1300-24FP-4X? The switch works in temperatures ranging from 0°C to 40°C (32°F to 104°F).
Does the Cisco Catalyst C1300-24FP-4X support IPv6? Yes, the switch supports IPv6, which will help to future-proof your network.
What kind of devices can be powered using the PoE+ ports? PoE+ ports can power devices like IP phones, wireless access points, and IP cameras.
How can I update the firmware on the Cisco Catalyst C1300-24FP-4X? Firmware updates can be performed via the web interface, command line interface, or Cisco network management tools.
Is there a fan in the Cisco Catalyst C1300-24FP-4X, and is it noisy? Yes, the switch has internal fans, but they are intended to run quietly in office settings.
Can the Cisco Catalyst C1300-24FP-4X be rack-mounted? Yes, the switch is rack-mountable and includes all of the hardware required for installation in a standard 19-inch rack.
