Overview of Cisco Catalyst C1200-48T-4X 48-Port Gigabit Managed Network Switch | Refresh
The Cisco Catalyst C1200-48T-4X 48-Port Gigabit Managed Network Switch is a robust networking solution for small to medium-sized businesses that demand high performance and dependability. This smart-managed switch offers extensive connectivity options, advanced features, and strong security measures, making it an excellent choice for improving your network infrastructure. The C1200-48T-4X is designed to be a strong foundation for your business network. Its extensive port configuration and advanced features make it ideal for a wide range of applications, including enterprise networks and educational institutions. The switch's dependable performance and security features ensure that it can meet the changing needs of modern network environments.
Key Features of Cisco Catalyst C1200-48T-4X 48-Port Gigabit Managed Network Switch
• 48 Gigabit Ethernet Ports provides ample high-speed connectivity for various network devices, ensuring reliable data transfer and communication.
• 4 10-Gigabit SFP+ Uplink Ports offers flexible and high-speed uplink options for network expansion, accommodating both fiber-optic and copper connections.
• Managed through Cisco's intuitive web interface or Cisco Business mobile app, providing centralized control and visibility for easy configuration and monitoring.
• Supports essential Layer 2 features, including VLANs, QoS, and link aggregation, as well as basic Layer 3 static routing for efficient data traffic management.
• Incorporates Access Control Lists (ACLs), port security, and 802.1X authentication to ensure a secure network environment, protecting against unauthorized access and potential threats.
• Fanless operation ensures silent running and reduced power consumption, making it ideal for noise-sensitive environments.
• Designed for easy installation in standard racks, optimizing space utilization in your network setup.
• Tested to deliver high reliability and performance, ensuring consistent network uptime and productivity for critical applications.
• Backed by Cisco's limited lifetime warranty and ongoing firmware updates, providing peace of mind and long-term investment protection.
Specifications
Specifications for Cisco Catalyst C1200-48T-4X 48-Port Gigabit Managed Network Switch | Refresh
| Manufacturer | Cisco |
| Manufacturer Part Number | C1200-48T-4X-RF |
| Product Name | Cisco Catalyst C1200-48T-4X 48-Port Gigabit Managed Network Switch |
| Product Type | Switch |
Enclosure Type | Rack-mountable |
Subtype | Gigabit Ethernet |
Ports | 48 x 10/100/1000Base-T + 4 x 10 Gigabit SFP+ |
Performance | Forwarding rate (64‑byte packets): 130.94 Gbps ¦ Switching capacity: 176 Gbps |
Capacity | MSTP instances: 8 ¦ PVST+ instances: 126 ¦ RPVST+ instances: 126 ¦ Link aggregation groups: 4 ¦ Link aggregation ports: 8 ¦ Active VLANs: 255 ¦ IGMP multicast groups: 255 ¦ IPv4 routes (static): 32 ¦ IPv4 interfaces: 16 ¦ ACL rules: 512 ¦ Priority queues: 8 ¦ Packet buffer size: 3 MB |
MAC Address Table Size | 8000 entries |
Jumbo Frame Support | 9000 bytes |
Routing Protocol | IGMPv2, IGMP, static IP routing, IGMPv3, MLDv2, MLD, CIDR, MSTP, RSTP, STP, Bounjour |
Remote Management Protocol | SNMP, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, ICMP, DHCP, RADIUS, Syslog |
Encryption Algorithm | SSL |
Authentication Method | RADIUS |
Features | BOOTP support, VLAN support, IGMP snooping, DoS attack prevention, port mirroring, DiffServ support, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, SNTP support, DHCP server, reset button, Cable Diagnostics Function, DHCP relay, Port Security, SNMP trap, DHCP client, port grouping, Storm Control, Link Aggregation, IGMP querier, VLAN mirroring, DNS client, 1 fan, Voice VLAN, VLAN management, LLDP-MED, Guest VLAN, ingress rate limiting, STP loop guard, EEE, TCP/UDP proxy, DSCP based CoS, loopback detection, port-based VLAN, Telnet server, Telnet client, Unknown Storm Control, IPv4 and IPv6 dual stack, Zero-Touch Deployment, cable length detection, trustworthy systems, layer 3 routing, remote firmware upgrade, ACL support, eco-friendly button, Auto Surveillance VLAN, TCP congestion, chip guard, boot integrity, time-based port operation, tag-based VLANs, WRR queuing, MSTP support, TFTP support, QoS, PVST+, LACP, CoS, SP, GARP, GVRP, ToS, SCP, SCT, SSD, UDP, DoS protection, WRR, HoL Blocking Prevention, LAG, CDP, VSDP, RPVST+, DAD, LLDP, EQS, path MTU discovery |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3az |
Processor | X ARM: 1.4 GHz |
RAM | 1 GB DDR4 SDRAM |
Flash Memory | 512 MB |
Status Indicators | System, link/activity/speed |
Interfaces | 48 x 1000Base-T RJ-45 ¦ 4 x 10GBase-X SFP+ ¦ 1 x console RJ-45 ¦ 1 x USB-C console |
Power Device | Internal power supply |
Voltage Required | AC 100-240 V (50 - 60 Hz) |

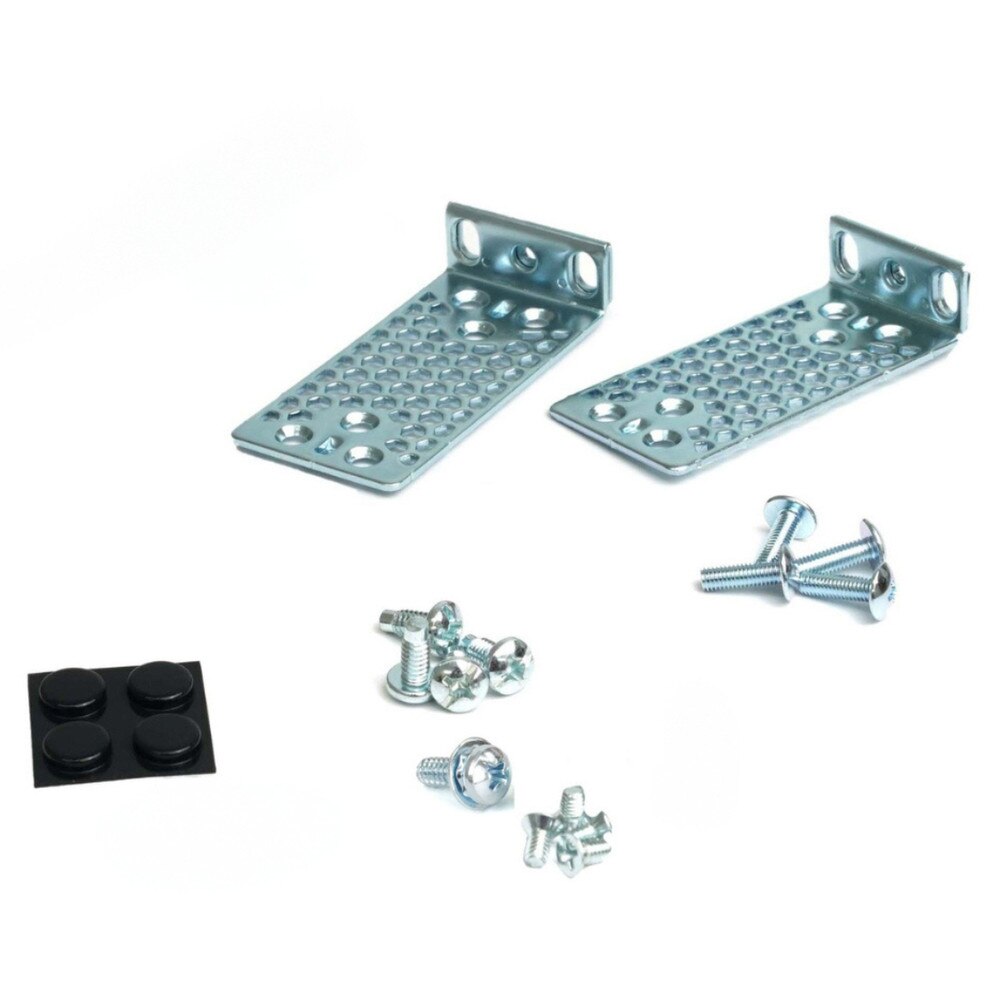

Included Accessories | Mounting kit, pointer card |
MTBF | 1,452,667 hours |
Compliant Standards | Plug and Play, FCC CFR47 Part 15, WEEE, CSA 22.2, RFC1213, RFC1493, RFC1757, RFC2674, RFC768, RFC791, RFC1157, RFC2460, RFC2011, RFC1643, RFC2012, RFC2013, UL 62368, RFC783, RFC792, RFC2863, RFC793, RFC826, RFC854, RFC2131, RFC2132, RFC1907, RFC1215, RFC2233, RFC2665, RFC951, RFC1542, RFC2618, RFC4443, RFC1981, RFC4861, RFC4862, RFC4291, RFC813, RFC879, RFC896, RFC855, RFC856, RFC858, RFC894, RFC919, RFC920, RFC922, RFC950, RFC1042, RFC1071, RFC1123, RFC1141, RFC1155, RFC1286, RFC1350, RFC1442, RFC1451, RFC1533, RFC1541, RFC1573, RFC1624, RFC1700, RFC1867, RFC2030, RFC2576, RFC2616, RFC2666, RFC2737, RFC2819, RFC3164, RFC3176, RFC3411, RFC3412, RFC3413, RFC3414, RFC3415, RFC3416, RFC4330, RFC4007, RFC3484, RFC5214, RFC4293, RFC3595 |
Width | 17.5 in |
Depth | 11.3 in |
Height | 1.7 in |
Weight | 8.71 lbs |
Service & Support | Limited warranty - lifetime - response time: next business day ¦ Technical support - consulting - 1 year |
Min Operating Temperature | 23 °F |
Max Operating Temperature | 122 °F |
Humidity Range Operating | 10 - 90% RH (non-condensing) |
Min Storage Temperature | -13 °F |
Max Storage Temperature | 158 °F |
Humidity Range Storage | 10 - 90% RH (non-condensing) |
User Guides
Frequently Asked Questions
Cisco Catalyst C1200-48T-4X 48-Port Gigabit Managed Network Switch
Frequently Asked Questions (FAQ's)
What are the key features of the Cisco Catalyst C1200-48T-4X switch? There are 48 Gigabit Ethernet ports, four SFP+ uplink ports, advanced security features, Layer 2/3 support, and an energy-efficient design.
What are the uplink options available on the C1200-48T-4X? The switch has four SFP+ ports that can support 1G and 10G uplinks for more flexible connectivity.
Is the Cisco Catalyst C1200-48T-4X a managed or unmanaged switch? It is a managed switch, which provides complete control over network configurations and features.
Does the C1200-48T-4X support Layer 3 functionality? Yes, it supports both Layer 2 and Layer 3 features, which include network routing capabilities.
What security features does the C1200-48T-4X offer? It includes security features such as ACLs, 802.1X authentication, and Secure Shell (SSH).
Can the C1200-48T-4X be used in a stacking configuration? This model does not support stacking, but it does provide a high port density and uplink flexibility.
What is the maximum power consumption of the C1200-48T-4X? At full load, the maximum power consumption is around 65W.
Is Power over Ethernet (PoE) available on the C1200-48T-4X? Unfortunately, this model does not support PoE.
What types of SFP+ modules are compatible with the C1200-48T-4X? It supports Cisco SFP+ modules, including 1G and 10G transceivers, for a variety of connectivity requirements.
Does the C1200-48T-4X have redundancy features? Yes, it includes features such as dual power supplies and redundancy protocols to improve network reliability.
Can this switch be used in a data center environment? Yes, it is appropriate for data center use, particularly in access or distribution layers due to its high port density and performance.
What management options are available for the C1200-48T-4X? It can be managed using a web interface, Cisco DNA Center, CLI, or SNMP.
Does the C1200-48T-4X support QoS (Quality of Service)? Yes, it supports QoS for prioritizing critical network traffic and ensuring peak performance.
Is there a fanless version of the C1200-48T-4X available? No, this model has internal fans for cooling.
What is the switching capacity of the C1200-48T-4X? The switch has a maximum switching capacity of 176 Gbps.
Can the C1200-48T-4X be mounted in a standard 19-inch rack? Yes, it is intended for rack mounting in standard 19-inch racks.
What is the operating temperature range for the C1200-48T-4X? The operating temperature ranges from 0°C to 40°C (32°F to 104°F).
How many VLANs can be configured on the C1200-48T-4X? It can support up to 4,000 VLANs.
Is IPv6 supported by the C1200-48T-4X switch? Yes, the switch provides IPv6 routing and management capabilities.
Does the C1200-48T-4X support energy-saving technologies? Yes, it has energy-efficient Ethernet (EEE) and intelligent power management capabilities.
