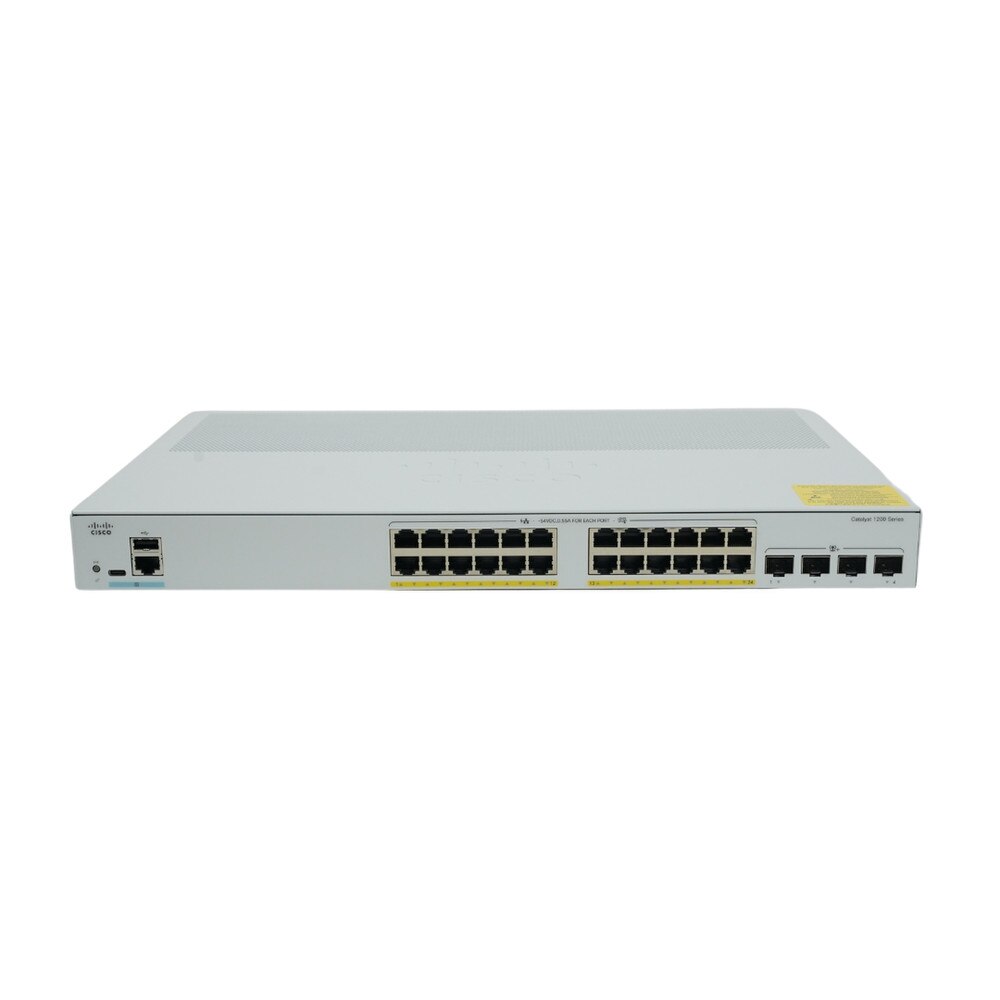

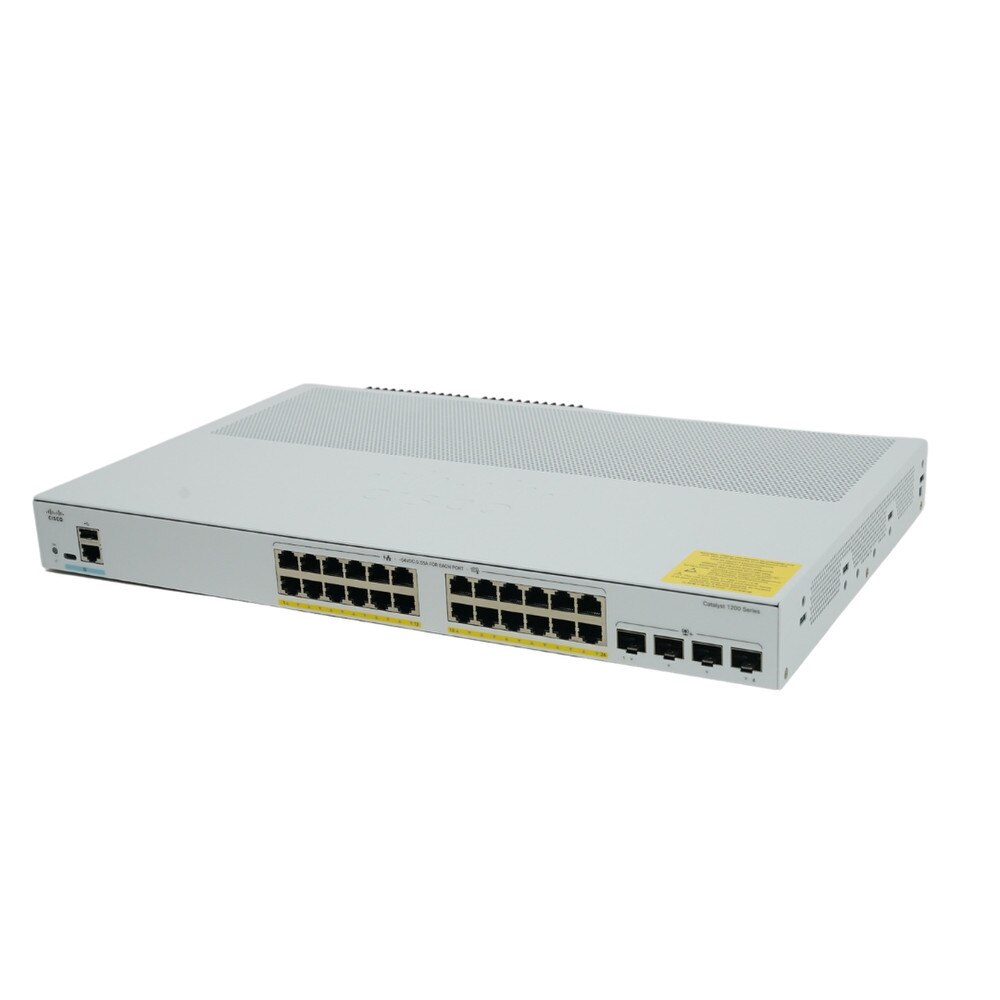

Overview of Cisco Catalyst C1200-24P-4X 24-Port Gigabit PoE+ Managed Network Switch | Refresh
The Cisco Catalyst C1200-24P-4X 24-Port Gigabit PoE+ Managed Network Switch is a reliable and versatile networking solution for small and medium-sized businesses. This smart switch combines high performance, dependability, and advanced features, making it an excellent choice for businesses looking to improve their network infrastructure with strong connectivity and easy management. The Cisco Catalyst C1200-24P-4X is intended to be a strong foundation for your business network. Its PoE+ capability facilitates the deployment of powered devices by eliminating the need for additional power sources and cabling. The switch's smart management features enable simple configuration, monitoring, and troubleshooting, making it an excellent choice for businesses without a dedicated IT staff. With its advanced security features, the C1200-24P-4X protects your network from unauthorized access and potential threats. The switch's energy-efficient design and fanless operation make it ideal for office environments that require low noise levels. The switch's compact form factor and versatile mounting options make it suitable for a wide range of deployment scenarios, from desktop to rack-mounted installations.
Key Features of Cisco Catalyst C1200-24P-4X 24-Port Gigabit PoE+ Managed Network Switch
• 24 Gigabit Ethernet Ports provides high-speed connectivity for various network devices, ensuring seamless data transfer and communication.
• Power over Ethernet (PoE+) delivers up to 30W per port with a total power budget of 195W, ideal for powering IP phones, cameras, and wireless access points.
• 4 10 Gigabit SFP+ Uplink Ports offers flexible and high-speed uplink options for network expansion and enhanced connectivity.
• Managed through the intuitive Cisco web interface or Cisco Business mobile app, providing centralized control and visibility for easy configuration and monitoring.
• Supports essential Layer 2 features, including VLANs, QoS, and link aggregation, as well as basic Layer 3 static routing.
• Features such as Access Control Lists (ACLs), port security, and 802.1X authentication ensure a secure network environment, protecting against unauthorized access and potential threats.
• Fanless operation ensures silent running and reduced power consumption, making it ideal for noise-sensitive environments.
• Suitable for desktop or rack-mount installations, offering flexibility in deployment and saving valuable space.
• Tested to deliver high reliability and performance, ensuring consistent network uptime and productivity.
• Backed by Cisco's limited lifetime warranty and ongoing firmware updates, providing peace of mind and long-term investment protection.
Specifications
Specifications for Cisco Catalyst C1200-24P-4X 24-Port Gigabit PoE+ Managed Network Switch | Refresh
| Manufacturer | Cisco |
| Manufacturer Part Number | C1200-24P-4X-RF |
| Product Name | Cisco Catalyst C1200-24P-4X 24-Port Gigabit PoE+ Managed Network Switch |
| Product Type | Switch |
Enclosure Type | Rack-mountable |
Subtype | Gigabit Ethernet |
Ports | 24 x 10/100/1000 (PoE+) + 4 x 10Gb Ethernet SFP+ |
Power Over Ethernet (PoE) | PoE+ |
PoE Budget | 195 W |
Performance | Forwarding rate (64‑byte packets): 95.23 Mpps ¦ Switching capacity: 128 Gbps |
Capacity | MSTP instances: 8 ¦ PVST+ instances: 126 ¦ RPVST+ instances: 126 ¦ Link aggregation groups: 4 ¦ Link aggregation ports: 8 ¦ Active VLANs: 255 ¦ IGMP multicast groups: 255 ¦ IPv4 routes (static): 32 ¦ IPv4 interfaces: 16 ¦ ACL rules: 512 ¦ Priority queues: 8 ¦ Packet buffer size: 1.5 MB |
MAC Address Table Size | 8000 entries |
Jumbo Frame Support | 9000 bytes |
Routing Protocol | IGMPv2, IGMP, static IP routing, IGMPv3, MLDv2, MLD, CIDR, MSTP, RSTP, STP, Bounjour |
Remote Management Protocol | SNMP, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, ICMP, DHCP, RADIUS, Syslog |
Encryption Algorithm | SSL |
Authentication Method | RADIUS |
Features | BOOTP support, VLAN support, IGMP snooping, DoS attack prevention, port mirroring, DiffServ support, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, SNTP support, DHCP server, reset button, Cable Diagnostics Function, fanless, DHCP relay, Port Security, SNMP trap, DHCP client, port grouping, Storm Control, Link Aggregation, IGMP querier, VLAN mirroring, DNS client, Voice VLAN, VLAN management, LLDP-MED, Guest VLAN, ingress rate limiting, STP loop guard, EEE, TCP/UDP proxy, DSCP based CoS, loopback detection, port-based VLAN, Telnet server, Telnet client, Unknown Storm Control, IPv4 and IPv6 dual stack, Zero-Touch Deployment, cable length detection, trustworthy systems, layer 3 routing, remote firmware upgrade, ACL support, eco-friendly button, Auto Surveillance VLAN, TCP congestion, chip guard, boot integrity, time-based port operation, tag-based VLANs, WRR queuing, MSTP support, TFTP support, QoS, PVST+, LACP, CoS, SP, GARP, GVRP, ToS, SCP, SCT, SSD, UDP, DoS protection, WRR, HoL Blocking Prevention, LAG, CDP, VSDP, RPVST+, DAD, LLDP, EQS, path MTU discovery |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az |
Processor | X ARM: 1.4 GHz |
RAM | 1 GB DDR4 SDRAM |
Flash Memory | 512 MB |
Status Indicators | System, PoE, link/activity/speed |
Interfaces | 24 x 10/100/1000 Base-T (PoE+) RJ-45 ¦ 4 x 10GBase-X SFP+ ¦ 1 x console RJ-45 ¦ 1 x USB-C console |
Power Device | Internal power supply |
Voltage Required | AC 100-240 V (50 - 60 Hz) |

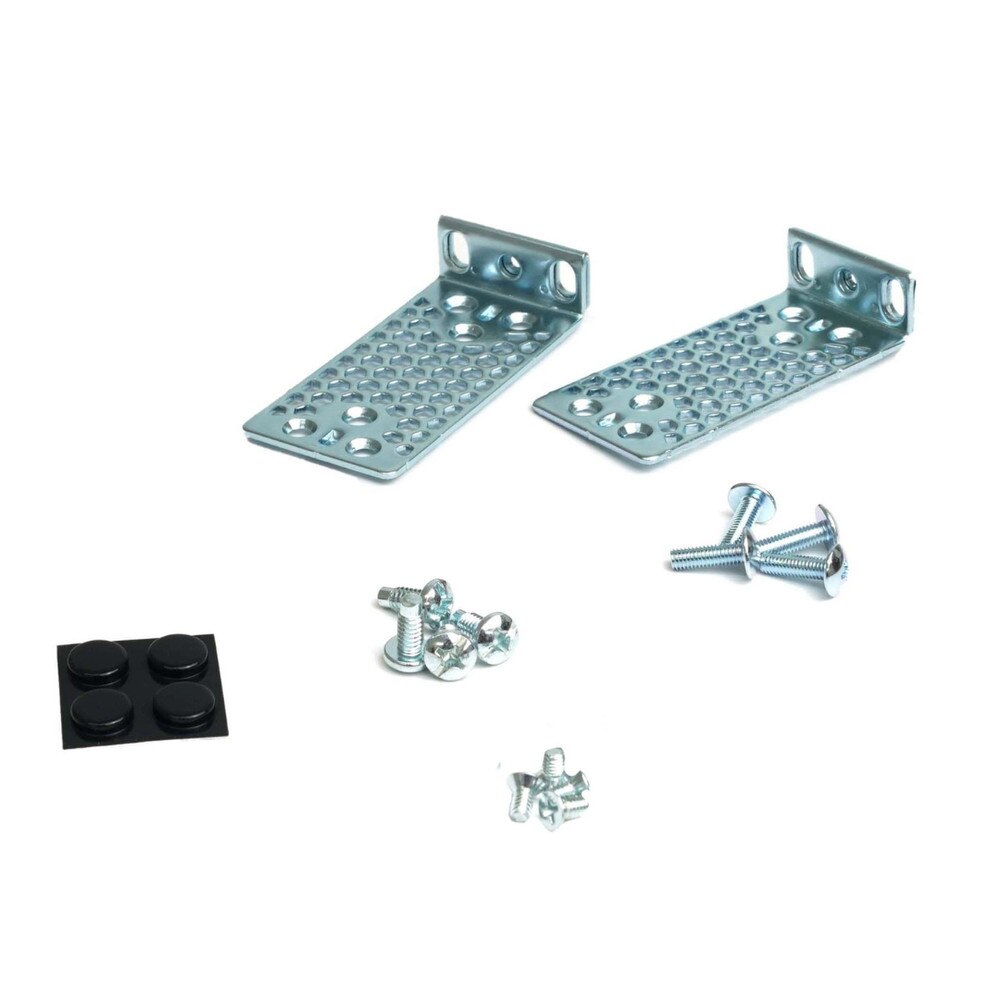

Included Accessories | Mounting kit, pointer card |
MTBF | 698,220 hours |
Compliant Standards | Plug and Play, FCC CFR47 Part 15, WEEE, CSA 22.2, RFC1213, RFC1493, RFC1757, RFC2674, RFC768, RFC791, RFC1157, RFC2460, RFC2011, RFC1643, RFC2012, RFC2013, UL 62368, RFC783, RFC792, RFC2863, RFC793, RFC826, RFC854, RFC2131, RFC2132, RFC1907, RFC1215, RFC2233, RFC2665, RFC951, RFC1542, RFC2618, RFC4443, RFC1981, RFC4861, RFC4862, RFC4291, RFC813, RFC879, RFC896, RFC855, RFC856, RFC858, RFC894, RFC919, RFC920, RFC922, RFC950, RFC1042, RFC1071, RFC1123, RFC1141, RFC1155, RFC1286, RFC1350, RFC1442, RFC1451, RFC1533, RFC1541, RFC1573, RFC1624, RFC1700, RFC1867, RFC2030, RFC2576, RFC2616, RFC2666, RFC2737, RFC2819, RFC3164, RFC3176, RFC3411, RFC3412, RFC3413, RFC3414, RFC3415, RFC3416, RFC4330, RFC4007, RFC3484, RFC5214, RFC4293, RFC3595 |
Width | 17.5 in |
Depth | 11.8 in |
Height | 1.7 in |
Weight | 8.11 lbs |
Service & Support | Limited warranty - lifetime - response time: next business day ¦ Technical support - consulting - 1 year |
Min Operating Temperature | 23 °F |
Max Operating Temperature | 122 °F |
Humidity Range Operating | 10 - 90% RH (non-condensing) |
Min Storage Temperature | -13 °F |
Max Storage Temperature | 158 °F |
Humidity Range Storage | 10 - 90% RH (non-condensing) |
User Guides
Frequently Asked Questions
Cisco Catalyst C1200-24P-4X 24-Port Gigabit PoE+ Managed Network Switch
Frequently Asked Questions (FAQ's)
What is the maximum power output per PoE port on the Cisco Catalyst C1200-24P-4X? Each PoE port can deliver up to 30W of power, making it ideal for devices such as IP phones and wireless access points.
How many uplink ports are available on the C1200-24P-4X? The switch has four SFP+ uplink ports that can support speeds of up to 10Gbps.
Does the Cisco Catalyst C1200-24P-4X support Layer 3 routing? Yes, it supports Layer 3 routing, which includes both static and dynamic routing protocols.
Is the C1200-24P-4X switch fanless? Yes, it has a fanless design for quiet operation, making it suitable for noise-sensitive environments.
What is the total PoE budget of the C1200-24P-4X? The switch has a total PoE budget of 370W, which is distributed across all 24 PoE ports.
What types of SFP+ modules are compatible with the C1200-24P-4X? The switch supports a variety of Cisco SFP+ modules, including the SR, LR, and ER types, to meet a variety of networking requirements.
Can the C1200-24P-4X be managed via Cisco DNA Center? Yes, the switch is compatible with Cisco DNA Center, which enables advanced network management and automation.
Does the switch support VLANs? Yes, the C1200-24P-4X supports VLAN configuration, which includes private and voice VLANs.
What QoS features are available on the C1200-24P-4X? To ensure the best network performance, the switch includes advanced QoS features like traffic shaping, policing, and prioritization.
How many MAC addresses can the C1200-24P-4X store? The switch can hold up to 16,000 MAC addresses, making it ideal for large-scale deployments.
Is the Cisco Catalyst C1200-24P-4X stackable? This model cannot be stacked, but it performs well on its own.
What security features are included in the C1200-24P-4X? Security features include port security, DHCP snooping, IP Source Guard, and 802.1X authentication support.
Does the switch support Power over Ethernet Plus (PoE+)? Yes, the switch supports PoE+ (802.3at), which provides up to 30W per port.
How can the Cisco Catalyst C1200-24P-4X be managed? Yes, the switch supports PoE+ (802.3at), which provides up to 30W per port.
What is the maximum forwarding capacity of the C1200-24P-4X? The switch can be managed using the command-line interface (CLI), a web-based interface, the Cisco DNA Center, or the Simple Network Management Protocol.
How does the C1200-24P-4X handle multicast traffic? The switch supports IGMP snooping and multicast routing, allowing for efficient handling of multicast traffic.
Is the C1200-24P-4X compliant with Energy Efficient Ethernet (EEE) standards? Yes, it meets EEE standards for reducing power consumption during low traffic periods.
Can the C1200-24P-4X be used in a 19-inch rack? Yes, it is intended to fit in a standard 19-inch rack and includes mounting brackets.
What is the operating temperature range for the C1200-24P-4X? The switch has a temperature range of 32°F to 113°F (0°C to 45°C).
Does the C1200-24P-4X support redundancy features? Yes, the switch includes redundancy features like redundant power supplies and link aggregation.
