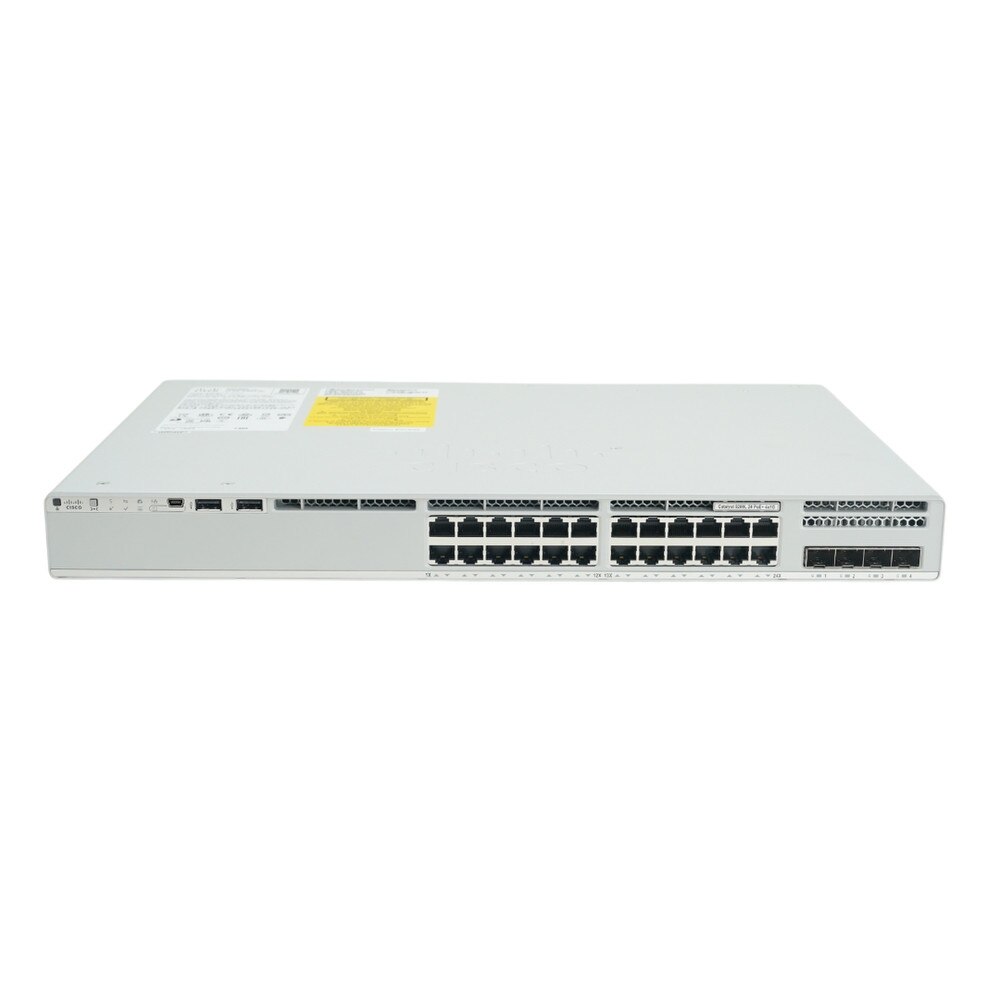

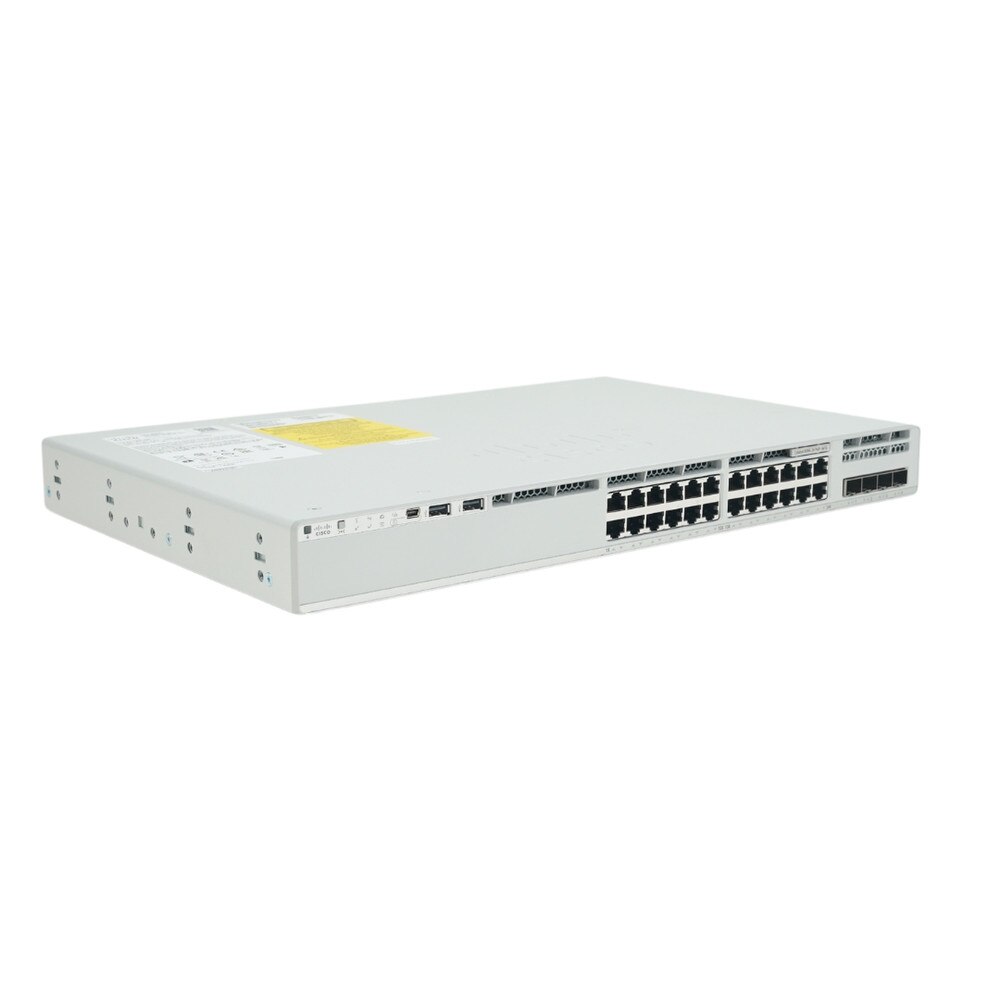

Cisco Catalyst 9200L-24P-4G-A 24-Port Gigabit PoE+ Switch with Network Advantage | Excess

Cisco Catalyst 9200L-24P-4G-A 24-Port Gigabit PoE+ Switch with Network Advantage | Excess

SKU: C9200L-24P-4G-A-WS
(0)No Reviews yet
Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns
$863.99 $863.99
Available Quantity:
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

Overview of Cisco Catalyst 9200L-24P-4G-A 24-Port Gigabit PoE+ Switch with Network Advantage | Excess

The Cisco Catalyst 9200L-24P-4G-A 24-Port Gigabit PoE+ Switch with Network Advantage serves as a flexible and high-performance networking solution designed for small to medium businesses, branch offices, and enterprise settings. This switch, based on the architecture of Cisco’s Catalyst 9200 Series, provides advanced Layer 3 functionalities, strong security measures, and smooth scalability. It ensures dependable connectivity for contemporary IT infrastructures, while simplifying management and improving network efficiency, thanks to its Power over Ethernet Plus (PoE+) support and modular uplinks. Equipped with 24 Gigabit Ethernet PoE+ ports and a total power budget of 370W, the Cisco Catalyst 9200L-24P-4G-A facilitates effective power distribution to connected devices like IP phones, wireless access points, and surveillance cameras. It has four fixed 1G SFP uplink ports for flexible network expansion. This switch, utilizing Cisco IOS XE software with the Network Advantage license, offers advanced Layer 3 routing capabilities, MACsec encryption, and automation tools for efficient operations. Its compact design and energy-efficient features make it an ideal choice for growing networks.


Key Features of Cisco Catalyst 9200L-24P-4G-A 24-Port Gigabit PoE+ Switch with Network Advantage


• 24 Gigabit Ethernet PoE+ Ports with high-speed connectivity with up to 30W per port for powering connected devices.

• Four Fixed 1G SFP Uplinks with flexible uplink options for seamless network expansion.

• Power over Ethernet Plus (PoE+) provides a total power budget of 370W to support IP phones, cameras and more.

• Cisco IOS XE Software offers advanced Layer 3 routing capabilities with Network Advantage licensing.

• Enhanced Security Features includes MACsec encryption and TrustSec to safeguard data transmission.

• StackWise-80 Technology supports up to 80 Gbps stacking bandwidth for scalable network growth.

• Complies with Energy Efficient Ethernet (EEE) standards to reduce operational costs.

• Automation Tools simplifies network management with Cisco DNA Center integration.

• Compact Design fits into standard racks with a height of just 1RU.

• Resiliency Features includes redundant power supply options for uninterrupted operation.


Benefits of Cisco Catalyst 9200L-24P-4G-A 24-Port Gigabit PoE+ Switch with Network Advantage


🗹 Provides high-speed connections across multiple devices with its 24 Gigabit PoE+ ports.

🗹 PoE+ capability eliminates the need for separate power supplies for connected devices.

🗹 Protects sensitive data with features like MACsec encryption and TrustSec protocols.

🗹 StackWise-80 technology allows effortless expansion as your network grows.

🗹 Cisco IOS XE software offers intuitive tools for configuration and monitoring.

🗹 Advanced Layer 3 features ensure compatibility with evolving networking requirements.

🗹 Combines robust features with energy-efficient operation to reduce operational expenses.

🗹 Ideal for branch offices, distributed networks, or enterprise edge deployments.

🗹 Compact design ensures quiet performance in office or classroom environments.

🗹 Backed by Cisco’s reputation for reliability, innovation, and long-term support.

Specifications

Specifications for Cisco Catalyst 9200L-24P-4G-A 24-Port Gigabit PoE+ Switch with Network Advantage | Excess

ManufacturerCisco
Manufacturer Part NumberC9200L-24P-4G-A
Product NameCisco Catalyst 9200L-24P-4G-A 24-Port Gigabit PoE+ Switch with Network Advantage
Product TypeNetworking Switch
Enclosure Type
Rack-mountable
Subtype
Gigabit Ethernet
Ports
24 x 10/100/1000 (PoE+) + 4 x Gigabit SFP (uplink)
Power Over Ethernet (PoE)
PoE+
PoE Budget
740 W
Performance
Stacking bandwidth: 80 Gbps ¦ Switching capacity: 56 Gbps ¦ Forwarding rate: 83.33 Mpps
Capacity
Virtual networks: 1 ¦ IPv4 routes: 11000 ¦ IPv4 routing table entries: 3000 ¦ IPv6 routing table entries: 1500 ¦ Multicast scale: 1000 ¦ ACL scale entries: 1500 ¦ FNF entries: 16000 ¦ VLANs supported: 1024 ¦ Switched virtual interfaces (SVIs): 512 ¦ QoS hardware queues per port: 8
MAC Address Table Size
16000 entries
Jumbo Frame Support
9198 bytes
Routing Protocol
OSPF, IS-IS, RIP-1, RIP-2, EIGRP, HSRP, VRRP, PIM-SM, EIGRP for IPv6, PIM-SSM, MSDP, policy-based routing (PBR), RIPng, MSTP
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
Features
Quality of Service (QoS), Cisco StackWise Technology, Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), PXE support, Remote Switch Port Analyzer (RSPAN), NetFlow, Energy Efficient Ethernet, Management Information Base (MIB), Class of Service (CoS), Flexible NetFlow (FNF), 802.1x authentication, DiffServ Code Point (DSCP) support, MACsec support, 6MB packet buffer, Control plane protection (CoPP), Switched Port Analyzer (SPAN), Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Committed Information Rate (CIR)
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at
RAM
2 GB
Flash Memory
4 GB
Interfaces
24 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 4 x 1000Base-X SFP uplink ¦ 1 x network stack device ¦ 1 x management (LAN) RJ-45 ¦ 1 x console RJ-45

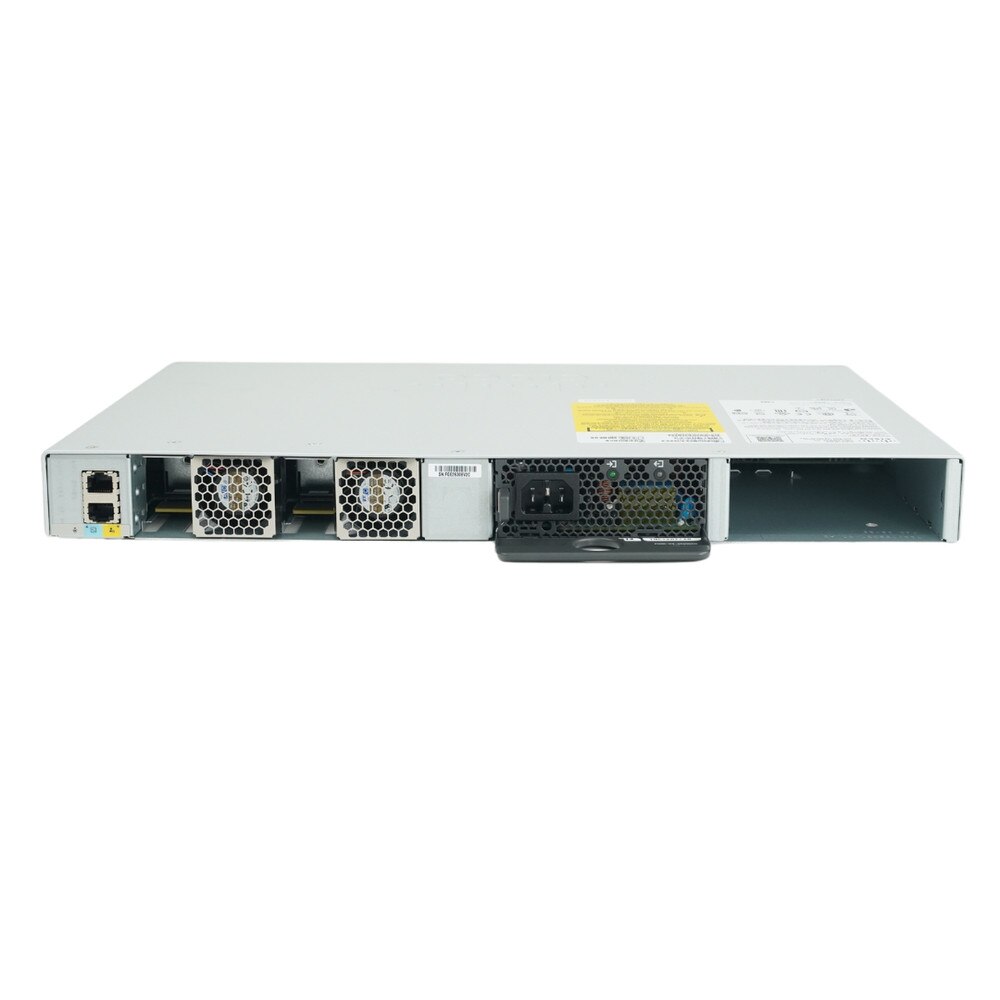

Power Device
Internal power supply - hot-plug
Max Supported Qty
2
Power Redundancy
Optional
Voltage Required
AC 100-240 V (50 - 60 Hz)
MTBF
392,210 hours
Compliant Standards
CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, CCC, ICES-003 Class A, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, CNS 13438, EN 55022 Class A, FCC CFR47 Part 15 B Class A, EN 300 386, KN32, KN35, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 60950-1, TCVN 7189 Class A, V-3 Class A, TCVN 7317, CISPR 35
Width
17.5 in
Depth
1.7 in
Height
11.3 in
Weight
9.59 lbs
Service & Support
Limited warranty - advance parts replacement - lifetime - response time: next business day
Humidity Range Operating
5 - 90% (non-condensing)
Min Storage Temperature
-40 °F
Max Storage Temperature
158 °F
Humidity Range Storage
5 - 90% (non-condensing)

User Guides

Cisco Catalyst 9200 Series Switches Data Sheet

Frequently Asked Questions

Cisco Catalyst 9200L-24P-4G-A 24-Port Gigabit PoE+ Switch with Network Advantage
Frequently Asked Questions (FAQ's)



What is the Cisco Catalyst 9200L 24 Port PoE Switch C9200L-24P-4G-A?
  • The Cisco Catalyst 9200L 24 Port PoE Switch C9200L-24P-4G-A is a fixed-configuration switch designed for secure, reliable, and scalable network solutions.
    • What are the key features of the Cisco Catalyst 9200L 24 Port PoE Switch?
  • Key features include 24 PoE+ ports, 4 Gigabit SFP uplinks, advanced security features and energy-efficient design.
    • What is PoE and PoE+?
  • PoE (Power over Ethernet) allows a single cable to provide both data and electrical power to devices. PoE+ offers higher power output, supporting more power-hungry devices.​
    • What is the total PoE power budget for the C9200L-24P-4G-A?
  • The total PoE power budget for the C9200L-24P-4G-A is 370W.
    • What uplink options are available on this switch?
  • This switch includes 4 Gigabit SFP uplinks.
    • Is the Cisco Catalyst 9200L stackable?
  • Yes, the Cisco Catalyst 9200L switches are stackable, allowing for simplified management and increased redundancy.
    • What security features are included in the C9200L-24P-4G-A?
  • Security features include MACsec encryption, Trustworthy Solutions and network segmentation for enhanced security.
    • What management options are available for this switch?
  • Management options include a web-based interface, Command Line Interface (CLI) and support for Cisco DNA Center for automation and policy-based management.
    • Can this switch support Layer 3 routing?
  • Yes, the C9200L-24P-4G-A supports basic Layer 3 routing capabilities, including static routing and RIP.
    • What are the dimensions and weight of the switch?
  • Dimensions are 44.5 x 28.8 x 4.4 cm (17.5 x 11.3 x 1.7 inches), and it weighs approximately 4.35 kg (9.6 lbs).
    • Does the switch support IPv6?
  • Yes, the Cisco Catalyst 9200L supports IPv6 routing and features.
    • How do I update the firmware on the C9200L-24P-4G-A?
  • Firmware updates can be performed via the web-based interface, CLI or Cisco DNA Center.
    • What power supply options are available for this switch?
  • The switch comes with a fixed internal power supply, but it supports dual redundant power supplies for increased reliability.
    • How many VLANs can be configured on the switch?
  • The switch supports up to 4,096 VLANs.
    • What is the MTBF (Mean Time Between Failures) of the switch?
  • The MTBF for the C9200L-24P-4G-A is approximately 544,800 hours.
    • Does the switch support QoS (Quality of Service)?
  • Yes, the Cisco Catalyst 9200L series supports advanced QoS features to prioritize network traffic.
    • What is the power consumption of the switch?
  • The power consumption varies based on usage, but it typically ranges from 50W to 370W with PoE+ fully loaded.
    • Can this switch be used in a data center environment?
  • Yes, while it's often used in enterprise and branch environments, the C9200L-24P-4G-A can also be used in smaller data center environments.
    • Is there support for remote management?
  • Yes, the switch can be managed remotely via the web interface, CLI, or through Cisco DNA Center for more advanced features.
    • Does the switch support Layer 3 features?
  • Yes, with the Network Advantage license, it supports full Layer 3 features including OSPF, EIGRP, BGP, and policy-based routing
