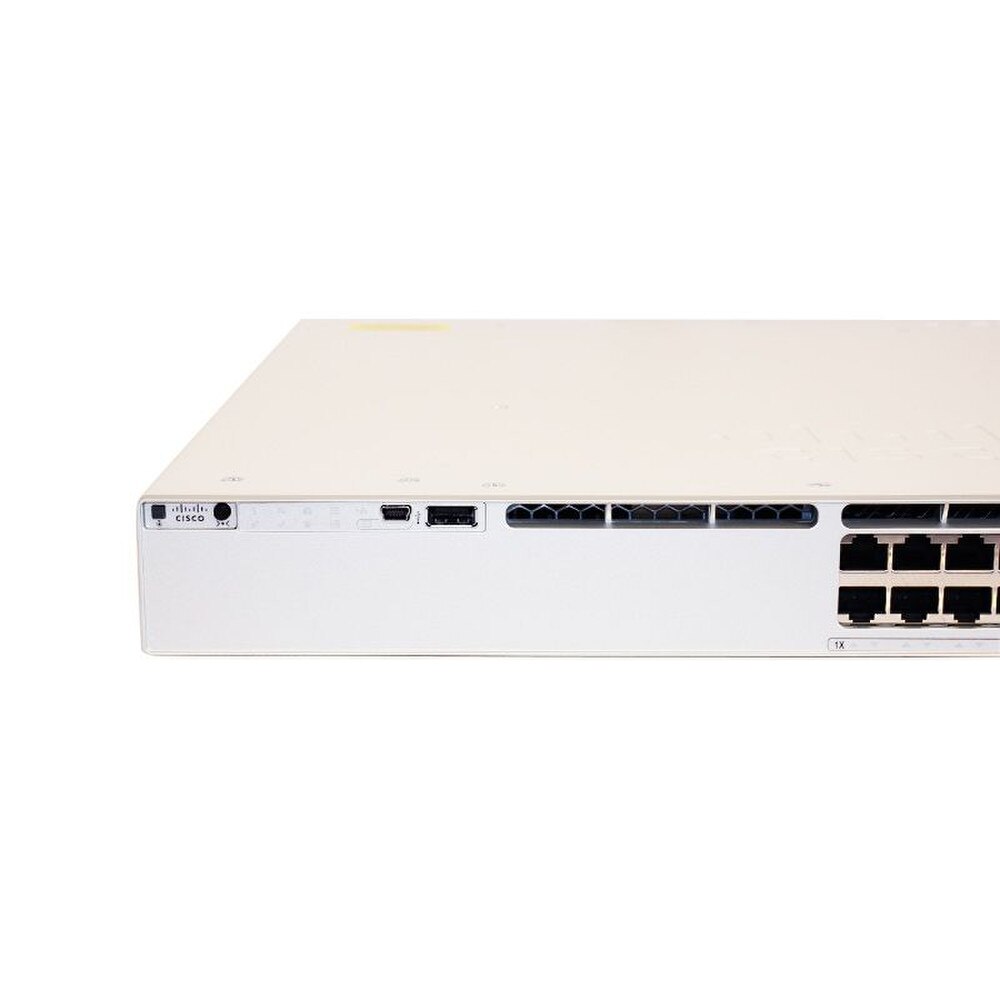

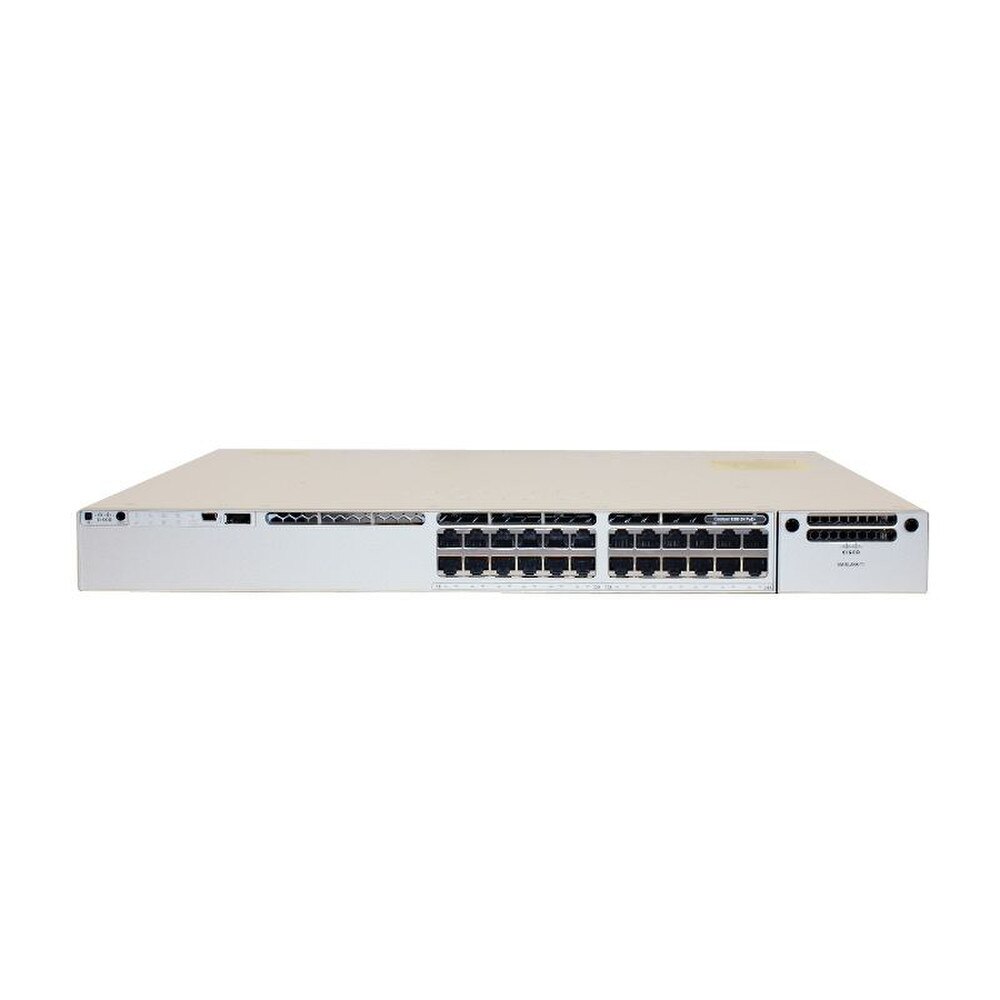

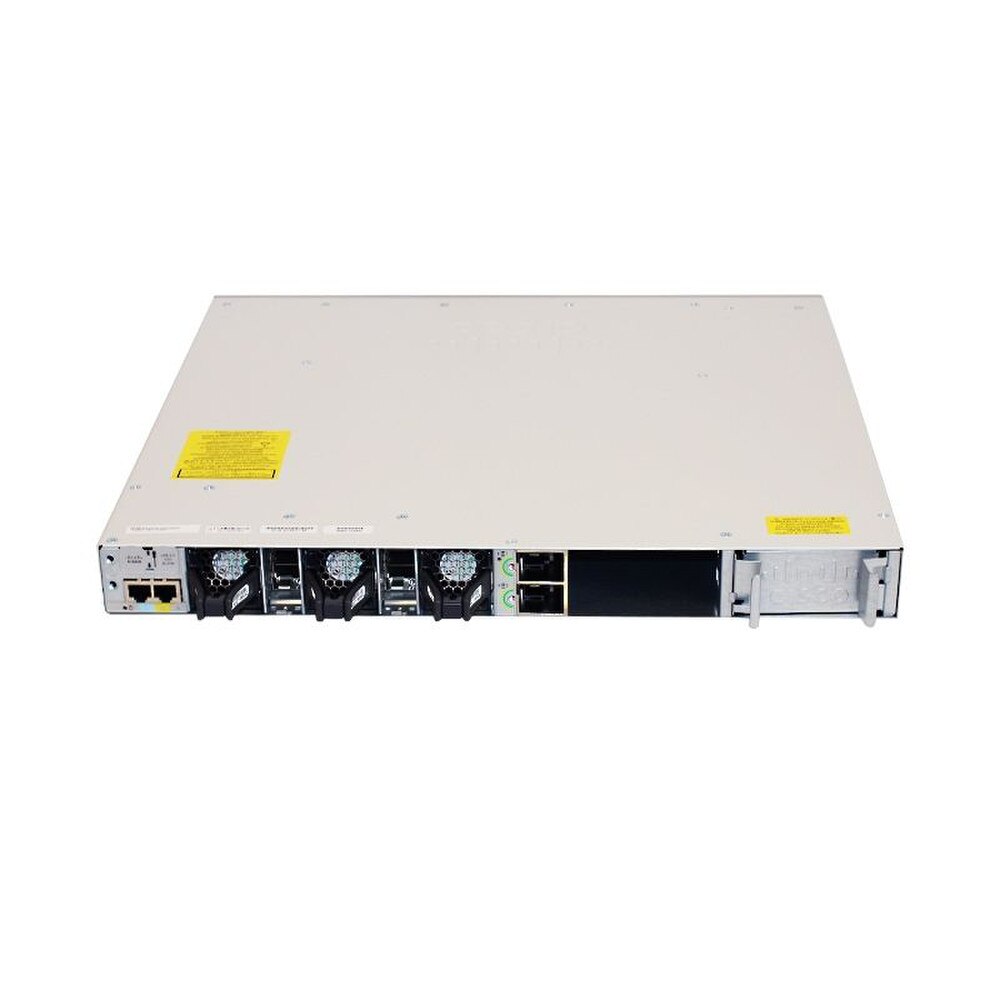

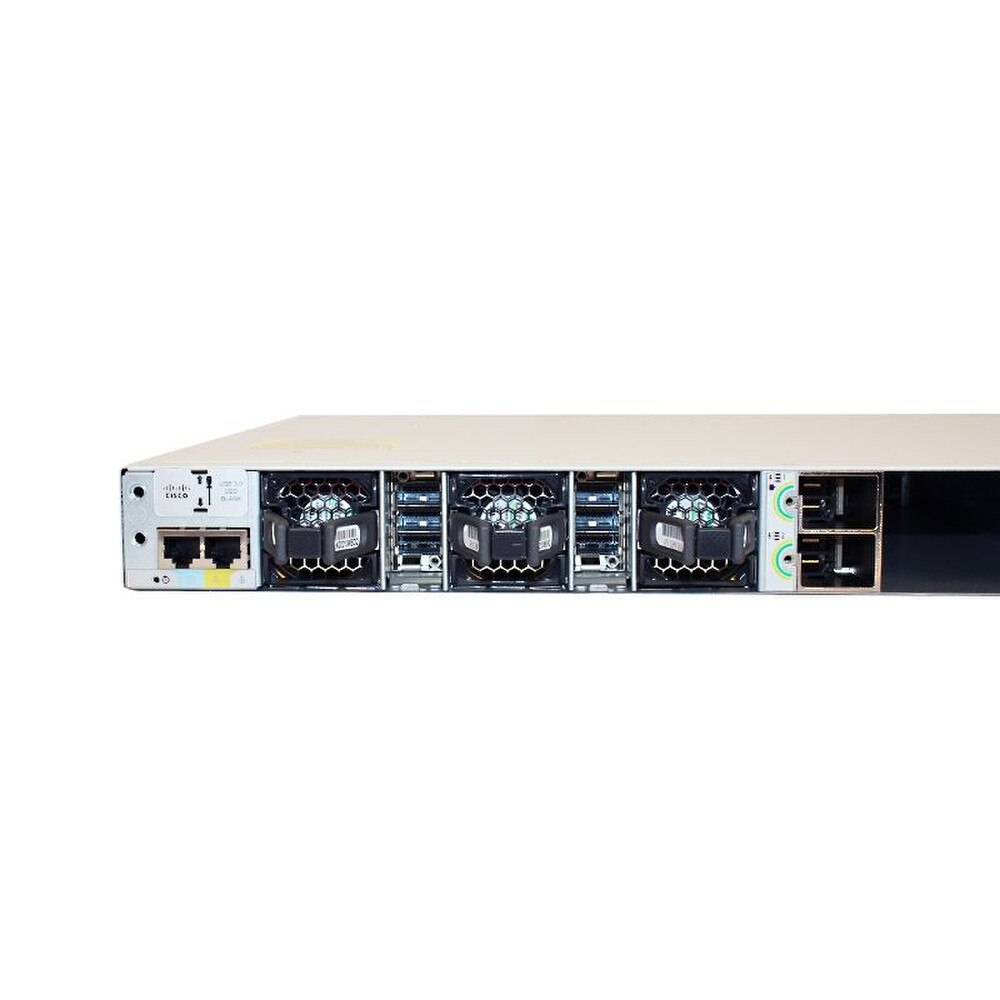

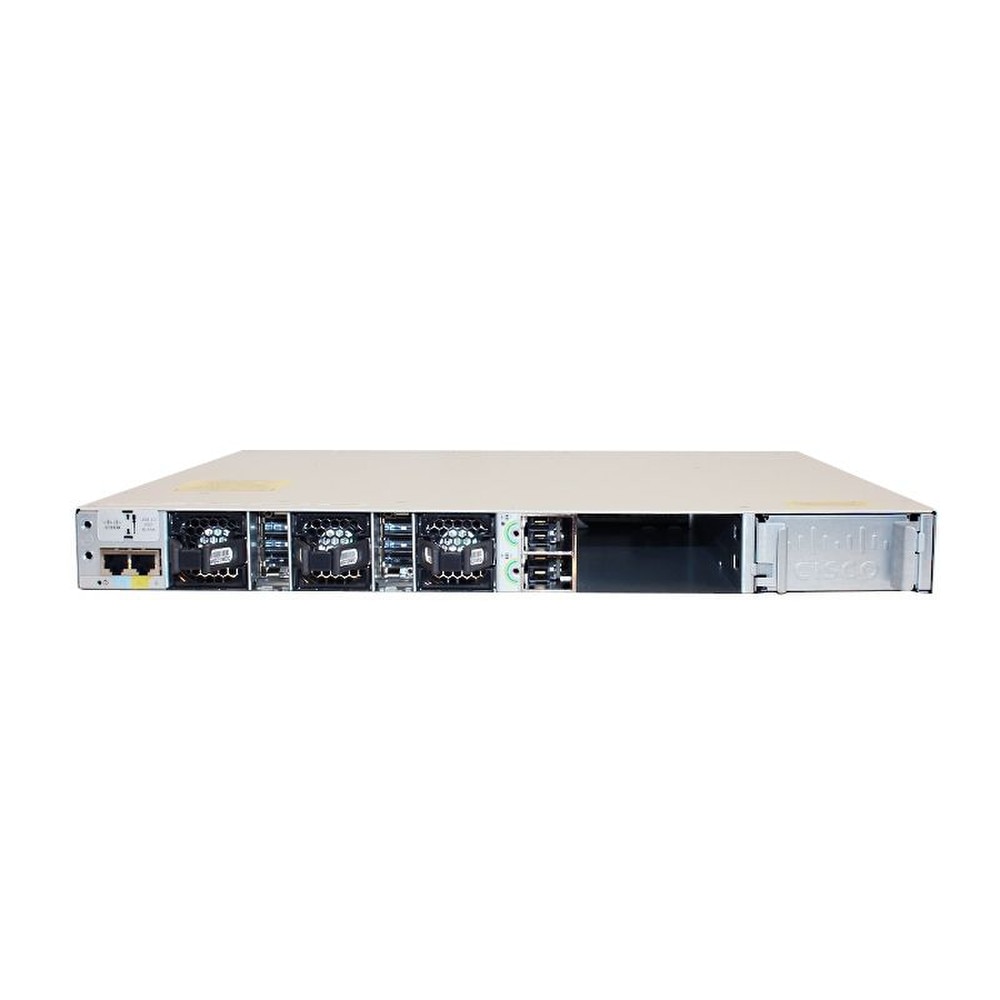

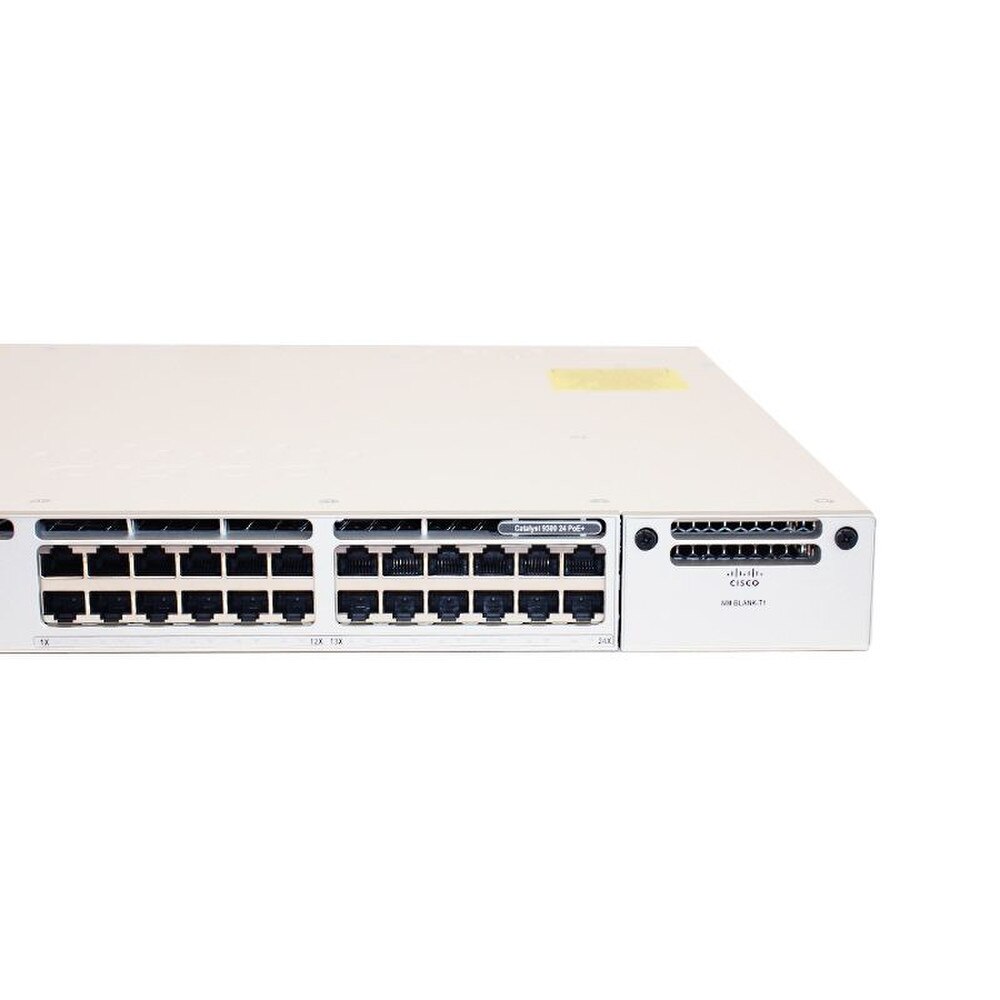

Cisco Catalyst C9300-24P-A-NM 24-Port PoE+ Network Advantage Switch | New

Cisco Catalyst C9300-24P-A-NM 24-Port PoE+ Network Advantage Switch | New

SKU: C9300-24P-A-NM-N
(0)No Reviews yet

Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns

$2,899.99 $2,899.99
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

Overview of Cisco Catalyst C9300-24P-A 24-Port PoE+ Network Advantage Switch | New

The Cisco Catalyst C9300-24P-A 24-Port PoE+ Network Advantage Switch is designed to work in demanding environments. This small and dependable switch has 8 Fast Ethernet RJ-45 ports and 2 combo Gigabit Ethernet ports for more network connectivity options. This switch has a switching capacity of 7.6 Gbps, which allows for efficient data transfer across the network. It has a forwarding rate of up to 5.66 Mpps and small packet sizes (64 bytes), ensuring that traffic flows smoothly even at peak loads. With an impressive 8000-entry MAC address table, the IE-2000-8TC-G-L can handle large-scale networks without sacrificing performance or reliability.


Key Features of Cisco Catalyst C9300-24P-A 24-Port PoE+ Network Advantage Switch


24 Ports Power Over Ethernet Plus (PoE+)

The C9300-24P-A's core capability is to deliver Power Over Ethernet Plus (PoE+), which provides both power and data connectivity to connected devices via a single Ethernet cable. With 24 PoE+ ports, this switch can power a wide range of devices, including IP cameras, VoIP phones, and wireless access points.

10/100/1000Base-T Gigabit Ethernet

The C9300-24P-A supports Gigabit Ethernet technology, allowing for data transfer rates of 10/100/1000Base-T. This ensures fast connectivity, making the switch ideal for bandwidth-intensive applications and large data transfers.

Layer 2 Manageable

Layer 2 management capabilities improve the control and efficiency of the C9300-24P-A. This enables network administrators to configure and manage the switch at the data link layer, thereby improving network performance and ensuring seamless communication between devices.

Versatility in Device Support

The C9300-24P-A switch's 24 PoE+ ports enable it to power a wide range of devices directly via Ethernet cable. This versatility is especially useful in situations where traditional power sources may be impractical or unavailable.

Simplified Installation

PoE+ eliminates the need for separate power cables for connected devices, which simplifies installation. This feature is especially useful in environments where efficient deployment is critical, such as when installing surveillance systems or wireless networks.

Cost-Effective Power Delivery

The C9300-24P-A's PoE+ integration reduces the need for additional power infrastructure, which contributes to cost efficiency. This is especially important in situations where installing power sources for each device would be both expensive and time-consuming.

High-Speed Data Transfer

The C9300-24P-A's Gigabit Ethernet capabilities enable fast data transfer across the network. With data rates of 10/100/1000Base-T, the switch is ideal for applications requiring fast and efficient communication, such as video streaming and large file transfers.

Reduced Latency

The high data transfer rates not only allow for faster data transfer, but also contribute to lower latency. Reduced latency is critical for applications that require real-time responsiveness, ensuring a consistent user experience in time-sensitive situations.

Optimized Bandwidth

Gigabit Ethernet technology optimizes bandwidth usage, allowing the C9300-24P-A to handle bandwidth-intensive applications simultaneously. This is critical in modern networks where multiple devices are involved in activities requiring significant data transfer.

Enhanced Network Control

Layer 2 management capabilities enable network administrators to exert fine-grained control over the switch's data link layer operations. This includes MAC address management, VLAN implementation, and network traffic flow optimization.

Efficient Resource Allocation

Layer 2 management enables efficient resource allocation by controlling how data is routed within the switch. This ensures that network resources are used optimally, which improves overall network efficiency.

Easy Configuration and Troubleshooting

Layer 2 management makes it easier to configure and troubleshoot applications. Network administrators can easily configure port settings, monitor traffic, and identify and resolve issues at the data link layer, thereby streamlining network management.

IP Telephony Systems

The C9300-24P-A, with PoE+ support, is an excellent choice for IP telephony systems. It can power VoIP phones via Ethernet cable, which simplifies installation and ensures a dependable and efficient communication system.

Wireless Networks

The C9300-24P-A's PoE+ capability allows for more flexible deployment of wireless access points. The switch can provide power and data connectivity to access points, allowing for more flexible placement without the need for power outlets.

Surveillance Systems

The switch's PoE+ support is particularly useful in surveillance systems, where IP cameras require both power and data connectivity. The 24 PoE+ ports make it easy to set up a comprehensive surveillance network.

Office Environments

In the office, the C9300-24P-A's Gigabit Ethernet and PoE+ support meet the diverse connectivity requirements of computers, printers, and other office devices. Layer 2 management capabilities improve network control and efficiency.

Routing capabilities

Because a Layer 3 switch can route data, it can forward packets between different subnets and VLANs, enabling network segmentation and reducing broadcast traffic. This makes it easier to create large, scalable networks with numerous subnets and VLANs.

Better security

Layer 3 switches can use routing protocols like Open Shortest Path First (OSPF) and Border Gateway Protocol (BGP) to find the best path for data to take. This provides more granular control over network traffic, making it easier to implement security policies like firewalls, intrusion detection and prevention systems, and VPNs.

Quality of Service (QoS)

Layer 3 switches can mark, classify, and police network traffic, allowing for the prioritization of specific types of traffic and preventing network congestion.

IP Mobility

Layer 3 switches can support IP mobility, which is the ability of a device to maintain its IP address while moving between subnets. This is especially useful for mobile devices such as laptops and smartphones that switch between wireless access points and wired networks.

Cost savings

Layer 3 switches eliminate the need for separate routers and switches. As a result, organizations may save money on hardware while also simplifying network management.

Specifications

Specification for Cisco Catalyst C9300-24P-A-NM 24-Port PoE+ Network Advantage Switch | New

ManufacturerCisco
Manufacturer Part NumberC9300-24P-A
Product NameCisco Catalyst C9300-24P-A 24-Port PoE+ Network Advantage Switch
Product TypeNetworking Switch
Enclosure Type
Rack-mountable 1U
Subtype
Gigabit Ethernet
Ports
24 x 10/100/1000 (PoE+)
Power Over Ethernet (PoE)
PoE+
PoE Budget
445 W
Performance
Switching capacity: 128 Gbps ¦ Stacking bandwidth: 480 Gbps ¦ Forwarding rate: 154.76 Mpps
Capacity
IPv4 routing table entries: 32000 ¦ IPv6 routing table entries: 16000 ¦ Flexible NetFlow entries: 64000 ¦ VLAN IDs: 4000 ¦ Switched virtual interfaces (SVIs): 2000
MAC Address Table Size
32000 entries
Jumbo Frame Support
9198 bytes
Routing Protocol
OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, MSDP, policy-based routing (PBR), RIPng
Remote Management Protocol
SNMP 1, RMON 1, RMON 2, SNMP, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
Encryption Algorithm
128-bit AES
Features
DHCP support, trunking, Syslog support, full duplex mode, Stateful switchover (SSO), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), Non-Stop Routing (NSR), Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF), Multicast Source Discovery Protocol (MSDP), 802.1x authentication, 16MB packet buffer, FTP client, MACsec support, 3 fans, Control plane protection (CoPP), Virtual Extensible LAN (VXLAN), Application Visibility and Control (AVC), Source-Specific Multicast (SSM), integrated Wireshark, VLAN Double Tagging (Q-in-Q), Ethernet over MPLS (EoMPLS), Hierarchical Virtual Private LAN Service (H-VPLS), Private VLAN, Layer 3 VPN (L3VPN) support, Encapsulated Remote SPAN (ERSPAN), Security Group Tag (SGT) caching, Security Group Access Control List (SGACL), IT Service Management (ITSM) integration, third-party IP Address Management (IPAM) integration
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at
RAM
8 GB
Flash Memory
16 GB
Status Indicators
Status
Interfaces
48 x 1000Base-T RJ-45 PoE+ ¦ 1 x USB 2.0
Expansion Slots
1 (total) / 1 (free) x expansion slot
Power Device
Internal power supply - hot-plug
Installed Qty
1
Max Supported Qty
2
Power Redundancy
Optional
Power Provided
715 Watt
Voltage Required
AC 120/230 V (50 - 60 Hz)
MTBF
299,000 hours
Compliant Standards
CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, CCC, ICES-003 Class A, EN 61000-4-5, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, EN 55022 Class A, FCC CFR47 Part 15 A, EN 300 386, TVCN 7317, VCCI V-3/2009 Class A, CAN/CSA-C22.2 No. 60950-1
OS Required
Cisco IOS Universal
Width
17.5 in
Depth
17.5 in
Height
1.7 in
Weight
16.31 lbs
Service & Support
Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - consulting - 90 days
Min Operating Temperature
23 °F
Max Operating Temperature
113 °F
Humidity Range Operating
5 - 90% (non-condensing)
Min Storage Temperature
-40 °F
Max Storage Temperature
158 °F
Humidity Range Storage
5 - 90% (non-condensing)

User Guides

Frequently Asked Questions

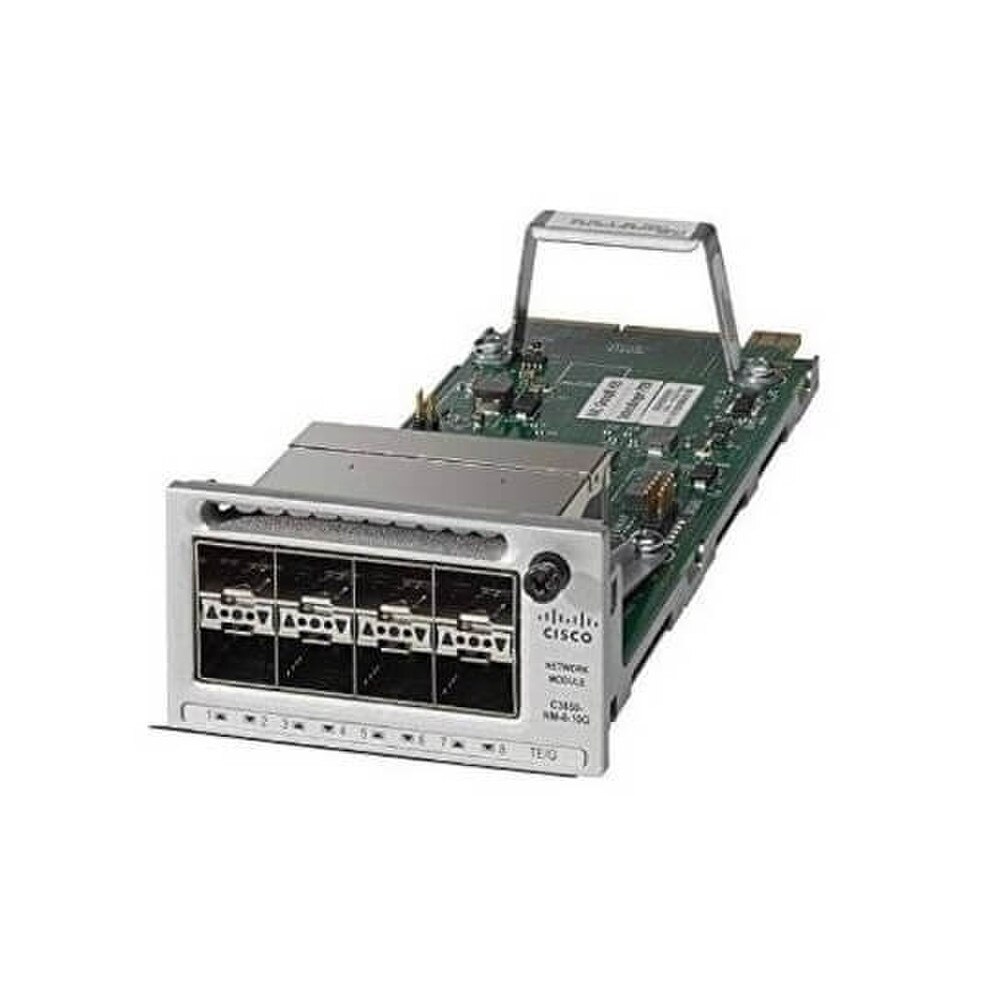

Cisco Catalyst 24-Port PoE+ Network Advantage Switch (C9300-24P-A) w/C9300-NM-8X
Frequently Asked Questions (FAQ's)



What is the Cisco Catalyst C9300-24P-A-NM?
  • This 24-port Gigabit Ethernet switch, which is a member of the Catalyst 9300 Series and is intended for enterprise access layers, has a modular uplink slot and Power over Ethernet Plus (PoE+) features.
  • What is the maximum number of switches that can be stacked?
  • Officially, StackWise-480 technology allows for the stacking of up to eight switches. Unofficially, up to 16 switches may be supported under certain configurations.
  • Can I stack this model with other Catalyst 9300 models?
  • As long as every switch is running the same version of Cisco IOS XE, stacking is possible inside the same Catalyst 9300 Series.
  • Is stacking supported with Catalyst 3850 Series switches?
  • No, because the CPU architectures and scaling capacities of the Catalyst 9300 and 3850 Series switches differ, stacking between them is not possible.
  • Can I use 3850 Series uplink modules in the Catalyst 9300?
  • Yes, the Catalyst 9300 is compatible with the current 3850 uplink modules; however, it is incompatible with the new 9300-specific modules.
  • What is the power consumption for the C9300-24P-A-NM?
  • With a default AC power source, the C9300-24P-A-NM uses about 715W, but it can deliver up to 505W of PoE power.
  • Can I use both console ports simultaneously?
  • No, administrators can check when the USB console is in use by accessing the USB console port, which will also show the output on the RJ-45 console.
  • Does it support auto-baud on the console port?
  • No, auto-bauding is not supported on the console port.
  • What type of airflow does the switch support?
  • Both side-to-back and front-to-back airflow configurations are supported by the switch.
  • What fiber solutions are available?
  • The switch is compatible with Catalyst 9300 copper devices and comes in 12-port, 24-port, and 48-port SKUs with multi-rate 25G/10G/1G and 1G SFP downlink options.
  • Does it support application hosting?
  • In order to preserve dedicated memory and CPU resources for apps without sacrificing switch performance, the Catalyst 9300 Series does indeed allow native Docker application hosting.
  • What is the default password for the switch?
  • Usually, there is no default password; simply hit Enter when prompted. A preset password might be used by some more recent photos.
  • How do I reset the switch to factory defaults?
  • When rebooting, use the Mode button technique and then delete the startup configuration.
  • Do I need a license to run advanced features?
  • Yes, regular software updates and Smart Licenses are necessary for advanced Layer 3 and DNA functionality.
  • What is the maximum number of NETCONF sessions supported?
  • A maximum of 20 simultaneous NETCONF sessions are supported.
  • What is the airflow direction for the switch?
  • The airflow direction is from front and sides to back.
  • How many ports on the C9300-24P-A-NM support PoE+?
  • All 24 Gigabit Ethernet ports on the C9300-24P-A-NM support PoE+.
  • What is the total PoE power budget for the C9300-24P-A-NM?
  • The 24 PoE+ ports on the switch share the 505W PoE power budget that the switch offers.
  • Can I stack the C9300-24P-A-NM with other Catalyst 9300 models?
  • If they are running the same version of Cisco IOS XE software, the C9300-24P-A-NM can be stacked with other Catalyst 9300 models that offer StackWise-480.
  • What is the maximum stack bandwidth supported by the C9300-24P-A-NM?
  • Stacking the C9300-24P-A-NM with other compatible Catalyst 9300 switches allows for a maximum stack bandwidth of 480 Gbps.
