  • Cisco CBS350-8FP-E-2G 8-Port Gigabit PoE+ Managed Network Switch with SFP/RJ45 Combo (NA) | Refresh
Cisco CBS350-8FP-E-2G 8-Port Gigabit PoE+ Managed Network Switch with SFP/RJ45 Combo (NA) | Refresh

Cisco CBS350-8FP-E-2G 8-Port Gigabit PoE+ Managed Network Switch with SFP/RJ45 Combo (NA) | Refresh

SKU: CBS350-8FP-E-2G-NA-RF
(0)No Reviews yet

Cisco Refresh offers fully remanufactured, Cisco Certified products with SmartNet eligibility (OEM Refurbished).

Clean Serial: YES

Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns

$139.99 $139.99
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

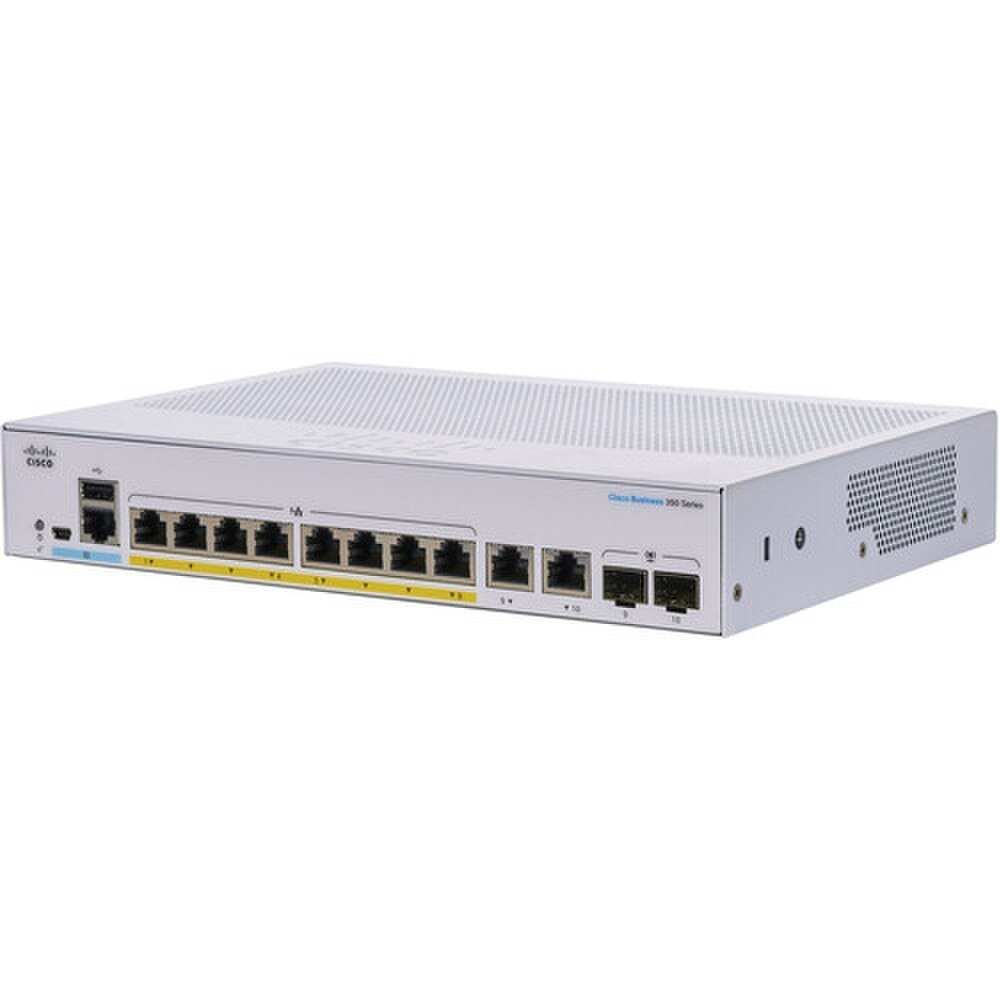

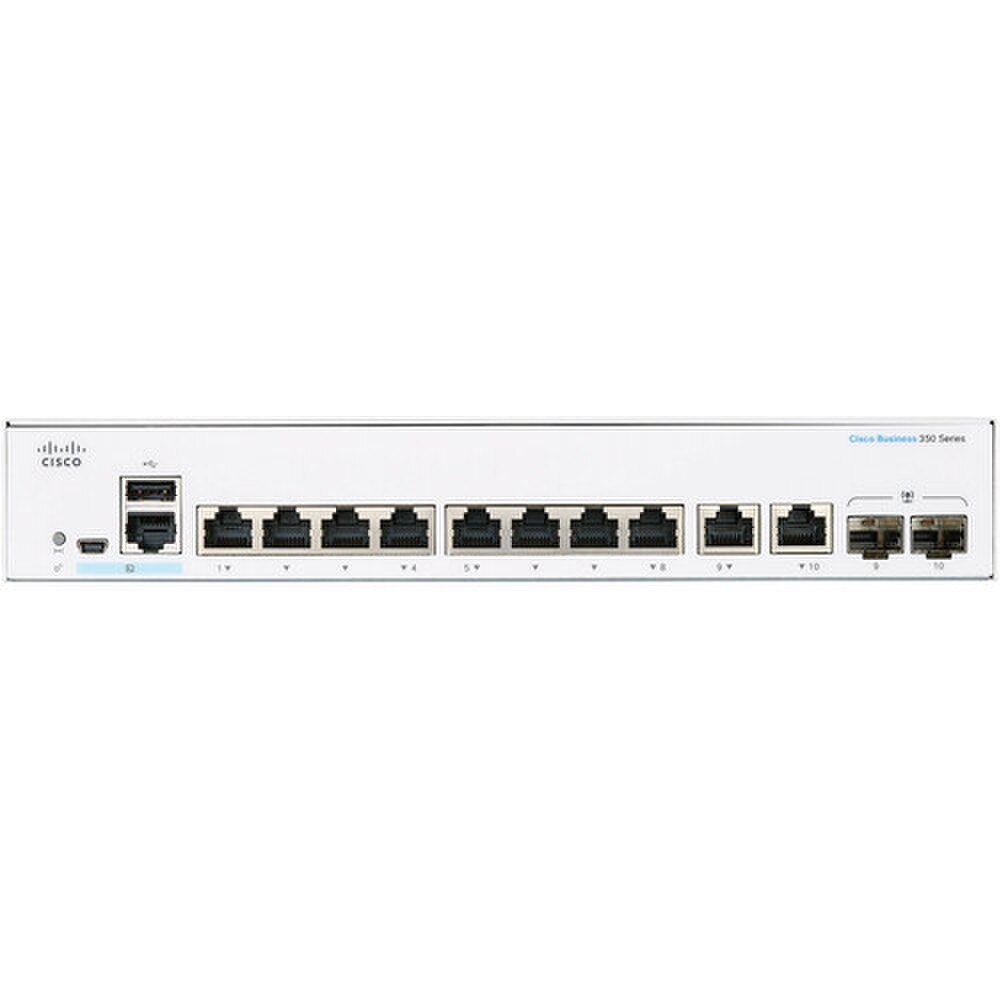

Overview of Cisco CBS350-8FP-E-2G 8-Port Gigabit PoE+ Managed Network Switch with SFP/RJ45 Combo (NA) | Refresh

The Cisco CBS350-8FP-E-2G 8-Port Gigabit PoE+ Managed Network Switch with SFP/RJ45 Combo (NA) is a powerful managed network switch built for small and medium-sized enterprises that want a reliable, secure, and scalable network solution. This adaptable switch combines advanced features, high-power PoE+ capabilities, and various connectivity options to suit modern business applications and future network expansions. The CBS350-8FP-E-2G has 8 Gigabit Ethernet ports that enable PoE+ and a huge 120W power budget, allowing you to power devices like IP phones, wireless access points, and security cameras directly via network cables. In addition, it has two Gigabit copper/SFP combination ports for versatile uplink connectivity. With a 20 Gbps switching capability and powerful Layer 2 and Layer 3 features, this switch ensures that your business-critical applications move data smoothly and efficiently.


Key Features of Cisco CBS350-8FP-E-2G 8-Port Gigabit PoE+ Managed Network Switch with SFP/RJ45 Combo


8 Gigabit Ethernet ports with PoE+ support (up to 30W per port)

Two Gigabit copper/SFP combo ports for versatile uplink options

120W total PoE budget for powering multiple devices

• Advanced Layer 2 and Layer 3 features including static routing and VLAN routing

• Intuitive web-based interface and Cisco Business Dashboard for easy configuration

Robust security features including ACLs, 802.1X authentication, and DHCP snooping

• Energy-efficient design with Energy Efficient Ethernet (IEEE 802.3az) support

Advanced QoS capabilities for prioritizing delay-sensitive traffic

IPv6 support for future-proof networking

• Compact, fanless design for quiet operation in office environments


Benefits of Cisco CBS350-8FP-E-2G 8-Port Gigabit PoE+ Managed Network Switch with SFP/RJ45 Combo


🗹 Enhance network performance with Gigabit speeds and high-power PoE+ support

🗹 Simplify deployment of IP telephony, wireless, and video surveillance solutions

🗹 Improve network reliability with advanced QoS and security features

🗹 Reduce operational costs with energy-efficient design

🗹 Scale your network easily with flexible SFP/RJ45 combo uplink options

🗹 Simplify management and troubleshooting with intuitive interfaces

🗹 Ensure business continuity with robust security and high availability

🗹 Future-proof your investment with advanced Layer 3 features and IPv6 support

🗹 Optimize application performance with advanced traffic management

🗹 Leverage Cisco's renowned quality and support for peace of mind

Specifications

Specification for Cisco CBS350-8FP-E-2G 8-Port Gigabit PoE+ Managed Network Switch with SFP/RJ45 Combo (NA) | Refresh

ManufacturerCisco
Manufacturer Part NumberCBS350-8FP-E-2G-NA-RF
Product NameCisco CBS350-8FP-E-2G 8-Port Gigabit PoE+ Managed Network Switch with SFP/RJ45 Combo
Product TypeNetworking Switch
Enclosure Type
Rack-mountable
Subtype
Gigabit Ethernet
Ports
8 x 10/100/1000 (PoE+) + 2 x combo SFP
Power Over Ethernet (PoE)
PoE+
PoE Budget
120 W
Performance
Switching capacity: 20 Gbps ¦ Forwarding performance (64-byte packet size): 14.88 Mpps
Capacity
RPVST+ instances: 126 ¦ MSTP instances: 8 ¦ VLANs supported: 4094 ¦ ACL rules: 1024 ¦ Buffer capacity (MB): 1.5
MAC Address Table Size
16K entries
Jumbo Frame Support
2KB
Max Units In A Stack
4
Routing Protocol
IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), MLDv2, MLD, CIDR, MSTP, RSTP, STP
Remote Management Protocol
SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, ICMP, DHCP, RSTP, TACACS+, RADIUS
Encryption Algorithm
SSL
Authentication Method
Secure Shell (SSH), RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2)
Features
Flow control, BOOTP support, ARP support, VLAN support, Syslog support, DoS attack prevention, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, firmware upgradable, SNTP support, DHCP snooping, Quality of Service (QoS), DHCP server, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), reset button, STP Root Guard, Uni-Directional Link Detection (UDLD), fanless, LACP support, LLDP support, DHCP relay, Management Information Base (MIB), Multicast VLAN Registration (MVR), Generic VLAN Registration Protocol (GVRP), 802.1x authentication, Type of Service (ToS), DiffServ Code Point (DSCP) support, cable test, IP source guard, SmartPort technology, dual image support, DNS client, Secure Core Technology (SCT), Private VLAN Edge (PVE), LLDP-MED, IP/Mac/Port Binding (IPMB), Secure Sensitive Data (SSD), ISATAP tunnel support, RA guard, User Datagram Protocol (UDP), Weighted Round Robin (WRR), Head-of-line (HOL) Blocking Prevention, loopback detection, Unknown Storm Control, BPDU Guard, Link Aggregation Group (LAG), Voice Services Discovery Protocol (VSDP), Rapid PVST+ (RPVST+), Duplicate Address Detection (DAD)
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3at, IEEE 802.3az
Processor
X ARM: 800 MHz
RAM
512 MB
Flash Memory
256 MB
Status Indicators
Status, PoE, link/activity/speed
Interfaces
8 x 10/100/1000 Base-T RJ-45 PoE+ ¦ 2 x 1000Base-T / 1000Base-X RJ-45/SFP ¦ 1 x console (mini-USB) Type B ¦ 1 x USB Type A ¦ 1 x console RJ-45
Power Device
External power adapter
Voltage Required
AC 120/230 V (50/60 Hz)
Power Consumption Operational
147.48 Watt
Rack Mounting Kit
Included
MTBF
1,706,649 hours
Compliant Standards
UL 60950, CSA 22.2, FCC CFR47 Part 15 B Class A, USGv6
Localization
Colombia, Canada, Chile, Mexico, Latin America, United States
Width
10.6 in
Depth
7.3 in
Height
1.7 in
Weight
7.72 lbs
Service & Support
Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - web support - 1 year ¦ Technical support - phone consulting - 1 year
Min Operating Temperature
23 °F
Max Operating Temperature
122 °F
Humidity Range Operating
10 - 90% (non-condensing)
Min Storage Temperature
-13 °F
Max Storage Temperature
158 °F
Humidity Range Storage
10 - 90% (non-condensing)

User Guides

Frequently Asked Questions

Cisco CBS350-8FP-E-2G 8-Port Gigabit PoE+ Managed Network Switch with SFP/RJ45 Combo
Frequently Asked Questions (FAQ's)



What is the total PoE power budget of the Cisco CBS350-8FP-E-2G?
  • The switch has a total power budget of 120W PoE+ across all eight ports.
  • Can the switch power devices like IP phones and wireless access points?
  • Yes, the switch supports PoE+ (802.3at), so it can power IP phones, access points and cameras.
  • What is the maximum PoE power available per port?
  • Each PoE+ port can provide up to 30 watts of power.
  • How many SFP/RJ45 combo ports are available on the switch?
  • The switch has two Gigabit SFP/RJ45 combo ports for uplink and expansion.
  • Can I use both SFP and RJ45 ports simultaneously?
  • No, the SFP and RJ45 ports are combo ports, which means that only one type (SFP or RJ45) can be used at once.
  • Is the switch fanless and quiet?
  • Yes, this switch has a fanless design, making it suitable for noise-sensitive environments.
  • Does the Cisco CBS350-8FP-E-2G support Layer 3 functionality?
  • Yes, the switch supports Layer 3 static routing, which allows it to route traffic across VLANs.
  • Can this switch be used for VLAN segmentation?
  • Yes, the switch supports VLAN configuration, which enables network segmentation and improved security.
  • What type of management interface does the switch offer?
  • The switch has a simple web-based interface and supports the Cisco Business Dashboard for easy management.
  • Does the switch support Quality of Service (QoS)?
  • Yes, the switch includes advanced QoS features for prioritizing network traffic and improving performance.
  • Is this switch suitable for small and medium-sized businesses?
  • Yes, the switch is intended for SMBs, providing advanced features in a compact and cost-effective package.
  • What kind of security features does the Cisco CBS350-8FP-E-2G provide?
  • Access Control Lists (ACLs), SSL encryption, and IP-MAC binding are all built into the switch to improve security.
  • Does the switch support link aggregation?
  • Yes, the switch supports the Link Aggregation Control Protocol (LACP), which combines multiple network connections to increase bandwidth.
  • Can the switch be integrated with fiber networks?
  • Yes, the SFP ports support fiber connectivity with compatible SFP transceivers.
  • What is the switching capacity of the Cisco CBS350-8FP-E-2G?
  • The switch has a switching capacity of 20 Gbps, ensuring high-speed data transmission.
  • Is the switch compatible with Cisco's Energy Efficient Ethernet (EEE) standards?
  • Yes, the switch supports Energy Efficient Ethernet (EEE), which reduces power consumption during low network activity.
  • Can the switch be used in a rackmount setup?
  • No, the Cisco CBS350-8FP-E-2G is a desktop switch that can be installed in a rack with an optional mounting kit
  • Does the switch offer support for IPv6?
  • Yes, it fully supports IPv6, which ensures future-proof networking.
  • Can this switch be used for VoIP traffic management?
  • Yes, with QoS and PoE+, it is ideal for managing VoIP traffic in business environments.
  • How many VLANs can be configured on the switch?
  • The switch allows you to create up to 256 active VLANs, giving you more control over network segmentation.
