Cisco Refresh offers fully remanufactured, Cisco Certified products with SmartNet eligibility (OEM Refurbished).
Clean Serial: YES
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us

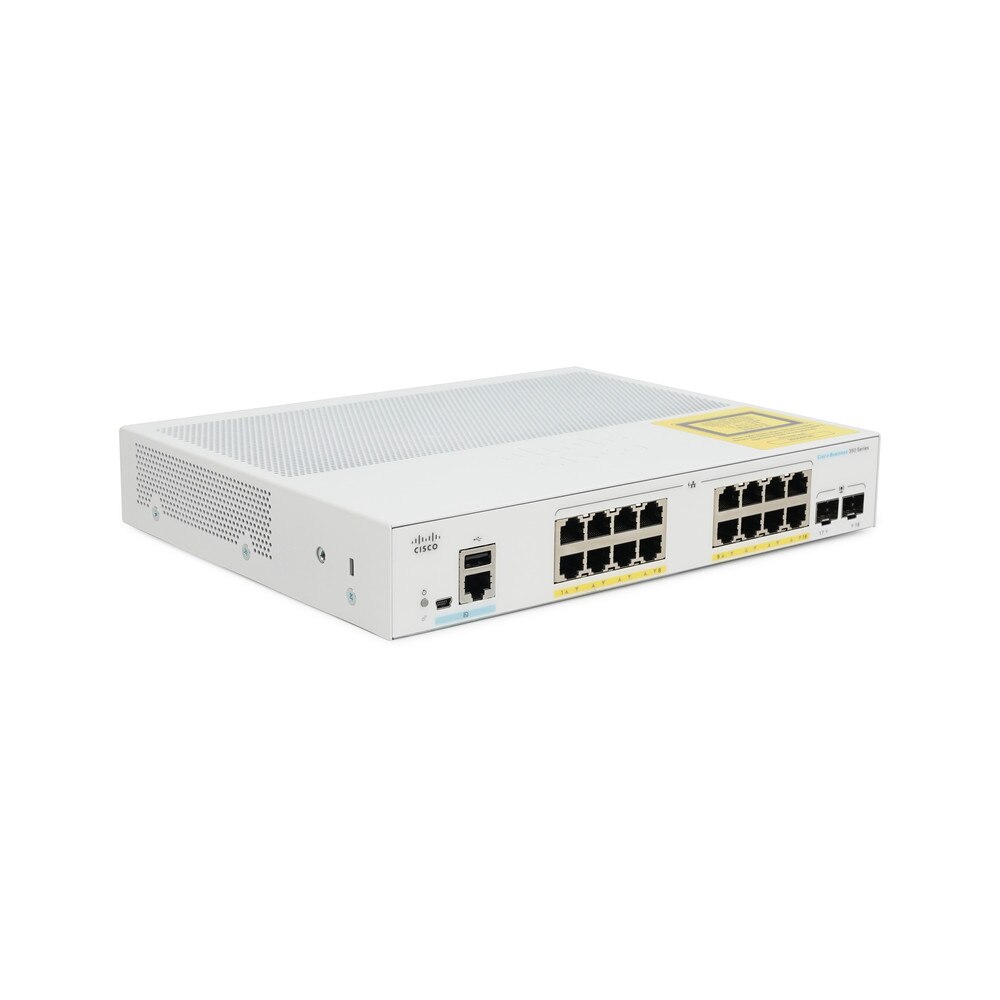

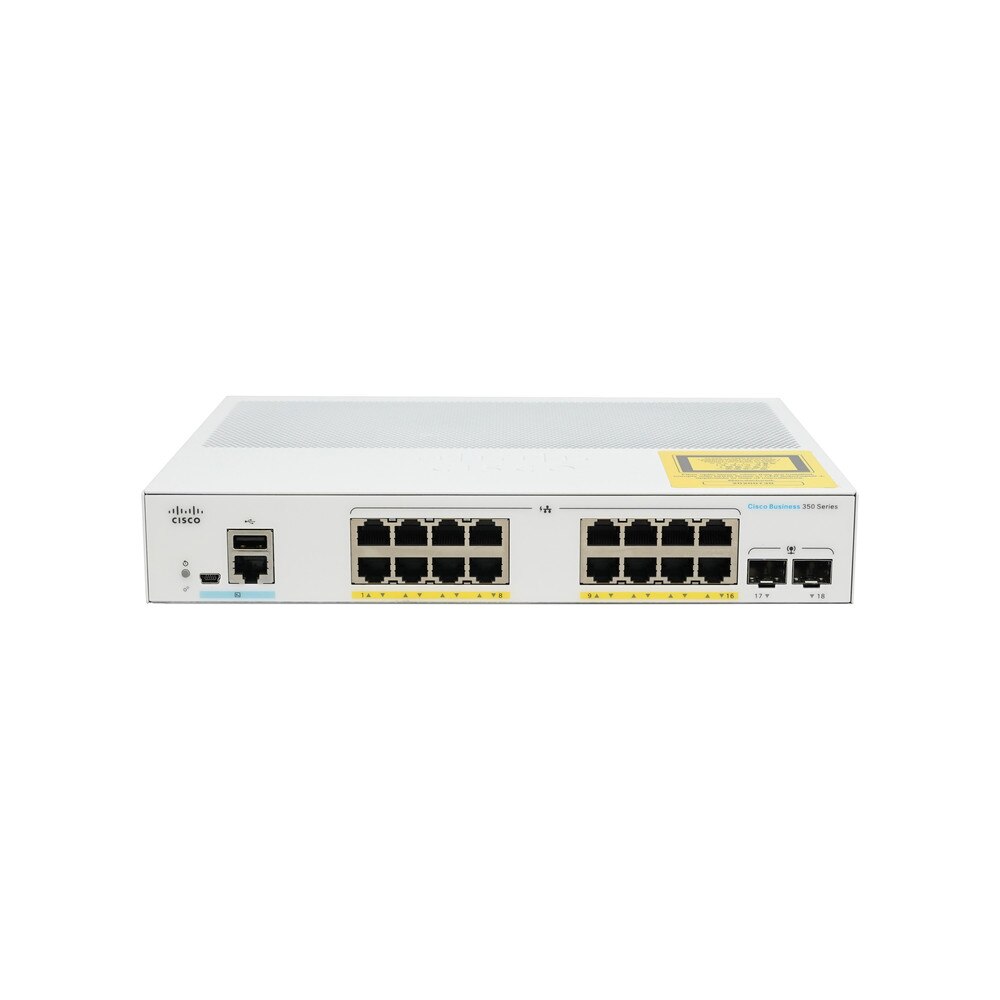

The Cisco CBS350-16P-E-2G 16-Port Gigabit PoE+ Managed Switch with SFP (NA) is a high-performance Layer 3 managed switch built for small and medium-sized organizations that require reliable network connectivity and extensive capabilities. This versatile 16-port Gigabit Ethernet switch supports Power over Ethernet Plus (PoE+), making it suitable for connecting IP phones, wireless access points, and security cameras. With a 120W PoE budget and two Gigabit SFP uplink ports, the CBS350-16P-E-2G offers versatile connectivity options for expanding networks. This switch, powered by innovative switching technology, improves security, dependability, and operating efficiency in demanding commercial situations.
• 16 Gigabit Ethernet ports with PoE+ support
• 120W PoE+ power budget for connected devices
• 2 Gigabit SFP uplink ports for network expansion
• 36 Gbps switching capacity and 26.78 Mpps forwarding rate
• Layer 3 static routing capabilities
• Advanced security features including 802.1X authentication and ACLs
• Quality of Service (QoS) for traffic prioritization
• Easy-to-use web-based management interface
• Energy Efficient Ethernet (EEE) support
• VLAN support for network segmentation
• IPv6 support for future-proof networking
• Compact design for flexible deployment
• Cisco Business Dashboard for simplified network management
• True stacking capability for unified management
| Manufacturer | Cisco |
| Manufacturer Part Number | CBS350-16P-E-2G-NA-RF |
| Product Name | Cisco CBS350-16P-E-2G 16-Port Gigabit PoE+ Managed Switch with SFP |
| Product Type | Networking Switch |
Enclosure Type | Rack-mountable |
Subtype | Gigabit Ethernet |
Ports | 16 x 10/100/1000 (PoE+) + 2 x Gigabit SFP |
Power Over Ethernet (PoE) | PoE+ |
PoE Budget | 120 W |
Performance | Switching capacity: 36 Gbps ¦ Forwarding performance (64-byte packet size): 26.78 Mpps |
Capacity | RPVST+ instances: 126 ¦ MSTP instances: 8 ¦ VLANs supported: 4094 ¦ ACL rules: 1024 ¦ Buffer capacity (MB): 1.5 |
MAC Address Table Size | 16K entries |
Jumbo Frame Support | 2KB |
Max Units In A Stack | 4 |
Routing Protocol | IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), MLDv2, MLD, CIDR, MSTP, RSTP, STP |
Remote Management Protocol | SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, ICMP, DHCP, RSTP, TACACS+, RADIUS |
Encryption Algorithm | SSL |
Authentication Method | Secure Shell (SSH), RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2) |
Features | Flow control, BOOTP support, ARP support, VLAN support, Syslog support, DoS attack prevention, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, firmware upgradable, SNTP support, DHCP snooping, Quality of Service (QoS), DHCP server, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), reset button, STP Root Guard, Uni-Directional Link Detection (UDLD), fanless, LACP support, LLDP support, DHCP relay, Management Information Base (MIB), Multicast VLAN Registration (MVR), Generic VLAN Registration Protocol (GVRP), 802.1x authentication, Type of Service (ToS), DiffServ Code Point (DSCP) support, cable test, IP source guard, SmartPort technology, dual image support, DNS client, Secure Core Technology (SCT), Private VLAN Edge (PVE), LLDP-MED, IP/Mac/Port Binding (IPMB), Secure Sensitive Data (SSD), ISATAP tunnel support, RA guard, User Datagram Protocol (UDP), Weighted Round Robin (WRR), Head-of-line (HOL) Blocking Prevention, loopback detection, Unknown Storm Control, BPDU Guard, Link Aggregation Group (LAG), Voice Services Discovery Protocol (VSDP), Rapid PVST+ (RPVST+), Duplicate Address Detection (DAD) |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3at, IEEE 802.3az |
Processor | X ARM: 800 MHz |
RAM | 512 MB |
Flash Memory | 256 MB |
Status Indicators | Status, PoE, link/activity/speed |
Interfaces | 16 x 10/100/1000 Base-T RJ-45 PoE+ ¦ 2 x 1000Base-X SFP ¦ 1 x console (mini-USB) Type B ¦ 1 x USB Type A ¦ 1 x console RJ-45 |

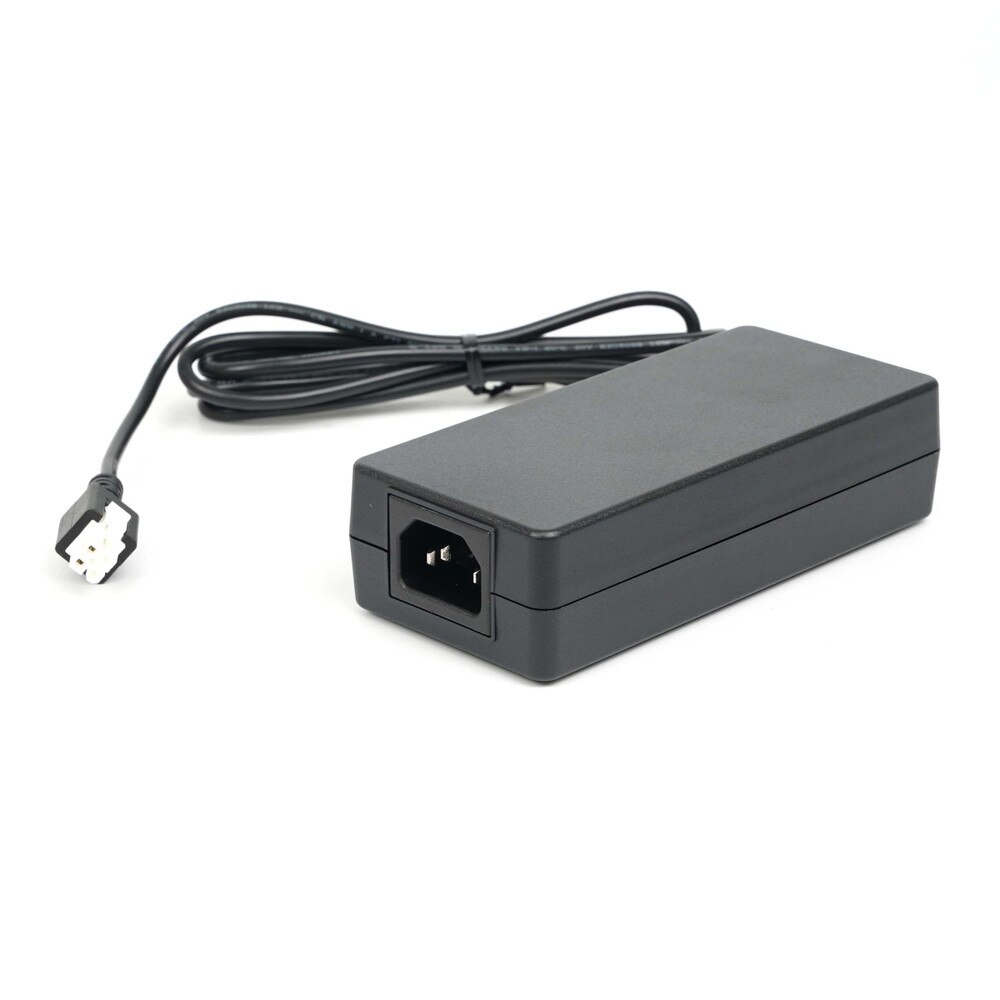

Power Device | External power adapter |
Voltage Required | AC 120/230 V (50/60 Hz) |
Power Consumption Operational | 150.1 Watt |

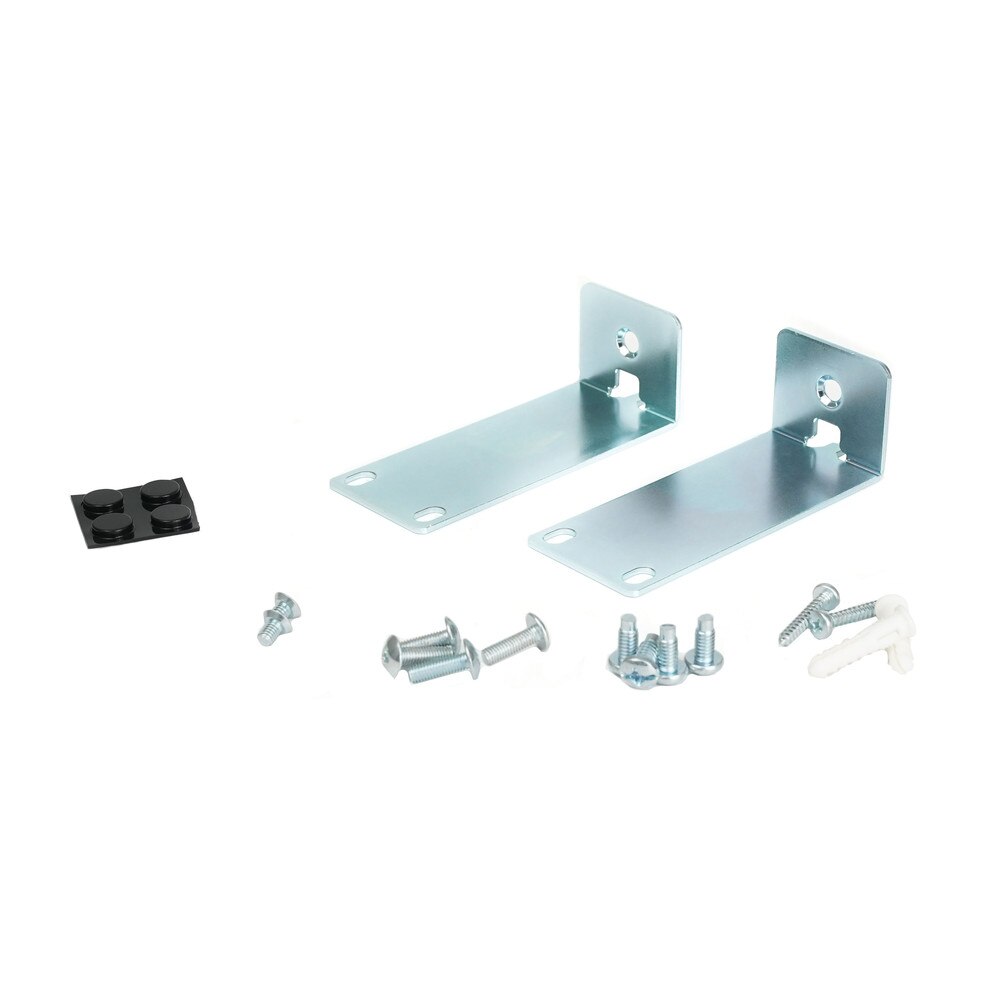

Rack Mounting Kit | Included |
MTBF | 706,983 hours |
Compliant Standards | UL 60950, CSA 22.2, FCC CFR47 Part 15 B Class A, USGv6 |
Localization | Colombia, Canada, Chile, Mexico, Latin America, United States |
Width | 10.6 in |
Depth | 8.3 in |
Height | 1.7 in |
Weight | 3.13 lbs |
Service & Support | Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - web support - 1 year ¦ Technical support - phone consulting - 1 year |
Min Operating Temperature | 23 °F |
Max Operating Temperature | 122 °F |
Humidity Range Operating | 10 - 90% (non-condensing) |
Min Storage Temperature | -13 °F |
Max Storage Temperature | 158 °F |
Humidity Range Storage | 10 - 90% (non-condensing) |
