Cisco Refresh offers fully remanufactured, Cisco Certified products with SmartNet eligibility (OEM Refurbished).
Clean Serial: YES
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us

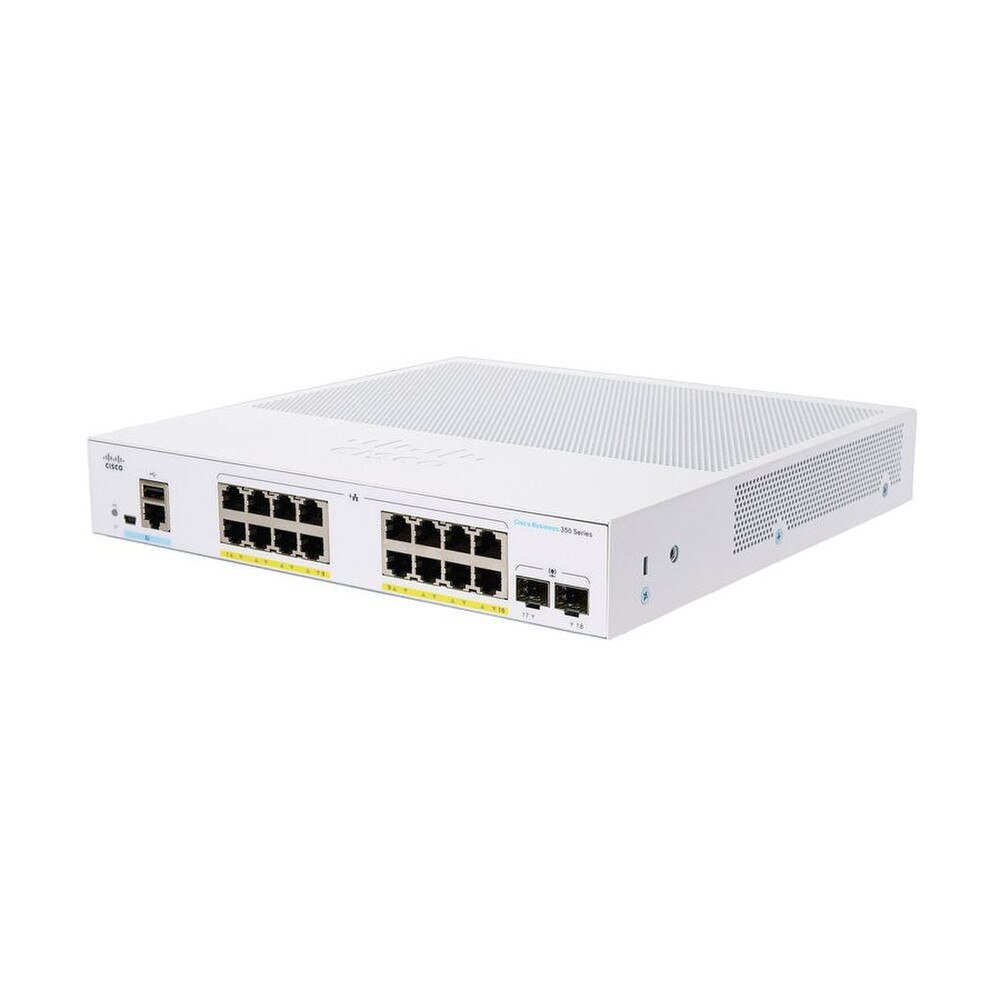

The Cisco CBS350-16P-2G 16-Port PoE Managed Gigabit Switch (CBS350-16P-2G-NA-RF) is a high-performance, feature-rich 16-port PoE+ managed Gigabit Ethernet switch intended to meet the changing networking needs of small and medium-sized businesses (SMBs). This Cisco network switch provides dependable, secure, and scalable connectivity for your growing business network infrastructure thanks to its powerful PoE+ capabilities, advanced security features, Quality of Service (QoS) support, and user-friendly management interface. The Cisco CBS350-16P-2G, which includes 16 PoE+ (Power over Ethernet) compliant Gigabit Ethernet ports and a remarkable 120W PoE+ budget, ensures that your PoE-enabled devices, such as IP phones, wireless access points, and IP cameras, receive power seamlessly. Its intelligent power management system distributes power efficiently across all ports, and the Perpetual PoE feature ensures continuous power during switch reloads for maximum uptime and reliability.
The Cisco CBS350-16P-2G has a number of security features to keep your business network safe from unauthorized access and potential threats. It supports full 802.1x network access control, including flexible authentication and RADIUS integration. Furthermore, it includes advanced security features such as Access Control Lists (ACLs), BPDU Guard, and SSH/SSL for secure remote administration. The intuitive web-based interface, command-line interface (CLI), or Cisco Business Mobile App allow you to easily configure, manage, and monitor your network. The Cisco CBS350-16P-2G supports a variety of management protocols, such as TFTP for software upgrades, NTP for precise time synchronization, and the Cisco Discovery Protocol for simple network integration. It also includes Switched Port Analyzer (SPAN) functionality for network monitoring and troubleshooting.
The Cisco CBS350-16P-2G, powered by an efficient switching architecture, provides smooth data transfers at a forwarding rate of 41.66 Mpps and a switching capacity of 56 Gbps. It also includes two Gigabit SFP uplink ports, allowing you to expand your business network and connect to faster backbone switches or routers as your business grows. This PoE+ managed switch supports advanced features such as VLANs, QoS, IGMP Snooping, and IPv4/IPv6 routing, ensuring optimal network performance and traffic prioritization.
The Cisco CBS350-16P-2G is designed with energy efficiency in mind, meeting IEEE 802.3az Energy Efficient Ethernet standards to optimize power consumption and reduce operational costs. Its compact and rack-mountable form factor makes it suitable for use in a variety of business settings, including retail stores, open-plan offices, and classrooms. The Cisco CBS350-16P-2G 16-Port PoE+ Managed Gigabit Switch is an excellent choice for SMBs looking for a scalable, secure, and cost-effective networking solution. This Cisco network switch offers small business networking solutions that include secure network management, Quality of Service features, SNMP support, and a high-performance PoE+ managed Gigabit Ethernet design to ensure network performance and security.
• 16 10/100/1000 Gigabit Ethernet ports
• 2 additional Gigabit SFP uplink ports for fiber connectivity
• 16 PoE+ (Power over Ethernet) compliant ports
• 120W total PoE budget to power PoE-enabled devices like IP phones, wireless APs, and IP cameras
• Supports IEEE 802.1X for network access control and RADIUS integration
• Access Control Lists (ACLs) and DHCP Snooping for enhanced network security
• Web-based user interface and mobile app for easy configuration and monitoring
• Powered by an 800 MHz ARM processor and 512 MB RAM for smooth data transfers
• Complies with IEEE 802.3az Energy Efficient Ethernet (EEE) for lower power consumption
• Smart power management features to reduce operational costs
| Manufacturer | Cisco |
| Manufacturer Part Number | CBS350-16P-2G-NA-RF |
| Product Name | Cisco CBS350-16P-2G 16-Port PoE Managed Gigabit Switch |
| Product Type | Networking Switch |
Enclosure Type | Rack-mountable |
Subtype | Gigabit Ethernet |
Ports | 16 x 10/100/1000 (PoE+) + 2 x Gigabit SFP |
Power Over Ethernet (PoE) | PoE+ |
PoE Budget | 120 W |
Performance | Switching capacity: 36 Gbps ¦ Forwarding performance (64-byte packet size): 26.78 Mpps |
Capacity | Link aggregation groups: 8 ¦ VLANs supported: 4094 ¦ Buffer capacity (MB): 1.5 MB |
MAC Address Table Size | 16K entries |
Jumbo Frame Support | 2KB |
Routing Protocol | IGMP, policy-based routing (PBR), CIDR |
Remote Management Protocol | SNMP 1, RMON, SNMP 3, SNMP 2c, SSH, SSH-2, ICMP |
Encryption Algorithm | SSL |
Authentication Method | Secure Shell (SSH), RADIUS, TACACS+ |
Features | DHCP support, ARP support, VLAN support, DoS attack prevention, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, DHCP server, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), STP Root Guard, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), fanless, Multicast VLAN Registration (MVR), Dynamic VLAN Support (GVRP), Type of Service (ToS), Storm Control, IP source guard, Bridge protocol data unit (BPDU), Voice VLAN, Secure Core Technology (SCT), LLDP-MED, IP/Mac/Port Binding (IPMB), Secure Sensitive Data (SSD), Private VLAN, ISATAP tunnel support, STP loop guard, Weighted Round Robin (WRR), multiple tag protocol identifiers (TPID) |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3at, IEEE 802.3az |
Processor | X ARM: 800 MHz |
RAM | 512 MB |
Flash Memory | 256 MB |
Status Indicators | Status, link/activity |
Interfaces | 16 x 10/100/1000 Base-T RJ-45 PoE+ ¦ 2 x 1000Base-X SFP ¦ 1 x console (USB) Type B ¦ 1 x USB Type A ¦ 1 x console RJ-45 |
Power Device | Internal power supply |
Voltage Required | AC 120/230 V (50/60 Hz) |
Rack Mounting Kit | Included |
MTBF | 706,983 hours |
Compliant Standards | UL 60950, CSA C22.2, FCC CFR47, USGv6 |
Localization | Colombia, Canada, Chile, Mexico, Latin America, United States |
Width | 10.6 in |
Depth | 8.3 in |
Height | 1.7 in |
Weight | 5.25 lbs |
Service & Support | Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - web support - 1 year ¦ Technical support - phone consulting - 1 year |
Min Operating Temperature | 23 °F |
Max Operating Temperature | 122 °F |
Humidity Range Operating | 10 - 90% (non-condensing) |
Min Storage Temperature | -13 °F |
Max Storage Temperature | 158 °F |
Humidity Range Storage | 10 - 90% (non-condensing) |
