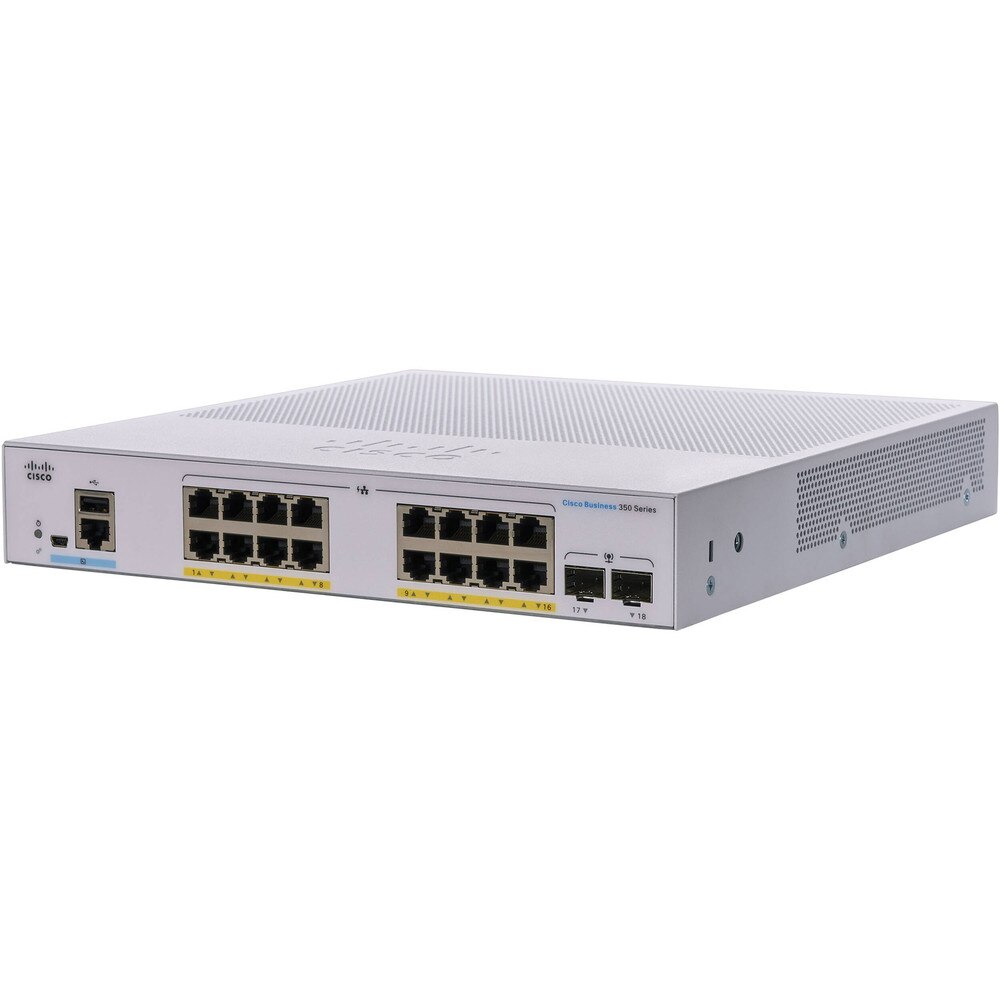

Cisco CBS350-16FP-2G 16-Port Gigabit PoE+ Ethernet Managed Switch (NA) | New
SKU: CBS350-16FP-2G-NA-N
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us
Same Day Shipping - Arrives in 3-5 Business Days 30-day Returns Overview
Overview of Cisco CBS350-16FP-2G 16-Port Gigabit PoE+ Ethernet Managed Switch (NA) | New
The Cisco CBS350-16FP-2G 16-Port Gigabit PoE+ Ethernet Managed Switch (NA) is a high-performance managed switch built for small and medium-sized enterprises that want a reliable, secure, and scalable network solution. This versatile switch combines advanced features, Power over Ethernet capabilities, and a variety of connectivity options to enable modern business applications and future network expansion. The CBS350-16FP-2G has 16 Gigabit Ethernet ports that support PoE+ and a huge 240W power budget, allowing you to power devices like IP phones, wireless access points, and security cameras directly via network cables. Additionally, it has two Gigabit SFP connectors for fiber uplink connectivity. With a switching capacity of 36 Gbps and powerful Layer 2 and Layer 3 capabilities, this switch ensures that your business-critical applications move data smoothly and efficiently.
Key Features of Cisco CBS350-16FP-2G 16-Port Gigabit PoE+ Ethernet Managed Switch
• 16 Gigabit Ethernet ports with PoE+ support (up to 30W per port)
• Two Gigabit SFP ports for fiber uplink connections
• 240W total PoE budget for powering multiple devices
• Advanced Layer 2 and Layer 3 features including static routing and VLAN routing
• Intuitive web-based interface and Cisco Business Dashboard for easy configuration
• Robust security features including ACLs, 802.1X authentication, and DHCP snooping
• Energy-efficient design with Energy Efficient Ethernet (IEEE 802.3az) support
• Advanced QoS capabilities for prioritizing delay-sensitive traffic
• IPv6 support for future-proof networking
• True stacking capability for unified management of up to 4 switches
Benefits of Cisco CBS350-16FP-2G 16-Port Gigabit PoE+ Ethernet Managed Switch
🗹 Enhance network performance with Gigabit speeds and high-power PoE+ support
🗹 Simplify deployment of IP telephony, wireless, and video surveillance solutions
🗹 Improve network reliability with advanced QoS and security features
🗹 Reduce operational costs with energy-efficient design
🗹 Scale your network easily with flexible SFP uplink options
🗹 Simplify management and troubleshooting with intuitive interfaces
🗹 Ensure business continuity with robust security and high availability
🗹 Future-proof your investment with advanced Layer 3 features and IPv6 support
🗹 Optimize application performance with advanced traffic management
🗹 Leverage Cisco's renowned quality and support for peace of mind
Specifications
Specification for Cisco CBS350-16FP-2G 16-Port Gigabit PoE+ Ethernet Managed Switch (NA) | New
| Manufacturer | Cisco |
| Manufacturer Part Number | CBS350-16FP-2G-NA |
| Product Name | Cisco CBS350-16FP-2G 16-Port Gigabit PoE+ Ethernet Managed Switch |
| Product Type | Networking Switch |
Enclosure Type | Rack-mountable |
Subtype | Gigabit Ethernet |
Ports | 16 x 10/100/1000 (PoE+) + 2 x Gigabit SFP |
Power Over Ethernet (PoE) | PoE+ |
PoE Budget | 240 W |
Performance | Switching capacity: 36 Gbps ¦ Forwarding performance (64-byte packet size): 26.78 Mpps |
Capacity | Link aggregation groups: 8 ¦ VLANs supported: 4094 ¦ Buffer capacity (MB): 1.5 MB |
MAC Address Table Size | 16K entries |
Jumbo Frame Support | 2KB |
Routing Protocol | IGMP, policy-based routing (PBR), CIDR |
Remote Management Protocol | SNMP 1, RMON, SNMP 3, SNMP 2c, SSH, SSH-2, ICMP |
Encryption Algorithm | SSL |
Authentication Method | Secure Shell (SSH), RADIUS, TACACS+ |
Features | DHCP support, ARP support, VLAN support, DoS attack prevention, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, DHCP server, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), STP Root Guard, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), fanless, Multicast VLAN Registration (MVR), Dynamic VLAN Support (GVRP), Type of Service (ToS), Storm Control, IP source guard, Bridge protocol data unit (BPDU), Voice VLAN, Secure Core Technology (SCT), LLDP-MED, IP/Mac/Port Binding (IPMB), Secure Sensitive Data (SSD), Private VLAN, ISATAP tunnel support, STP loop guard, Weighted Round Robin (WRR), multiple tag protocol identifiers (TPID) |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3at, IEEE 802.3az |
Processor | X ARM: 800 MHz |
RAM | 512 MB |
Flash Memory | 256 MB |
Status Indicators | Status, link/activity |
Interfaces | 16 x 10/100/1000 Base-T RJ-45 PoE+ ¦ 2 x 1000Base-X SFP ¦ 1 x console (USB) Type B ¦ 1 x USB Type A ¦ 1 x console RJ-45 |
Power Device | Internal power supply |
Voltage Required | AC 120/230 V (50/60 Hz) |
Rack Mounting Kit | Included |
MTBF | 706,983 hours |
Compliant Standards | UL 60950, CSA C22.2, FCC CFR47, USGv6 |
Localization | Colombia, Canada, Chile, Mexico, Latin America, United States |
Width | 10.6 in |
Depth | 12.1 in |
Height | 1.7 in |
Weight | 5.49 lbs |
Service & Support | Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - web support - 1 year ¦ Technical support - phone consulting - 1 year |
Min Operating Temperature | 23 °F |
Max Operating Temperature | 122 °F |
Humidity Range Operating | 10 - 90% (non-condensing) |
Min Storage Temperature | -13 °F |
Max Storage Temperature | 158 °F |
Humidity Range Storage | 10 - 90% (non-condensing) |
User Guides
Frequently Asked Questions
Cisco CBS350-16FP-2G 16-Port Gigabit PoE+ Ethernet Managed Switch
Frequently Asked Questions (FAQ's)
What is the power budget for PoE on this switch?
Does this switch support Layer 3 routing?
Can this switch be managed through a web interface?
Does it support VLAN configuration?
What security features are included?
Can I use this switch in a small business environment?
What are the uplink options for this switch?
Is there support for energy efficiency?
Can I power IP phones and cameras with this switch?
Does it have Quality of Service (QoS) features?
Is there support for link aggregation?
How can I monitor the switch’s performance?
What’s the maximum data transfer rate per port?
Does this switch support remote management?
Can I set up guest networks with this switch?
What are the power requirements?
Does it support IPv6?
Is the switch fanless?
How is it mounted?
Does this switch support port mirroring?
