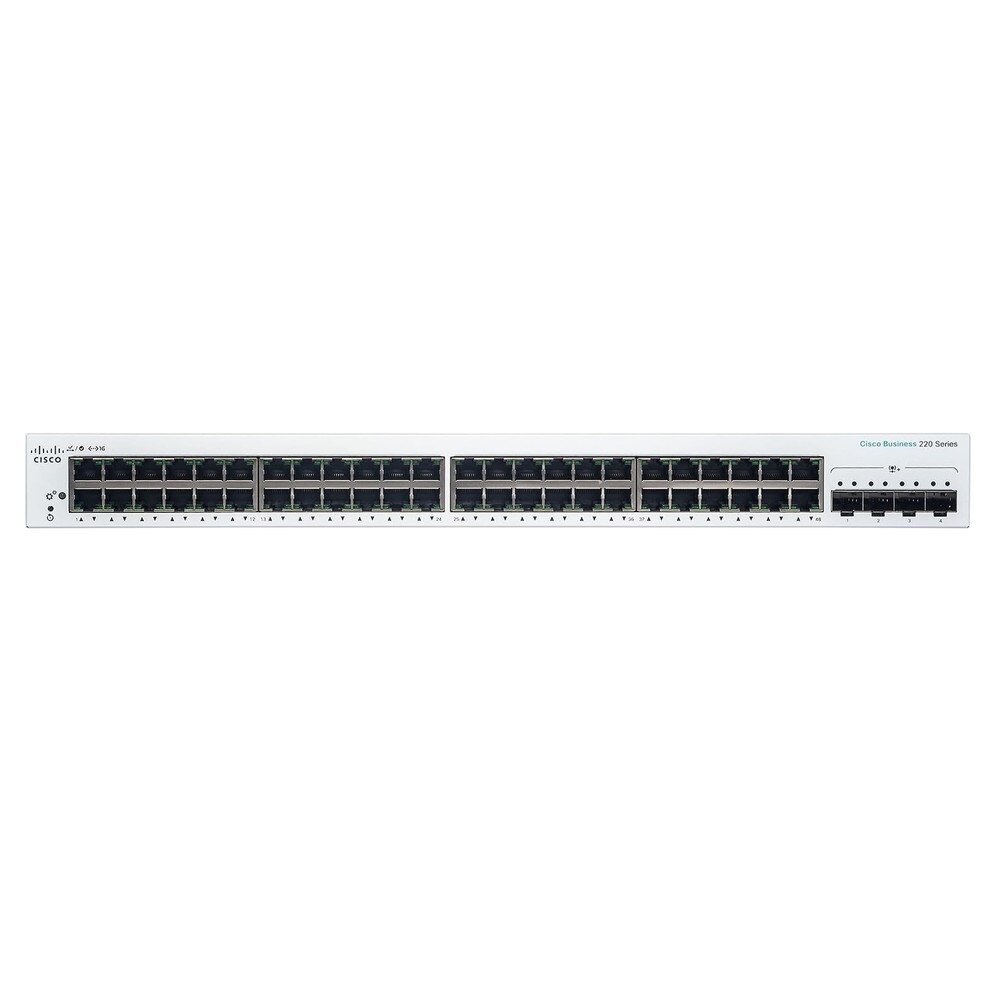

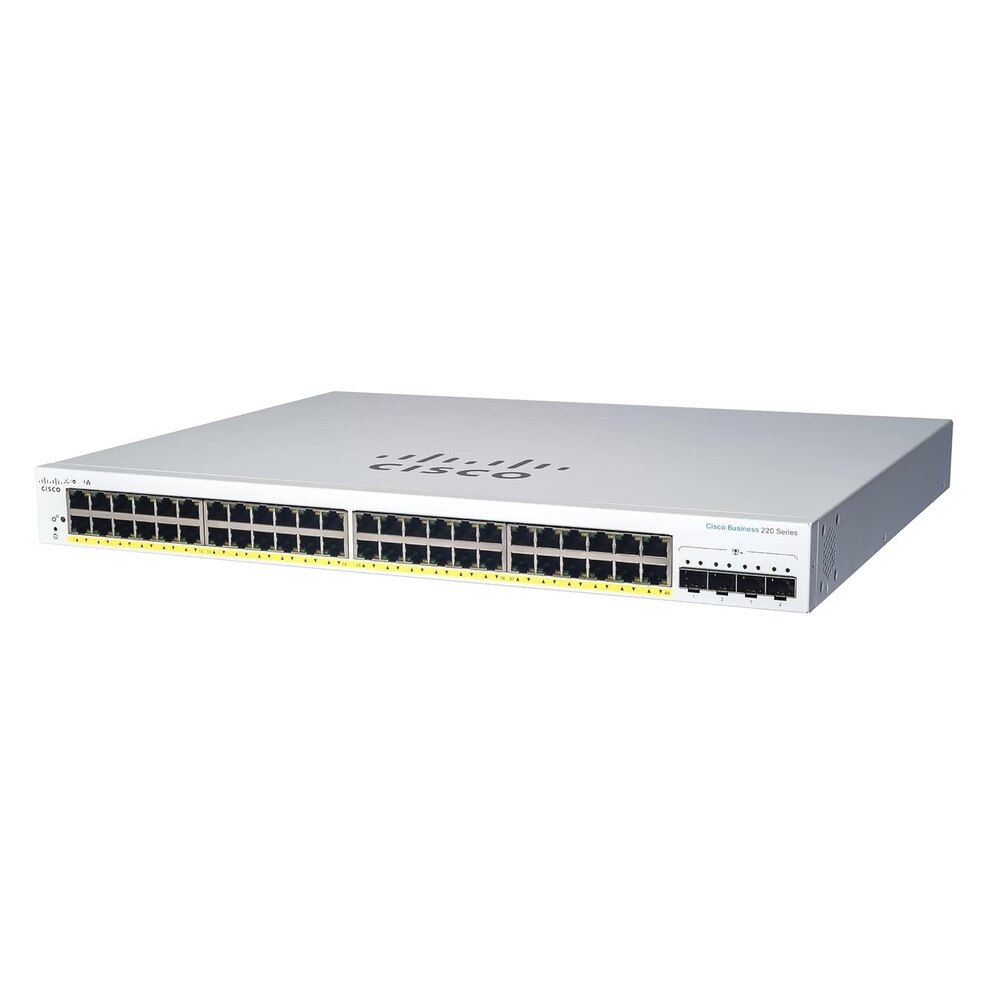

Overview of Cisco CBS220-48T-4X 48-Port Gigabit Managed Network Switch with SFP+ (NA) | Recertified
The Cisco CBS220-48T-4X 48-Port Gigabit Managed Network Switch with SFP+ (NA) is a high-performance Layer 2 managed switch intended for small and medium-sized enterprises that require reliable connectivity and extensive capabilities. This powerful network switch has 48 Gigabit Ethernet ports and four 10G SFP+ uplink ports, making it excellent for high-traffic situations including data centers, enterprise networks, and big office configurations. The CBS220-48T-4X has a switching capacity of 176 Gbps and a forwarding rate of 130.94 million packets per second (Mpps), resulting in efficient data handling and low latency. With its simple web interface and robust security features, this switch is an excellent choice for handling complicated network infrastructures.
Key Features of Cisco CBS220-48T-4X 48-Port Gigabit Managed Network Switch with SFP+
• 48 Gigabit Ethernet Ports provides high-speed connectivity for various devices.
• 4 SFP+ Uplink Ports supports 10G connections for enhanced network performance.
• 176 Gbps Switching Capacity ensures efficient data transfer and minimal network congestion.
• 130.94 Mpps Forwarding Rate facilitates rapid packet processing for demanding applications.
• Layer 2 Managed Switch offers essential management features for effective network control.
• User-Friendly Web Interface simplifies configuration and monitoring tasks.
• VLAN Support enables network segmentation for improved security and performance.
• Quality of Service (QoS) prioritizes critical traffic to ensure optimal performance for applications.
• Advanced Security Features includes DoS attack prevention and RADIUS authentication.
• Energy-Efficient Design supports IEEE 802.3az Energy Efficient Ethernet to reduce power consumption.
• Robust Cooling System with fan-assisted cooling ensures reliable operation under heavy loads.
• Compact Rack-Mountable Design fits easily into standard server racks (1U height).
• Limited Lifetime Warranty provides peace of mind with long-term support.
Specifications
Specifications for Cisco CBS220-48T-4X 48-Port Gigabit Managed Network Switch with SFP+ (NA) | Recertified
| Manufacturer | Cisco |
| Manufacturer Part Number | CBS220-48T-4X-NA |
| Product Name | Cisco CBS220-48T-4X 48-Port Gigabit Managed Network Switch with SFP+ |
| Product Type | Networking Switch |
| Enclosure Type | Rack-mountable |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 + 4 x 10 Gigabit SFP+ (uplink) |
| Performance | Forwarding performance (64-byte packet size): 130.94 Mpps | Switching capacity: 176 Gbps |
| Capacity | MSTP instances: 16 | VLANs supported: 256 | ACL rules: 512 | Buffer capacity (MB): 16 |
| MAC Address Table Size | 8192 entries |
| Jumbo Frame Support | 9216 bytes |
| Routing Protocol | IGMPv2, IGMP, IGMPv3, MLDv2, MLD, MSTP, RSTP, STP |
| Remote Management Protocol | SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, ICMP, DHCP, RSTP, TACACS+, RADIUS |
| Encryption Algorithm | SSL |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2) |
| Features | BOOTP support, VLAN support, IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, MAC address filtering, Broadcast Storm Control, Multicast Storm Control, Access Control List (ACL) support, Quality of Service (QoS), Cable Diagnostics Function, LACP support, LLDP support, Port Security, DHCP client, Energy Efficient Ethernet, Management Information Base (MIB), dual firmware images, Neighbor Discovery Protocol (NDP), Generic VLAN Registration Protocol (GVRP), 802.1x authentication, Type of Service (ToS), DiffServ Code Point (DSCP) support, 1 fan, VLAN management, LLDP-MED, Guest VLAN, User Datagram Protocol (UDP), STP loop guard, Weighted Round Robin (WRR), Head-of-line (HOL) Blocking Prevention, loopback detection, Telnet server, Unknown Storm Control, BPDU Guard, Cisco Discovery Protocol (CDP), Duplicate Address Detection (DAD), TCP support, auto voice VLAN, Automatic Media-Dependent Interface Crossover (MDIX) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3az |
| RAM | 256 MB |
| Flash Memory | 64 MB |
| Status Indicators | System, link/activity/speed |
| Interfaces | 48 x 10/100/1000 Base-T RJ-45 | 4 x 10GBase-X SFP+ uplink |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 41.2 Watt |
| Rack Mounting Kit | Included |
| MTBF | 420,827 hours |
| Compliant Standards | C-Tick, UL 60950, CSA 22.2, FCC CFR47 Part 15 A |
| Localization | Colombia, Canada, Chile, Mexico, Latin America, United States |
| Width | 17.3 in |
| Depth | 10.1 in |
| Height | 1.7 in |
| Weight | 7.8 lbs |
| Service & Support | Limited warranty - replacement - 3 years - response time: next business day |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Min Storage Temperature | -4 °F |
| Max Storage Temperature | 158 °F |
| Humidity Range Storage | 10 - 90% (non-condensing) |
