The Cisco CBS110-16PP 16-Port Unmanaged Switch (NA) is a budget-friendly, plug-and-play networking solution for small enterprises and home offices. The CBS110-16PP is part of Cisco's Small Business 110 Series, which provides dependable and user-friendly connection for expanding networks. With 16 Gigabit Ethernet ports and Power over Ethernet (PoE) capabilities, this unmanaged switch makes it simple to expand your network and power devices such as IP phones, wireless access points, and surveillance cameras. Its compact size and silent operation make it suited for a variety of settings. The CBS110-16PP is a good alternative for small businesses and home offices wanting a dependable, user-friendly networking solution that combines Gigabit bandwidth with PoE functionality in a small package.
• 16 Gigabit Ethernet Ports provides high-speed connectivity for multiple devices.
• PoE+ Support offers 80W PoE budget for powering connected devices.
• Plug-and-Play Setup features no configuration required for immediate use.
• Energy Efficiency supports IEEE 802.3az Energy Efficient Ethernet for reduced power consumption.
• Compact Design with desktop form factor suitable for small spaces.
• Quiet Operation features fanless design for silent deployment in office environments.
• Auto MDI/MDIX that automatically adjusts for straight-through or crossover cables on all ports.
• Auto-Negotiation configures speed and duplex settings automatically for optimal performance.
• Loop Detection helps prevent network loops that can degrade performance.
• QoS Support prioritizes network traffic for improved performance of voice and video applications.
• VLAN Support features 802.1q-based VLANs for basic network segmentation.
• Jumbo Frames supports frames up to 9K bytes for improved performance with large data transfers.
• LED Indicators provides at-a-glance status information for each port.
• Limited Lifetime Warranty backed by Cisco's renowned support and service.
• Cable Diagnostics helps identify and troubleshoot cable issues.
| Manufacturer | Cisco |
| Manufacturer Part Number | CBS110-16PP-NA-RF |
| Product Name | Cisco CBS110-16PP 16-Port Unmanaged Switch |
| Product Type | Networking Switch |
Enclosure Type | Desktop, rack-mountable, wall-mountable |
Subtype | Gigabit Ethernet |
Ports | 8 x 10/100/1000 (PoE) + 8 x 10/100/1000 |
Power Over Ethernet (PoE) | PoE |
PoE Budget | 64 W |
Performance | Forwarding performance (64-byte packet size): 23.8 Mpps ¦ Switching capacity: 32 Gbps |
Capacity | Buffer capacity (MB): 2 |
MAC Address Table Size | 8K entries |
Jumbo Frame Support | 9216 bytes |
Features | Flow control, auto-uplink (auto MDI/MDI-X), Quality of Service (QoS), Cable Diagnostics Function, fanless, Energy Efficient Ethernet, Head-of-line (HOL) blocking, Weighted Round Robin (WRR), loopback detection, security slot (Kensington security lock compatible) |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3az |
Processor | X ARM: 400 MHz |
RAM | 128 MB |
Flash Memory | 16 MB |
Status Indicators | Power, PoE, link/activity |
Interfaces | 8 x 10/100/1000 Base-T RJ-45 PoE ¦ 8 x 10/100/1000 Base-T RJ-45 |
Power Device | Internal power supply |
Voltage Required | AC 120/230 V (50/60 Hz) |
Power Consumption Operational | 80.38 Watt |

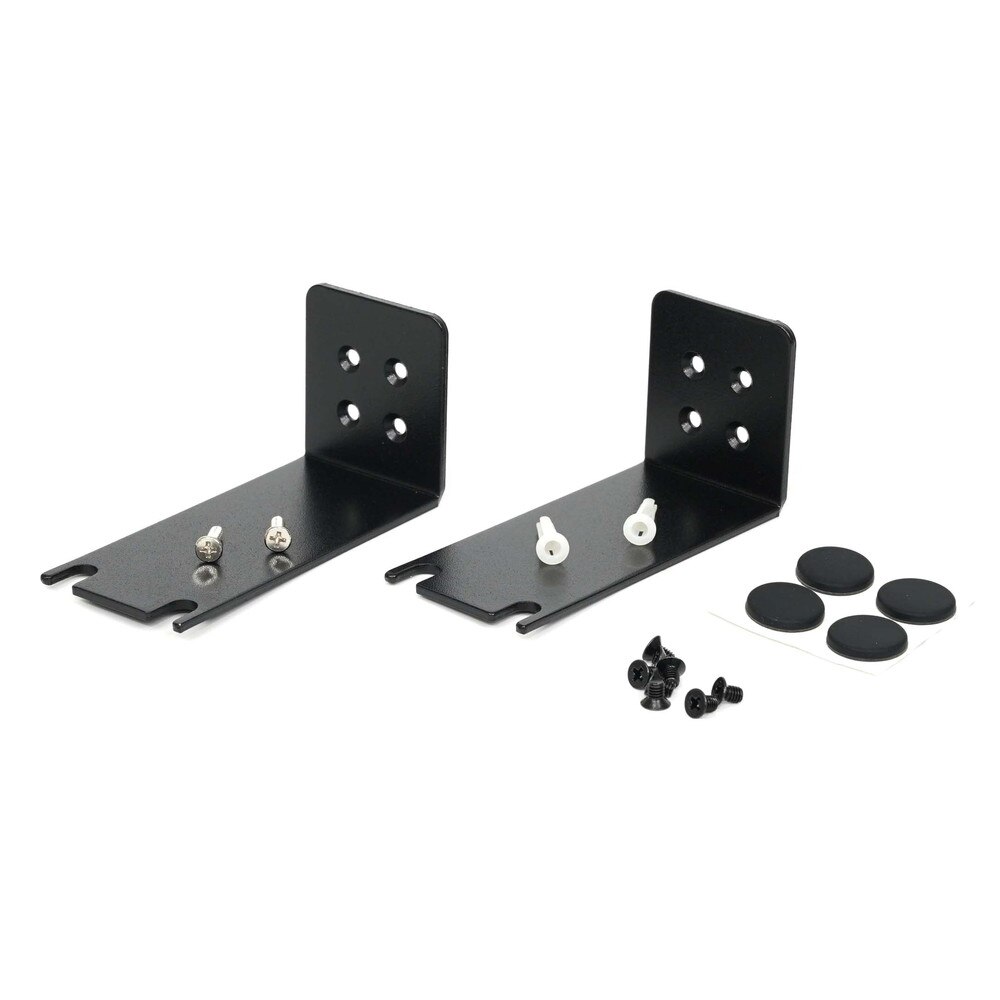

Included Accessories | Mounting kit |
MTBF | 1,971,811 hours |
Compliant Standards | FCC Class B certified, UL 60950, CSA 22.2, FCC CFR47 Part 15 A |
Localization | Colombia, Canada, Chile, Mexico, Latin America, United States |
Width | 11 in |
Depth | 6.7 in |
Height | 1.7 in |
Weight | 2.87 lbs |
Service & Support | Limited warranty - lifetime ¦ Technical support - web support - 1 year ¦ Technical support - phone consulting - 1 year |
Min Operating Temperature | 32 °F |
Max Operating Temperature | 104 °F |
Humidity Range Operating | 10 - 90% (non-condensing) |
Min Storage Temperature | -4 °F |
Max Storage Temperature | 158 °F |
Humidity Range Storage | 5 - 90% (non-condensing) |
