Overview for Cisco C1111X-8P Integrated Services Router with 8 Gigabit Ethernet Ports | Refresh

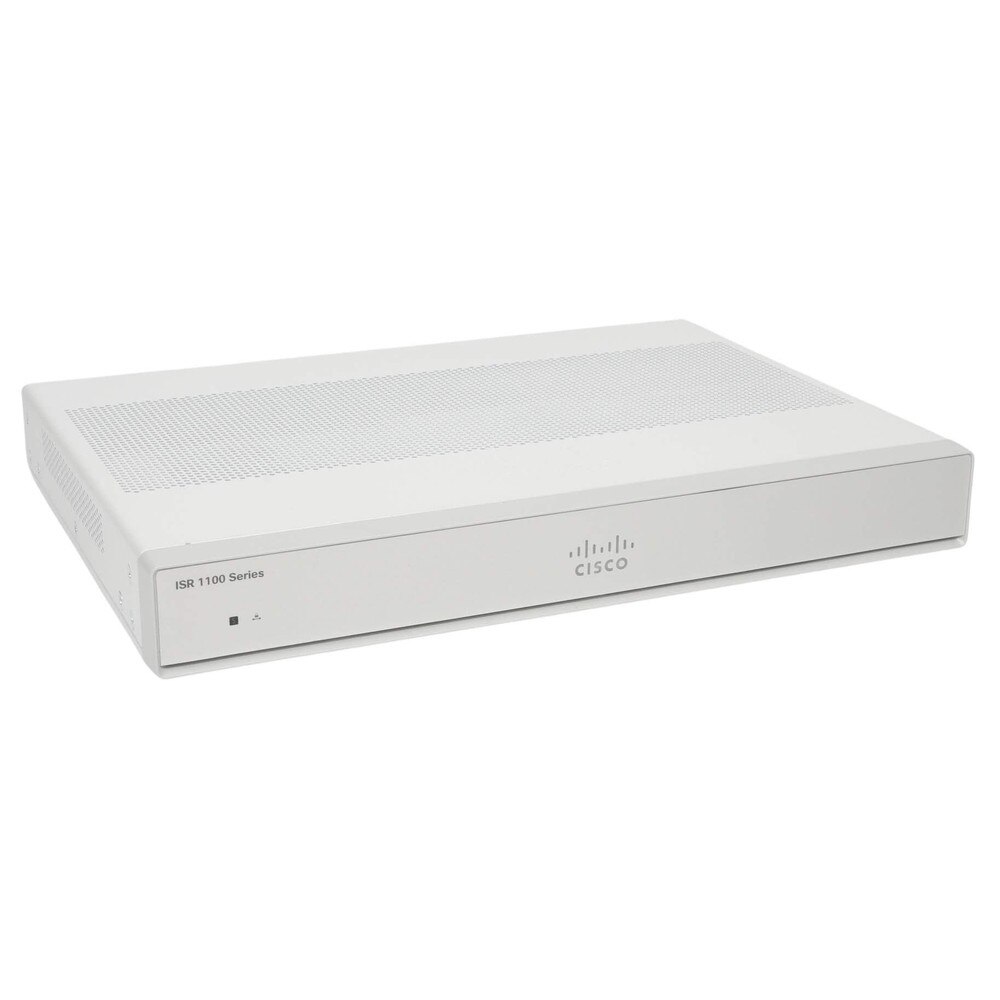

The Cisco C1111X-8P Integrated Services Router with 8 Gigabit Ethernet Ports is a high-performance networking solution designed for small and medium-sized businesses, branch offices and teleworker environments. Combining advanced security, reliable connectivity and simplified management, this router is ideal for modern network demands. The C1111X-8P offers remarkable performance and scalability for expanding businesses, with its powerful hardware and the feature-rich Cisco IOS XE software. With its eight Gigabit Ethernet LAN ports, the Cisco C1111X-8P provides high-speed local connectivity, while its two WAN ports (one RJ-45 and one combo RJ-45/SFP) offer flexible internet access options. It features Power over Ethernet (PoE) support on four ports, enabling direct power supply to devices such as IP phones and cameras. With advanced security features like a stateful inspection firewall, VPN support and intrusion prevention, a secure network environment is guaranteed. Additionally, the router offers support for SD-WAN to enhance WAN connections and for cloud-based management to simplify operations. Due to its compact design and lack of fans, it is ideal for environments where space is limited.
Key Features of Cisco C1111X-8P Integrated Services Router with 8 Gigabit Ethernet Ports
• Eight Gigabit Ethernet LAN Ports with high-speed connectivity for multiple devices within the network.
• Dual WAN Ports includes one RJ-45 and one combo RJ-45/SFP port for flexible internet access.
• Power over Ethernet (PoE) with four PoE ports (two PoE+) to power connected devices like IP phones or cameras.
• Cisco IOS XE Software provides advanced routing, security and network management capabilities.
• Advanced Security Features includes stateful inspection firewall, VPN support (IPsec, DMVPN) and intrusion prevention.
• SD-WAN Ready optimizes WAN performance with software-defined networking capabilities.
• Supports Energy Efficient Ethernet (EEE) to reduce power consumption.
• Cloud-Based Management simplifies configuration and monitoring through Cisco Meraki or other platforms.
• Compact Fanless Design with quiet operation suitable for noise-sensitive environments.
• Up to 250 Mbps encrypted throughput with support for bandwidth-intensive tasks.
Benefits of Cisco C1111X-8P Integrated Services Router with 8 Gigabit Ethernet Ports
🗹 Dual WAN ports ensure uninterrupted internet access with failover and load balancing.
🗹 Protects sensitive data with advanced firewall capabilities and secure VPN connections.
🗹 Eight Gigabit LAN ports provide flexibility to accommodate growing network demands.
🗹 Powers devices directly through the network cable, reducing the need for additional power supplies.
🗹 Cisco IOS XE Software offers intuitive tools for configuration and monitoring.
🗹 SD-WAN readiness ensures compatibility with evolving networking requirements.
🗹 Fanless design is perfect for offices or other space-constrained environments.
🗹 Reduces operational costs while maintaining high performance levels.
🗹 Ideal for branch offices, small businesses, teleworkers and distributed networks.
🗹 Backed by Cisco’s reputation for reliability and innovation in networking solutions.
Specifications
Specifications for Cisco C1111X-8P Integrated Services Router with 8 Gigabit Ethernet Ports | Refresh
| Manufacturer | Cisco |
| Manufacturer Part Number | C1111X-8P-RF |
| Product Name | Cisco C1111X-8P Integrated Services Router with 8 Gigabit Ethernet Ports |
| Product Type | Router |
| Enclosure Type | Desktop |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Performance | Encryption throughput: 250 Mbps |
| Network / Transport Protocol | IPSec, PPPoE, DHCP, DNS, L2TPv3 |
| Routing Protocol | OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, DVMRP, VRRP, PIM-SM, static IP routing, IGMPv3, GRE, PIM-SSM, policy-based routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD), RSVP |
| Remote Management Protocol | SNMP, RMON, CLI, TR-069 |
| Encryption Algorithm | DES, Triple DES, SHA, MD5, IKE, ECDSA, 128-bit AES, 256-bit AES, 1024-bit RSA, 2048-bit RSA, 256-bit SHA, 512-bit SHA, 748-bit RSA, 384-bit SHA |
| Authentication Method | RADIUS |
| Features | Power over Ethernet (PoE), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Access Control List (ACL) support, Quality of Service (QoS), Dynamic Multipoint VPN (DMVPN), NetFlow, Maximum Ratio Combining (MRC), IPFIX, cyclic shift diversity (CSD), Location ID Separation Protocol (LISP), packet aggregation A-MPDU, packet aggregation A-MSDU, Management Information Base (MIB) II, Application Visibility and Control (AVC), Authentication, Authorization and Accounting (AAA), Dynamic Frequency Selection (DFS), Encapsulated Remote SPAN (ERSPAN), Embedded Event Manager (EEM), DNA support |
| Compliant Standards | IEEE 802.3af, IEEE 802.11i, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.3at, IEEE 802.11r, CISPR 24, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, CB, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, FCC CFR47 Part 15, UL 60950-1 Second Edition, VCCI V-3, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS CISPR 22, CNS 13438, EN 301 489-7, EN 301 489-1, FCC CFR47 Part 22, FCC CFR47 Part 24, CAN/CSA C22.2 No. 60950-1 Second Edition, EN 300 386, EN 301 489-24, EN 301 908-1, EN 301 908-2, EN 301 511, EN 301 908-13 |
| RAM | 8 GB |
| Flash Memory | 8 GB |
| Status Indicators | Status |
| Interfaces | WAN: 1 x 1000Base-T/1000Base-X - RJ-45/SFP ¦ WAN: 1 x 1000Base-T - RJ-45 ¦ LAN: 4 x 1000Base-T - RJ-45 ¦ LAN: 2 x 1000Base-T (PoE+) - RJ-45 ¦ LAN: 2 x 1000Base-T (PoE) - RJ-45 ¦ USB 3.0: 1 x console |
| Voltage Required | AC 120/230 V (50 - 60 Hz) |
| Power Consumption Operational | 66 Watt |
| Width | 12.7 in |
| Depth | 9.1 in |
| Height | 1.7 in |
| Weight | 5.71 lbs |
| Service & Support | Limited warranty - advance parts replacement - 1 year - response time: 10 days |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 149 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
User Guides
Frequently Asked Questions
Cisco C1111X-8P Integrated Services Router with 8 Gigabit Ethernet Ports
Frequently Asked Questions (FAQ's)
What is the Cisco C1111X-8P ISR 1100 Router used for? Its purpose is to provide secure, high-speed internet connectivity and network management for branch offices and small enterprises.
Does the Cisco C1111X-8P support SD-WAN? Yes, it is SD-WAN ready, which allows for effective traffic management and centralized control.
How many Ethernet ports are available on the Cisco C1111X-8P? The router has eight Ethernet ports.
What is the function of the dual GE WAN interfaces on the Cisco C1111X-8P? They provide redundancy and load balancing to ensure reliable, high-speed internet connectivity.
Is the Cisco C1111X-8P suitable for IoT applications? Yes, it effortlessly integrates IoT devices and applications.
Does the Cisco C1111X-8P provide built-in security features? Yes, it contains encryption, firewall, and VPN features to ensure secure data transmission.
Can the Cisco C1111X-8P be used in a cloud environment? Yes, it is ideal for cloud applications and hybrid network configurations.
What are the management options for the Cisco C1111X-8P? It supports both Cisco DNA Center and classic command-line interfaces for network control.
Is the Cisco C1111X-8P energy-efficient? Yes, it includes power-saving features to reduce energy consumption.
Does the Cisco C1111X-8P support IPv6? Yes, it supports both the IPv4 and IPv6 protocols.
What are the dimensions of the Cisco C1111X-8P router? It is designed to be compact, making it great for small spaces.
Can the Cisco C1111X-8P handle VPN connections? Yes, it includes powerful VPN functions to provide secure remote access.
Does the Cisco C1111X-8P include wireless capabilities? This model does not have built-in wireless capabilities.
What is the maximum throughput of the Cisco C1111X-8P? The maximum throughput is determined on the network configuration and enabled services, however it is normally suitable for high-performance networking.
Is the Cisco C1111X-8P rack-mountable? No, it is not intended for rack mounting, but rather has a compact, desktop-friendly form factor.
What operating system does the Cisco C1111X-8P use? It runs Cisco IOS XE, a powerful enterprise networking operating system.
Does the Cisco C1111X-8P support PoE (Power over Ethernet)? No, this particular model does not support PoE.

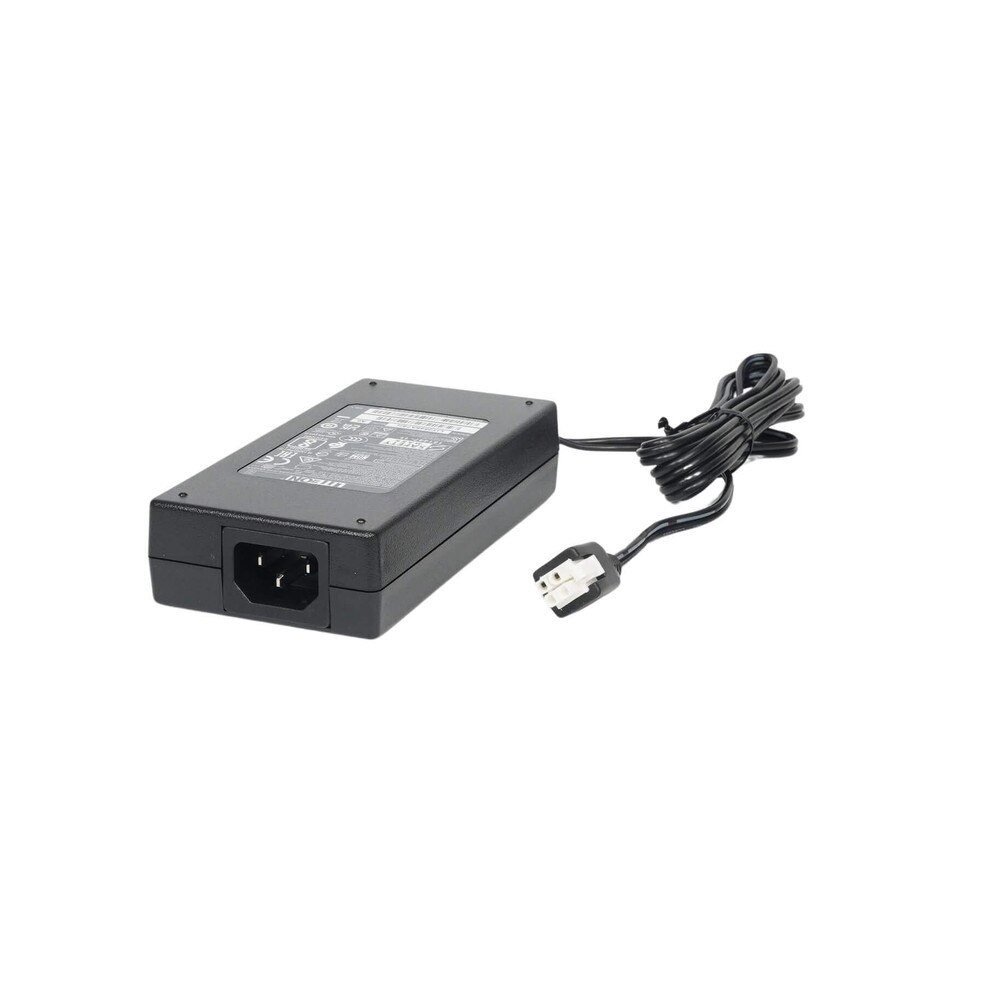

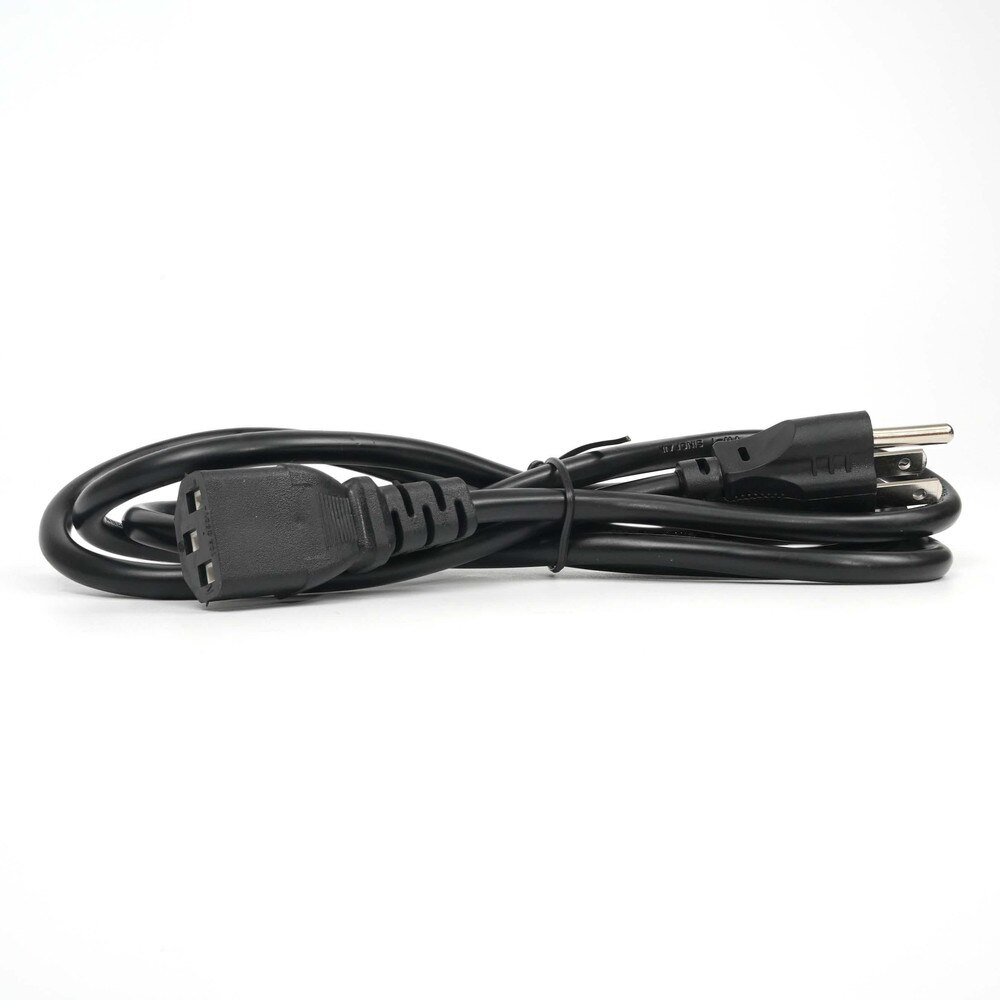

What is included in the Cisco C1111X-8P package? The router, power adapter, cables, and documentation are all included with the purchase.
Is the Cisco C1111X-8P router suitable for a home office? While it can be used in home offices, it is primarily intended for small and medium-sized commercial networks.
Can the Cisco C1111X-8P be upgraded with additional modules? No, it does not accept modular updates, although it does have many built-in functionality.
