Overview of Cisco C1101-4P Integrated Services Router with 4 Gigabit Ethernet Ports | New
The Cisco C1101-4P Integrated Services Router with 4 Gigabit Ethernet Ports is a high-performance networking solution ideal for small businesses, branch offices, and remote locations. This router, which combines improved security, dependable connectivity, and simplified management, is suitable for modern businesses looking to seamlessly integrate wired and wireless networks. The Cisco C1101-4P router has four Gigabit Ethernet LAN ports and one WAN port for fast data transfer and reliable device connectivity. It is powered by Cisco IOS XE Software and provides enterprise-level routing, security, and administration capabilities. Its compact form allows for desktop and rack-mounted installations, making it ideal for space-constrained situations. This router's built-in firewall and VPN capabilities provide secure communication while retaining excellent application performance.
Key Features of Cisco C1101-4P Integrated Services Router with 4 Gigabit Ethernet Ports
• 4 Gigabit Ethernet LAN Ports provides reliable, high-speed connectivity for multiple devices.
• 1 Gigabit Ethernet WAN Port facilitates fast internet access and external network connections.
• Cisco IOS XE Software offers advanced routing, security and management features.
• Built-In Security Features includes firewall protection and VPN support for secure communication.
• Lightweight and space-saving form factor suitable for various deployments.
• Supports concurrent services like voice, video, data and wireless without degradation.
• Advanced Encryption Standards ensures data privacy with IPsec, AES encryption and DMVPN support.
• Redundant WAN Connections enables failover protection and load balancing for consistent connectivity.
• Plug-and-Play Setup simplifies deployment with minimal configuration time.
• Energy-Efficient Operation low power consumption reduces operational costs.
Benefits of Cisco C1101-4P Integrated Services Router with 4 Gigabit Ethernet Ports
🗹 Connect multiple devices with high-speed Gigabit Ethernet ports for efficient data transfer.
🗹 Protect sensitive information with integrated firewall and advanced VPN capabilities.
🗹 Concurrent services ensure smooth operation even during peak network usage.
🗹 Compact design supports both desktop placement and rack-mounting for versatile deployment.
🗹 Redundant WAN connections ensure uninterrupted network access during outages.
🗹 Cisco IOS XE Software streamlines configuration and monitoring tasks.
🗹 Energy-efficient operation minimizes power consumption without compromising performance.
🗹 Advanced features ensure compatibility with evolving network requirements.
🗹 Plug-and-play functionality reduces setup time in busy environments.
🗹 Suitable for branch offices, retail locations, remote sites and small business networks.
Specifications
Specifications for Cisco C1101-4P Integrated Services Router with 4 Gigabit Ethernet Ports | New
Manufacturer | Cisco |
Manufacturer Part Number | C1101-4P |
Product Name | Cisco C1101-4P Integrated Services Router with 4 Gigabit Ethernet Ports |
Product Type | Router |
Enclosure Type | Rack-mountable |
Connectivity Technology | Wired |
Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
Performance | Encryption throughput: 350 Mbps |
Network / Transport Protocol | IPSec, PPPoE, DHCP, DNS, L2TPv3 |
Routing Protocol | OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, DVMRP, VRRP, PIM-SM, static IP routing, IGMPv3, GRE, PIM-SSM, policy-based routing (PBR), MPLS, Bidirectional Forwarding Detection (BFD), RSVP |
Remote Management Protocol | SNMP, RMON, CLI, TR-069 |
Encryption Algorithm | DES, Triple DES, SHA, MD5, IKE, ECDSA, 128-bit AES, 256-bit AES, 1024-bit RSA, 2048-bit RSA, 256-bit SHA, 512-bit SHA, 748-bit RSA, 384-bit SHA |
Authentication Method | RADIUS |
Features | CBWFQ, WRED, ACL support, QoS, DMVPN, NetFlow, MRC, IPFIX, CSD, LISP, packet aggregation A-MPDU, packet aggregation A-MSDU, MIB II, AVC, AAA, DFS, ERSPAN, EEM |
Compliant Standards | IEEE 802.1Q, IEEE 802.11i, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.11r, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, CISPR 22, CB, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, FCC CFR47 Part 15, UL 60950-1, EN 60950-1, VCCI V-3, IEC 60950-1 Second Edition, AS/NZS CISPR 22, CNS 13438, EN 301 489-7, EN 301 489-1, FCC CFR47 Part 22, FCC CFR47 Part 24, EN 300 386, IEC 60950-1 First Edition, CAN/CSA-C22.2 No. 60950-1, EN 301 489-24, EN 301 908-1, EN 301 908-2, EN 301 511, EN 301 908-13 |
RAM | 4 GB |
Flash Memory | 4 GB |

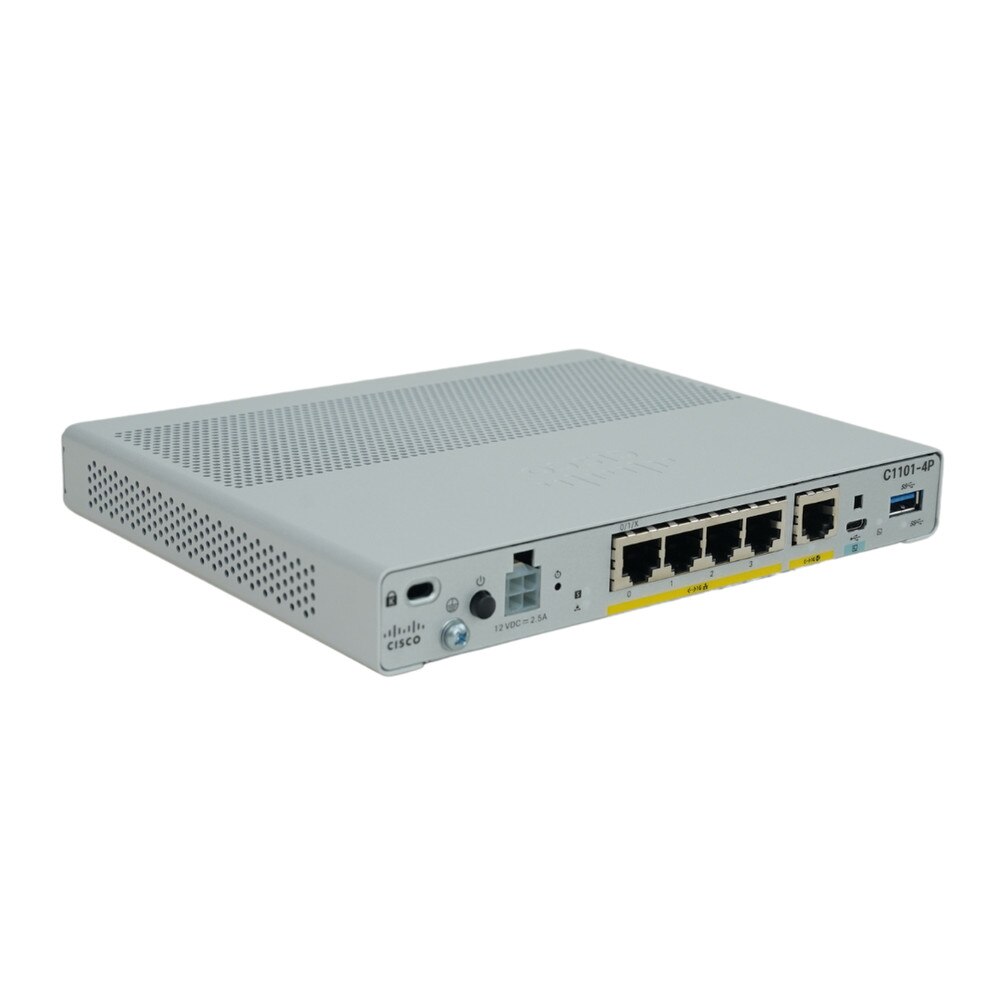

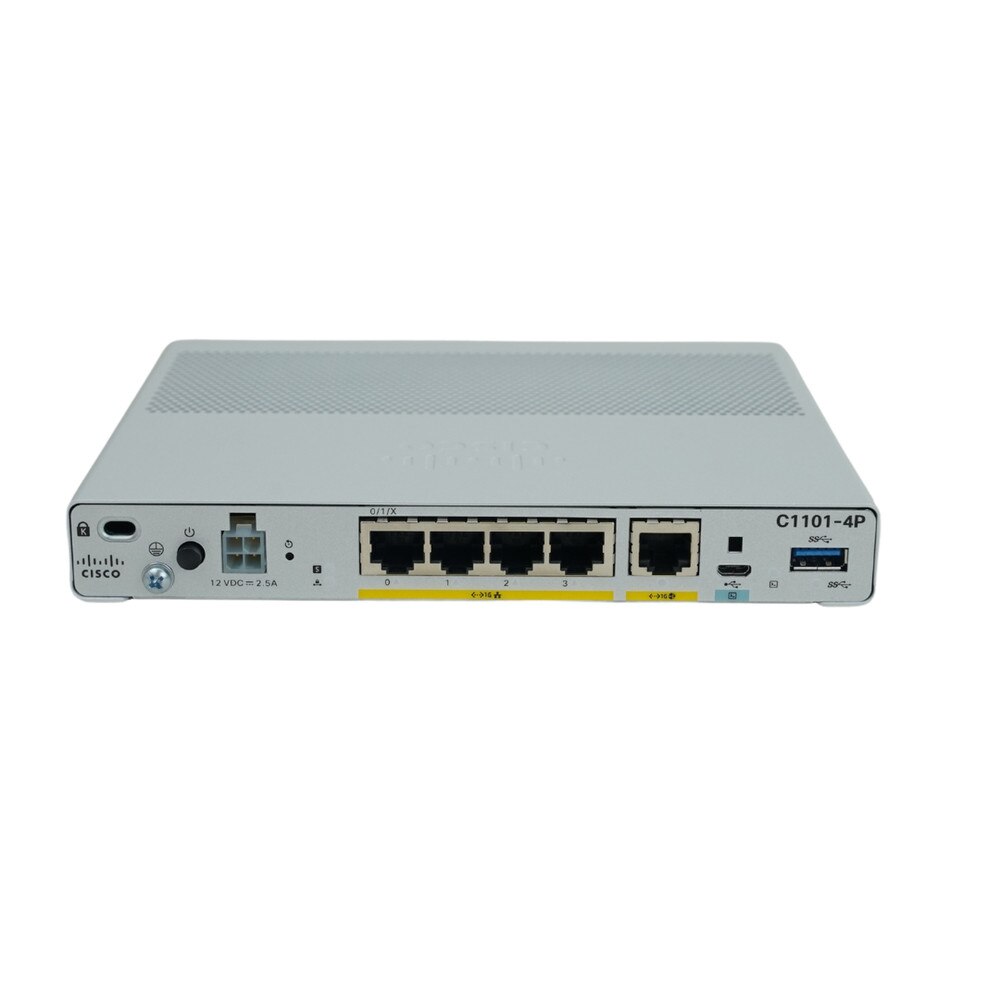

Interfaces | WAN: 1 x 1000Base-T/1000Base-X - RJ-45/SFP ¦ LAN: 4 x 1000Base-T - RJ-45 ¦ USB 3.0: 1 x |

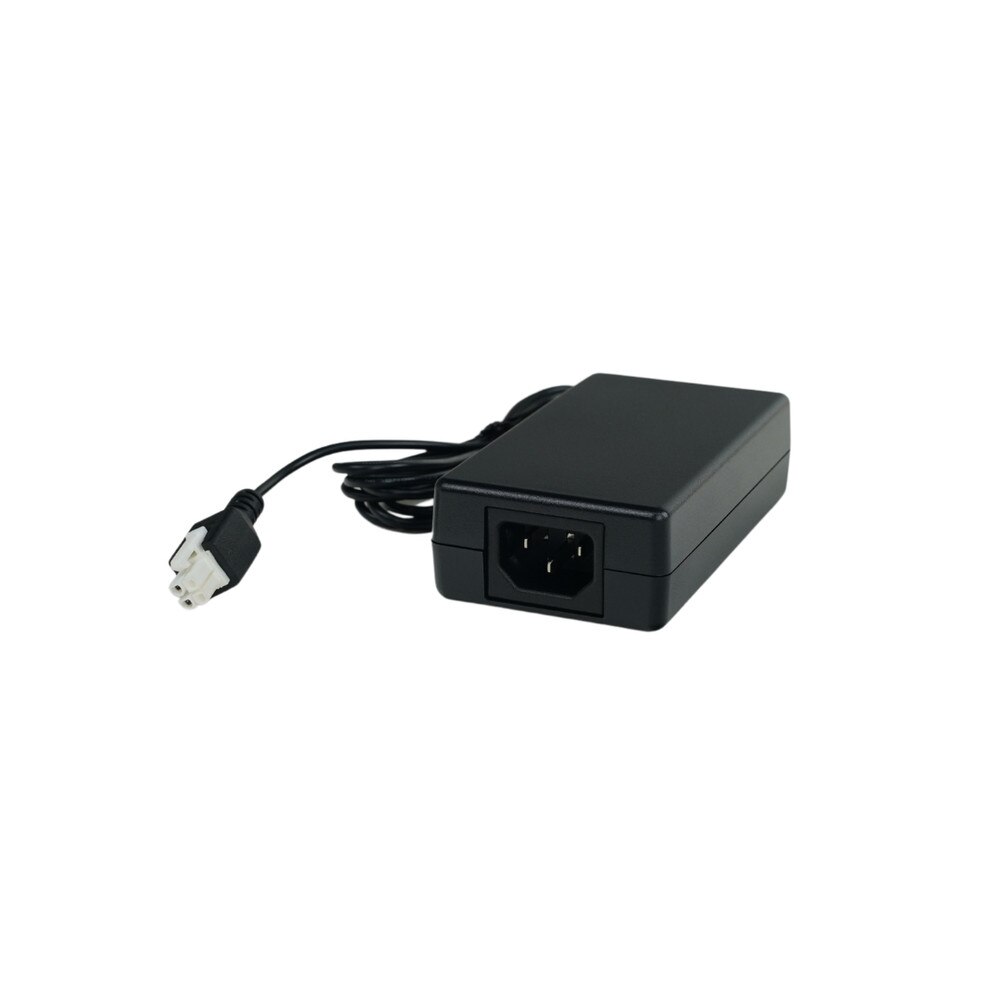

Power Device | External power adapter - 30 Watt |
Voltage Required | AC 100-240 V (50/60 Hz) |
Power Consumption Operational | 30 Watt |
Rack Mounting Kit | Optional |
Width | 7.5 in |
Depth | 6 in |
Height | 1.1 in |
Weight | 3.88 lbs |
Service & Support | Limited warranty - advance parts replacement - 1 year - response time: 10 days |
Min Operating Temperature | 32 °F |
Max Operating Temperature | 104 °F |
Humidity Range Operating | 10 - 85% (non-condensing) |
