Overview of Cisco Aironet PoE Power Injector 802.3at (AIR-PWRINJ6-RF) | Refresh

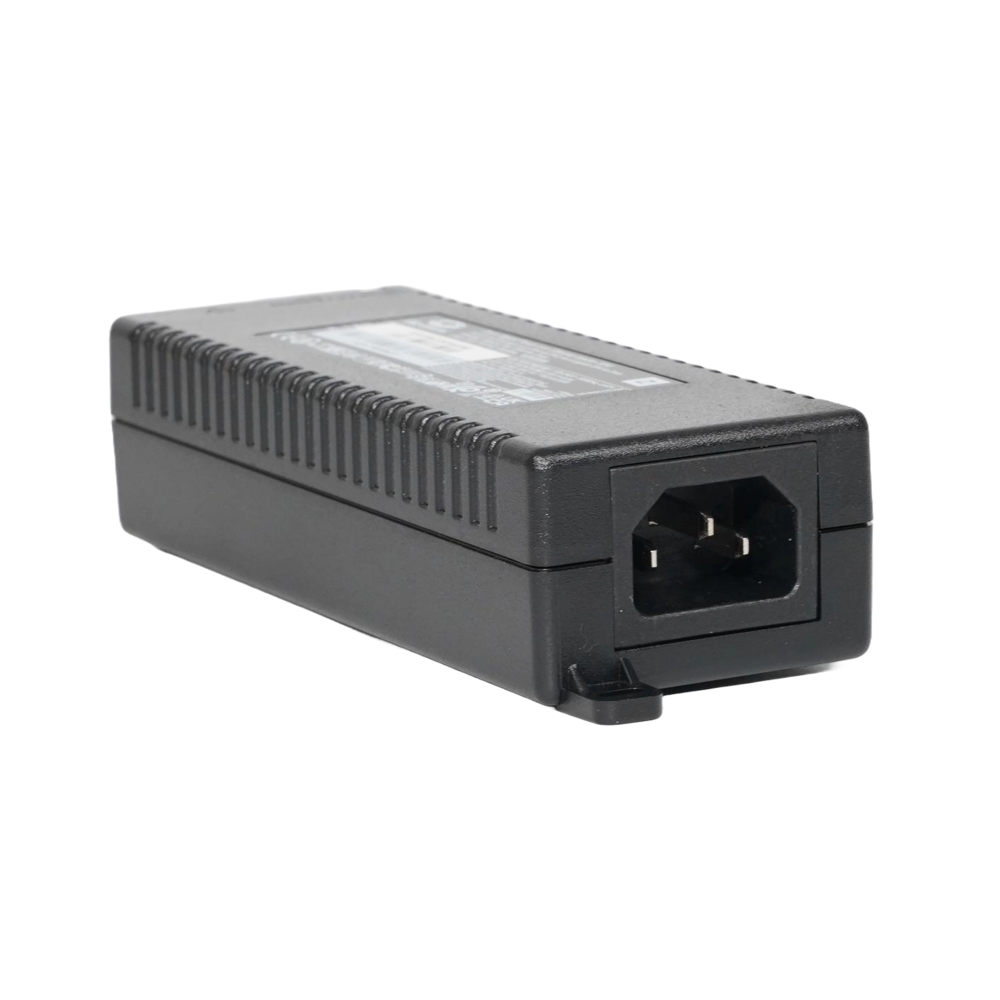

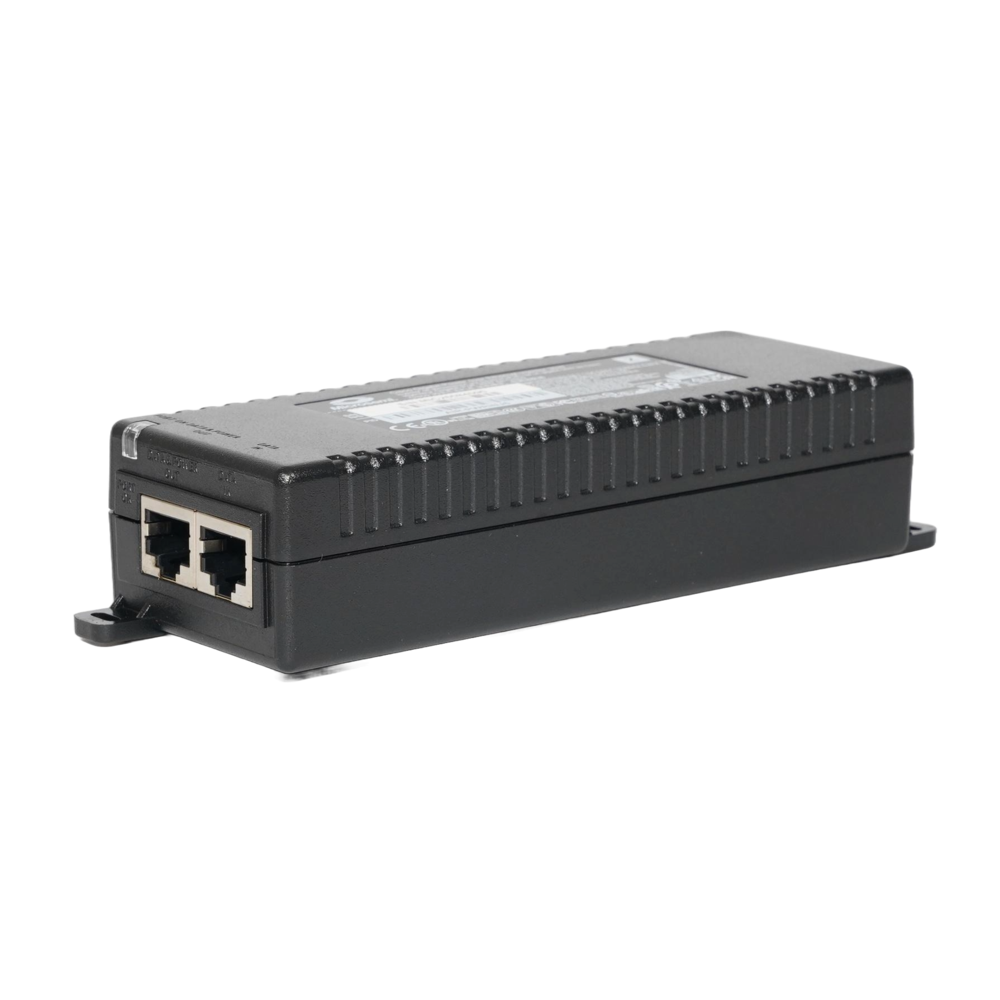

The Cisco Aironet PoE Power Injector 802.3at (AIR-PWRINJ6-RF) is an essential accessory that improves the deployment flexibility of Cisco Aironet access points, specifically the 1800, 2800, and 3800 series. This power injector uses Power over Ethernet (PoE) to provide a reliable power source, making installation and connectivity easier in a variety of environments. The AIR-PWRINJ6 PoE Power Injector is designed to provide up to 30 Watts of power and is compliant with IEEE 802.3af and 802.3at standards. This makes it an excellent choice for powering access points that require a higher power input without the need for additional electrical wiring. The injector connects to a standard Ethernet switch and transmits data and power via a single Ethernet cable, making installation easier and reducing clutter. The AIR-PWRINJ6 is a critical tool for network administrators looking to optimize their wireless deployment. Its ability to deliver power and data over a single cable simplifies installations, making it an invaluable addition to any network configuration.
Key Features of Cisco Aironet PoE Power Injector 802.3at
• Provides up to 30 Watts of power, ensuring reliable operation of Cisco access points and other PoE-enabled devices.
• Fully compliant with IEEE 802.3af (15.4W) and 802.3at (30W) standards, making it compatible with a wide range of devices.
• The compact design allows for easy integration into existing network setups without occupying excessive space.
• Enables deployment in locations where running electrical outlets may be impractical, enhancing the versatility of access point placement.

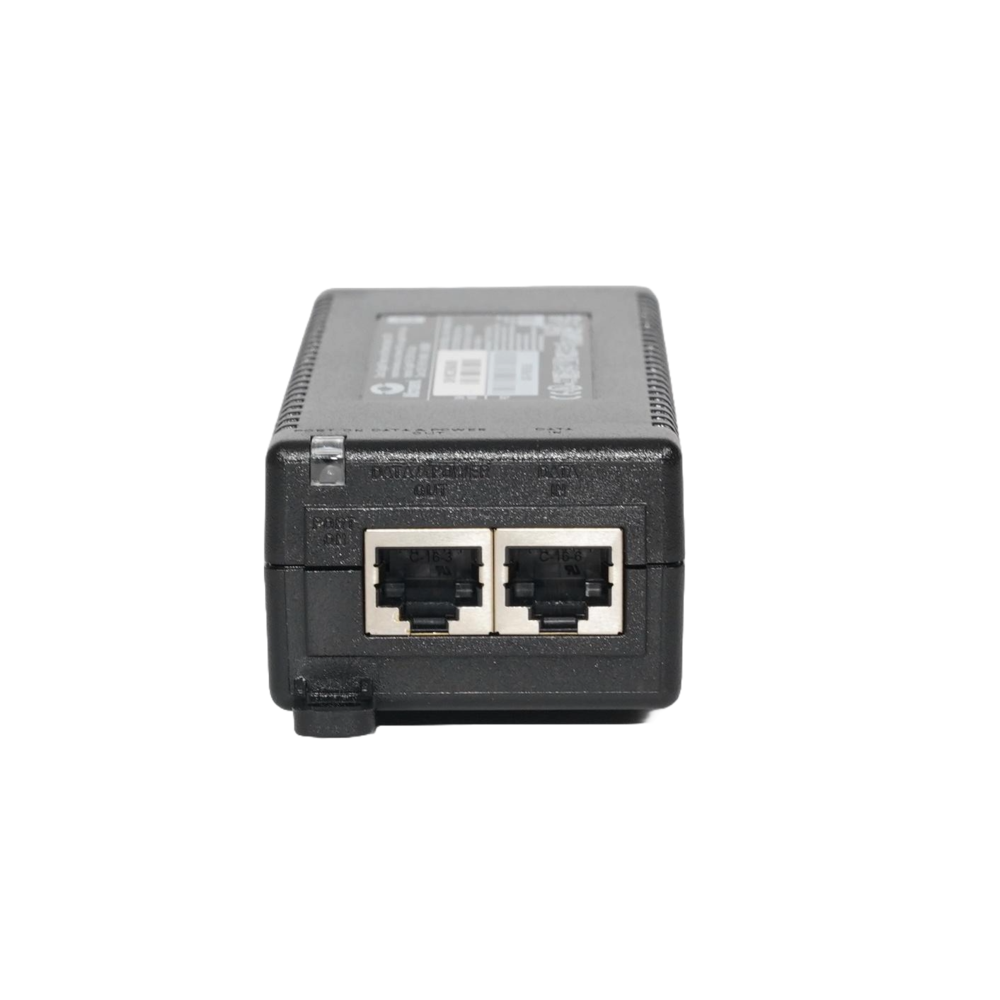

• Simple installation process with clear labeling for input and output ports, allowing for quick connections to Ethernet switches and access points.
• Equipped with a status LED indicator to provide visual feedback on power and connection status, facilitating troubleshooting.
• Designed for durability and reliability, ensuring long-term performance in various operational environments.
Specifications
Specifications for Cisco Aironet PoE Power Injector 802.3at (AIR-PWRINJ6-RF) | Refresh
| Manufacturer | Cisco |
| Manufacturer Part Number | AIR-PWRINJ6-RF |
| Product Name | Cisco Aironet PoE Power Injector 802.3at |
| Product Type | PoE Injector |
Input Voltage | AC 100-240 V |
Frequency Required | 49 - 60 Hz |
Compliant Standards | IEEE 802.3at |
Designed For | Cisco Aironet 1810 OfficeExtend Access Point, 1810W |
| Dimensions | 2.09 x 1.28 x 5.5 in |
| Connectors | RJ-45, EIA 568A and 568B |
| Data Transfer Rate | 10/100/100 Mbps |
| Power | 30 W (user port), 100 - 240V AC, 0.67 A, 50 - 60 Hz (input), 55V DC (output) |
| Reliability | MTBF 100000 hrs at 25 deg C |
| Thermal Rating | 20 BTU/Hr at 240V AC |
| AC Frequency | 50 to 60 Hz |
| Operating Ambient Temperature | -4ºF to 104ºF (-20ºC to 40ºC) at 30 W; -4ºF to 122ºF (-20ºC to 50ºC) at 25 W |
| Operating Humidity | Maximum 90%, Non-condensing |
| Storage Temperature | -4ºF to 158ºF (-20ºC to 70ºC) |
| Reliability MTBF | 100,000 hrs @ 25ºC |
| Thermal Rating | 20 BTU/Hr @ 240 V AC |
| Regulatory Compliance | IEEE 802.3 at (PoE), China RoHS Compliant, WEEE Compliant, CE Compliant |
| Electromagnetic Emission and Immunity | FCC Part 15, Class B EN 55022 Class B (Emissions) EN 55024 (Immunity) VCCI |
| Safety | UL 60950-1 IEC/EN 60950-1 |
User Guides
Frequently Asked Questions
Cisco Aironet PoE Power Injector 802.3at (AIR-PWRINJ6-RF)
Frequently Asked Questions (FAQ's)
What is the Cisco AIR-PWRINJ6 used for?It is used to supply power over Ethernet (PoE) to Cisco 1800, 2800, and 3800 Series access points.
Which Cisco access points are compatible with the AIR-PWRINJ6?It is compatible with the Cisco 1800, 2800, and 3800 Series Access Points.
What PoE standard does the AIR-PWRINJ6 support?It is compatible with the IEEE 802.3at PoE standard.
How much power does the AIR-PWRINJ6 deliver?It provides up to 30 watts of power.
Can the AIR-PWRINJ6 be used with non-Cisco access points?It is designed specifically for Cisco access points and may not work with other devices.
Does the AIR-PWRINJ6 support Gigabit Ethernet?Yes, it does support Gigabit Ethernet pass-through.
Is the AIR-PWRINJ6 compatible with 802.3af PoE devices?Yes, but it delivers power in accordance with the 802.3at standard, which is higher than 802.3af.
Can the AIR-PWRINJ6 be used in outdoor environments?No, it is intended for indoor use only.
What is the input voltage range for the AIR-PWRINJ6?The input voltage is typically 100-240 volts alternating current (AC).

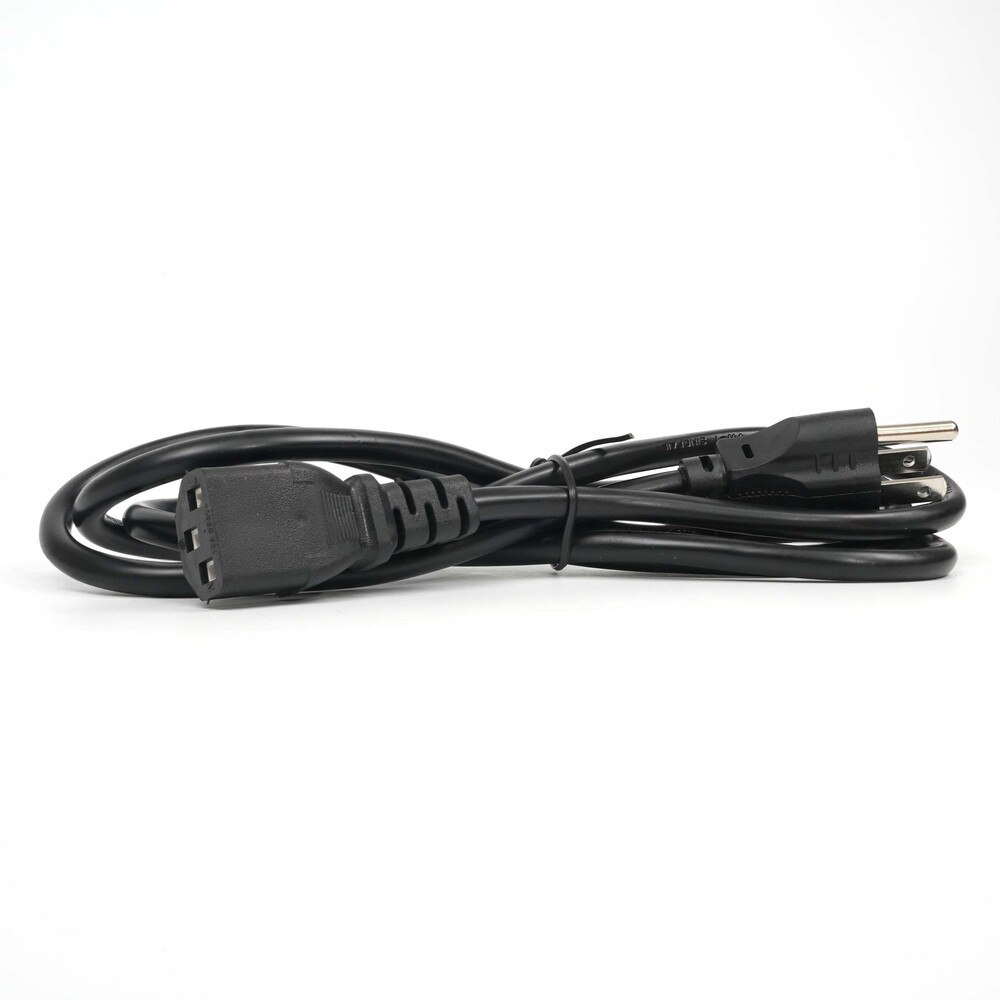

Does the AIR-PWRINJ6 come with a power cable?Yes, it includes a power cable for connecting to an AC outlet.
What are the dimensions of the AIR-PWRINJ6?The dimensions are about 2.09 x 1.28 x 5.5 in
What is the weight of the AIR-PWRINJ6?It weighs approximately 0.88 pounds (0.4 kilograms).
How do I install the AIR-PWRINJ6?Connect the injector to an AC power source, and then connect the injector's LAN cable to the access point.
Does the AIR-PWRINJ6 require any configuration?No, it is a plug-and-play device that does not require any additional configuration.
Can multiple access points be powered by a single AIR-PWRINJ6?Yes, the AIR-PWRINJ6 can be mounted on a wall or a desk with the proper mounting brackets.
Can the AIR-PWRINJ6 be used in a daisy-chain configuration?No, it is only intended for power injection into a single device.
Does the AIR-PWRINJ6 support data transfer, or is it only for power?It can transfer both data and power over a single Ethernet cable.
Is the AIR-PWRINJ6 compatible with PoE switches?It is commonly used in situations where PoE switches are unavailable; if a PoE switch is available, the injector may not be required.
Is the AIR-PWRINJ6 compatible with Cisco 1700 Series Access Points?No, it has not been officially listed as compatible with the 1700 Series.
Can the AIR-PWRINJ6 be mounted on a wall or desk?Yes, the AIR-PWRINJ6 can be mounted on a wall or a desk with the proper mounting brackets.
