Cisco ATA 192 Multiplatform Analog Telephone Adapter (ATA192-3PW-K9) | New

Cisco ATA 192 Multiplatform Analog Telephone Adapter (ATA192-3PW-K9) | New

SKU: ATA192-3PW-K9-N
1Review

This Phone Supports Webex Calling

Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns
$109.99 $109.99
Available Quantity:
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

Overview of Cisco ATA 192 Multiplatform Analog Telephone Adapter (ATA192-3PW-K9) | New

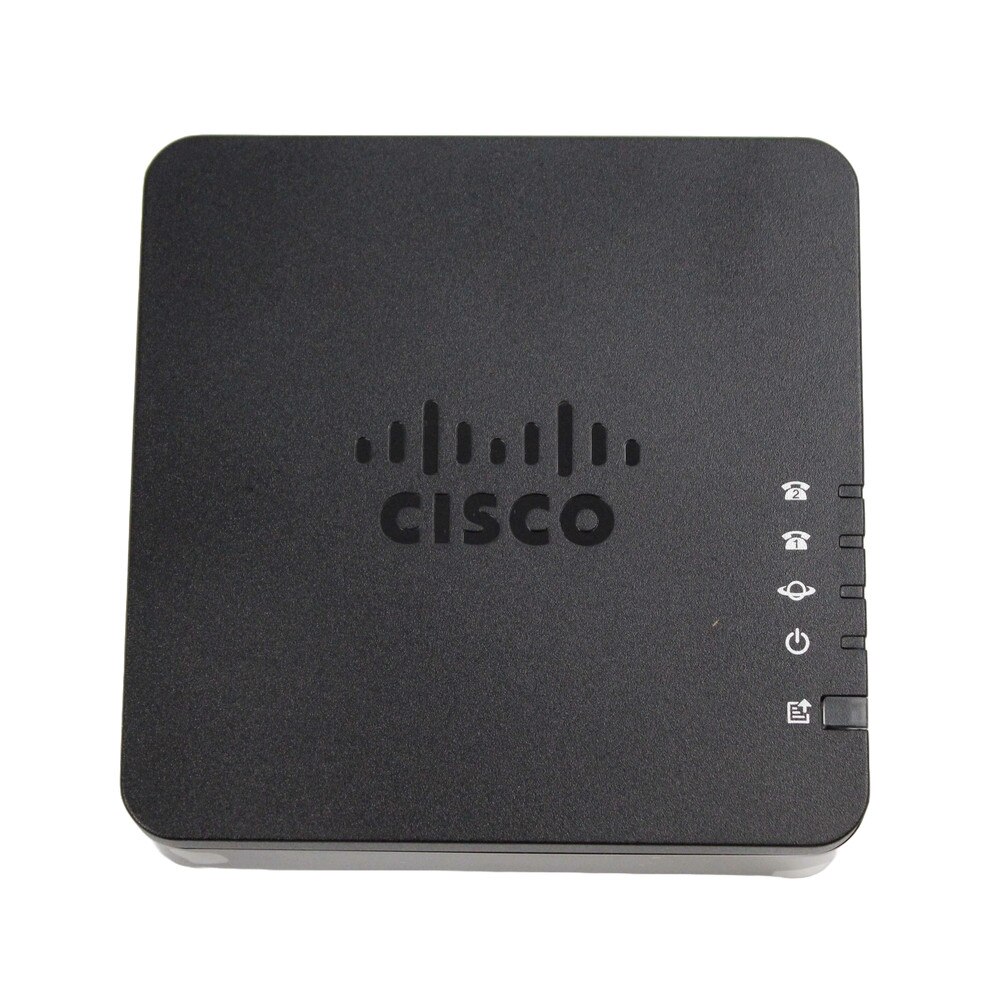

The Cisco ATA 192 Multiplatform Analog Telephone Adapter (ATA192-3PW-K9) is a high-performance solution for connecting traditional analog telephony devices (phones and fax machines) to current IP-based communication networks. With advanced functionality, strong security and multiplatform compatibility, this adapter is ideal for enterprises wishing to modernize their communication systems while keeping their existing analog equipment. The ATA 192 has two FXS connectors for connecting analog devices and one 10/100 Mbps Ethernet port for smooth network connectivity. It uses modern codecs such as G.711 and G.729 to provide improved voice quality and it supports T.38 fax relay for dependable fax transmission across IP networks. Its multiplatform compatibility assures that it works with the best SIP-based VoIP systems, making it an excellent solution for organizations of all sizes. The small design and user-friendly web-based management interface make deployment and configuration simpler.


Key Features of Cisco ATA 192 Multiplatform Analog Telephone Adapter


• Two FXS Ports connects analog phones, fax machines or other legacy devices to IP networks.

• High-Quality Audio features advanced audio processing with echo cancellation and Voice Activity Detection (VAD).

• T.38 Fax Relay Support ensures reliable fax transmission over IP networks.

• Works with third-party SIP platforms like BroadSoft and Asterisk.

• Advanced Codec Support includes G.711, G.729, G.726 and T.38 codecs for superior voice quality.

• Secure Communication with TLS encryption and secure boot protect sensitive communications.

• IPv4/IPv6 Dual Stack supports both IPv4 and IPv6 for future-proof networking.

• Web-Based Management features intuitive interface for easy configuration and monitoring.

• Wall-mountable form factor saves space in office setups.

• Zero-Touch Provisioning simplifies deployment with TR-069 support.


Benefits of Cisco ATA 192 Multiplatform Analog Telephone Adapter


🗹 Connect legacy analog devices to modern VoIP systems without replacing equipment.

🗹 Advanced audio processing ensures clear, natural-sounding calls.

🗹 Reliable Fax Support: T.38 relay provides smooth fax transmission over IP networks.

🗹 TLS encryption safeguards sensitive communications from unauthorized access.

🗹 IPv6 support ensures compatibility with evolving technologies.

🗹 Multiplatform support works seamlessly with third-party SIP-based platforms.

🗹 Simplified Deployment: Zero-touch provisioning reduces setup time for IT teams.

🗹 Compact form factor fits neatly into any office environment.

🗹 Retain existing analog devices while upgrading to IP communication systems.

🗹 Web-based interface makes configuration and troubleshooting straightforward.

Specifications

Specifications for Cisco ATA 192 Multiplatform Analog Telephone Adapter (ATA192-3PW-K9) | New

ManufacturerCisco
Manufacturer Part NumberATA192-3PW-K9
Product NameCisco ATA 192 Multiplatform Analog Telephone Adapter
Product TypeAnalog Telephone Adapter
Width
3.9 in
Depth
3.9 in
Height
1.1 in
Weight
4.66 oz
Form Factor
External
Ports Qty
2
Connectivity Technology
Wired
Data Link Protocol
Ethernet, Fast Ethernet
Network / Transport Protocol
TCP/IP, PPTP, UDP/IP, L2TP, IPSec, PPPoE, ARP, RTP, RTCP
Remote Management Protocol
SNMP 3, HTTP, HTTPS, TFTP, SSH, TR-069
Status Indicators
Power, phone, Internet
Features
NAT support, Syslog support, DiffServ support, IPv6 support, SNTP support, wall mountable, port forwarding, reset button, LLDP support, DHCP client, Automated Attendant (IVR), Type of Service (ToS), Internet Control Message Protocol (ICMP), dual image support, Cisco Discovery Protocol
Encryption Algorithm
AES, TLS 1.1, TLS 1.2, ESP
Authentication Method
Secure Shell (SSH)
Compliant Standards
IEEE 802.1Q, IEEE 802.1p, IEEE 802.1ab (LLDP)
VoIP Protocols
SIP, RTCP, RTP, SRTP
Voice Codecs
G.711, G.729a, G.729ab, G.711a, G.726, T.38, G.711μ
Telephony Interfaces
2 phone (FXS)
IP Telephony Features
Call forwarding, caller ID, call waiting, call hold, distinctive ringing, call transfer, Do-not-disturb (DND) support, caller ID block/unblock
Interfaces
2 x FXS - RJ-11 ¦ 2 x 100Base-TX - RJ-45
MTBF
300,000 hours
Compliant Standards
FCC Part 15 B, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, IEC 60950-1:2005 Second Edition, EN 61000-3-3:2013, EN 55024:2010+A1:2015, Directive 2014/35/EU, Directive 2014/30/EU, UL 60950 Second Edition, CAN/CSA C22.2 No. 60950 Second Edition, ANSI C63.4-2014, AS/NZS 60950-1:2015, ICES-003:2016, EN 61000-3-2:2014 Class A, EN 55032:2015 Class B, AS/NZS CISPR32:2015 Class B, CISPR 32:2015 Class B
Power Device

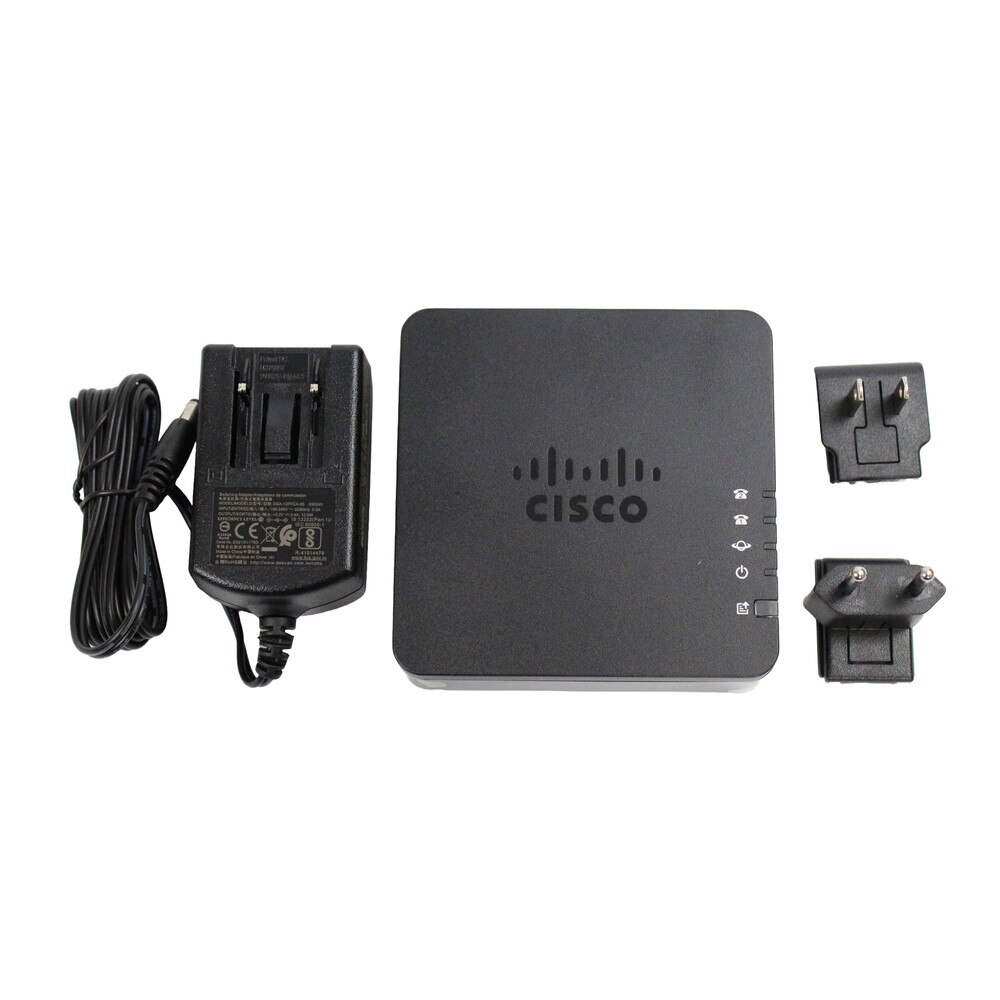

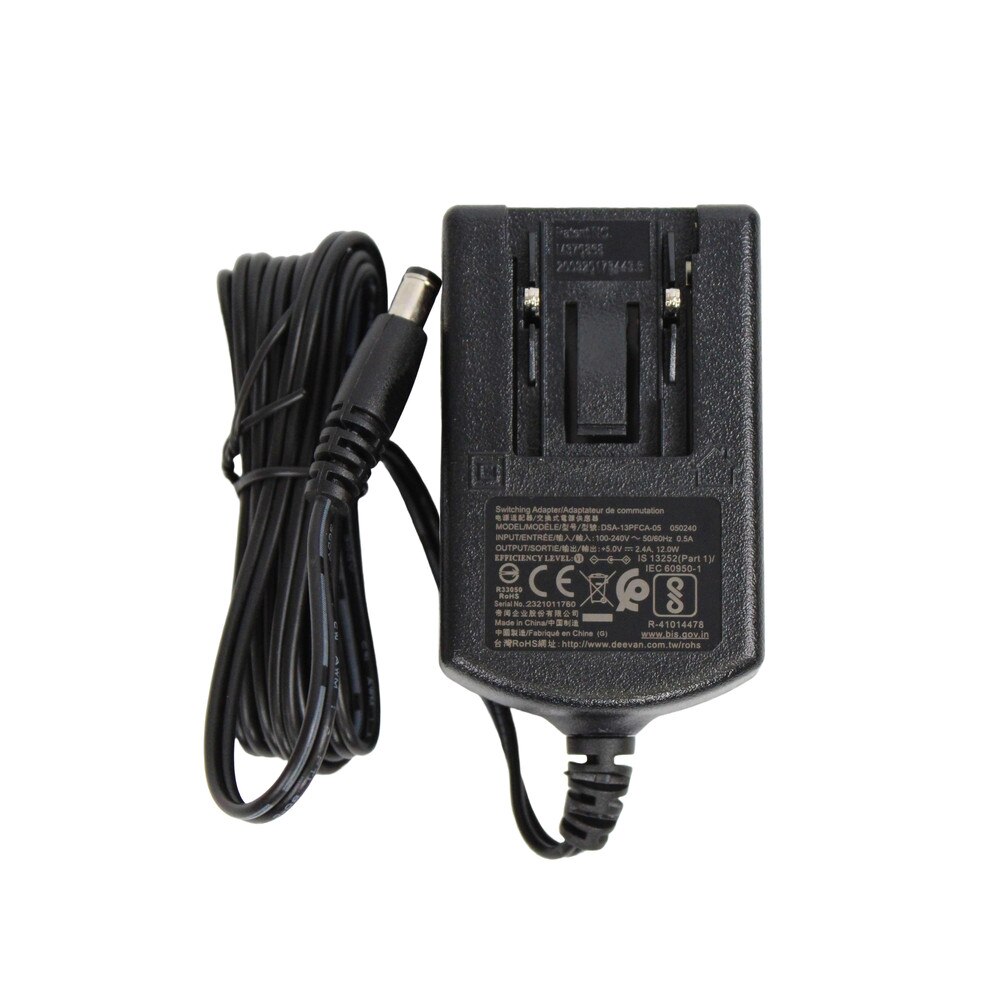

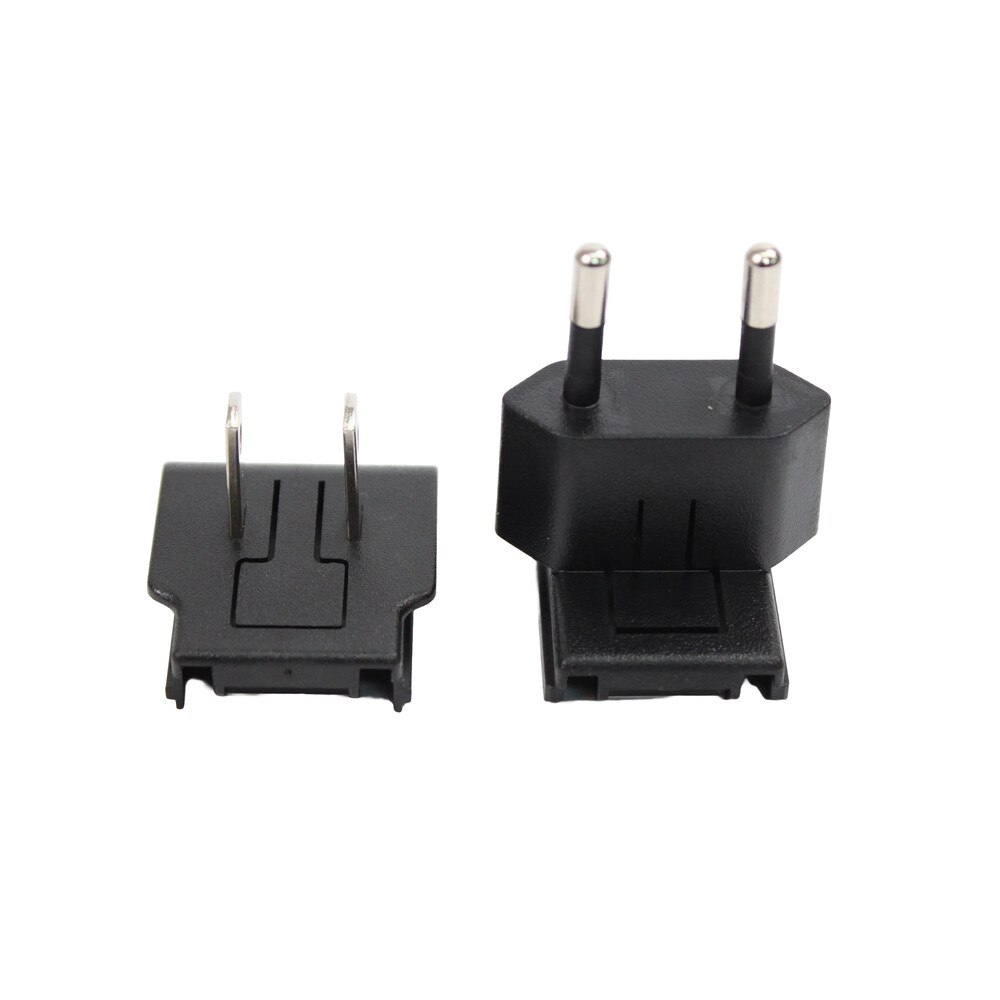

External power adapter
Voltage Required
AC 120/230 V / DC 5 V (50/60 Hz)
Power Consumption Operational
5 Watt
Service & Support
Limited warranty - 1 year
Min Operating Temperature
32 °F
Max Operating Temperature
104 °F
Humidity Range Operating
10 - 90% (non-condensing)

User Guides

Cisco ATA 192 Multiplatform Analog Telephone Adapter (ATA192-3PW-K9) Data Sheet

Frequently Asked Questions

Cisco ATA 192 Multiplatform Analog Telephone Adapter (ATA192-3PW-K9)
Frequently Asked Questions (FAQ's)



What is the Cisco ATA192 Multiplatform Analog Telephone Adapter?
  • It is a device that converts analog voice signals into digital IP packets for transmission via an internet network.
    • How many ports does the Cisco ATA192 have?
  • Yes, it supports Fax over IP with the T.38 protocol.
    • Can I use any VoIP provider with the ATA192?
  • Yes, it supports fax over IP using the T.38 protocol.
    • Can I use the Cisco ATA 191 with any VoIP provider?
  • Yes, it supports multiple VoIP platforms, which makes it compatible with a variety of service providers.
    • What type of audio codecs does the ATA192 support?
  • It supports a variety of codecs, including G.711, G.726, G.729, and G.722 for HD voice.
    • Is installation of the Cisco ATA192 complicated?
  • No, it provides a simple, web-based configuration interface to facilitate installation.
    • What are the security features of the ATA192?
  • TLS, SRTP, and HTTPS are among the robust security protocols built into the device.
    • Can the Cisco ATA192 be managed remotely?
  • Yes, it has remote management capabilities for easier maintenance and updates.
    • What warranty comes with the ATA192?
  • It typically comes with a one-year limited warranty, but the terms can vary.
    • Does the Cisco ATA192 require a special power supply?
  • It ships with a standard AC power adapter.
    • How do I reset the ATA192 to factory settings?
  • You can reset the device using the physical reset button or via the web interface.
    • Can the Cisco ATA192 handle multiple simultaneous calls?
  • Yes, it can handle multiple calls simultaneously on each of its ports.
    • What network protocols does the ATA192 support?
  • It supports several protocols, including TCP, UDP, RTP, and DHCP.
    • How do I update the firmware on the ATA192?
  • Firmware updates can be performed via the device's web interface, with files downloaded from Cisco's website.
    • Does the ATA192 support advanced call features like call waiting and caller ID?
  • Yes, it supports advanced features like call waiting, caller ID, and three-way calling.
    • What is the size and weight of the ATA192?
  • The device is compact and lightweight, making it ideal for use in small spaces.
    • Is the ATA192 suitable for home use?
  • Although intended for business use, its features are also useful for home offices.
    • Can the ATA192 be used internationally?
  • Yes, assuming it is compatible with the local VoIP service and power requirements.
    • How does the ATA192 integrate with existing VoIP systems?
  • It integrates seamlessly using standard SIP protocols and can be configured to work with the majority of existing VoIP systems.
    • What support options are available for the Cisco ATA192?
  • Cisco provides support via documentation, an online support community, and direct customer service channels.
