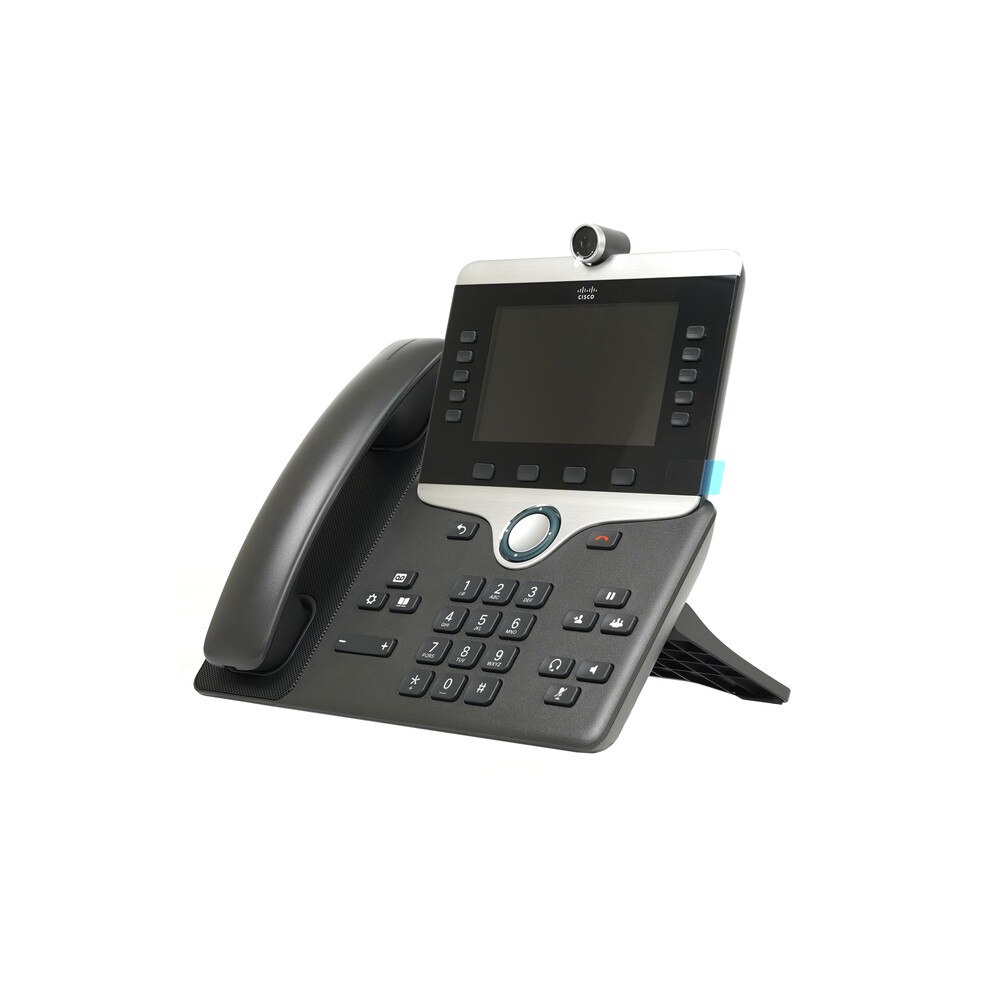

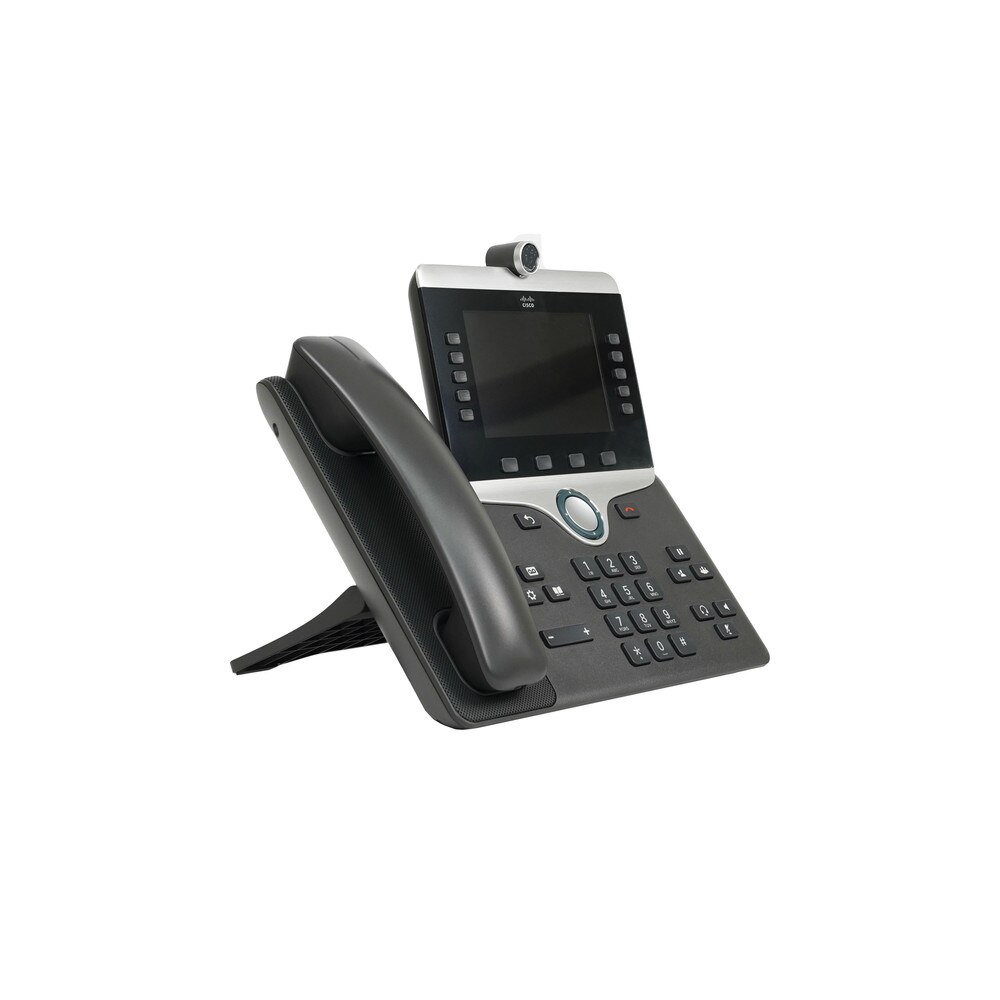

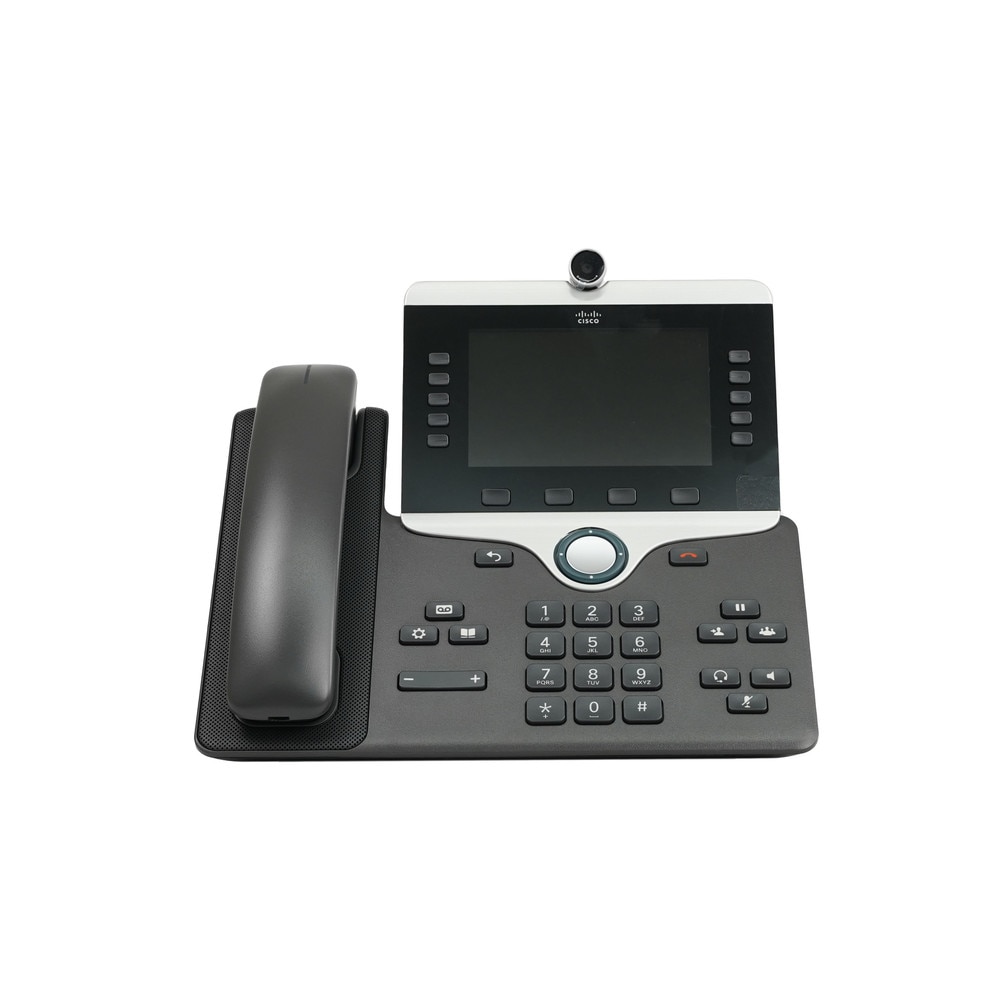

Cisco 8845 IP Phone (CP-8845-K9) | Like New
SKU: CP-8845-K9-LN
This Phone Supports Webex Calling
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us
Same Day Shipping - Arrives in 3-5 Business Days 30-day Returns Overview
Overview of Cisco 8845 IP Phone (CP-8845-K9) | Like New
The Cisco 8845 IP Phone (CP-8845-K9) can help you boost personal productivity by providing strong and simple-to-use user experiences. It blends an appealing new ergonomic design with 720p HD video and wideband audio for crystal-clear video and voice communications and "always-on" reliability. The 8845 encrypts video and phone communications for security and provides access to a comprehensive array of unified communications services.
Furthermore, when you use your mobile device at your desk for work, Cisco Intelligent Proximity combines the worlds of desk and mobile for you. During active mobile calls, you can shift the audio path to the 8845 to take advantage of its improved audio acoustics. Sharing a chat with a colleague who is listening in is one example. This feature allows you more freedom at your workplace.
The Cisco 8845 IP Phone includes five configurable line keys. You can arrange keys to support either numerous directory numbers or call capabilities such as rapid dial. You can also increase efficiency by processing several calls for each directory number by utilizing the multicall-per-line capability. Fixed function keys provide one-touch access to programs, messaging, and the directory, as well as frequently used calling capabilities like hold/resume, transfer, and conference. Backlit acoustic keys allow for greater audio path choices and switching.
Key Features of Cisco 8845 IP Phone
Graphical Display
• 800 × 480, 24-bit color, 5-in. WVGA display
• Provedes access to calling features and text-based XML applications

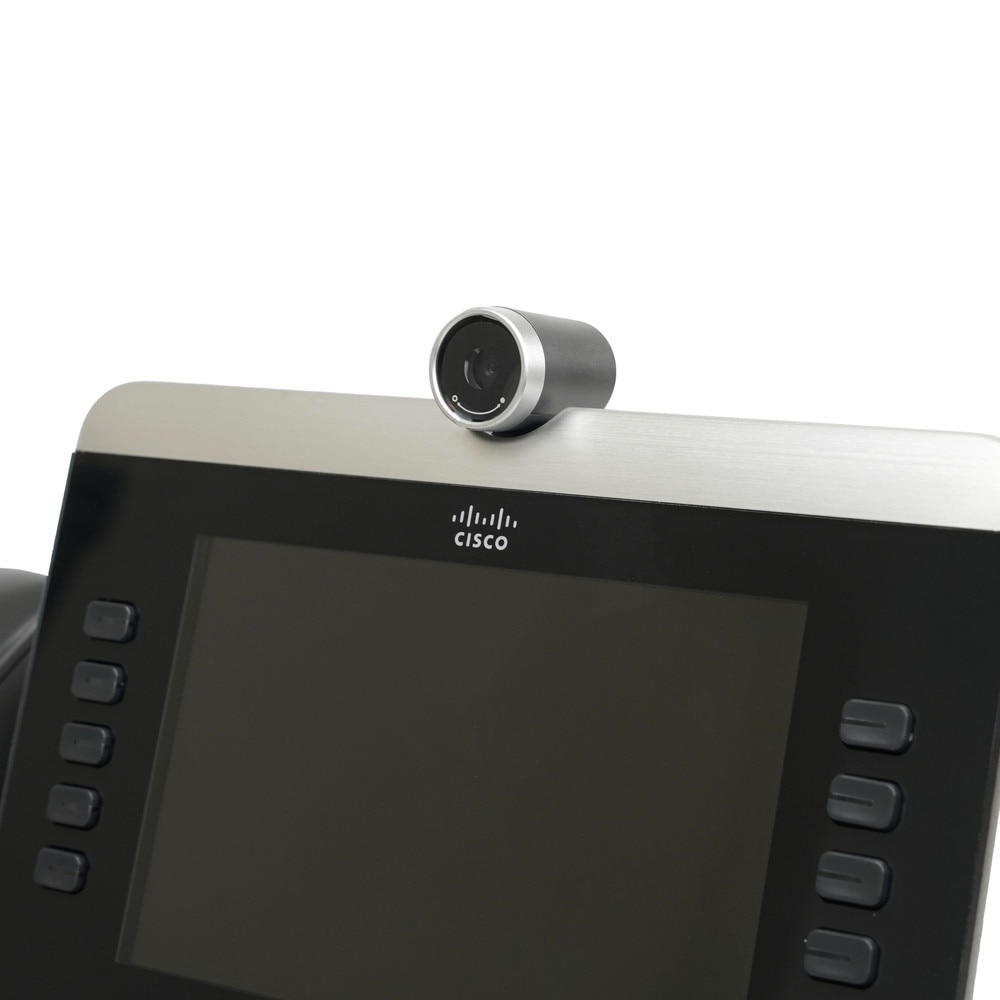

Video
• 720p HD video (encode and decode)
• H.264/AVC
Handset

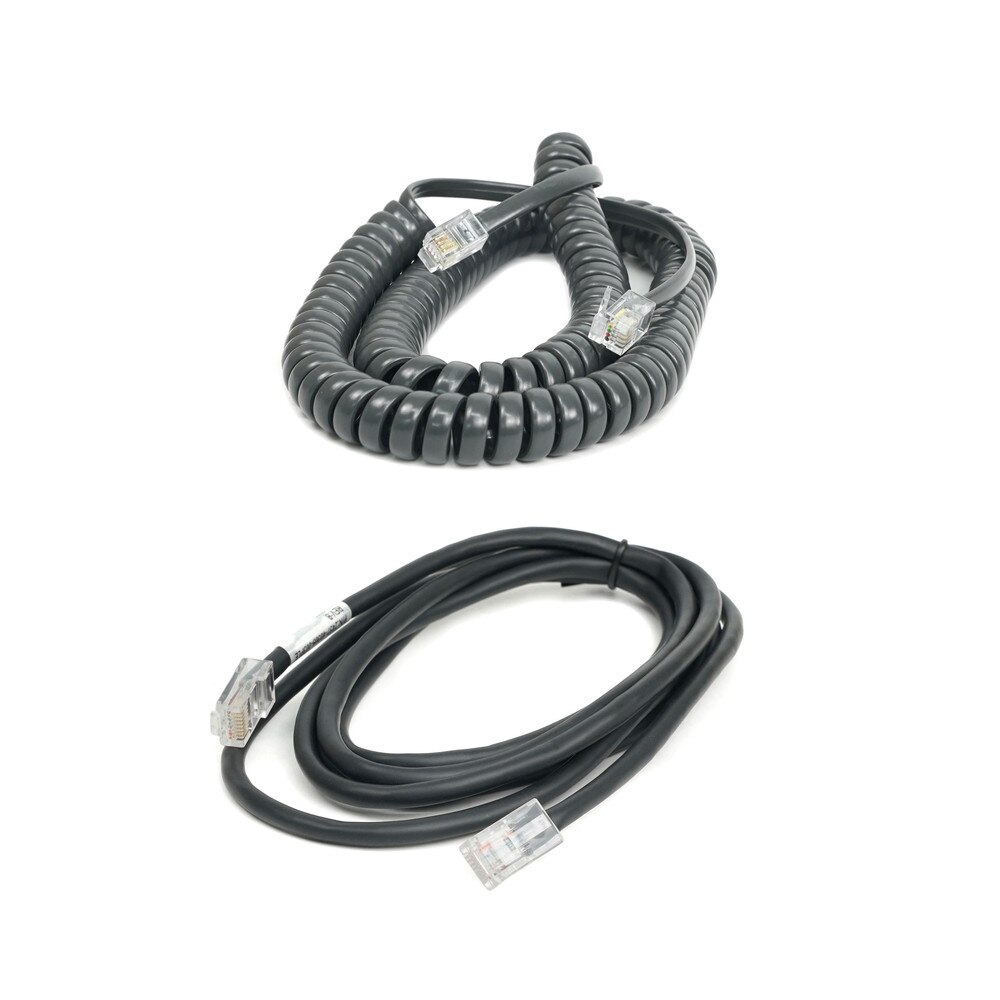

• The handset is a standard wideband-capable audio handset (connects through an RJ-9 port)
• The basic coiled cord features a bespoke termination for hidden cable routing beneath the phone (cord length is approximately 21 in. [55 cm] coiled and up to 72 in. (183 cm) extended).
• The phone is hearing aid compatible (HAC) and complies with the Americans with Disabilities Act (ADA) loudness guidelines established by the Federal Communications Commission (FCC). Section 508 loudness standards can be met with industry-standard inline handset amplifiers as the Walker Equipment W-10 or CE-100. The dial pad is also accessible.
Speakerphone
A full-duplex speakerphone allows you to make and receive calls while keeping your hands free. When using the speakerphone mode, the audible dual tone multifrequency (DTMF) tones are muted for increased protection.

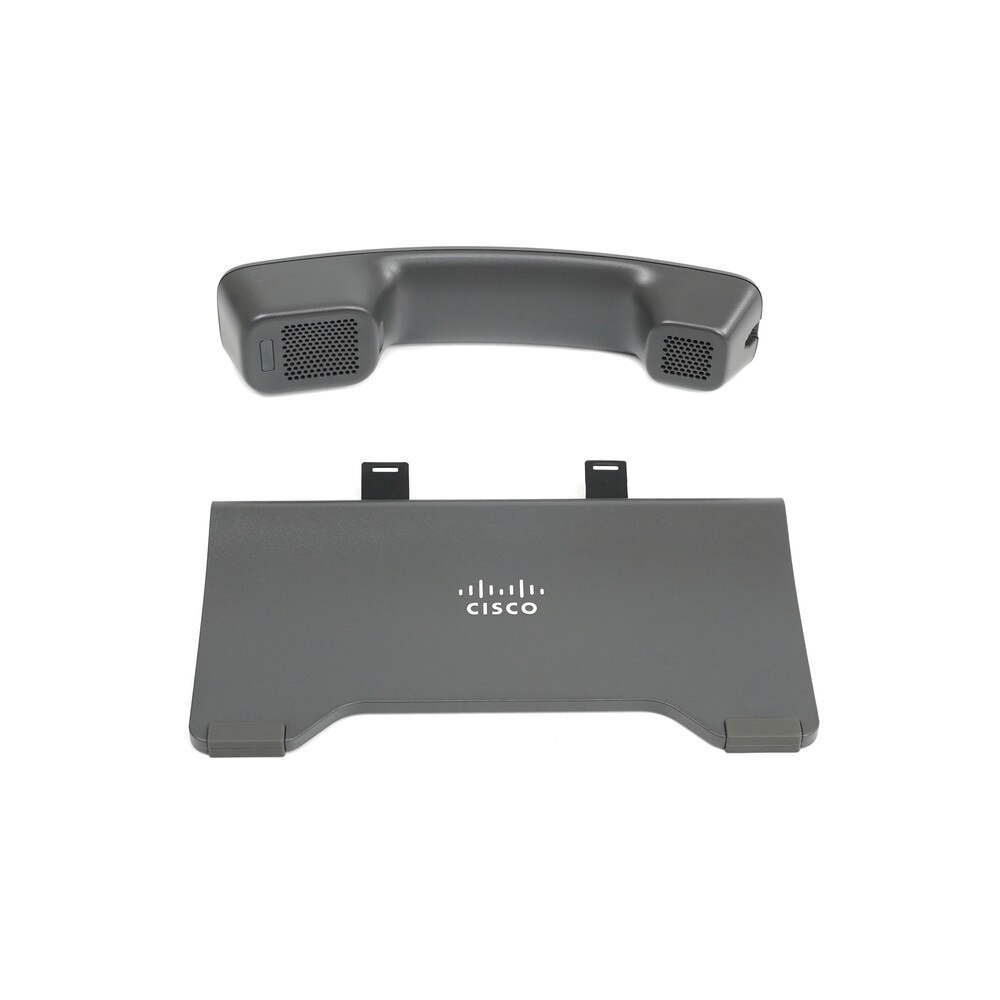

Dual-Position Foot Stand
The display is simple to read, and the buttons and keys are simple to use. The two-position foot stand supports viewing angles of 35 and 50 degrees; you may remove the foot stand for wall mounting, with mounting holes placed on the phone's base.
Call Features
• + Dialing
• Abbreviated dialing
• Adjustable ring tones and volume levels
• Adjustable display brightness
• Agent greeting
• Application launch pad
• Auto-answer
• Auto-detection of headset
• cBarge
• Busy Lamp Field (BLF)
• BLF Pickup
• BLF speed dial
• Callback
• Call forward
• Call forward notification
• Call filter
• Call history lists
• Call park
• Call pickup
• Call timer
• Call waiting
• Call chaperone
• Caller ID
• Corporate directory
• Conference, including traditional Join feature
• Cross-Cluster Extension Mobility (EMCC)
• Direct transfer
• Extension mobility
• Fast-dial service
• Forced access codes and client matter codes
• Group call pickup
• Hold
• Intercom
• Immediate divert
• Malicious-caller ID
• Message-waiting indicator (MWI)
• Meet-me conference
• Mobility
• Music on hold (MoH)
• Mute
• Network profiles (automatic)
• On- and off-network distinctive ringing
• Personal directory
• PickUp
• Predialing before sending
• Privacy
• Private Line Automated Ringdown (PLAR)
• Redial
• Ring tone per line appearance
• Service Uniform Resource Locator (URL)
• Shared line
• Silent monitoring and recording
• Speed dial
• Time and date display
• Transfer
• Uniform Resource Identifier (URI) dialing
• Visual Voicemail
• Voicemail
• Whisper coaching
Mobility and Remote Access
You can deploy the phones remotely with the following two options:
• If the administrator has enabled this VPN capability, you can remotely register your phone to the on-premises network using a built-in VPN client.
• If you are given log-in credentials, you can access to the on-premises network without using a VPN. Please contact your system administrator.
Electronic Hookswitch
Electronic control of the hookswitch is possible using a third-party headset attached to the auxiliary port.
Cisco Intelligent Proximity
• Audio path moving sends audio through the IP Phone 8861 for a mobile device-connected call
• Call-history synchronization allows you to view placed and missed calls of your mobile device from the IP Phone 8845
• Contact synchronization allows you to synchronize the contact objects from your mobile device to your 8845
Network Features
• Session Initiation Protocol (SIP) for signaling
• Session Description Protocol (SDP)
• IPv4 and IPv6
• User Datagram Protocol (UDP) (used only for Real-Time Transport Protocol [RTP] streams)
• Dynamic Host Configuration Protocol (DHCP) client or static configuration
• Gratuitous Address Resolution Protocol (GARP)
• Domain Name System (DNS)
• Trivial File Transfer Protocol (TFTP)
• Secure HTTP (HTTPS)
• VLAN
• Real-Time Transport Protocol (RTP)
• Real-Time Control Protocol (RTCP)
• Cisco Peer-to-Peer Distribution Protocol (PPDP)
• Cisco Discovery Protocol
• LLDP (including LLDP Media Endpoint Discovery [LLDP-MED])
• Switch speed auto-negotiation
Security Features
• Secure boot
• Secure credential storage
• Device authentication
• Configuration file authentication and encryption
• Image authentication
• Random bit generation
• Hardware cryptographic acceleration
• Certificate Authority Proxy Function (CAPF)
• Manufacturer-Installed Certificates (MIC)
• Locally Significant Certificates (LSC)
• Ethernet 802.1x supplicant options: Extensible Authentication Protocol-Flexible Authentication via Secure Tunneling (EAP-FAST) and Extensible Authentication Protocol-Transport Layer Security (EAP-TLS)
• Signaling authentication and encryption using TLS
• Media authentication and encryption using SRTP
• HTTPS for client and server
• Secure Shell (SSH) Protocol server
• SSL-based VPN client
Specifications
Specification for Cisco 8845 IP Phone (CP-8845-K9) | Like New
| Manufacturer | Cisco |
| Manufacturer Part Number | CP-8845-K9 |
| Product Name | Cisco 8845 IP Phone |
| Product Type | IP Phone |
Compatible Platforms | Cisco Business Edition 6000 |
Integrated Components | Digital camera, Bluetooth interface |
Weight | 2.98 lbs |
Body Color | Charcoal |
Body Material | ABS polycarbonate |
Wireless Interface Provided | Bluetooth |
Bluetooth Profiles | Hands-Free Profile (HFP), Phonebook Access Profile (PBAP) |
Call Services | Voice Mail, Caller ID, Call Waiting, Call Forwarding, Call Transfer, Call Hold, Message Waiting Capability |
Dialer Type | Keypad |
Dialer Location | Base |
Conference Call Capability | Yes |
Intercom | Yes |
Speakerphone | Yes (digital duplex) |
Voice Recording | Yes |
Programmable Buttons Qty | 5 |
Indicators | New message indicator |
Additional Functions | Call timer, Intercom |
Additional Features | Music on hold |
Main Features | Multiple VoIP protocol support, integrated Ethernet switch |
VoIP | Yes |
VoIP Protocols | SIP, SDP |
Voice Codecs | G.722, G.729a, G.711u, G.711a, iLBC, iSAC |
Video Codecs | H.264 |
Lines Supported | 5 lines |
Quality of Service | IEEE 802.1Q (VLAN), IEEE 802.1p |
IP Address Assignment | DHCP, static |
Security | IEEE 802.1X, TLS |
Power Over Ethernet (PoE) Support | Yes |
Network Protocols | TFTP, UDP, Cisco Discovery Protocol (CDP), DNS, HTTPS, Link Layer Discovery Protocol (LLDP), SRTP, Link Layer Discovery Protocol - Media Endpoint Discovery (LLDP-MED), RTCP, RTP, GARP |
Network Ports Qty | 2 x Ethernet 10Base-T/100Base-TX/1000Base-T |
Compatible Software | Cisco Unified Communications Manager 8.5.1 or later, Cisco Unified Communications Manager Express 10.0 or later |
Network Features | Class 2 PoE |
Type | LCD display - color |
Display Location | Base |
Diagonal Size | 5" |
Display Resolution | 800 x 480 pixels |
Color Depth | 24-bit (16.7 million colors) |
Backlit | Yes |
Camera Resolution | 1280 x 720 |
Connections | Headset jack / RJ-9 ¦ Electronic hook switch (EHS) |
Hearing Aid Compatible | Yes |
Placing / Mounting | Wall-mountable, table-top |
Width | 10.1 in |
Depth | 3.9 in |
Height | 9 in |
Weight | 2.98 lbs |
Resources
Frequently Asked Questions
Cisco 8845 IP Phone (CP-8845-K9)
Frequently Asked Questions (FAQ's)
What is the Cisco 8845 IP Phone? The Cisco 8845 is a business-class IP phone that provides high-definition voice and video communication to improve productivity and collaboration.
What display features does the Cisco 8845 have? The Cisco 8845 has a 5-inch high-resolution widescreen VGA color display with 800x480 pixels.
Does the Cisco 8845 support video calls? Yes, the Cisco 8845 supports high-quality video calls thanks to its built-in 720p HD camera.
What audio features are available on the Cisco 8845? The Cisco 8845 provides high-definition voice, wideband audio, and a full-duplex speakerphone to ensure clear and natural communication.
How many programmable line keys does the Cisco 8845 have? The Cisco 8845 has five programmable line keys that provide quick access to lines, features, and contacts.
Does the Cisco 8845 have Bluetooth connectivity? Yes, the Cisco 8845 has built-in Bluetooth for wireless headsets and mobile device pairing.
Can the Cisco 8845 be powered using Power over Ethernet (PoE)? Yes, the Cisco 8845 supports Power over Ethernet (PoE), which simplifies installation and reduces cabling.
What network connectivity options are available on the Cisco 8845? The Cisco 8845 has dual Gigabit Ethernet ports for fast network connectivity.
Is the Cisco 8845 compatible with Cisco Unified Communications Manager (CUCM)? Yes, the Cisco 8845 works with Cisco Unified Communications Manager for centralized management.
What security features does the Cisco 8845 include? The Cisco 8845 uses strong security protocols such as secure boot, image authentication, and encrypted media and signaling.
How can firmware updates be performed on the Cisco 8845? Firmware updates can be performed using the phone's settings menu or the Cisco Unified Communications Manager.
Does the Cisco 8845 support USB connectivity? Yes, the Cisco 8845 includes a USB port for connecting accessories like headsets.
Can the Cisco 8845 be used with third-party call control systems? While designed for Cisco environments, the Cisco 8845 can also be used with third-party call control systems, though specific features may differ.
What type of codec support is available on the Cisco 8845? The Cisco 8845 supports a variety of audio codecs, including G.711, G.722, and iLBC, to ensure high-quality audio communications.
Does the Cisco 8845 support video codecs? Yes, the Cisco 8845 supports H.264 high-definition video calls.
What is the weight of the Cisco 8845 IP Phone? The Cisco 8845 weighs about 2.9 pounds (1.3 kg).
Can the Cisco 8845 be used in a remote work setup? Yes, the Cisco 8845 is appropriate for remote work environments, providing reliable communication tools to remote employees.
What kind of warranty does the Cisco 8845 come with? The Cisco 8845 typically includes a one-year hardware warranty.
Does the Cisco 8845 support call conferencing? Yes, the Cisco 8845 supports call conferencing, which allows multiple participants to join the same call.
How does the Cisco 8845 enhance productivity in a business environment? The Cisco 8845 boosts productivity with an intuitive interface, high-definition audio and video capabilities, and easy access to communication features, which streamline workflows and improve collaboration.
