Overview of Cisco CP-8832-K9-NA Conference VoIP Phone

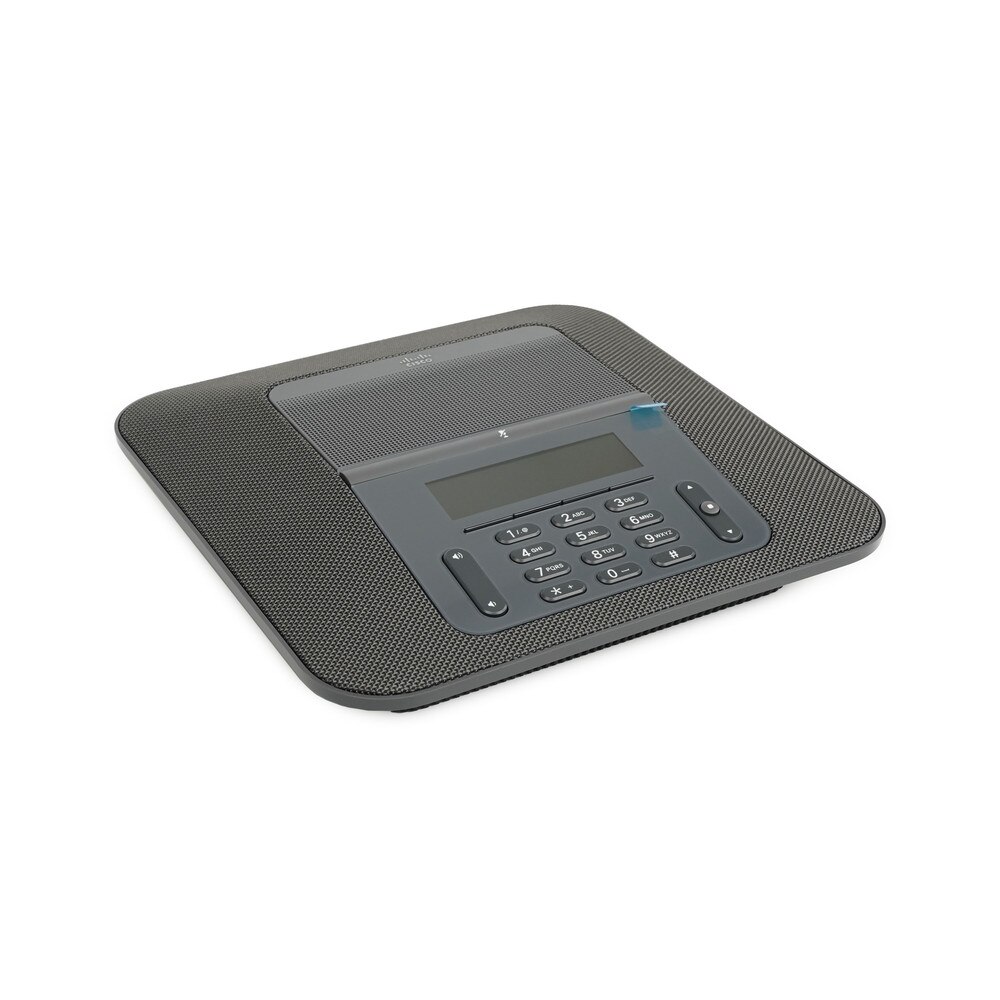

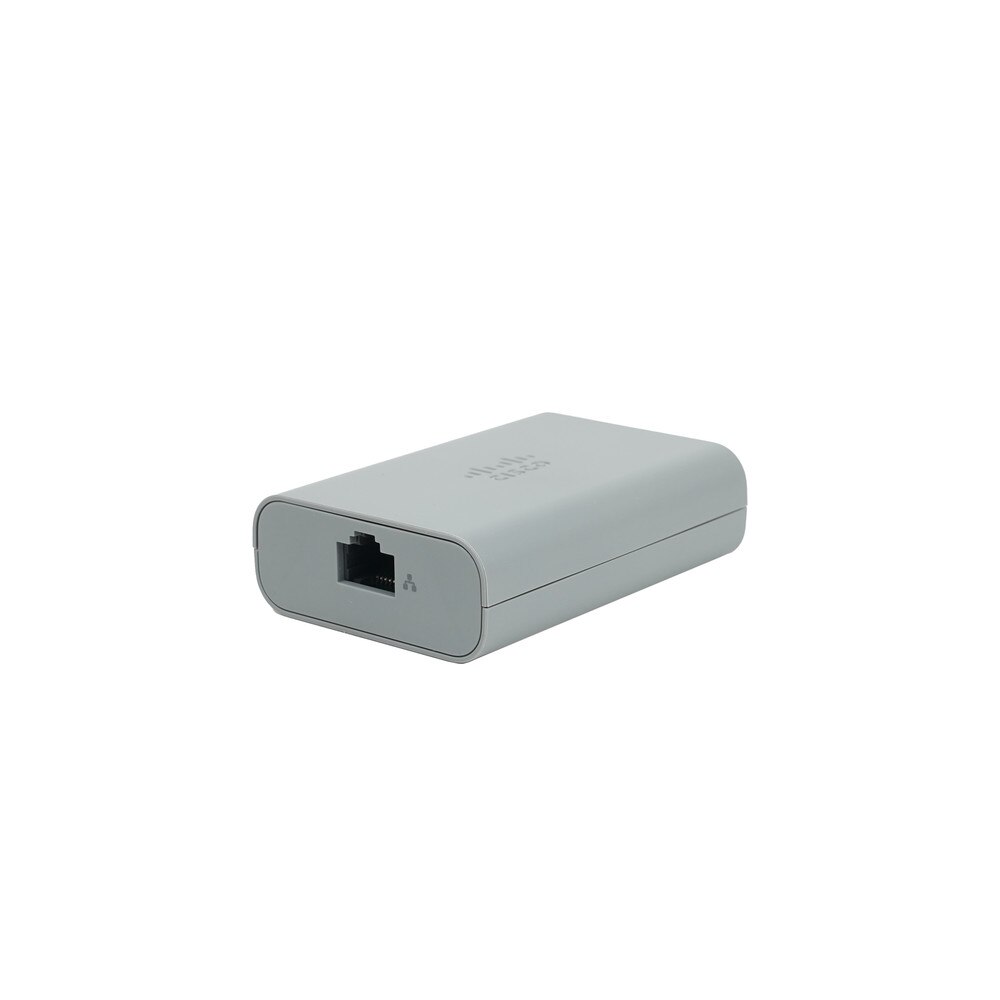

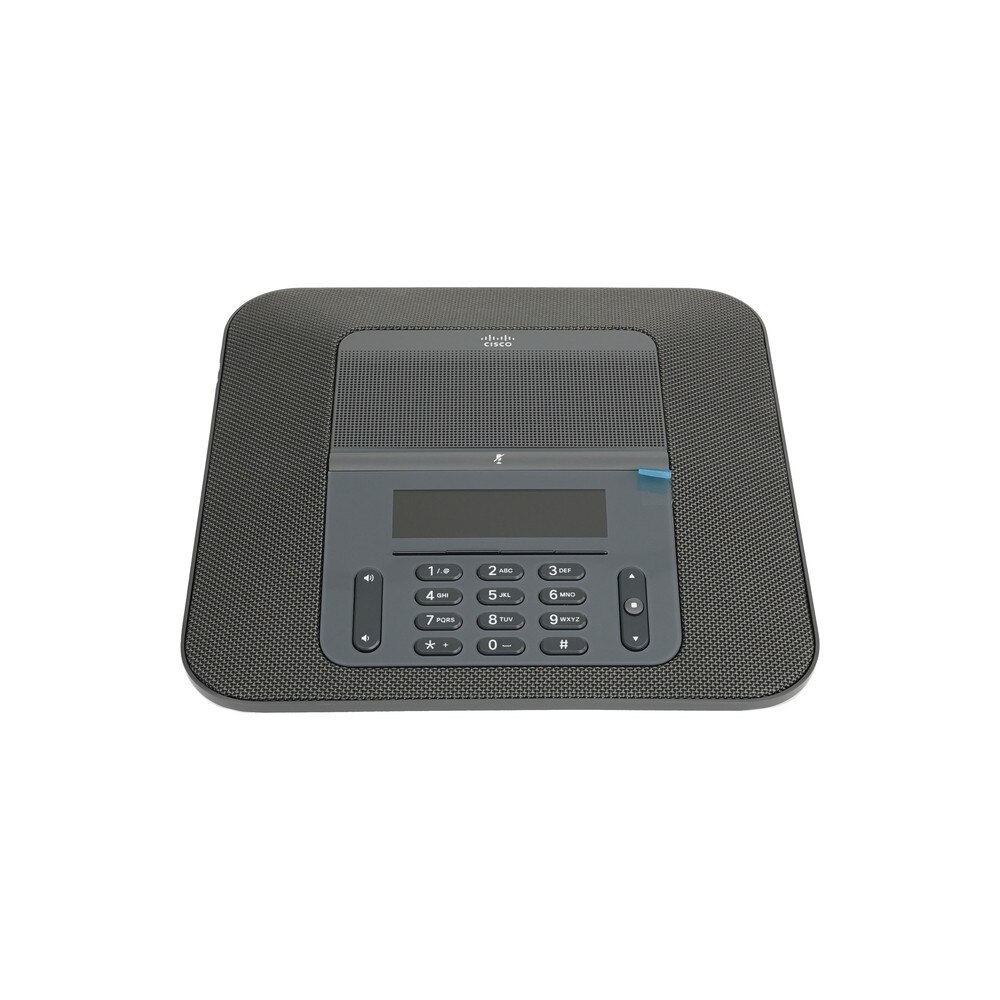

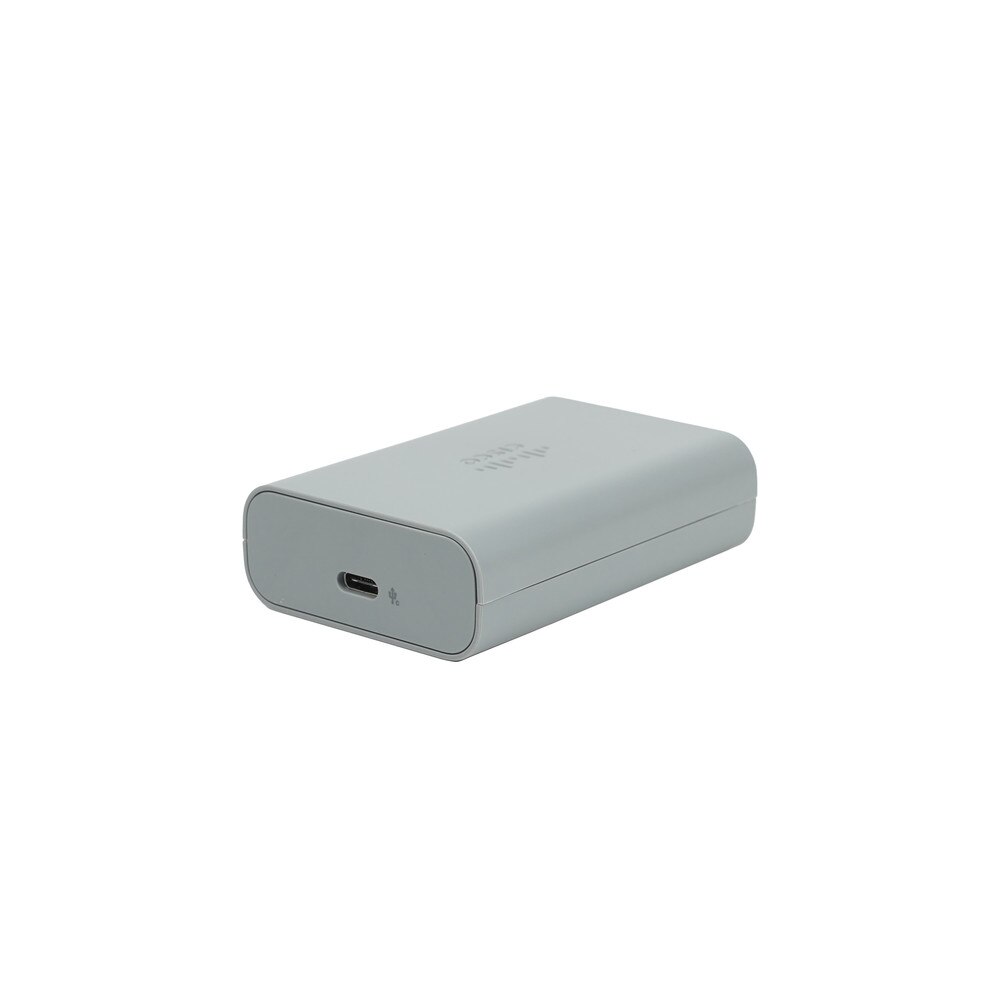

CP-8832-K9 is a Cisco IP Conference Phone 8832 base in charcoal for North America. This IP phone also includes an Ethernet injector or an 18W power adapter, as well as a USB-C cable measuring 9.8 feet (3 meters). The Cisco IP Conference Phone 8832 improves people-centric collaboration by providing simple audio conferencing with high voice quality and clarity. Newly developed microphones and loudspeakers provide the best sound quality of any conference phone on the market. Our unique acoustic design includes a full-range "studio-monitor" speaker. This loudspeaker architecture delivers dynamic, detailed sound with low distortion and low-frequency clarity, transforming conferencing into an in-person experience with exceptionally clear and natural audio quality.
Features
● 480x128-pixel backlit 24-bit color LCD, 3.9-in. (9.9-cm) diagonal
● 10/100 BASE-T via an Ethernet injector
● Four context-sensitive soft key bars
● Two-way navigation bar and select button
● Standard keypad
● Volume-control bar
● Large mute key for ease of access
● IEEE PoE Class 3; compatible with both IEEE 802.3af and 802.3at switch blades; supports both Cisco Discovery Protocol and Link Layer Discovery Protocol - Power over Ethernet (LLDP-PoE)
● Native support in Cisco Unified Communications Manager 12.0(1); DevPack required for Cisco Unified Communications Manager 10.5.2, 11.0, and 11.5
● 480x128-pixel backlit 24-bit color LCD, 3.9-in. (9.9-cm) diagonal
● 10.9 x 10.9 x 2.4 in. (278 x 278 x 61 mm)
● 4.07 lb (1.85 kg)
Specifications
Specifications of Cisco 8832 IP Conference Phone
Manufacturer | Cisco |
Manufacturer Part Number | CP-8832-K9 |
Product Name | Cisco 8832 IP Conference Phone |
Product Type | Conference Phone |
Graphical display | 480x128-pixel backlit 24-bit color LCD, 3.9-in. (9.9-cm) diagonal |
Ethernet switch | 10/100 BASE-T via an Ethernet injector |
Keys | The phone has the following keys: |
· Four context-sensitive soft key bars | |
· Two-way navigation bar and select button | |
· Standard keypad | |
· Volume-control bar | |
· Large mute key for ease of access | |
IEEE PoE | IEEE PoE Class 3; compatible with both IEEE 802.3af and 802.3at switch blades; supports both Cisco Discovery Protocol and Link Layer Discovery Protocol - Power over Ethernet (LLDP-PoE) |
Call control support | Native support in Cisco Unified Communications Manager 12.0(1); DevPack required for Cisco Unified Communications Manager 10.5.2, 11.0, and 11.5 |
Graphical display | 480x128-pixel backlit 24-bit color LCD, 3.9-in. (9.9-cm) diagonal |
Physical dimensions (H x W x D) | 10.9 x 10.9 x 2.4 in. (278 x 278 x 61 mm) |
Weight | 4.07 lb (1.85 kg) |
Feature | Specifications |
Audio codec support | G.711 a-law and mu-law, wideband (G.722), G.729a, G.729ab, Internet Low Bitrate Codec (iLBC), OPUS |
Acoustics | Frequency: Speaker, 100 Hz to 20 kHz; microphones, 100 Hz to 12 kHz, ±3 dB |
Max adjustable volume: 89 dB within 0.5 m | |
Call features | · Dialing |
· Adjustable ring tones and volume levels | |
· Barge | |
· Call forward | |
· Call history lists | |
· Call timer | |
· Call waiting | |
· Caller ID | |
· Corporate directory | |
· Conference | |
· Hold | |
· Music on Hold (MoH) | |
· Mute | |
· Predialing before sending | |
· Redial | |
· Shared line | |
· Speed dial (Favorites) | |
· Time and date display | |
· Transfer | |
· Voicemail (messages) | |
Quality-of-Service (QoS) options | The phone supports Cisco Discovery Protocol and 802.1Q/p standards and can be configured with an 801.1Q VLAN header containing the VLAN ID overrides configured by the admin VLAN ID. |
Network features | · Session Initiation Protocol (SIP) for signaling |
· Session Description Protocol (SDP) | |
· IPv4 | |
· IPv6 | |
· User Datagram Protocol (UDP) (used only for Real-Time Transport Protocol streams) | |
· Dynamic Host Configuration Protocol (DHCP) client or static configuration | |
· Gratuitous Address Resolution Protocol (GARP) | |
· Domain Name System (DNS) | |
· Trivial File Transfer Protocol (TFTP) | |
· Secure HTTP (HTTPS) | |
· VLAN | |
· Real-Time Transport Protocol (RTP) | |
· Real-Time Control Protocol (RTCP) | |
· Cisco Discovery Protocol | |
· LLDP (including LLDP-MED) | |
· Switch speed auto-negotiation | |
Security features | · Secure credential storage |
· Image authentication | |
· Random bit generation | |
· Manufacturer-Installed Certificates (MICs) | |
· Secure boot | |
· SHA-256 enabled for advanced security features | |
· Ethernet 802.1X supplicant options: Extensible Authentication Protocol – Flexible Authentication via Secure Tunneling (EAP-FAST) and Extensible Authentication Protocol – Transport Layer Security (EAP-TLS) | |
· Signaling authentication and encryption using TLS v1.2 | |
· Media authentication and encryption using SRTP | |
· HTTPS for client and server | |
· Secure Shell (SSH) Protocol server | |
Physical dimensions (H x W x D) | 10.9 x 10.9 x 2.4 in. (278 x 278 x 61 mm) |
