Cisco 7861 IP Phone (CP-7861-K9) | Recertified

Cisco 7861 IP Phone (CP-7861-K9) | Recertified

SKU: CP-7861-K9
(0)No Reviews yet

This Phone Supports Webex Calling

Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns

$39.99 $39.99
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

Overview of Cisco 7861 IP Phone (CP-7861-K9) | Recertified

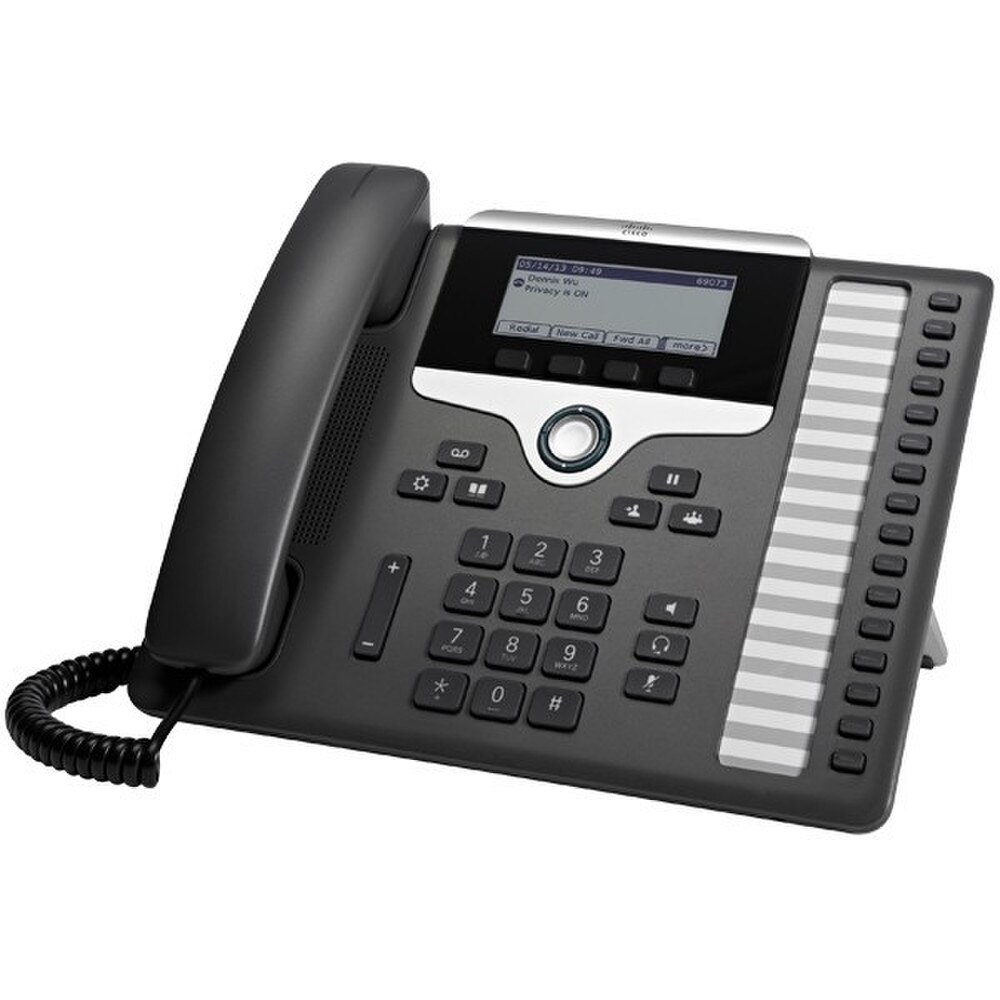

The Cisco 7861 IP Phone (CP-7861-K9) is a highly secure, dependable, and feature-rich phone. This endpoint supports wideband audio, allowing for clear communication. Advanced features are also included to help your business calls run more smoothly and productively. The Cisco 7861 IP Phone is a 16-line IP phone from the 7800 series that includes a custom paper label insert for programmable lines and feature keys. The Cisco 7861 IP Phone is easy to install and features PoE, EHS headset support, and a 3.5" white backlit display with four context-sensitive soft keys.

The Cisco 7861 IP Phone has a two-way navigation button and dedicated fixed keys for common office call functions such as conference, messaging, and directory. Full wideband audio (G.722) provides superior voice quality performance via the handset, speakerphone, and third-party headset. The Cisco 7861 IP Phone now includes electronic hookswitch control, allowing for greater flexibility in call management and increased mobility throughout the office.


Features of the Cisco 7861 IP Phone


High-Definition Audio: Provides crystal-clear audio for excellent voice quality.


Wireless Connectivity: Wi-Fi and Bluetooth compatibility ensures seamless connectivity.


Integrated Bluetooth: Allows for quick pairing with wireless headsets and other devices.


Easy-to-Use Interface: The user-friendly design allows for quick and intuitive navigation.


Secure Communication: Offers robust security features to protect your data and conversations.

Specifications

Specifications for Cisco 7861 IP Phone (CP-7861-K9) | Recertified

ManufacturerCisco
Manufacturer Part NumberCP-7861-K9
Product NameCisco 7861 IP Phone
Product TypeIP Phone
Body Material
PC/ABS
Call Services
Voice Mail, Caller ID, Call Waiting, Call Forwarding, Call Transfer, Call Hold, Message Waiting Capability
Dialer Type
Keypad
Dialer Location
Base
Conference Call Capability
Yes
Speakerphone
Yes (digital duplex)
Menu Operation
Yes
Programmable Buttons Qty
16
Indicators
Voice message waiting indicator, speakerphone indicator, headset
Firmware Upgradable
Yes
Additional Functions
Call timer
Additional Features
Music on hold
Main Features
Multiple VoIP protocol support, integrated Ethernet switch
VoIP
Yes
VoIP Protocols
SIP, SRTP
Voice Codecs
G.722, G.729ab, G.711u, G.711a, iLBC
Lines Supported
16 lines
Quality of Service
IEEE 802.1Q (VLAN), IEEE 802.1p
IP Address Assignment
DHCP, static
Security
IEEE 802.1X
Power Over Ethernet (PoE) Support
Yes
Network Protocols
Cisco Discovery Protocol (CDP), SRTP
Network Ports Qty
2 x Ethernet 10Base-T/100Base-TX
Compatible Software
Cisco Unified Communications Manager 8.5.1 or later
Network Features
Lightweight Directory Access Protocol (LDAP)
Type
LCD display - monochrome
Display Location
Base
Diagonal Size
3.5"
Display Resolution
396 x 162 pixels
Backlit
Yes
Display Languages
Danish, Hebrew, Hungarian, Czech, Croatian, Slovenian, Thai, Slovak, Brazilian Portuguese, English, German, French, Italian, Norwegian, Portuguese, Polish, Finnish, Swedish, Russian, Spanish, Dutch, Greek, Turkish, Arabic, Bulgarian, Latvian, Lithuanian, Estonian, Serbian, Romanian, Catalan, Japanese, Chinese, Korean
Connections
Headset jack
Placing / Mounting
Wall-mountable, table-top
Compliant Standards
CISPR 22 Class B, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN55022 Class B, ICES-003 Class B, AS/ACIF S004, FCC Part 68, EMC, CS-03, UL 60950-1 Second Edition, EN 60601-1-2, FCC CFR47 Part 15 B, GB 4943, AS/NZS 60950, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class B
Width
10.4 in
Depth
1.1 in
Height
8.1 in
Weight
2.3 lbs

User Guides

Frequently Asked Questions

Cisco 7861 IP Phone (CP-7861-K9)



What are the key features of the Cisco 7861 IP Phone?
  • 16 programmable line keys, a high-resolution display, a full-duplex speakerphone, and PoE Class 1 capability.
  • How many lines does the Cisco 7861 support?
  • The Cisco 7861 supports 16 lines
  • What type of display does the Cisco 7861 have?
  • It has a 396 x 162 pixel (3.5 in./89 mm) greyscale display with backlight.
  • Does the Cisco 7861 support Power over Ethernet (PoE)?
  • Yes, it supports PoE Class 1
  • What is the Ethernet switch speed on the Cisco 7861?
  • The Ethernet switch speed is 10/100 Mbps
  • Does the Cisco 7861 have a speakerphone?
  • Yes, it has a full-duplex wideband speakerphone
  • Can I use a headset with the Cisco 7861?
  • Yes, it has an analog headset connection
  • How do I adjust the handset rest on the Cisco 7861?
  • You can adjust the handset rest to prevent the handset from slipping out of the cradle.
  • How do I access the phone's settings and features?
  • Use the Applications button to access call history, preferences, and phone information.
  • How do I make a call on the Cisco 7861?
  • You can either call the number and then go off-hook, or go off-hook first and then dial.
  • How do I put a call on hold?
  • Press the Hold button to place a call on hold, then press it again to resume the call.
  • How do I transfer a call?
  • Press the Transfer button, enter the number, and then press Transfer again.
  • How do I start a conference call?
  • Press the Conference button, call the participant, and then press Conference again.
  • How do I access voicemail?
  • Press the Messages button to access your voicemail
  • Can I customize the ringtone on the Cisco 7861?
  • Yes, you may set custom ringtones using the phone's settings.
  • How do I set up speed dial numbers?
  • Speed dial numbers can be configured via the phone's interface or by your system administrator.
  • Does the Cisco 7861 support Cisco Unified Communications Manager?
  • Yes, it's compatible with Cisco Unified Communications Manager
  • Can I use the Cisco 7861 with third-party call control platforms?
  • Yes, it supports third-party call control platforms
  • How do I update the firmware on the Cisco 7861?
  • Firmware updates are typically managed by your system administrator
  • Does the Cisco 7861 support energy-saving features?
  • Yes, it includes energy-saving features to reduce power consumption
