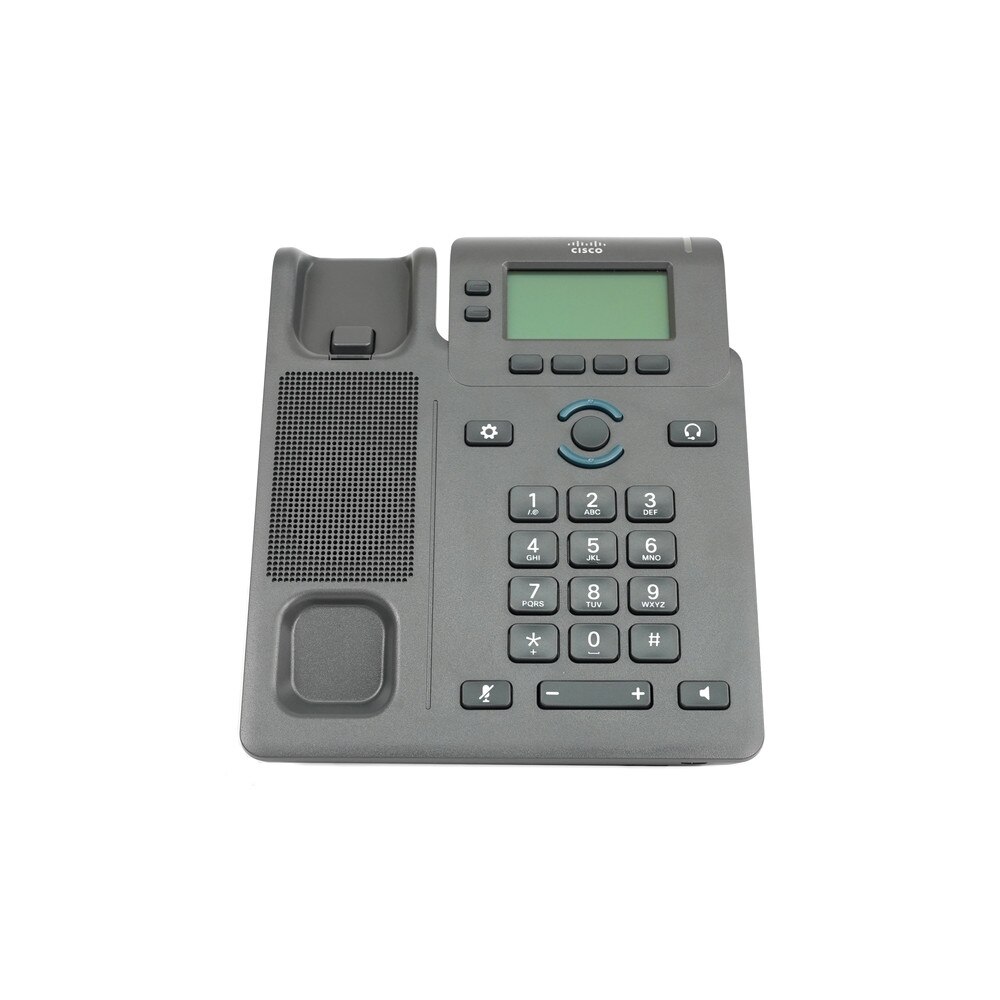

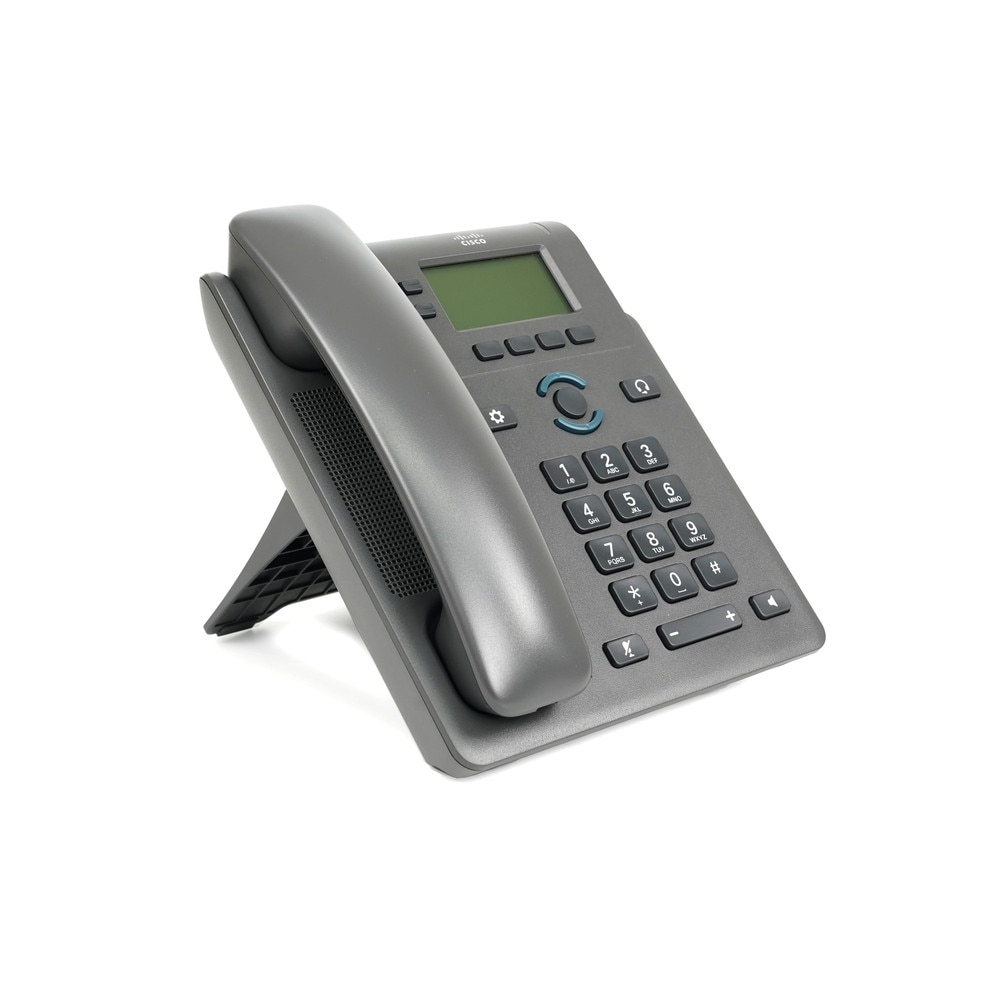

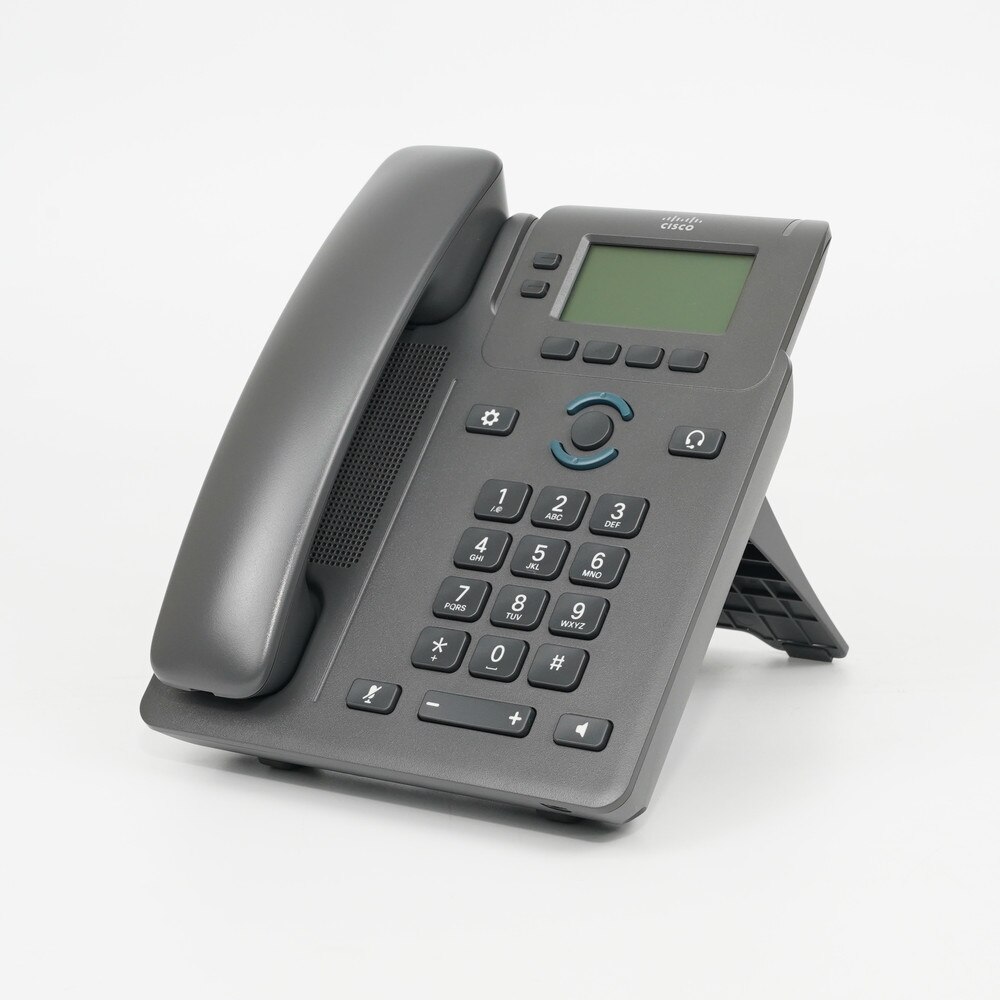

Cisco 6821 IP Phone with Multiplatform Firmware (CP-6821-3PCC-K9) | Refresh

Cisco 6821 IP Phone with Multiplatform Firmware (CP-6821-3PCC-K9) | Refresh

SKU: CP-6821-3PCC-K9-RF
(0)No Reviews yet

This Phone Supports Webex Calling

Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns

$42.99 $42.99
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

Overview for Cisco 6821 IP Phone with Multiplatform Firmware (CP-6821-3PCC-K9) | Refresh

Connectivity is critical in today's fast-paced corporate environment, and the Cisco 6821 IP Phone offers simple integration into your existing network infrastructure. It is compatible with multiple call control platforms thanks to multiplatform firmware support, making deployment and integration simple. Whether you utilize Cisco Unified Communications Manager or third-party systems, this phone ensures dependable and crystal-clear audio communication.

The wide illuminated display ensures clear sight of caller information and call status, reducing the possibility of missed calls or misinterpretation. Dedicated function keys provide one-touch access to frequently used services including call transfer, conferencing, and voicemail. The phone also has speakerphone feature, which allows for hands-free communication and multitasking.

This IP phone's wideband audio technology records and reproduces a greater range of voice frequencies, resulting in more genuine and lifelike conversations. Noise-cancelling technology minimizes background noise, creating a distraction-free atmosphere for your calls. Whether you're holding a crucial client meeting or a conference call, the Cisco 6821 IP Phone delivers great audio quality every time.

Key Features of Cisco 6821 IP Phone with Multiplatform Firmware


Multiplatform Firmware

The Cisco 6821 IP Phone is equipped with multiplatform firmware, making it compatible with a variety of communication platforms and systems. It offers flexibility and ease of integration, allowing enterprises to utilize their existing infrastructure.

High-Quality Audio

The Cisco 6821 uses HD voice technology to produce crystal-clear audio for both voice conversations and conferencing. Wideband audio provides greater sound quality, allowing for clear and natural discussions.

Backlit Display

The phone has a backlit monochrome display that is very visible even in low-light circumstances. The screen improves user experience by allowing easy navigating through the phone's menus, call logs, and directories.

Programmable Line Keys

The Cisco 6821 includes two programmable line keys that can be used for call forwarding, speed dialing, or accessing certain services. This adjustable function boosts productivity and makes call handling easier.

Power over Ethernet (PoE) Support

The IP phone offers Power over Ethernet, which eliminates the need for a separate power adaptor. This feature simplifies installation and lowers cable clutter, making it an efficient and cost-effective alternative.

Secure Communication

Cisco takes security very seriously, and the 6821 IP Phone includes a number of security safeguards to safeguard sensitive data. Secure communication protocols and capabilities, such as Secure Real-Time Transport Protocol (SRTP) for encrypted voice transmission, are supported.


Benefits of Cisco 6821 IP Phone with Multiplatform Firmware


Enhanced Productivity

The user interface's easy design and configurable line keys enable users to explore and access functionality quickly, saving time and increasing productivity.

Seamless Integration

The Cisco 6821's multiplatform firmware allows it to smoothly interact with a variety of communication systems, including hosted VoIP, IP-PBX, and SIP trunking services.

High-Quality Communication

The HD voice technology delivers clear and natural audio, allowing team members and clients to communicate more effectively and efficiently.

Cost-Effective Solution

The Cisco 6821 IP Phone provides a cost-effective communication solution by leveraging existing infrastructure and enabling Power over Ethernet, which eliminates the need for additional power adapters.

Specifications

Specification for Cisco 6821 IP Phone with Multiplatform Firmware (CP-6821-3PCC-K9) | Refresh



ManufacturerCisco
Manufacturer Part NumberCP-6821-3PCC-K9
Product NameCisco 6821 IP Phone with Multiplatform Firmware
Product TypeIP Phone
Body Material
ABS polycarbonate
Call Services
Voice Mail, Caller ID, Call Waiting, Call Forwarding, Call Transfer, Call Hold, Message Waiting Capability
Caller ID Type
Caller ID/call waiting
Dialer Location
Base
Conference Call Capability
Yes
Speakerphone
Yes
Volume Control
Yes
Indicators
Voice message waiting indicator
Additional Functions
Intercom
Main Features
Multiple VoIP protocol support, integrated Ethernet switch
VoIP
Yes
VoIP Protocols
SIP, SRTP
Voice Codecs
G.722, G.729a, G.729ab, G.711a, iLBC, G.729b, iSAC, G.722.2, Opus, G.711μ
Lines Supported
2 lines
Quality of Service
IEEE 802.1Q (VLAN), IEEE 802.1p
IP Address Assignment
DHCP, static
Security
IEEE 802.1X, TLS
Power Over Ethernet (PoE) Support
Yes
Network Protocols
TCP, TFTP, UDP, HTTP, DNS, HTTPS, Link Layer Discovery Protocol (LLDP), SNTP
Network Ports Qty
2 x Ethernet 10Base-T/100Base-TX
Network Features
Network Address Translation (NAT), Class 2 PoE
Type
LCD display - monochrome
Display Location
Base
Diagonal Size
2.5"
Display Resolution
240 x 120 pixels
Backlit
Yes
Connections
Headset jack / RJ-9 ¦ 2 x network / RJ-45
Hearing Aid Compatible
Yes
Placing / Mounting
Wall-mountable, table-top
Width
6.7 in
Depth
8.1 in
Height
1.5 in
Weight
16.1 oz

User Guides

Frequently Asked Questions

Cisco 6821 IP Phone with Multiplatform Firmware (CP-6821-3PCC-K9)

Frequently Asked Questions (FAQ's)



What is the Cisco 6821 IP Phone used for?
  • It is a basic business VoIP phone designed for small to mid-sized businesses with multiplatform firmware for third-party SIP providers.
  • Does the Cisco 6821 support Power over Ethernet (PoE)?
  • No, this model does not support PoE; it requires a separate power adapter (sold separately).
  • How many SIP accounts does the Cisco 6821 support?
  • TIt supports two SIP accounts, allowing users to manage multiple VoIP lines.
  • Is the Cisco 6821 compatible with third-party VoIP services?
  • Yes, since it has multiplatform firmware (MPP), it is compatible with third-party VoIP providers like RingCentral, 8x8, Vonage, and others.
  • Does the Cisco 6821 have a backlit display?
  • No, the 2.5-inch grayscale display is not backlit, which may make it harder to read in low-light conditions.
  • Can I use a headset with the Cisco 6821 IP Phone?
  • Yes, it has a RJ9 headset port, but it does not support Bluetooth or USB headsets.
  • Does the Cisco 6821 support Wi-Fi connectivity?
  • No, it does not have built-in Wi-Fi. It requires a wired Ethernet connection.
  • What type of network ports does the Cisco 6821 have?
  • It has two 10/100 Mbps Ethernet ports (one for network connection and one for a PC passthrough). /li>
  • Does this phone support HD Voice?
  • Yes, the G.722 wideband codec ensures high-definition (HD) voice quality for clearer calls.
  • Can I configure the Cisco 6821 without a VoIP provider?
  • No, it requires a SIP-based VoIP provider for configuration and use.
  • How do I update the firmware on the Cisco 6821?
  • Firmware updates are provided by Cisco or your VoIP service provider, and they can be updated through the phone’s web interface.
  • What is the default admin password for the Cisco 6821?
  • The default username is "admin", and the password is typically "admin" or provided by your VoIP provider.
  • Can I transfer calls using the Cisco 6821?
  • Yes, it supports call transfer (attended and blind transfer) functions.
  • Does the phone support conference calling?
  • Yes, it supports three-way conference calling.
  • Is the Cisco 6821 wall-mountable?
  • Yes, it has an optional wall-mount kit, but the kit is sold separately.
  • How do I reset the Cisco 6821 to factory settings?
  • Press the Settings button > Navigate to Device Administration > Select Factory Reset.
  • What call features are available on the Cisco 6821?
  • It includes hold, mute, speakerphone, call forwarding, call waiting, and speed dial.
  • Does the Cisco 6821 support voicemail?
  • Yes, but voicemail features depend on your VoIP provider.
  • What power adapter is required for the Cisco 6821?
  • It requires a Cisco PA100 power adapter (sold separately) if PoE is not available.
  • Where can I find support for configuring the Cisco 6821?
  • Support is available through Cisco's website, your VoIP provider, or the user manual.
