Cisco 480W AC to DC Power Supply (PWR-IE480WPCACL) | Refresh

Cisco 480W AC to DC Power Supply (PWR-IE480WPCACL) | Refresh

SKU: PWR-IE480WPCACL-RF
(0)No Reviews yet
Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns
$699.99 $699.99
Available Quantity:
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

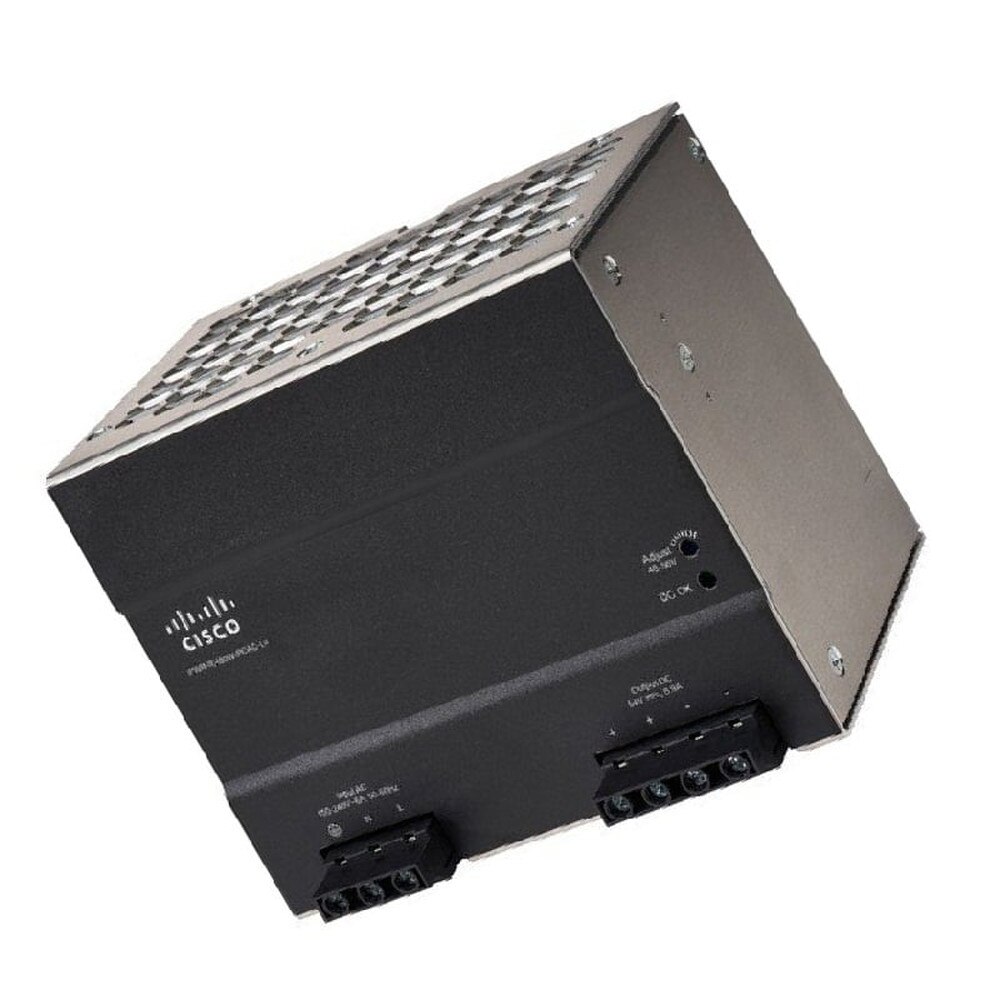

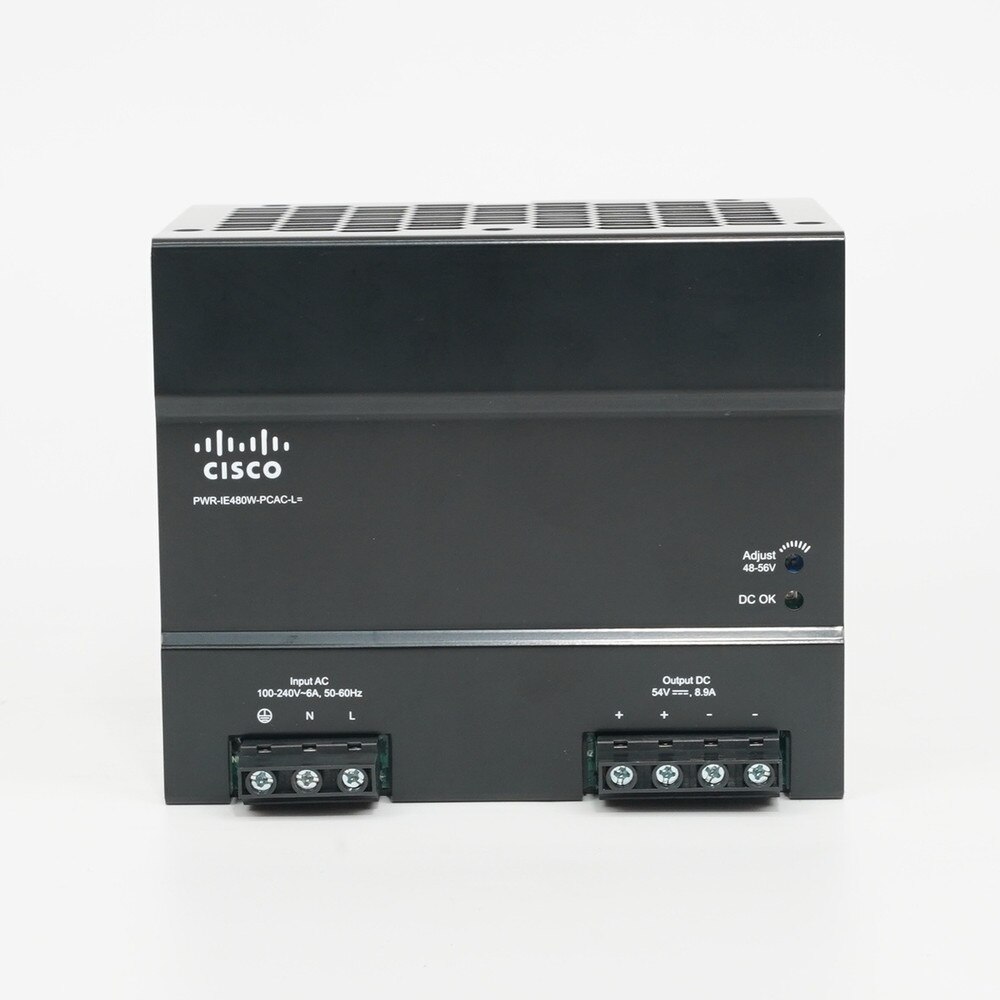

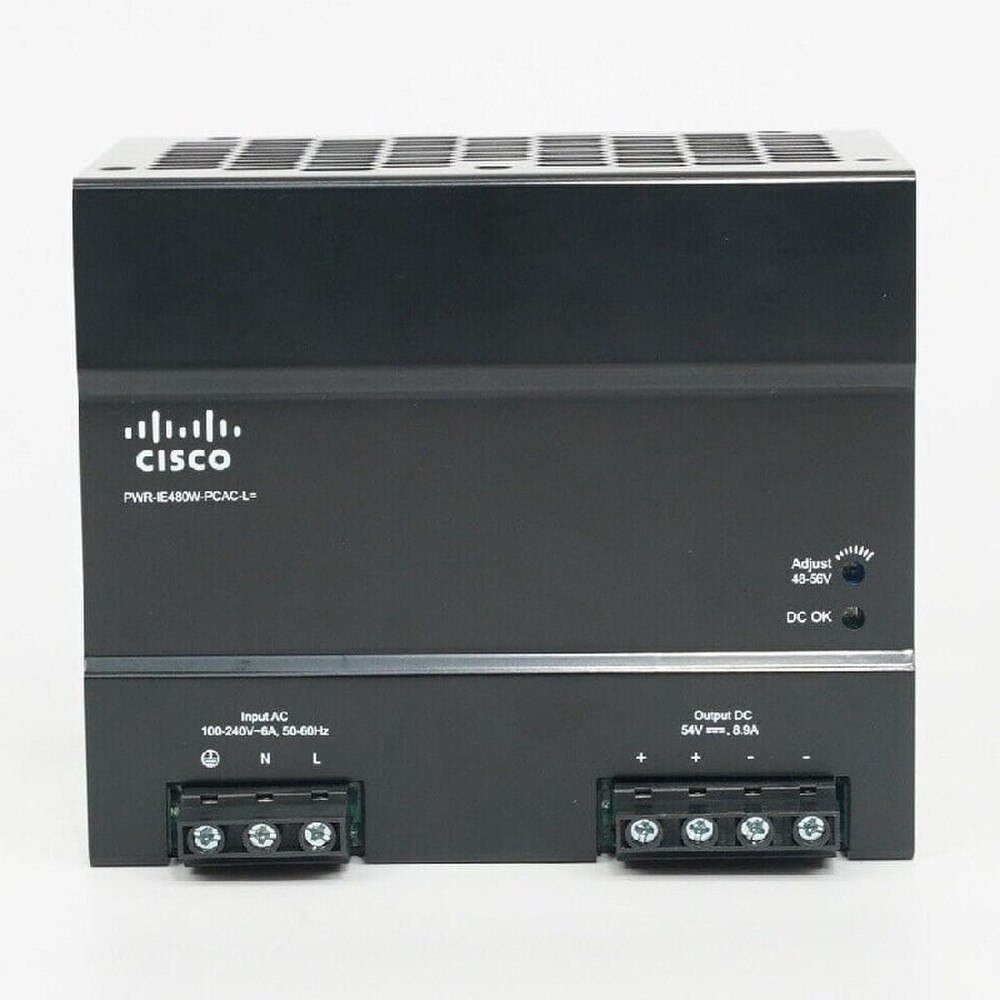

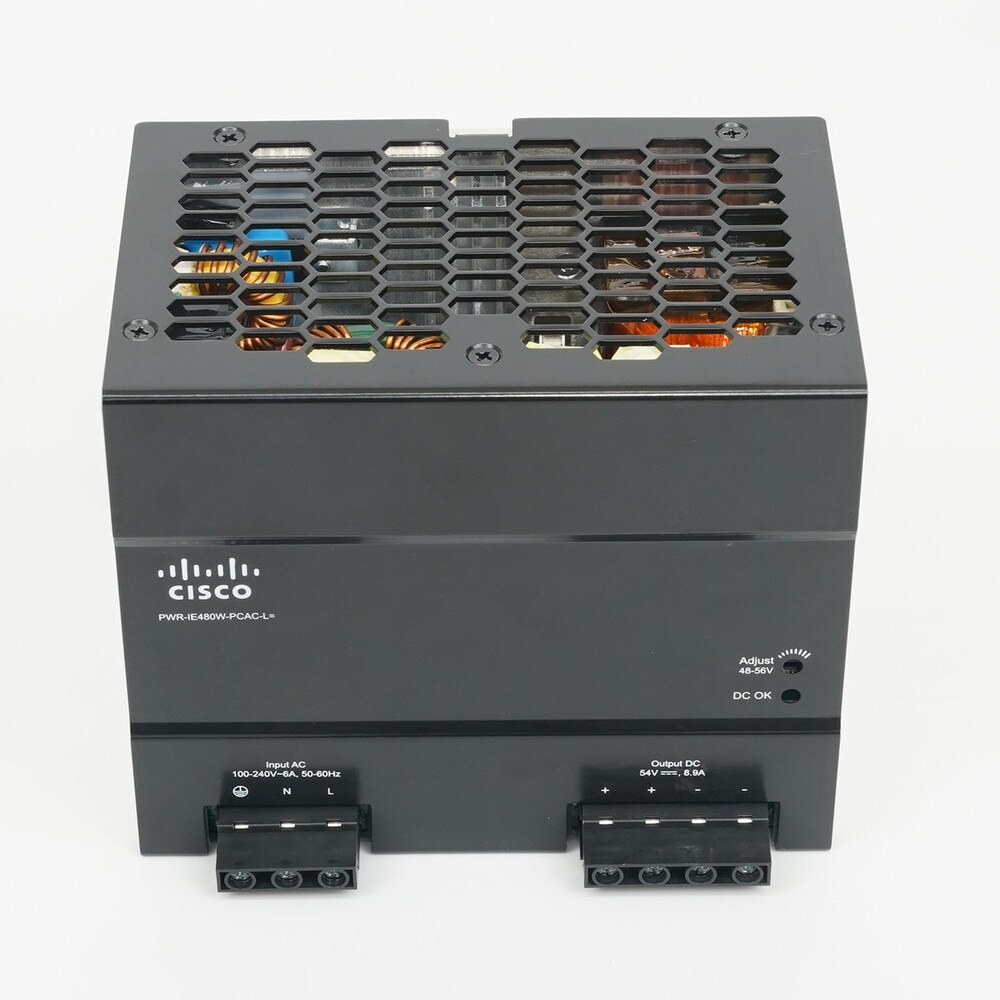

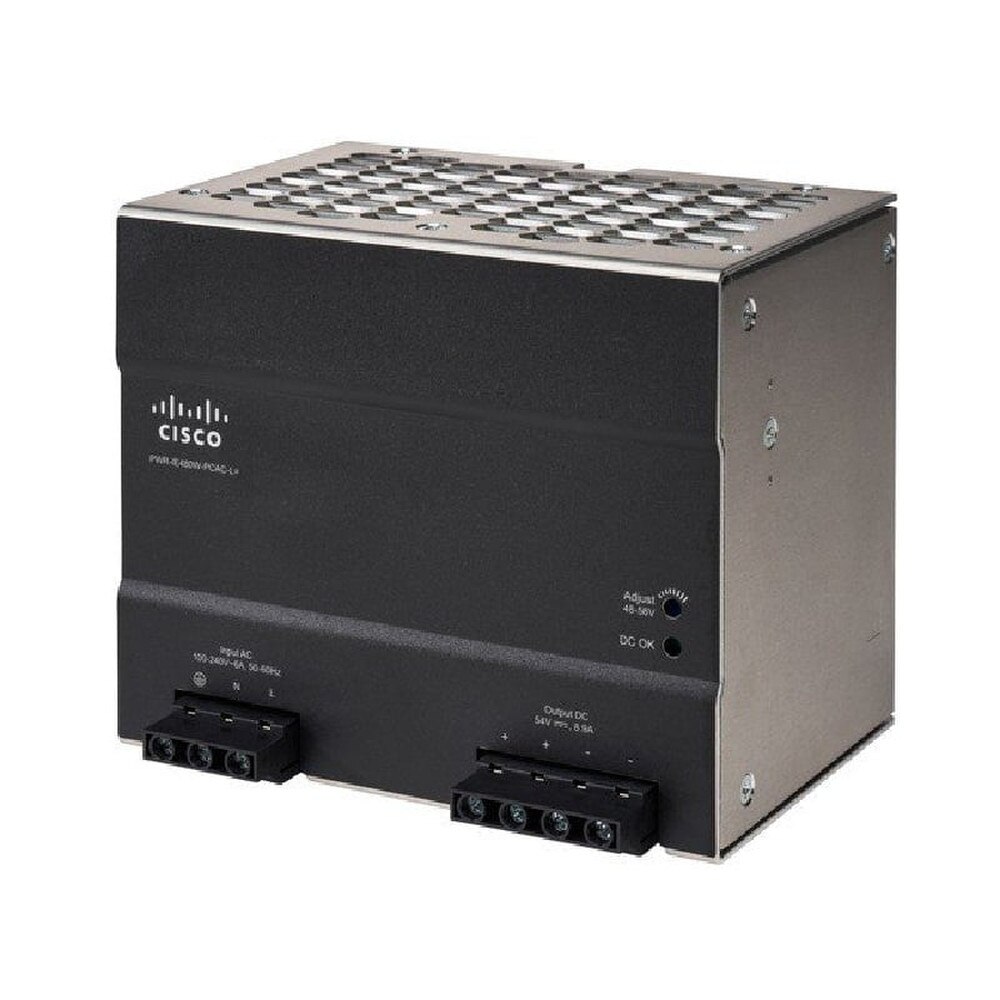

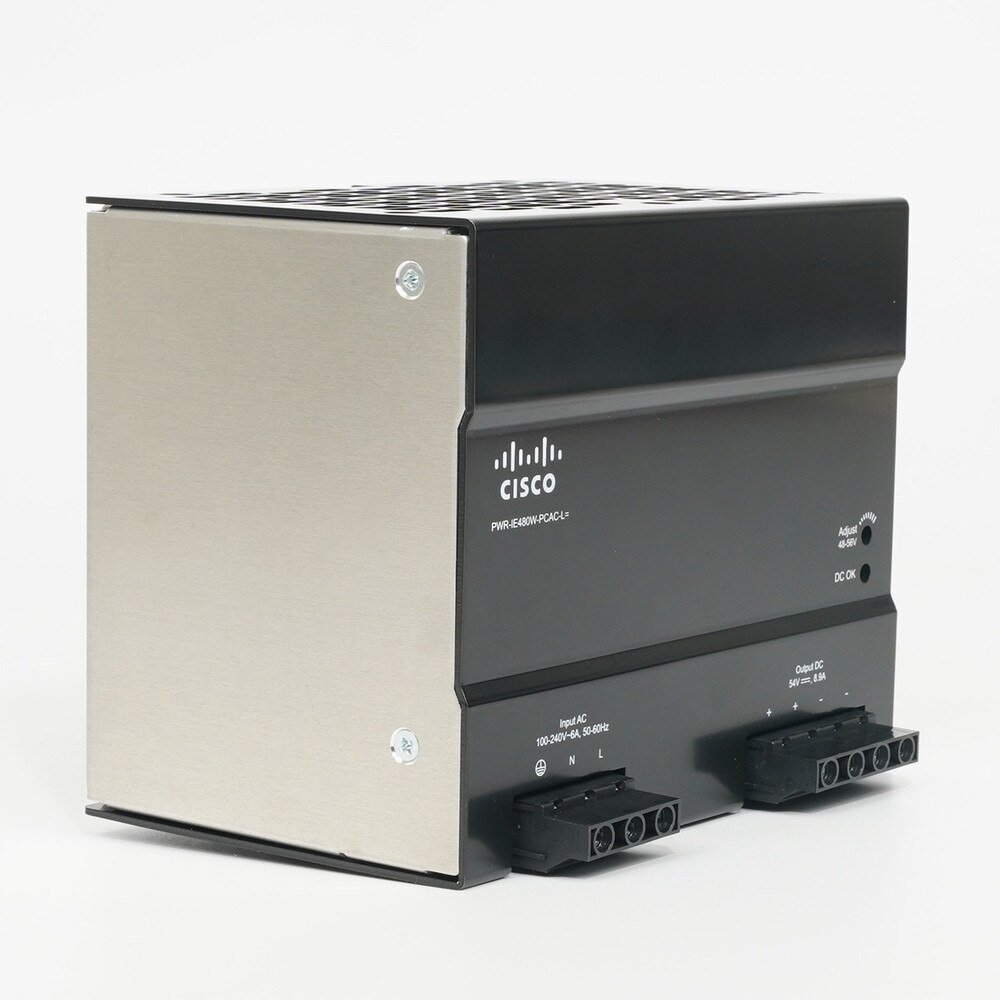

Cisco 480W AC to DC Power Supply (PWR-IE480WPCACL) | Refresh


The Cisco PWR-IE480W-PCAC-L is a high-capacity, industrial-grade AC to DC power supply designed for Cisco’s industrial networking and computing products, particularly the Cisco Catalyst IE3200 Rugged Series and other industrial Ethernet switches and routers. This unit delivers up to 480W of output power and is engineered for deployment in harsh environments, offering robust performance and reliability.

Cisco 480W AC to DC Power Supply (PWR-IE480WPCACL) Features:

  • High Output Power: Delivers up to 480W, supporting demanding industrial devices and high-capacity PoE/PoE+ requirements.
  • Wide Input Voltage Range: Accepts AC input from 90V to 264V, supporting global power standards.
  • Adjustable Output Voltage: Provides 54VDC output with an adjustment range of 48-56VDC, suitable for various industrial equipment.

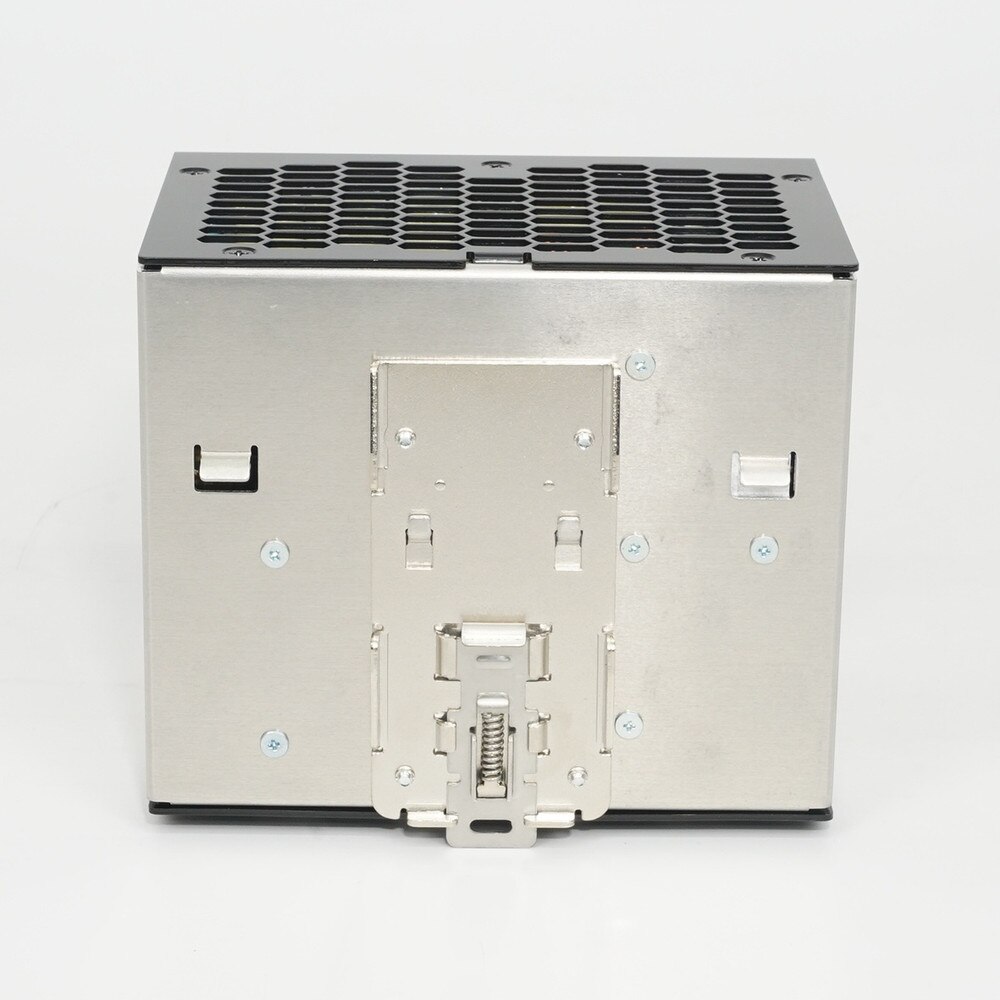

  • DIN Rail Mounting: Designed for easy integration into industrial control panels and enclosures.
  • Rugged Design: Operates reliably in extreme temperatures from -40°C to +75°C, with an IP20 rating for industrial environments.
  • High Efficiency: Typical efficiency is 92%, reducing energy loss and heat generation.
  • Comprehensive Protections: Features over-voltage, over-current, over-temperature, and short-circuit protections for enhanced safety.
  • Compliance: Meets major safety and EMC standards (CE, UL/cUL, CB scheme, EN61000, etc.)

Best Uses for Cisco 480W AC to DC Power Supply (PWR-IE480WPCACL):

  • Industrial Networking: Powers Cisco industrial Ethernet switches, routers, and computing platforms in manufacturing, utilities, transportation, and other rugged environments.
  • High-Capacity PoE Applications: Supports devices requiring Power over Ethernet (PoE/PoE+), such as IP cameras, wireless access points, and industrial IoT sensors.
  • Harsh Environments: Ideal for locations with wide temperature variations, high humidity, and vibration, such as factory floors and outdoor enclosures

The Cisco PWR-IE480W-PCAC-L is a robust, high-efficiency AC to DC power supply tailored for industrial deployments. Its high output, wide input range, and rugged construction make it a reliable choice for powering Cisco’s industrial networking equipment, especially where high PoE power and durability are required

Specifications

Specifications for Cisco 480W AC to DC Power Supply (PWR-IE480WPCACL) | Refresh


ManufacturerCisco
Manufacturer Part NumberPWR-IE480WPCACL-RF
Product NameCisco 480W AC to DC Power Supply (PWR-IE480WPCACL-RF)
Product TypePower Supply
Frequency50 - 60 hertz
Max Input Current5 ampere
Power Provided480 watt
Power Supply CompatibilityNetwork hardware
Required VoltageAC 100-240 volt
Compliant StandardsIP20
ENERGY STAR CertifiedNo
EPEAT CompliantNo
TCO CertifiedNo
Compatibility SpecsCisco Catalyst IE3200 Rugged Series
L6.1
W5
H2.2
Wt2.6

User Guides

Cisco 480W AC to DC Power Supply (PWR-IE480WPCACL) Data Sheet

Frequently Asked Questions

Cisco 480W AC to DC Power Supply (PWR-IE480WPCACL)
Frequently Asked Questions (FAQ's)



What is the Cisco PWR-IE480WPCACL power supply used for?
  • The Cisco PWR-IE480WPCACL is an industrial-grade power supply designed to provide 480W of reliable AC to DC power conversion for Cisco industrial Ethernet switches and other compatible networking equipment.
    • Is the Cisco 480W power supply suitable for industrial environments?
  • Yes, this model is specifically built to operate in harsh industrial conditions with extended temperature ranges and high durability standards.
    • What voltage input does the Cisco PWR-IE480WPCACL support?
  • It supports a wide AC input voltage range of 85 to 264 VAC, allowing flexible deployment in various global power systems.
    • What is the output voltage of the PWR-IE480WPCACL?
  • This power supply delivers a 54V DC output, making it suitable for powering Power over Ethernet (PoE) devices through Cisco switches.
    • Can this power supply be used for PoE applications?
  • Yes, the 54V DC output is ideal for PoE and PoE+ applications when used with compatible Cisco switches.
    • Is the Cisco 480W AC to DC power supply hot-swappable?
  • No, this unit is not hot-swappable; power must be turned off before installation or replacement.
    • What form factor does the Cisco PWR-IE480WPCACL have?
  • It features a compact DIN rail-mountable design, ideal for space-constrained industrial enclosures.
    • How efficient is the Cisco PWR-IE480WPCACL power supply?
  • The power supply offers high energy efficiency, typically around 91%, reducing energy consumption and heat output.
    • Does the Cisco PWR-IE480WPCACL include power connectors or cables?
  • This unit typically does not come with power cables; accessories must be purchased separately depending on installation needs.
    • Can the PWR-IE480WPCACL be used in outdoor installations?
  • It can be used in outdoor-rated enclosures or cabinets that protect against environmental elements, as the unit itself is not weatherproof.
    • What certifications does the Cisco PWR-IE480WPCACL carry?
  • It meets global safety and electromagnetic compatibility (EMC) standards, including UL, CE, and CSA certifications.
    • What is the maximum power output capacity of this Cisco power supply?
  • The Cisco PWR-IE480WPCACL provides a maximum output of 480 watts, supporting multiple high-power devices.
    • How does the Cisco 480W power supply enhance network uptime?
  • Its industrial reliability, redundant power capabilities (when used in dual setups), and stable voltage output help maintain consistent network operations.
    • What Cisco switches are compatible with the PWR-IE480WPCACL?
  • It is compatible with Cisco Industrial Ethernet switches like the IE 3000, IE 4000, and IE 5000 series models.
    • What is the operating temperature range of the Cisco PWR-IE480WPCACL?
  • The power supply operates within an extended industrial temperature range, typically from -40°C to +75°C.
    • Does the PWR-IE480WPCACL offer overload protection?
  • Yes, it includes integrated overload, over-voltage, and short-circuit protection features for system safety.
    • What is the typical installation method for this power supply?
  • It is designed for easy DIN rail mounting within industrial cabinets or racks.
    • How much does the Cisco PWR-IE480WPCACL weigh?
  • The unit weighs approximately 1.7 kg, making it light enough for compact installations while still ruggedly built.
    • What is the expected lifespan of the Cisco 480W power supply?
  • When operated within specified conditions, the unit has a long operational lifespan exceeding 10 years under normal industrial use.
    • Is this power supply suitable for use with redundant power systems?
  • Yes, it can be used as part of a dual power input configuration for redundancy in mission-critical deployments.
