Overview of Bogen TPU60B Telephone Paging Amplifier 60 Watt | Like New

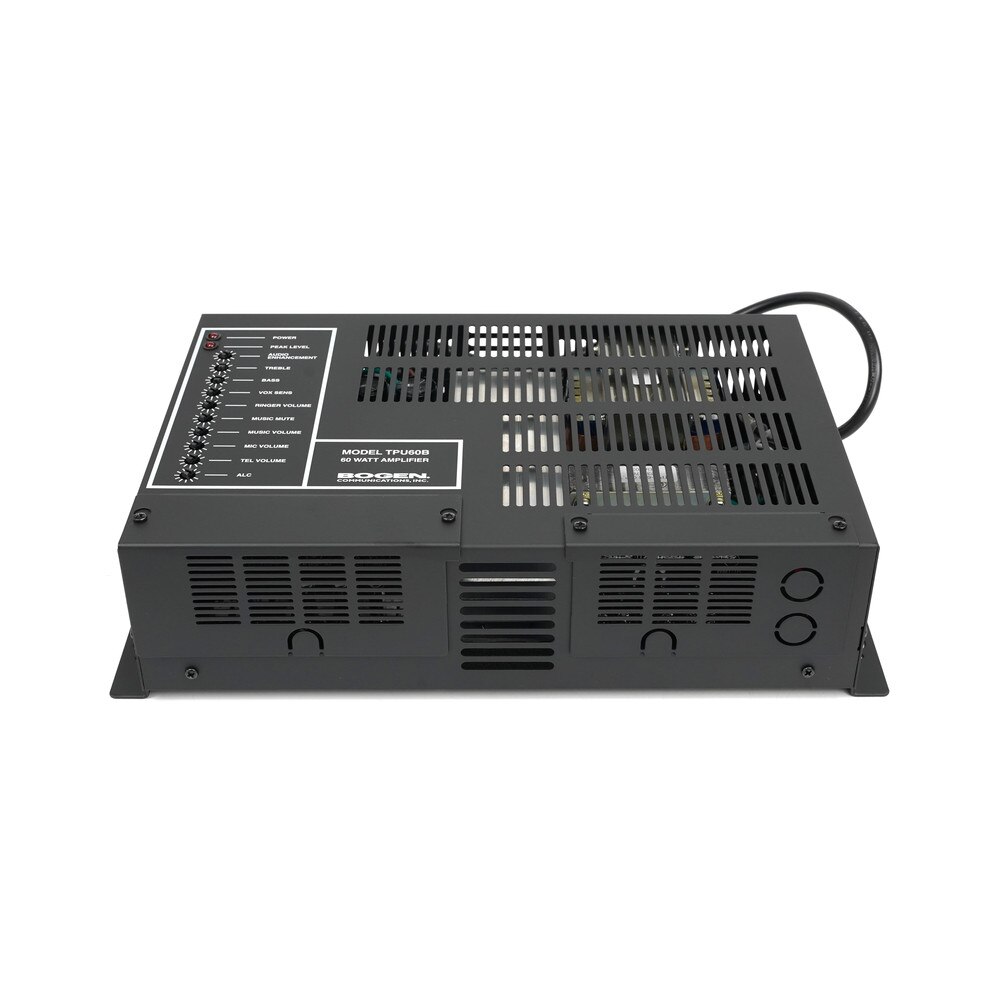

Bogen model TPU60B is wall-mounted telephone paging amplifier rated at 60 watts, respectively. This model can also be rack-mounted*. These TPU amplifiers permit paging from telephone and/or microphone; music input through an RCA jack or screw terminals; and voice-activated, variable level, music mute with fade back after page. These TPU amps include a night ringer which sends an electronic ringing tone signal through all speakers, alerting personnel of incoming calls. Jacks are also provided to bridge two TPU amplifiers to double the number of inputs and output power.
- Signal-activated paging channel automatically mutes background music
- Adjustable background music muting level during a page
- Music gradually returns to its normal level after a page
- Audio Enhancement circuit increases intelligibility, improves perceived loudness (with no increase in power), and reduces listener fatigue
- Separate controls for page volume, music volume, night ringer, music mute, and Audio Enhancement
- Bass and treble controls
- Built-in night ringer activated by contact closure or by 90V ring signal
- Balanced or unbalanced 16-ohm, 25V, 25V CT, and 70V outputs are available for the TPU35B/60B/100B models; 25V and 70V outputs are available on the TPU250
- VOX sensitivity level control eliminates accidental transmission of background noise from a paging telephone
- Thermal and electronic overload protection
- Jacks provided for bridging additional TPU amplifiers
- Brackets are attached to each model for easy wall mounting; the TPU250 can also be rack-mounted with included brackets; TPU-B models can be rackmounted with RPK82 mounting kit (sold separately)
- Peak level indicator lights when amplifier is driven into clipping
- 120V AC, 60 Hz power source
- Listed to UL Standard 60065 for U.S. & Canada
Specifications
Specifications for Bogen TPU60B Telephone Paging Amplifier 60 Watt | Like New
| Manufacturer: | Bogen |
| Screw Terminals: | Music Mute, Mic Balanced, GND, TEL, Music In, GND, Contact Ring, Tel Ring |
| RCA: | Music and Bridging |
| Outputs: | 16-ohms, 70V, 25V, 25VCT, COM and GND |
| Maximum Amplifier Power: | 60W |
| Frequency Response: | 70Hz to 15kHz +/- 1dB |
| Hum & Noise: | -70dB (From 20Hz to 20KHz) |
| Distortion: | Less Than 1% (80Hz to 15kHz) |
User Guides
Frequently Asked Questions
Bogen TPU60B Telephone Paging Amplifier 60 Watt
Frequently Asked Questions (FAQ's)
What is the power output of the Bogen TPU60B? The TPU60B's power output is 60 watts.
What inputs does the TPU60B have? It includes three inputs: a 600-ohm balanced telephone paging line, a low-impedance balanced microphone, and a separate music input.
Can the TPU60B be wall-mounted? Yes, the TPU60B is designed as a wall-mounted amplifier.
Does it have automatic music muting? Yes, it has signal-activated music muting for telephone pages.
Is there an automatic level control (ALC) system? Yes, the TPU60B has an integrated automated level control mechanism.
What is the Aphex Aural Exciter circuit? It is a feature that restores harmonics lost during amplification, boosting clarity and intelligibility.
Can two TPU60B amplifiers be bridged together? Yes, two TPU-B series amplifiers can be connected to form a bridge with double input and output.
Does it have a night ringer function? Yes, it has a night ringer that can be engaged with a contact closure.
What are the dimensions of the TPU60B? The dimensions are 14-1/4" W x 8-3/8" H x 3-5/8" D.
What is the weight of the TPU60B? The TPU60B weighs 15 lb.
Does it have overload protection? Yes, it has thermal and electronic overload protection.
What is the power requirement for the TPU60B? It requires 120V AC, 60 Hz, and draws 1.5A.
Does it have adjustable tone controls? Yes, it features enhance, treble, and bass controls
Is there a VOX sensitivity adjustment? Yes, it includes a VOX sensitivity control.
Can the music mute level be adjusted? Yes, the music mute level during a page is adjustable.
Does the TPU60B have any certifications? Yes, it is UL and CSA Listed.
Is there a microphone volume control? Yes, it has a separate microphone volume control.
Does it have LED indicators? Yes, it features power and peak level LED indicators.
What type of music input does it have? It features a separate background music input, but no exact connector type is specified in the available information.
Is there a peak level indicator? Yes, a peak level LED indication illuminates when the amplifier is driven into clipping.
