Bogen TPU250 Telephone Paging Amplifier 250 Watt | Like New
SKU: TPU250-LN
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us
Same Day Shipping - Arrives in 3-5 Business Days 30-day Returns Overview

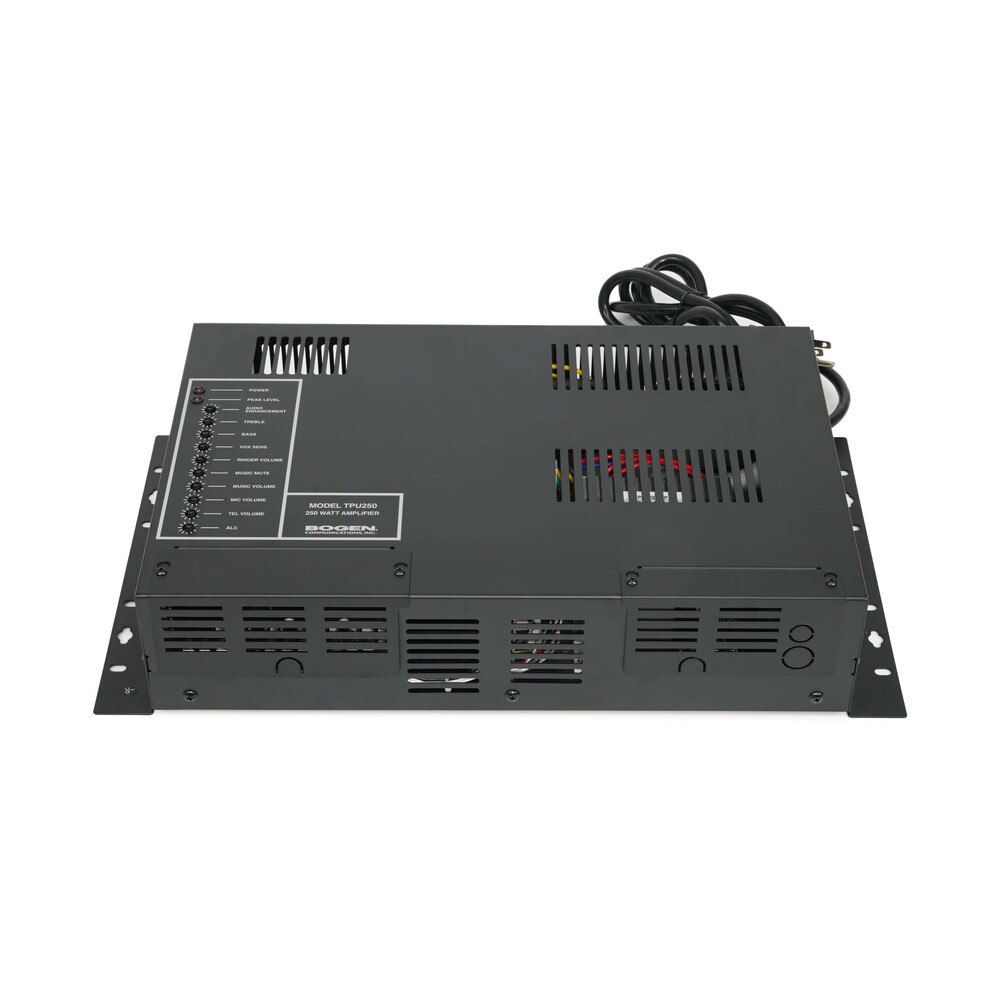

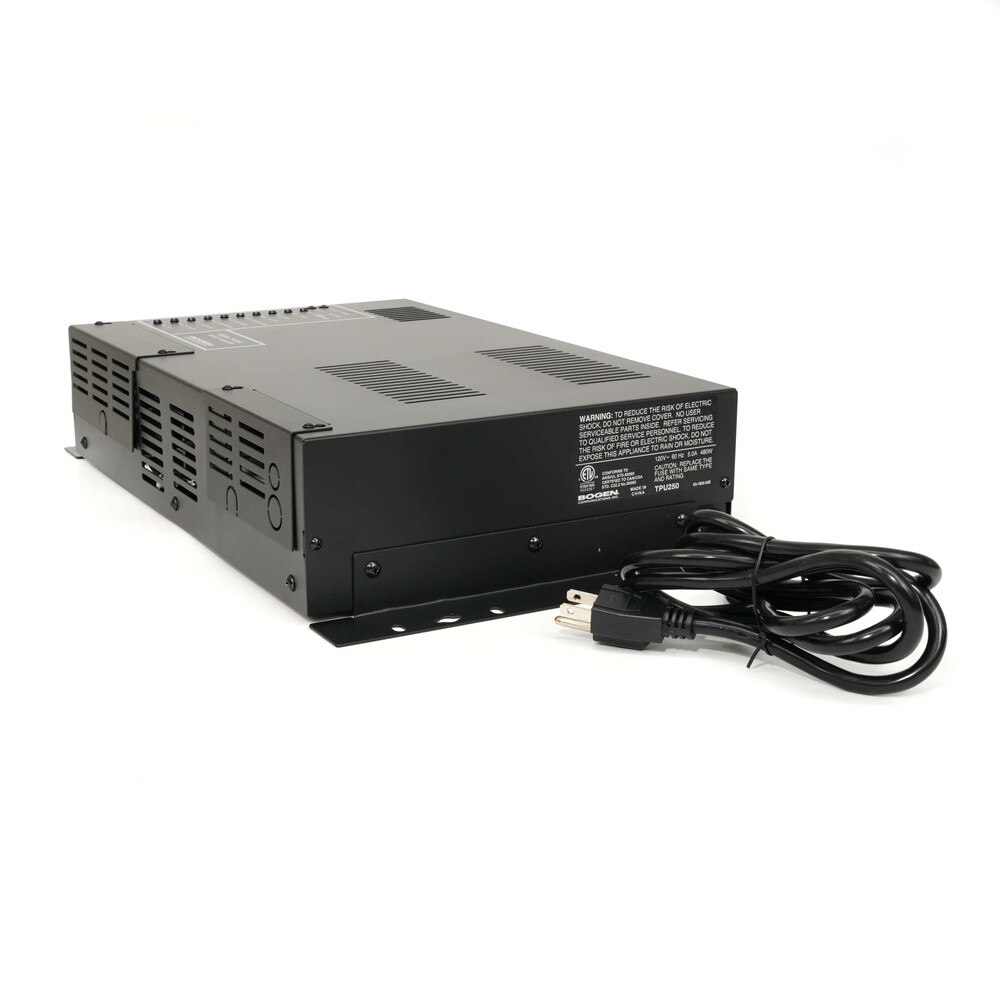

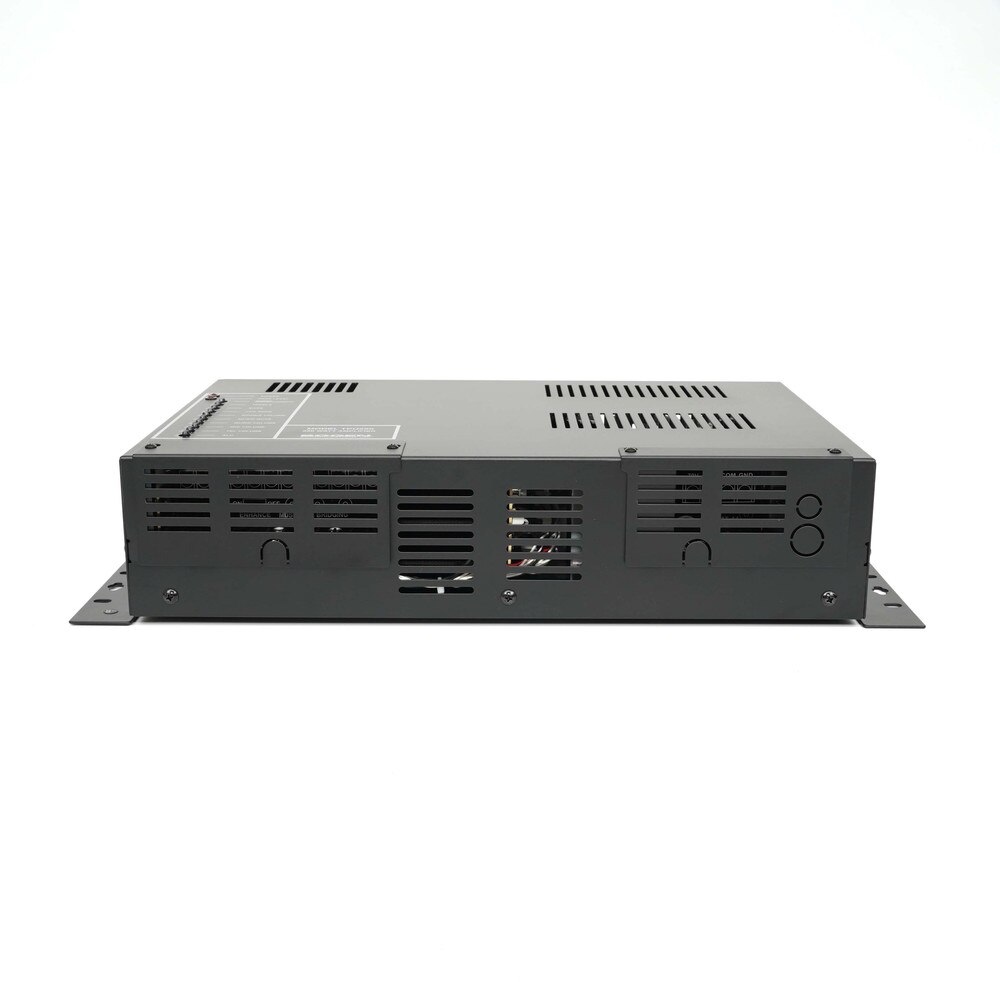

Overview of Bogen TPU250 Telephone Paging Amplifier 250 Watt | Like New
The Bogen TPU250 Telephone Paging Amplifier allows paging from a telephone and/or microphone. The amplifier connects to the commercial, 70V PA system and has RCA inputs for background music. The amplifier also has a voice-activated, variable level music mute with fade back whenever pages occur. Additional features include a night ringer and jacks for connecting two TPU amplifiers.
Key Features of Bogen TPU250 Telephone Paging Amplifier
• 250-watt model
• Inputs for 600-ohm balanced telephone line, Lo-Z balanced microphone, and background music
• Music input (RCA jack or screw terminals)
• Integral automatic level control (ALC) circuit for controlling pages made by persons with varying voice levels and paging techniques
• Page from telephone and/or microphone
• Signal-activated paging channel automatically mutes background music
• Adjustable background music muting level during a page
• Music gradually returns to its normal level after a page
• Audio Enhancement circuit increases intelligibility, improves perceived loudness (with no increase in power), and reduces listener fatigue
• Separate controls for page volume, music volume, night ringer, music mute, and Audio Enhancement
• Bass and treble controls
• Built-in night ringer activated by contact closure or by 90V ring signal
• Balanced or unbalanced 16-ohm, 25V, 25V CT, and 70V outputs are available for the TPU35B/60B/100B models; 25V and 70V outputs are available on the TPU250
• VOX sensitivity level control eliminates accidental transmission of background noise from a paging telephone
• Thermal and electronic overload protection
• Jacks provided for bridging additional TPU amplifiers
• Brackets are attached to each model for easy wall mounting; the TPU250 can also be rack-mounted with included brackets; • TPU-B models can be rackmounted with RPK82 mounting kit (sold separately)
• Peak level indicator lights when amplifier is driven into clipping
• 120V AC, 60 Hz power source
Specifications
Specifications for Bogen TPU250 Telephone Paging Amplifier 250 Watt | Like New
| Manufacturer | Bogen |
| Manufacturer Part Number | TPU250 |
| Product Name | Bogen TPU250 Telephone Paging Amplifier 250 Watt |
| Product Type | Controller |
| Output Power: | 250W |
| Frequency Response: | 75Hz to 15kHz |
| Distortion: | Less than 1% |
| Hum & Noise: | -70dB |
| Inputs Tel: | 600 ohm balanced, tranformer isolated |
| Music: | Hi-Z Source, RCA Jacks |
| Mic: | Lo-Z balanced, screw terminal Music Mute |
| Power: | 120V AC 60Hz |
| Dimensions: | 19 x 10.50 x 3" (482 x 266 x 76.2mm) |
User Guides
Frequently Asked Questions
Bogen TPU250 Telephone Paging Amplifier 250 Watt
Frequently Asked Questions (FAQ's)
What is the power output of the Bogen TPU250? The Bogen TPU250 has a power output of 250 watts.
What types of inputs does the TPU250 support? The TPU250 supports telephone paging, background music, and microphone inputs.
Can the TPU250 be used for emergency announcements? Yes, the TPU250 can be used for emergency announcements.
Does the TPU250 have a built-in tone generator? Yes, the TPU250 includes a built-in tone generator for generating alert tones.
Is the TPU250 compatible with VOIP systems? Yes, the TPU250 is compatible with most VOIP systems when properly interfaced.
What is the frequency response range of the TPU250? The frequency response range of the TPU250 is 70 Hz to 15 kHz.
Does the TPU250 include a loudness contour control? Yes, the TPU250 includes a loudness contour control to enhance low-frequency response at lower volumes.
Can the TPU250 handle multiple zones? The TPU250 can be used with external zone paging controllers to handle multiple zones.
What is the input impedance for the telephone paging input on the TPU250? The input impedance for the telephone paging input is 600 ohms, balanced.
Does the TPU250 have an auxiliary input? Yes, the TPU250 has an auxiliary input for background music or other audio sources.
Is there a built-in automatic level control (ALC) in the TPU250? Yes, the TPU250 includes a built-in automatic level control to maintain consistent output levels.
What type of power supply does the TPU250 use? The TPU250 uses a standard 120V AC power supply.
What are the dimensions of the Bogen TPU250? The dimensions of the TPU250 are 19 inches wide, 3.5 inches high, and 11 inches deep.
What is the weight of the TPU250? The TPU250 weighs approximately 24 pounds.
Does the TPU250 include an output for recording announcements? No, the TPU250 does not have a dedicated output for recording announcements.
Can the TPU250 be rack-mounted? Yes, the TPU250 is designed for rack-mounting and fits in a standard 19-inch rack.
Is the TPU250 suitable for outdoor use? No, the TPU250 is designed for indoor use only.
Can the TPU250 operate with battery backup? The TPU250 does not have a built-in battery backup feature.
How many microphone inputs does the TPU250 have? The TPU250 has one microphone input.
