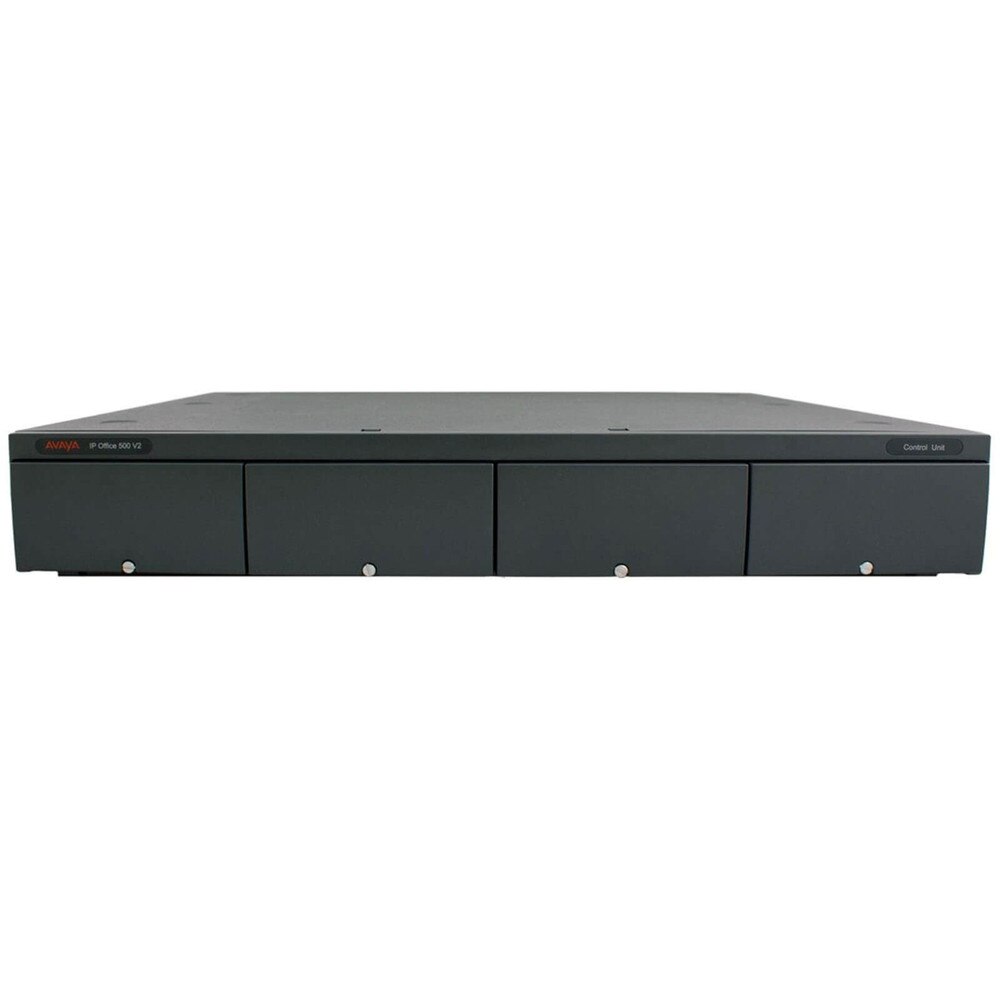

Avaya IP500 V2A Control Unit (700514867) | Like New
SKU: 700514867-LN
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us
Same Day Shipping - Arrives in 3-5 Business Days 30-day Returns Overview
Overview of the IP500 V2/V2A Control Unit
The Avaya IP500 IP Office V2/V2A is redefining how businesses communicate. The Avaya IP Office phone system family represents Avaya's latest advancement in converged voice and data technology, as well as unified communications. IP Office combines high-end voice and data applications, typically reserved for large enterprises, with simple tools that enable even the smallest businesses to provide cutting-edge customer service.
The Avaya IP Office family includes the IP Office 500 series communications solutions. The Avaya IP Office IP500 V2 (700476005) is the most recent control unit in the Avaya IP500 line of products, supporting IP Office Release 6.0 and higher. Avaya phone systems can be expanded using expansion modules and cards.
General Features
● 4 Base Card Slots - Supports IP500 Digital Station 8A (not the original Digital Station 8), Analog Phone 2, Analog Phone 8, Combination ATM, Combination ATM V2, ETR 6, TCM 8, VCM 32, VCM 32 V2, VCM 64, VCM 64 V2, Unified Communications Module V2, and 4-Port Expansion base cards.
● Trunk Cards - IP500 ATM 4 V2, PRI 1, and PRI 2 trunk interface cards can be installed on IP500 base cards.
● 2 SD Card Slots - Supports the system SD card (required) and an optional SD card.
● 2 SD Card Slots - Supports the system SD card (required) and an optional SD card.
● Voice Mail Channels - Maximum of 40 usable for Voicemail Pro/TAPI WAV connection sessions.
● 8 Integrated Expansion Ports - Supports Digital Station 16/30, Phone 8/16/30, and Analog Trunk 16 external expansion modules.
● Support for up to 12 External Expansion Modules - In addition to the 8 built-in expansion ports, the 4-Port Expansion base card allows you to add up to 4 more.

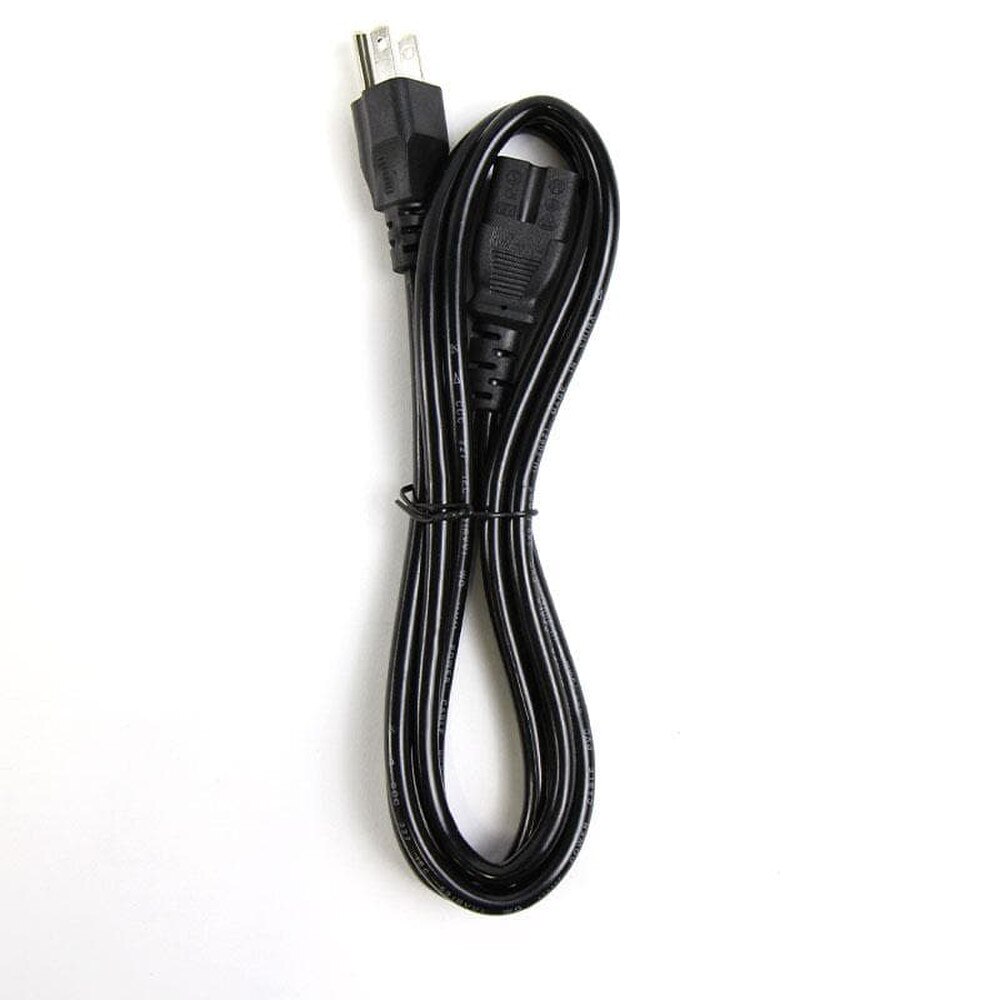

● 2 LAN ports, full duplex 10/100 Mbps; managed layer 3 Ethernet switch. Additional Ports: Music on-hold, DTE port, external relay switch for door entry controls, and integral WAN port. Includes Power cord
● Avaya IP500 V2 System SD Card is required (not included).
Compatibility
● The Avaya IP500 V2A Control Unit is compatible with the following base cards and external expansion modules:
● Compatible with the 1400, 2400, 5400, 6400, and 9500 series digital phones (depending on configuration and SW level).
● Compatible with IP phones from the 1600, 4600, 5600, and 9600 series (depending on configuration and software level).
● IP Office 11.1 and later supports the IP500 V2A control unit.
Specifications
Specifications of the IP500 V2/V2A Control Unit
| Manufacturer | Avaya |
| Manufacturer Part Number | 700514867 |
| Product Name | Avaya IP500 V2/V2A Control Unit |
| Product Type | Control Unit |
| Miscellaneous / Product Color | Gray |
| Networking / Connectivity Technology | Wired |
| Networking / Data Link Protocol | Ethernet |
| Networking / Form Factor | External |
| Networking / Type | Control processor |
| Expansion Slots | 4 (total) / 4 (free) x expansion slot |
| Interfaces | 1 x 100Base-TX - RJ-45 (WAN) |
| 1 x 100Base-TX - RJ-45 | |
| 8 x network - RJ-45 | |
| 1 x RS-232 - DB-9 | |
| 1 x audio - mini-jack | |
| Capacity | Maximum extensions: 384 |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet |
| Features | Reset button, SD card slot |
| Form Factor | External |
| Power Device | Internal power supply |
| Voltage Required | AC 100-240 V |
