Overview of Avaya 9611G IP Phone Global (700504845, 700480593) | Recertified

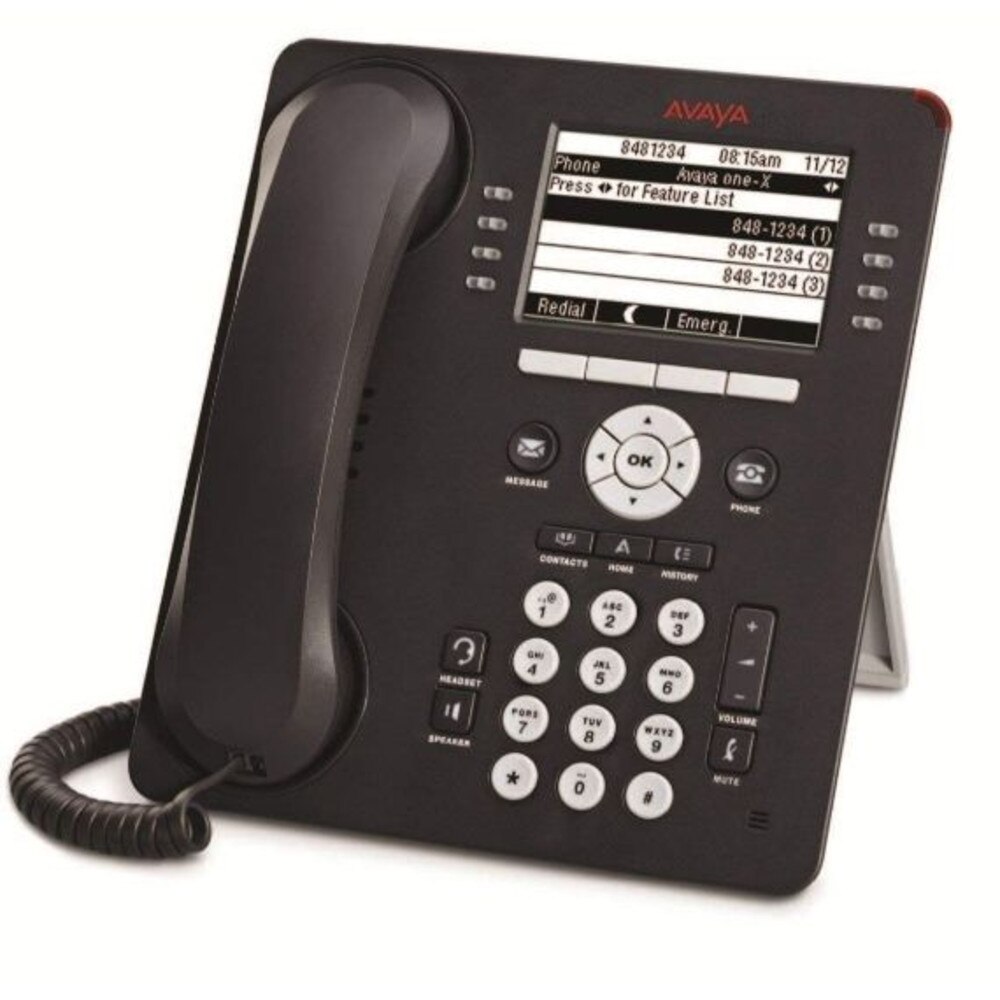

The Avaya 9611G IP Phone Global (700504845, 700480593) is an 8-line phone that is appropriate for users who see their phone as one of many valuable communication tools and rely on standard capabilities like directory and speed dial to improve productivity and communications. The Avaya 9611G IP Phone Global provides intelligent communications with a classic look and feel, graphical color display, high definition audio quality with full duplex speaker, and a wideband handset and headset.
It features a USB interface, integrated Gigabit Ethernet, a secondary Ethernet connector, and up to three 12 or 24 Button Expansion Modules. The Avaya 9611G, which is part of the 9600 Series IP Deskphones, uses your company IP Network to deliver advanced communications from headquarters or remote locations. The Avaya 9611G's evolutionary strategy enhances communications by using existing investments and accommodating changing business needs. It is integrated with the Avaya Aura and IP Office Platforms.
Key Features of Avaya 9611G IP Phone Global
• Delivers high-definition audio that can increase productivity by reducing fatigue and provides easier-tounderstand multi-party calls using the wideband audio codec in the handset and headset
• Facilitates access to information through an easy-to-read, high resolution color display and a permanently labeled Navigation Cluster (Up/Down, Left/Right, OK)
• Delivers visual queues that can speed task management through 8 Red/Green LED buttons
• Helps increase productivity through context-sensitive graphical interfaces
• Simplifies call control on the display using softkeys to transfer, conference and forward calls and to access everyday processes including thirdparty applications such as companywide corporate directories
• Wired/wireless headset compatible
• Enables efficient, high-speed call management through support for up to three 12 or 24 Button Expansion Modules
• Supports reduced energy consumption and costs through Power-over-Ethernet Class 1 design with “sleep mode”
• Provides choice through integrated Gigabit Ethernet and USB interface support
• Accommodates advanced unified communications solutions with Session Initiated Protocol (SIP) based infrastructure
Requirements and Platform Support
• Avaya Aura
• Avaya IP Office
• Local or centralized electrical power; through a 802.3af switch, or local power supply (optional)
• HTTP file server
Compatibility
• Compatible with IP Office 8.1 (85) or higher
• H.323 version supported by Avaya Communication Manager 3.1.4 or later
• SIP version supported by Avaya Communication Manager 6.0 with Avaya Aura Session Manager 6.0 or Avaya Midsize Business Template 5.2.1
• Also compatible with IP Office 7.0.36 or higher only on IP500 or IP500 V2 control units
• The Avaya 9611G can be powered via 802.3af PoE (Class 1) or local PoE injector (sold separately; see drop down option above)
Specifications
Specification for Avaya 9611G IP Phone Global (700504845, 700480593) | Recertified
| Manufacturer | Avaya |
| Manufacturer Part Number | 700504845 |
| Product Name | Avaya 9611G IP Phone Global |
| Product Type | IP Phone |
| Hardware | Color display - 2.8 inches x 2.1 inches (7.0 cm x 5.3 cm) |
| Diagonal width: 3.5 inches (8.8 cm) | |
| 8 buttons with dual LEDs (red, green) | |
| 4 Softkeys | |
| Permanently-labeled feature buttons: Speaker, Mute, Volume, Headset, Contacts, Home, History, Message, Phone | |
| Permanently-labeled Navigation Cluster (Up/Down, Left/Right, OK) | |
| 24 administrative buttons and up to 8 lines displayed simultaneously with green/red LEDs | |
| Wideband audio in handset and headset | |
| Full duplex speakerphone | |
| Ergonomic hearing aid compatible handset supports TTD acoustic coupler | |
| Two message waiting indicators | |
| Gigabit Ethernet support | |
| Wall-mount option and dual-position stand | |
| Ethernet (10/100/1000) line interface | |
| Secondary Ethernet interface 10/100/1000 Mbps | |
| PoE Class (IEEE 802.3af) registers as class 1 device | |
| Software | SIP protocol support on Avaya Aura Platform |
| H.323 protocol support | |
| Standards-based codec support: G.711, G.726, G.729A/B, G.722 (G.726 is not available in SIP) | |
| Supports the following languages: Arabic, Brazilian Portuguese, Simplified Chinese, Dutch, English, Canadian French, Parisian French, German, Hebrew, Italian, Japanese (Kanji, Hiragana and Katakana), Korean, Latin Castilian Spanish, and Russian. American Spanish, |
User Guides
Frequently Asked Questions
Avaya 9611G IP Phone Global (700504845, 700480593)
Frequently Asked Questions (FAQ's)
What is the Avaya 9611G IP Phone used for?
How do I set up the Avaya 9611G IP Phone?
What does the 'G' in 9611G stand for?
How do I log into the phone?
How do I access voicemail?
How do I transfer a call?
How do I put a call on hold?
Can I forward calls to another number?
How do I use speakerphone or headset?
How do I adjust the ringer or call volume?
What type of headset is compatible with the Avaya 9611G?
How do I reboot the phone?
How do I factory reset the phone?
Why does the phone display “Discovering” or “Waiting for LLDP”?
What display does the 9611G have?
What is the default password for admin settings?
How many lines or calls can it handle?
Does the phone support Bluetooth or Wi-Fi?
How do I update the firmware on the Avaya 9611G?
What protocols does the 9611G support?
