Algo IP Voice Paging Adapter Bell Scheduler (8301) | Like New
SKU: 8301-LN
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us
Same Day Shipping - Arrives in 3-5 Business Days 30-day Returns Overview

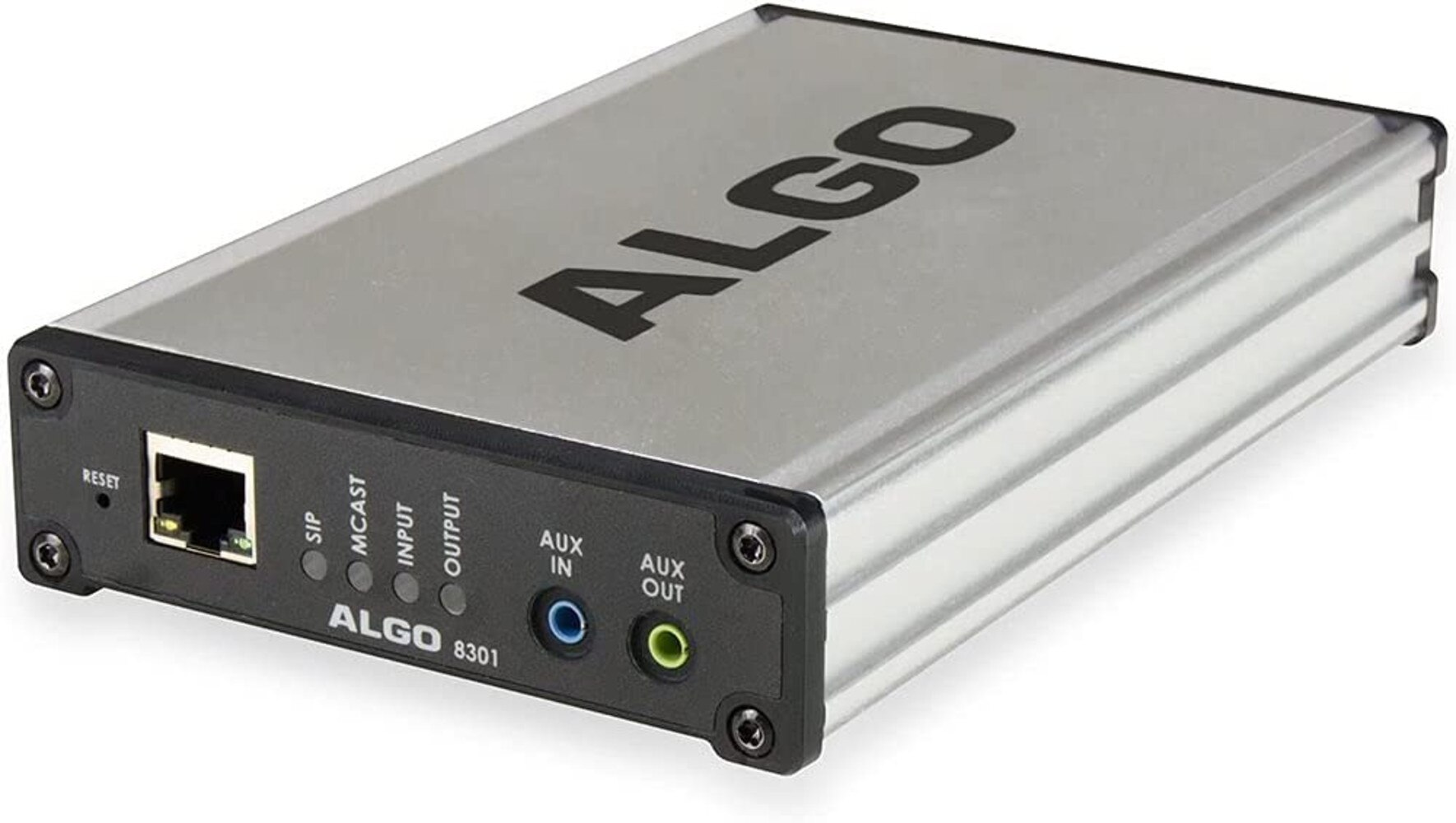

Overview of Algo 8301 IP Voice Paging Adapter Bell Scheduler | Like New
The Algo 8301 IP Voice Paging Adapter Bell Scheduler is a versatile and powerful network device intended to improve communication and automation in a variety of settings. This innovative solution combines IP paging with advanced scheduling capabilities, making it an excellent choice for schools, hospitals, factories, and office buildings. The Algo 8301 excels at delivering clear, dependable paging and scheduled announcements throughout multiple facilities. Its advanced features enable precise timing of bells, tones, and pre-recorded messages, which increases productivity and ensures timely communication.
Administrators can easily set up complex schedules, manage zones, and customize audio outputs to meet the needs of their organizations thanks to its user-friendly interface. Because of its compatibility with existing IP infrastructure, the device is an affordable option for upgrading legacy paging systems. The Algo 8301's strong build quality and dependable performance make it an excellent choice for mission-critical communication applications. Its integration with emergency systems ensures that urgent messages reach their intended recipients quickly and effectively.
Key Features of Algo 8301 IP Voice Paging Adapter Bell Scheduler
• Supports G.722 wideband codec for superior audio clarity and intelligibility without hum or noise.
• Functions as a SIP endpoint for easy integration with IP telephone systems and UC environments.
• Supports multicast send and receive, enabling efficient broadcasting to multiple zones or devices simultaneously.
• Programmable scheduler for automated bells, tones, announcements, and music.
• Power over Ethernet (PoE) support simplifies installation and reduces cabling requirements.
• Provides balanced audio output using XLR connectors and terminal blocks, along with a dry contact closure for amplifier connection.
• Intuitive web interface for easy configuration and management.
• Integrates with emergency alert systems for critical announcements.
• Internal Audio Storage: 1 GB of internal memory for storing pre-recorded messages and tones.
• Compatible with most leading UC systems and SIP-based IP PBX systems.
• Allows for detailed scheduling of audio communications, including bells, tones, and announcements, with support for holidays and custom schedules.
• Can scale to support large facilities or campuses with multiple zones and multicast capabilities
Specifications
Specifications for Algo 8301 IP Voice Paging Adapter Bell Scheduler | Like New
| Manufacturer | Algo |
| Manufacturer Part Number | 8301 |
| Product Name | Algo 8301 IP Voice Paging Adapter Bell Scheduler |
| Product Type | Audio Alerter |
| SIP | 50 Page Extensions |
| 10 Alerting Extensions | |
| Multicast | Receive or transmit |
| Codec Support | G.711 A-law, G.711 u-law, G.722, Polycom Group Page. (other codec support available on request). |
| Processor | Linux OS |
| ARM Cortex-A8 32-Bit RISC Processor | |

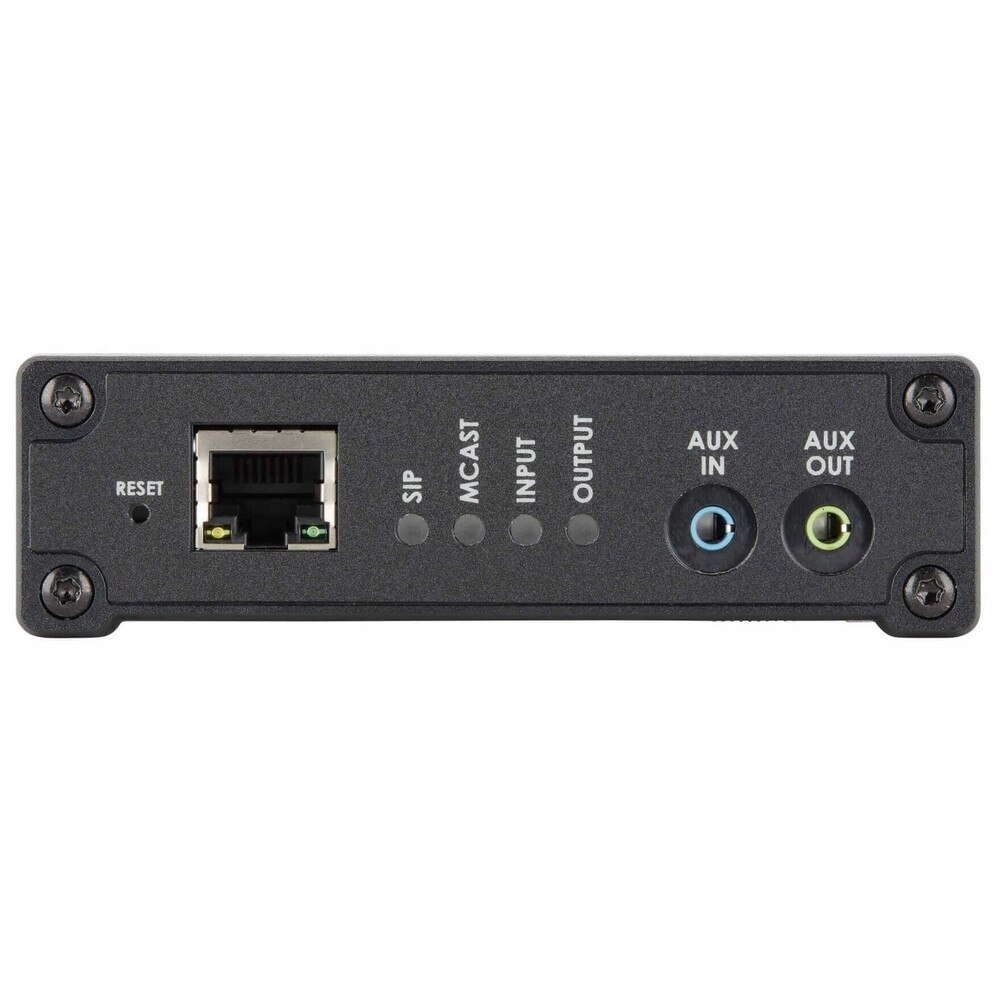

| AUX Input | 3.5mm jack for analog music input |
| AUX Output | 3.5mm jack for headset or PC speakers |

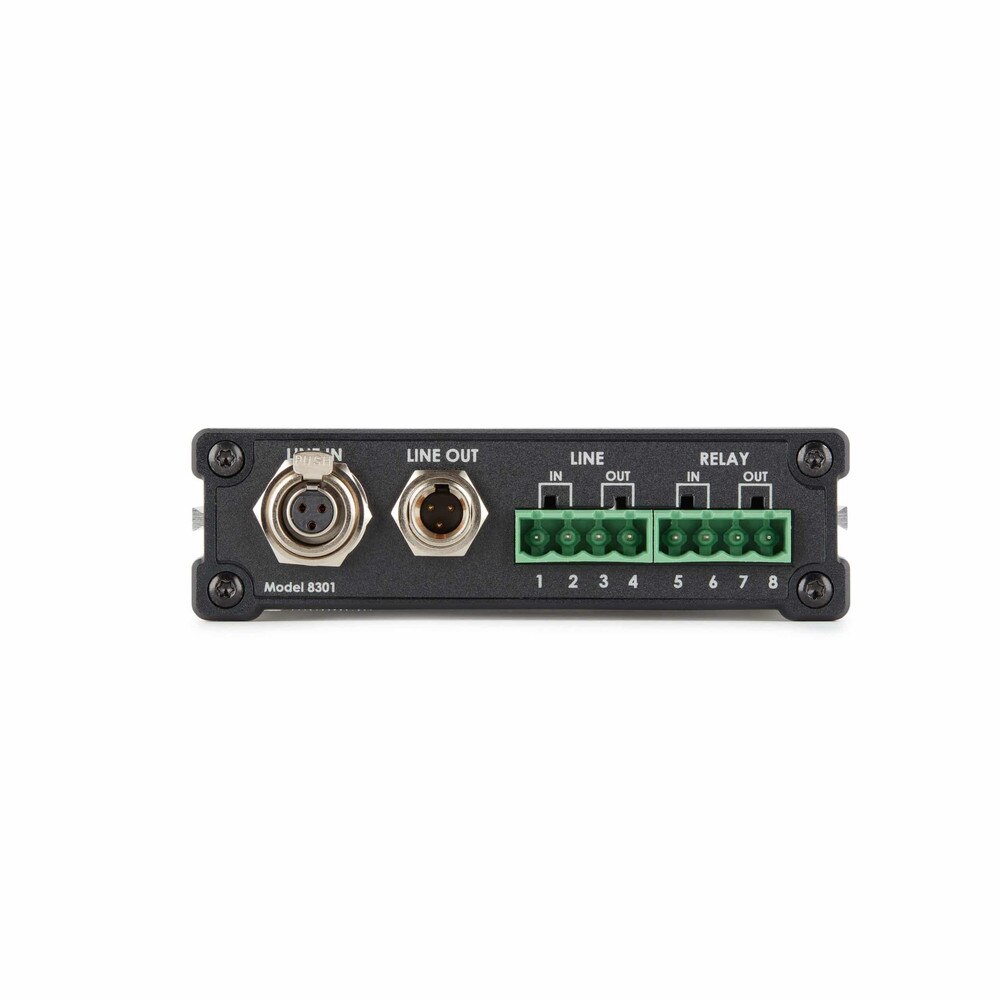

| Line Input | Female mini-XLR 10 kOhm balanced maximum level +4 dBu. Transformer isolated internally. |
| Line Output | Low impedance balanced output. Line level -10 dBm / 0 dBm / +4 dBu. Transformer isolated internally. Male miniXLR connector and pluggable terminal block. Frequency response 100-7000 Hz +/- 3dB. |
| Audio Memory | 1 GByte |
| WAV Files | Customizable. Includes chime, gong, bell, warble, barking dogs. |
| Speech Processing | ALC, filtering, compression |
| Audio Delay | Programmable 1-1000 ms synchronization delay |
| Page Mode | Live or cache and release. |
| Page Zones | 50 Zones per 8301 based on received multicast IP Address, SIP extension dialed, or keypad selection. |
| Scheduler | Play specific WAV files at specific times on specific days/dates to specific zones based on selected NTP server time. |
| Relay Output | Normally open or normally closed. Max rating 30 V 50 mA. |
| Relay Input | Normally open or normally closed dry contact supervision. Algo 1202 Call Button, Algo 1203 Switch, EOL resistor termination. |
| Discovery | Cisco Discovery Protocol |
| Configuration | Web interface (HTTP or HTTPS) or auto-provisioning server. |
| Provisioning | TFTP, FTP, HTTP, HTTPS |
| Supervision | SNMP |
| NAT | STUN, CRLF Keep Alive |
| Power Requirement | POE IEEE 802.3af Class 0 Nominal 2W Maximum 3.9W |
| Environmental | +32 to +122 deg F (0 to +50 deg C); Suitable for dry indoor environments only. |
| Dimensions | 6.5'' x 4.3'' x 1.3'' (16.5 cm x 10.9 cm x 3.3 cm) |
| Mounting | Wall mountable or tabletop |
| Weight | 2.2 lb (1.0 kg) |
User Guides
Frequently Asked Questions
Algo 8301 IP Voice Paging Adapter Bell Scheduler
Frequently Asked Questions (FAQ's)
What is the Algo 8301 IP Voice Paging Adapter Bell Scheduler? The Algo 8301 is a device that connects existing analog paging systems to modern VoIP networks and includes scheduling features for automated bell ringing and announcements.
What are the key features of the Algo 8301? SIP and multicast paging, automatic bell scheduling, high-quality audio, web-based configuration, and compatibility with legacy analog systems.
How does the Algo 8301 connect to a VoIP network? It connects via Ethernet and integrates VoIP through SIP.
Can the Algo 8301 support multicast paging? Yes, it supports multicast paging, which means that multiple endpoints can receive pages at the same time.
Is the Algo 8301 easy to configure? Yes, it has a web-based interface for convenient configuration and management.
What types of environments is the Algo 8301 suitable for? Schools, offices, manufacturing facilities, and any other location that requires integrated paging and scheduling.
Can the Algo 8301 be used for automated bell scheduling? Yes, it includes scheduling capabilities for automated bell ringing and announcements.
Is the Algo 8301 compatible with existing analog paging systems? Yes, it works seamlessly with existing analog paging systems.
How is the Algo 8301 powered? It is typically powered by Power over Ethernet (PoE), but it can also be powered with a separate power adapter.
Does the Algo 8301 support SIP paging? Yes, it supports SIP paging, which allows for direct integration with VoIP systems.
Can the Algo 8301 be used for emergency announcements? Yes, it can be programmed to make emergency announcements and send out alerts.
What is the web interface used for? The web interface is used to set up, manage, and schedule the device.
Can the Algo 8301 integrate with third-party scheduling software? Yes, it can integrate with third-party scheduling software via a web-based interface.
What is the typical use case for the Algo 8301? Common applications include school bell schedules, office announcements, and industrial alerts.
Does the Algo 8301 support remote management? Yes, it can be managed remotely using the web interface.
What kind of audio outputs does the Algo 8301 provide? It supports both analog and IP audio outputs, allowing for flexible integration.
What are the network requirements for the Algo 8301? It requires a network connection that is at least 10/100 Mbps Ethernet and supports SIP and multicast protocols.
Can the Algo 8301 play pre-recorded messages? Yes, it can save and play pre-recorded messages for scheduled and on-demand announcements.
How do I update the firmware on the Algo 8301? Firmware updates can be performed via the web interface by uploading the new firmware file.
Does the Algo 8301 provide high-quality audio? Yes, it provides clear and reliable communication through high-quality audio.
