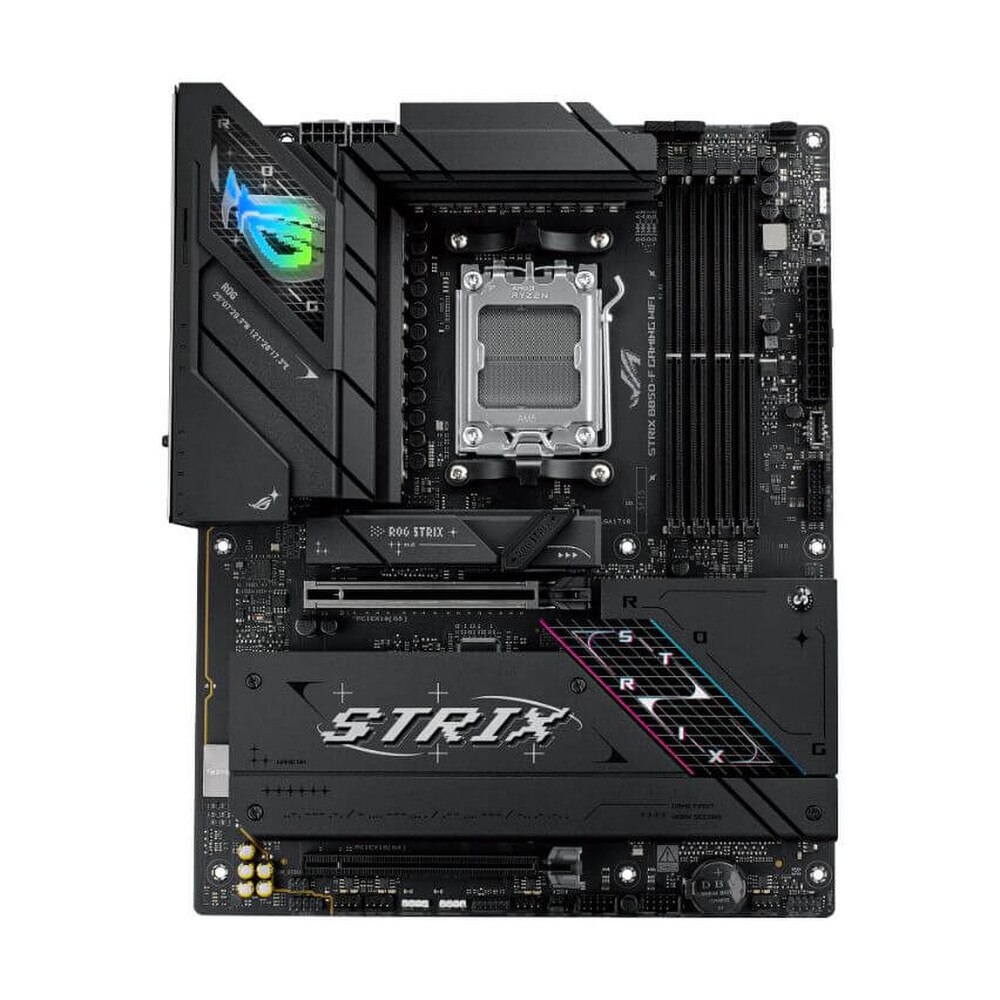

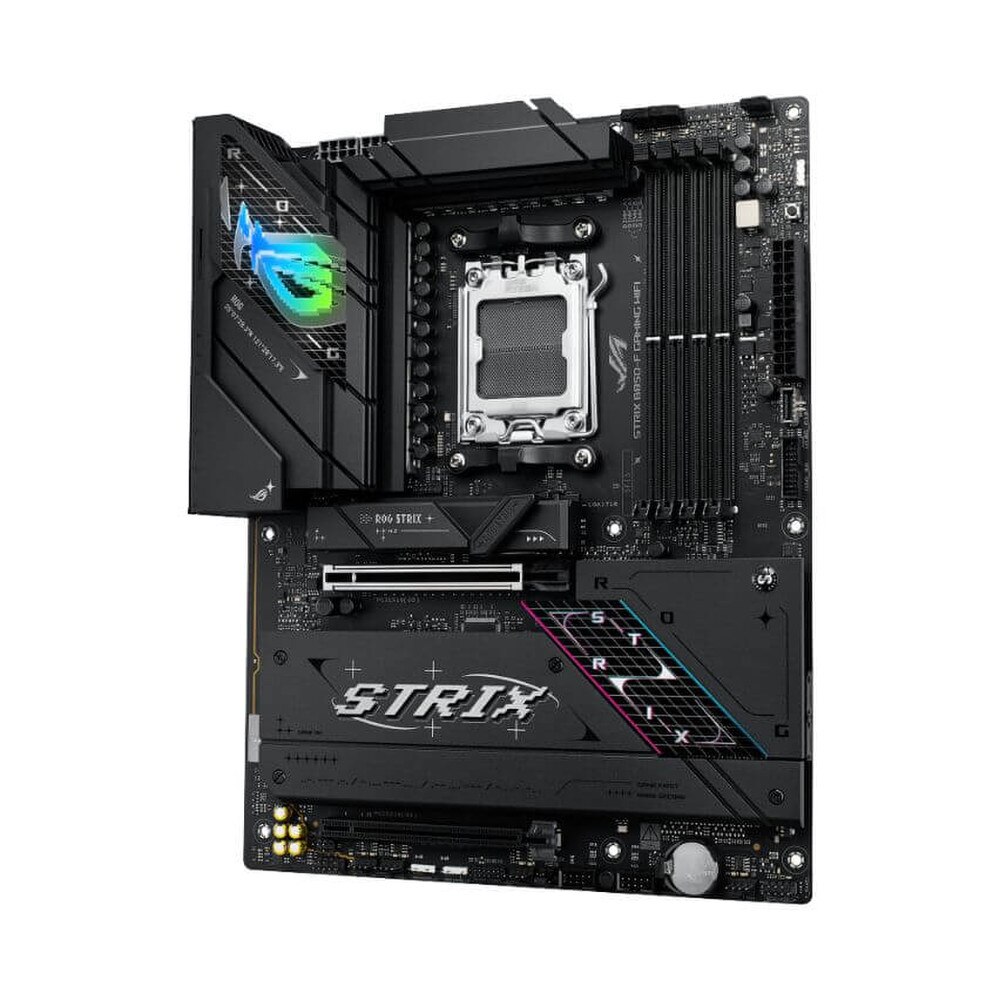

ASUS ROG Strix B850-F Gaming WiFi AMD AM5 B850-F ATX Motherboard (90MB1J70-M0AAY0) | New
SKU: 90MB1J70-M0AAY0-N
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us
Same Day Shipping - Arrives in 3-5 Business Days 30-day Returns Overview
Overview of ASUS ROG Strix B850-F Gaming WiFi AMD AM5 B850-F ATX Motherboard (90MB1J70-M0AAY0) | New
The ASUS ROG Strix B850-F Gaming WiFi AMD AM5 B850-F ATX Motherboard (90MB1J70-M0AAY0) is designed for gamers who require powerful performance, fast connectivity and extensive personalization. This ATX board, which is built on the B850 chipset and is designed for AMD's AM5 socket, supports the newest Ryzen processors, lightning-fast DDR5 memory and PCIe 5.0 graphics, guaranteeing future-proof compatibility for demanding multitasking and immersive gaming. Ultra-low latency networking is provided by the integrated WiFi 6E and Intel 2.5Gb LAN and in-game clarity is improved with SupremeFX audio. The STRIX B850-F is intended for intense gaming, content production and streaming due to its sophisticated cooling management, strong power delivery, AI-powered overclocking and Aura Sync RGB. While the distinctive ROG aesthetic provides premium style to any setup, other features like multiple M.2 slots, USB 4.0 Type-C connectors, reinforced slots and Q-LED diagnostic features make assembling and troubleshooting easy.
Key Features of ASUS ROG Strix B850-F Gaming WiFi AMD AM5 B850-F ATX Motherboard
• AMD AM5 Socket, B850 Chipset supports Ryzen 7000 and future AM5 processors for top-tier desktop performance.
• PCIe 5.0 Support that unleash next-gen GPUs and ultrafast NVMe SSDs with twice the bandwidth for gaming and creative workloads.
• DDR5 Memory Support that achieve maximum speed and stability with up to 128GB of overclockable DDR5 RAM.
• Integrated WiFi 6E & 2.5Gb Intel LAN with lightning-fast wired and wireless speeds for online gaming and streaming.
• SupremeFX Audio & AI Noise Canceling with immersive, clear audio with built-in sound optimization.
• Robust Power Delivery with 14+2 DrMOS power stages ensure stable overclocking and smooth operation under load.
• Advanced Cooling Solution with multiple heatsinks, VRM and M.2 cooling, plus Fan Xpert controls keep your system cool and quiet.
• RGB Aura Sync Customization with sync personalized lighting across your components, case and peripherals.
• Multiple M.2 & SATA Slots that install several NVMe SSDs and hard drives for expansive storage and rapid access.
• Front & Rear USB 4.0 Type-C that transfer files at high speed and connect modern devices with future-ready USB.
• DIY-Friendly Features with pre-mounted I/O shield, Q-LED for diagnostics, BIOS FlashBack™, reinforced PCIe slots ease setup and troubleshooting.
Benefits of ASUS ROG Strix B850-F Gaming WiFi AMD AM5 B850-F ATX Motherboard
🗹 Future-Proof Your Build that is ready for the newest CPUs, GPUs, storage and connectivity—maximizing upgradeability.
🗹 Ultimate Gaming Performance with PCIe 5.0, DDR5 RAM, and enhanced networking deliver smooth, lag-free gameplay even under intense loads.
🗹 Streamlined Connectivity with WiFi 6E, USB 4.0, and advanced LAN ensure instant downloads, high-speed streaming and ultra-responsive multiplayer.
🗹 Superior Cooling & Stability with intelligent fan controls and premium materials keep your system running cool, quiet and stable.
🗹 Immersive Audio Experience with SupremeFX and noise canceling provide clear, surround sound whether gaming, streaming or conferencing.
🗹 Custom Style & Easy Setup with ROG aesthetics, Aura Sync and DIY-friendly features let you build and showcase with ease.
🗹 Optimized for Creators & Power Users with multiple M.2 slots, fast RAM and direct storage access support video editing, development and productivity.
🗹 Reliable, Trusted Brand where ASUS ROG delivers proven durability and performance—ideal for competitive gamers and tech enthusiasts.
Specifications
Specifications for ASUS ROG Strix B850-F Gaming WiFi AMD AM5 B850-F ATX Motherboard (90MB1J70-M0AAY0) | New
| Manufacturer | ASUS |
| Manufacturer Part Number | 90MB1J70-M0AAY0 |
| Product Name | ASUS ROG Strix B850-F Gaming WiFi AMD AM5 B850-F ATX Motherboard |
| Product Type | Motherboard |
| CPU | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors* |
| Chipset | AMD B850 Chipset |
| Memory | 4 x DIMM slots, max. 256GB, DDR5 |
| Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors | |
| ECC and Non-ECC, Un-buffered DIMM | |
| Dual channel memory architecture | |
| Supports AMD Extended Profiles for Overclocking (EXPO™) | |
| ASUS Enhanced Memory Profile (AEMP) | |
| * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. | |
| ** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function. | |
| Graphics | 1 x DisplayPort* |
| 1 x HDMI™ port** | |
| Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications. | |
| * Supports max. 8K@30Hz as specified in DisplayPort 1.4 | |
| ** Supports 4K@60Hz as specified in HDMI 2.1 | |
| *** VGA resolution support depends on processors' or graphic cards' resolution. | |
| Expansion Slots | AMD Ryzen™ 9000 & 7000 Series Desktop Processors |
| 1 x PCIe 5.0 x16 slot with Q-Release Slim | |
| AMD Ryzen™ 8000 Series Desktop Processors | |
| 1 x PCIe 5.0 x16 slot with Q-Rlease Slim (supports PCIe 4.0 x8 or x4 mode)* | |
| AMD B850 Chipset | |
| 1 x PCIe 4.0 x16 slot (supports x4 mode)** | |
| * Specifications vary by CPU types. | |
| ** PCIEX16(G4) slot (supports x4 mode) from AMD B850 Chipset shares bandwidth with M.2_3 | |
| To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals. | |
| Storage | Total supports 4 x M.2 slots and 2 x SATA 6Gb/s ports |
| AMD Ryzen™ 7000 & 9000 Series Desktop Processors | |
| M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 5.0x4 mode) | |
| M.2_2 (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode) | |
| AMD Ryzen™ 8000 Series Desktop Processors | |
| M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 4.0x4 mode) | |
| M.2_2 (Key M), type 2280/22110 (supports PCIe 4.0 x4/x2 mode)* | |
| AMD B850 Chipset | |
| M.2_3 (Key M), type 2280 (supports PCIe 4.0 x4)** | |
| M.2_4 (Key M), type 2280 (supports PCIe 4.0 x4) | |
| 2 x SATA 6Gb/s ports | |
| * Specifications vary by CPU types. | |
| ** M.2_3 slot shares bandwidth with PCIEX16(G4). When PCIEX16(G4) slot is operating, M.2_3 will be disabled. | |
| AMD RAIDXpert2 Technology | |
| Ryzen™ 9000 Series Processors: RAID 0/1/5/10 | |
| Ryzen™ 8000 Series Processors: RAID 0/1 | |
| Ryzen™ 7000 Series Processors: RAID 0/1/10 | |
| Ethernet | 1 x Intel® 2.5Gb Ethernet |
| ASUS LANGuard | |
| Wireless & Bluetooth | Wi-Fi 7* |
| 2x2 Wi-Fi 7 (802.11be) | |
| Supports 2.4/5/6GHz frequency band** | |
| Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate. | |
| Bluetooth® v5.4*** | |
| *Wi-Fi features may vary depending on the operating system | |
| For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E. | |
| For Windows 10, please note that no driver is available, refer to the Wi-Fi chipset vendor's website for details. | |
| ** Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countries. | |
| *** The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications. | |
| USB | Rear USB (Total 12 ports) |
| 1 x USB 20Gbps port (1 x USB Type-C®) | |
| 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®) | |
| 4 x USB 5Gbps ports (4 x Type-A) | |
| 4 x USB 2.0 ports (4 x Type-A) | |
| Front USB (Total 7 ports) | |
| 1 x USB 10Gbps connector (supports USB Type-C®) | |
| 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports | |
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports | |
| * USB Type-C® power delivery output: max. 5V/3A | |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080* |
| Impedance sense for front and rear headphone outputs | |
| Supports: Jack-detection, Multi-streaming, front Panel MIC Jack-retasking | |
| High quality 120 dB SNR stereo playback output and 110 dB SNR recording input | |
| Supports up to 32-Bit/384 kHz playback on front panel | |
| Audio Features | |
| SupremeFX Shielding Technology | |
| Savitech SV3H712 AMP | |
| Rear optical S/PDIF out port | |
| Premium audio capacitors | |
| audio cover | |
| * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. | |
| ** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device. | |

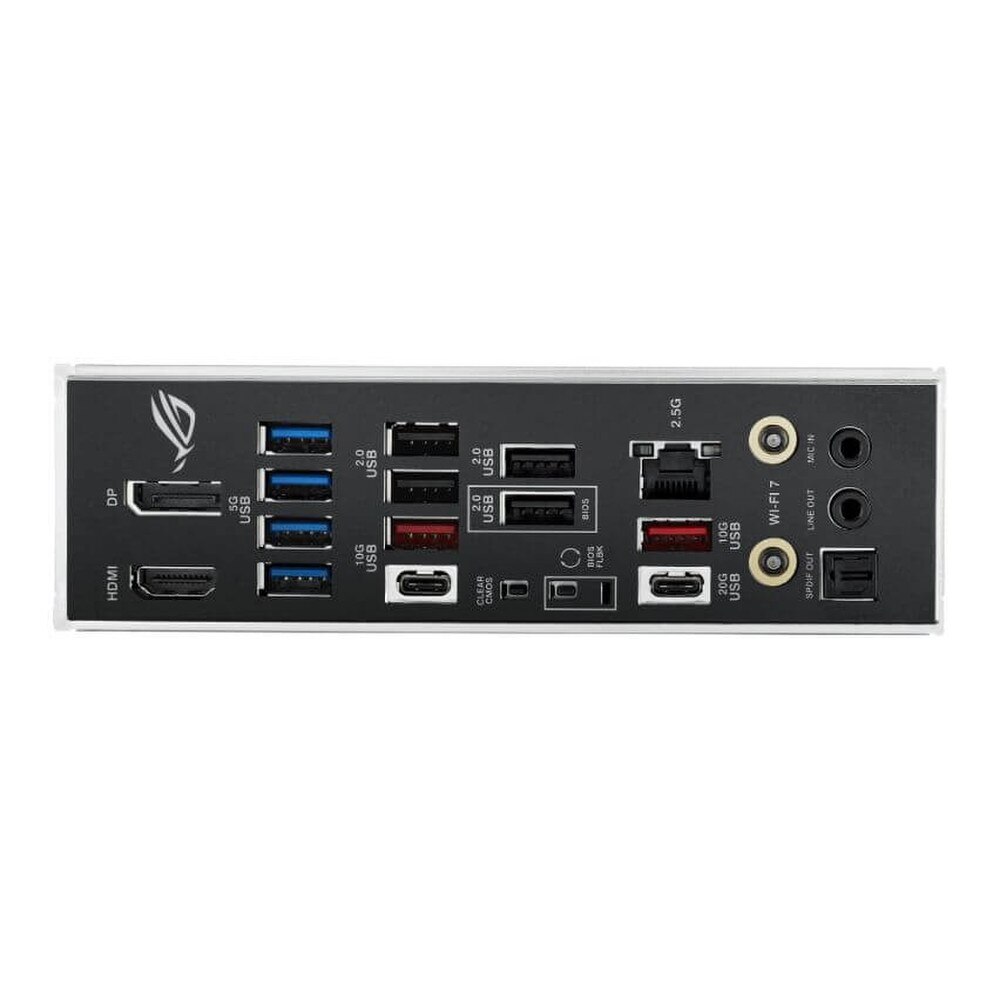

| Back Panel I/O Ports | 1 x USB 20Gbps port (1 x USB Type-C®) |
| 3 x USB 10Gbps ports (2 x Type-A + 1 x USB Type-C®) | |
| 4 x USB 5Gbps ports (4 x Type-A) | |
| 4 x USB 2.0 ports (4 x Type-A) | |
| 1 x DisplayPort | |
| 1 x HDMI™ port | |
| 1 x Wi-Fi module | |
| 1 x Intel® 2.5Gb Ethernet port | |
| 2 x Audio jacks | |
| 1 x Optical S/PDIF out port | |
| 1 x BIOS FlashBack™ button | |
| 1 x Clear CMOS button | |
| Internal I/O Connectors | Fan and Cooling Related |
| 1 x 4-pin CPU Fan header | |
| 1 x 4-pin CPU OPT Fan header | |
| 1 x 4-pin AIO Pump header | |
| 4 x 4-pin Chassis Fan headers | |
| Power Related | |
| 1 x 24-pin Main Power connector | |
| 2 x 8-pin +12V CPU Power connector | |
| Storage Related | |
| 4 x M.2 slots (Key M) | |
| 2 x SATA 6Gb/s ports | |
| USB | |
| 1 x USB 10Gbps connector (supports USB Type-C®) | |
| 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports | |
| 2 x USB 2.0 headers support 4 additional USB 2.0 ports | |
| Miscellaneous | |
| 3 x Addressable Gen 2 headers | |
| 1 x CPU Over voltage jumper | |
| 1 x Front Panel Audio header (F_AUDIO) | |
| 1 x Power button | |
| 1 x 10-1 pin Front System Panel header | |
| 1 x Thermal Sensor header | |
| 1 x Thunderbolt™ (USB4®) header | |
| Special Features | Extreme Engine Digi+ |
| 5K Black metallic capacitors | |
| ASUS Q-Design | |
| M.2 Q-Latch | |
| M.2 Q-Release | |
| M.2 Q-Slide | |
| PCIe Slot Q-Release Slim (with PCIe SafeSlot) | |
| Q-Antenna | |
| Q-Dashboard | |
| Q-DIMM | |
| Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) | |
| Q-Slot | |
| ASUS Thermal Solution | |
| M.2 heatsink backplate | |
| M.2 heatsink | |
| ASUS EZ DIY | |
| BIOS FlashBack™ button | |
| BIOS FlashBack™ LED | |
| Clear CMOS button | |
| ProCool | |
| Pre-mounted I/O shield | |
| SafeSlot | |
| SafeDIMM | |
| Aura Sync | |
| Addressable Gen 2 headers | |
| Software Features | ROG Exclusive Software |
| ROG CPU-Z | |
| Dolby Atmos | |
| ASUS Exclusive Software | |
| Armoury Crate | |
| AIDA64 Extreme (60 days free trial) | |
| Aura Creator | |
| Aura Sync | |
| Fan Xpert 4 | |
| GameFirst | |
| HWiNFO | |
| Power Saving | |
| ASUS DriverHub | |
| ASUS GlideX | |
| TurboV Core | |
| Adobe Creative Cloud (Free Trial) | |
| Norton 360 for Gamers (60 Days Free Trial) | |
| WinRAR (40 Days Free Trial) | |
| UEFI BIOS | |
| ASUS EZ DIY | |
| ASUS CrashFree BIOS 3 | |
| ASUS EZ Flash 3 | |
| ASUS UEFI BIOS EZ Mode | |
| ASUS MyHotkey | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |

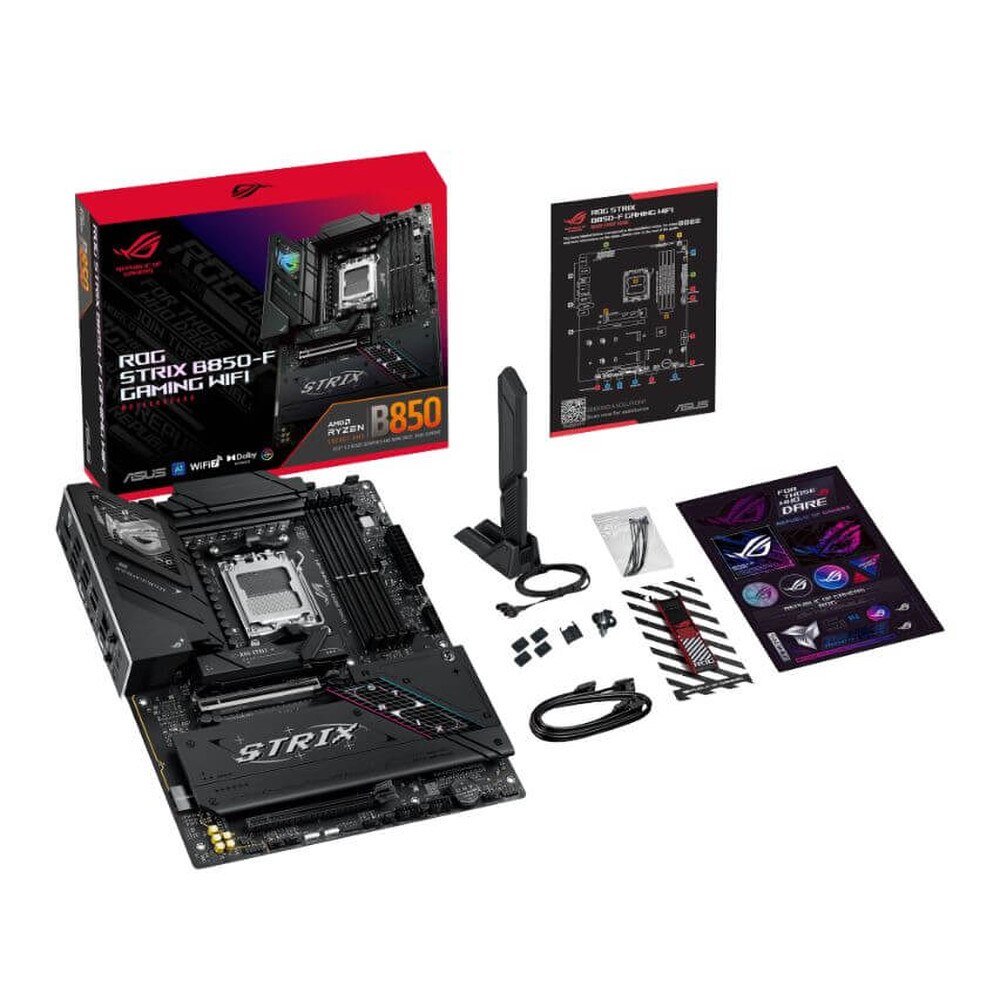

| Accessories | Cables |
| 2 x SATA 6Gb/s cables | |
| Miscellaneous | |
| 1 x ASUS WiFi Q-Antenna | |
| 1 x Cable ties package | |
| 1 x M.2 Q-Latch package | |
| 1 x M.2 Q-Slide package | |
| 1 x ROG key chain | |
| 1 x ROG Strix stickers | |
| 4 x M.2 rubbers | |
| Documentation | |
| 1 x Quick start guide | |
| Operating System | Windows 11 |
| Form Factor | ATX Form Factor |
| 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm ) |
User Guides
Frequently Asked Questions
ASUS ROG Strix B850-F Gaming WiFi AMD AM5 B850-F ATX Motherboard (90MB1J70-M0AAY0)
Frequently Asked Questions (FAQ's)
Which Ryzen CPUs are compatible with the ROG Strix B850‑F Gaming WiFi?
Does the motherboard support DDR5 memory?
Is PCIe 5.0 supported, and on which slot?
What networking options does the motherboard offer?
Are there sufficient cooling options onboard?
Does it include on‑board RGB lighting?
How many M.2 slots does it have, and what are their specifications?
Is BIOS FlashBack supported for easy CPU upgrade?
What USB ports are available on the rear I/O?
Does the motherboard offer integrated graphics connectivity?
Is this board suitable for overclocking?
Can I use high‑TDP CPUs like Ryzen 9 7950X on it?
Are fan and pump headers customizable?
How do I update the BIOS?
What kind of audio solution does it feature?
Are there any onboard diagnostic tools?
How many USB headers does it offer for front‑panel connectors?
Is multisocket CPU support provided? (e.g., Threadripper)
Does it support RAID configurations?
What audio jacks are on the back panel?
