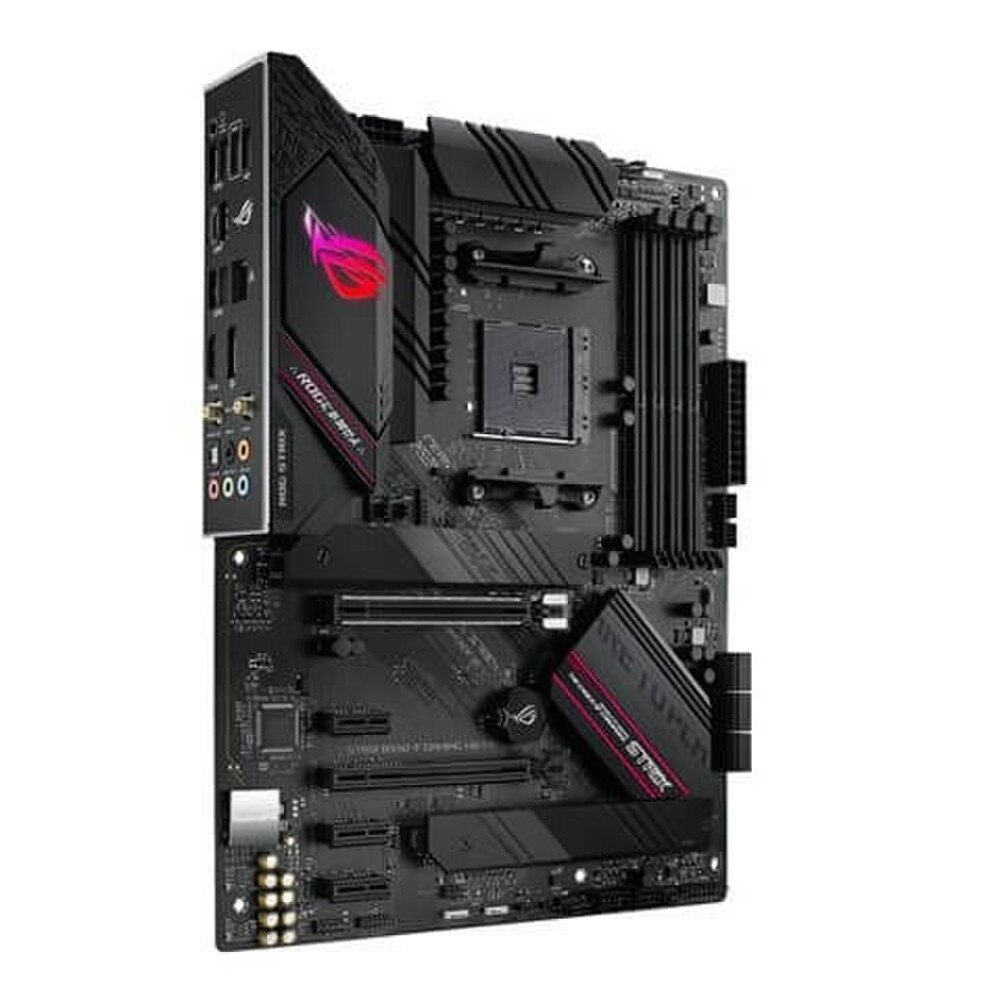

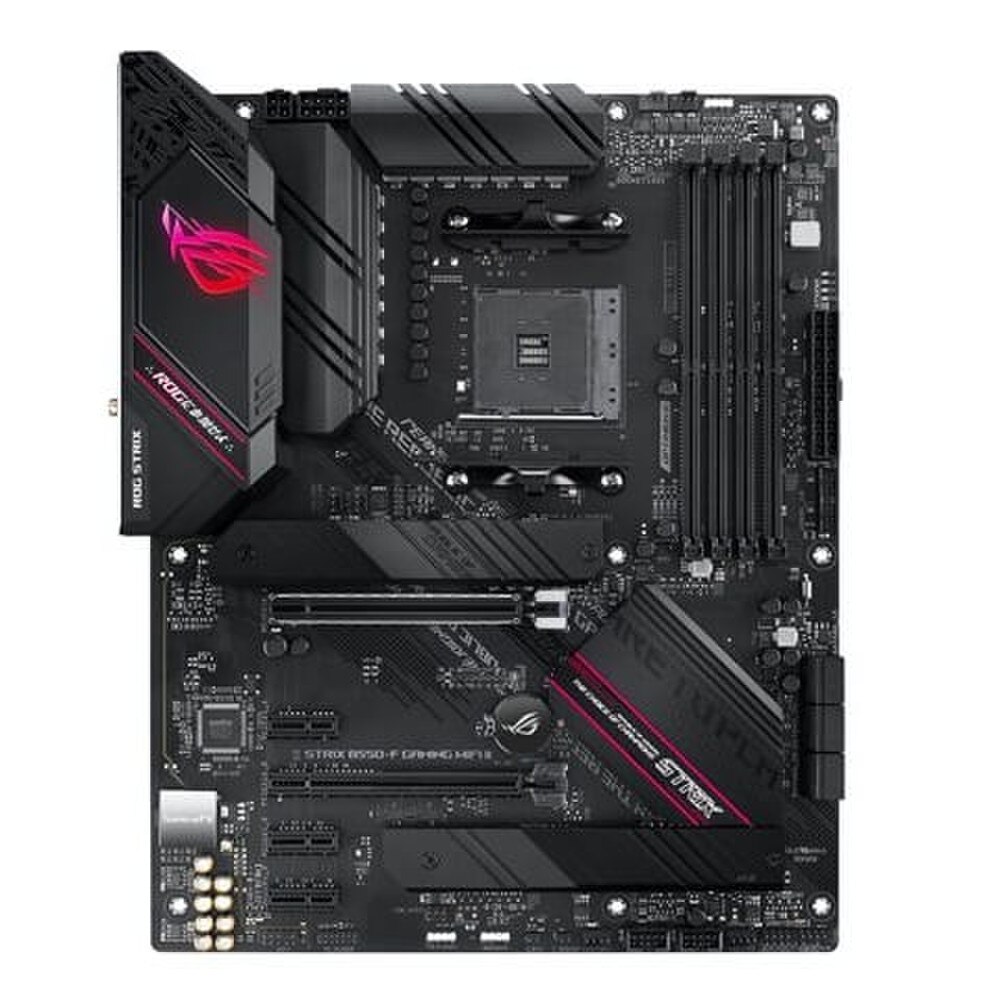

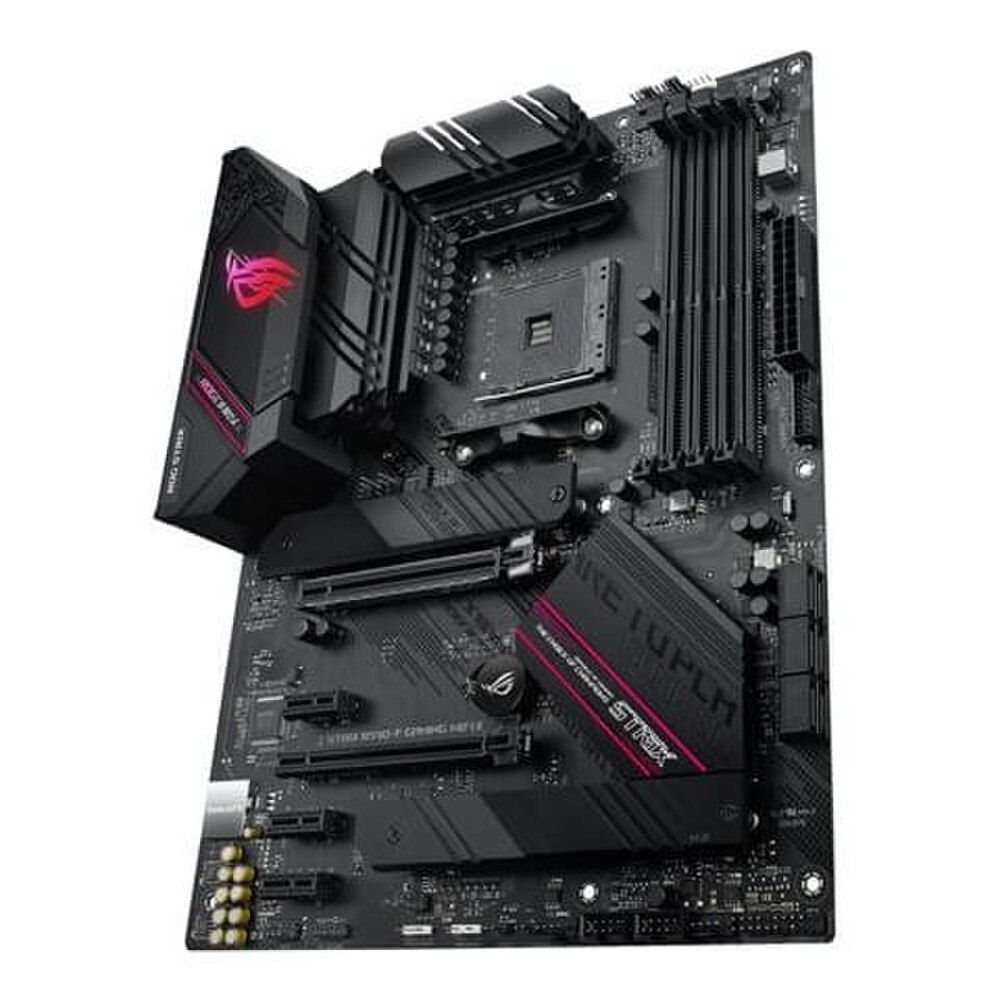

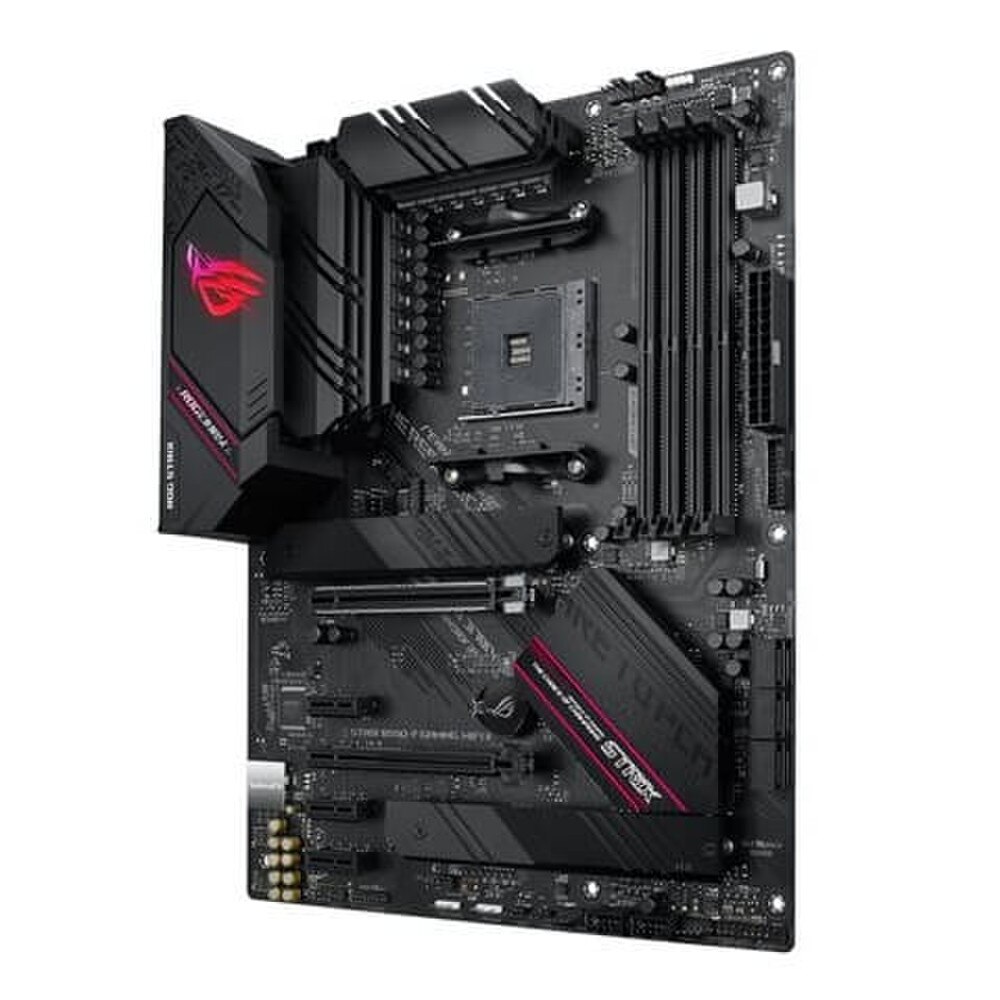

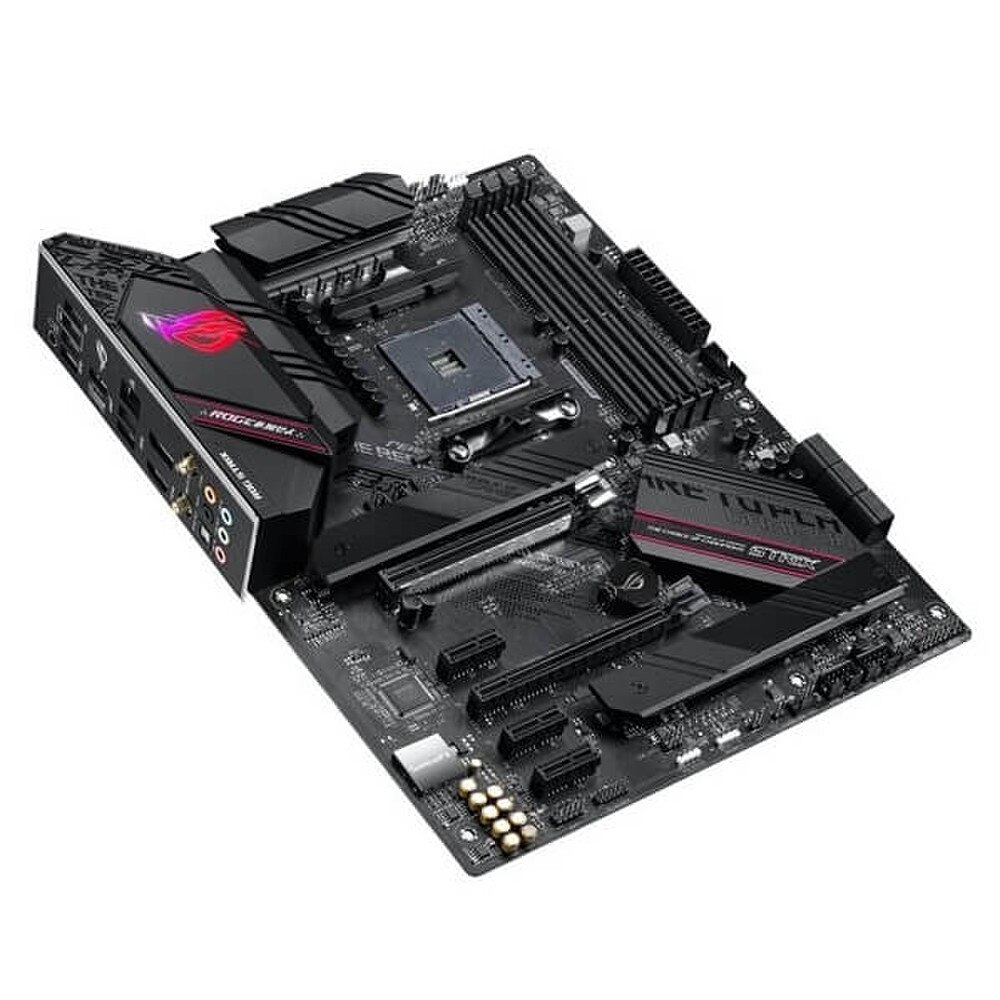

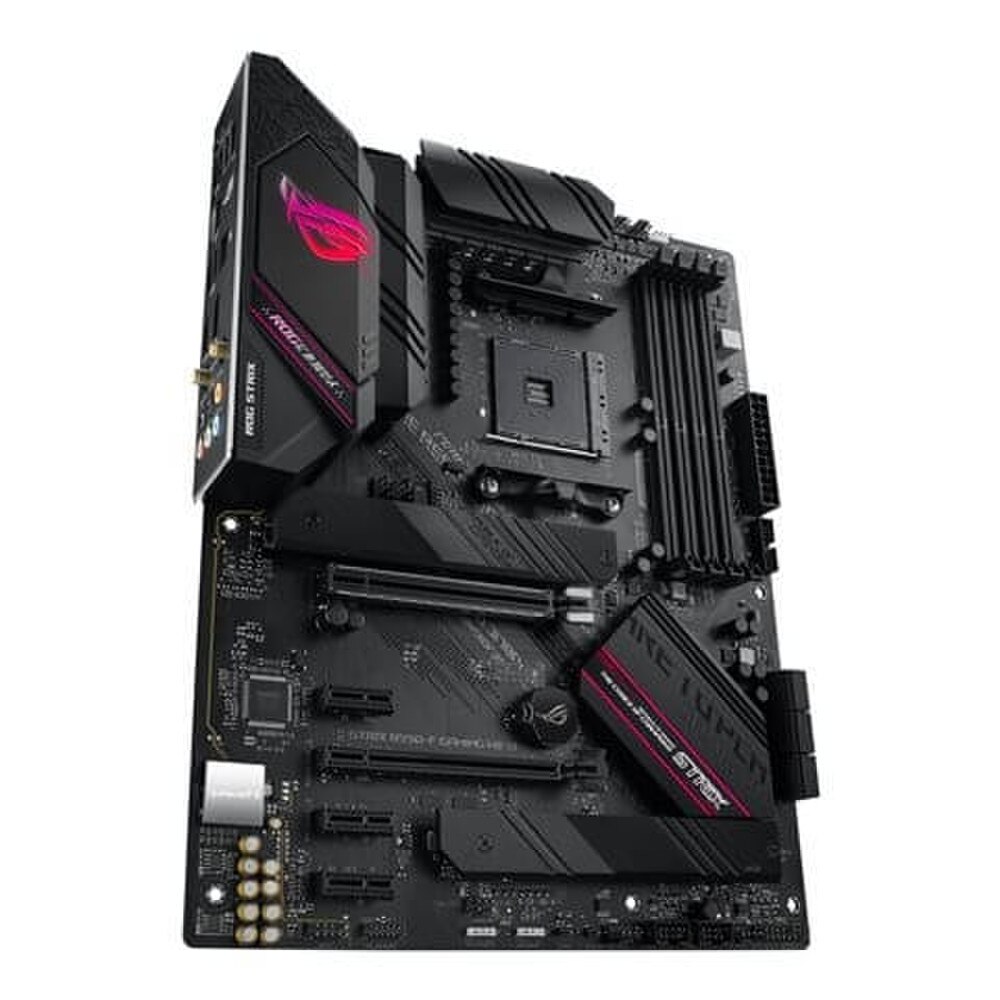

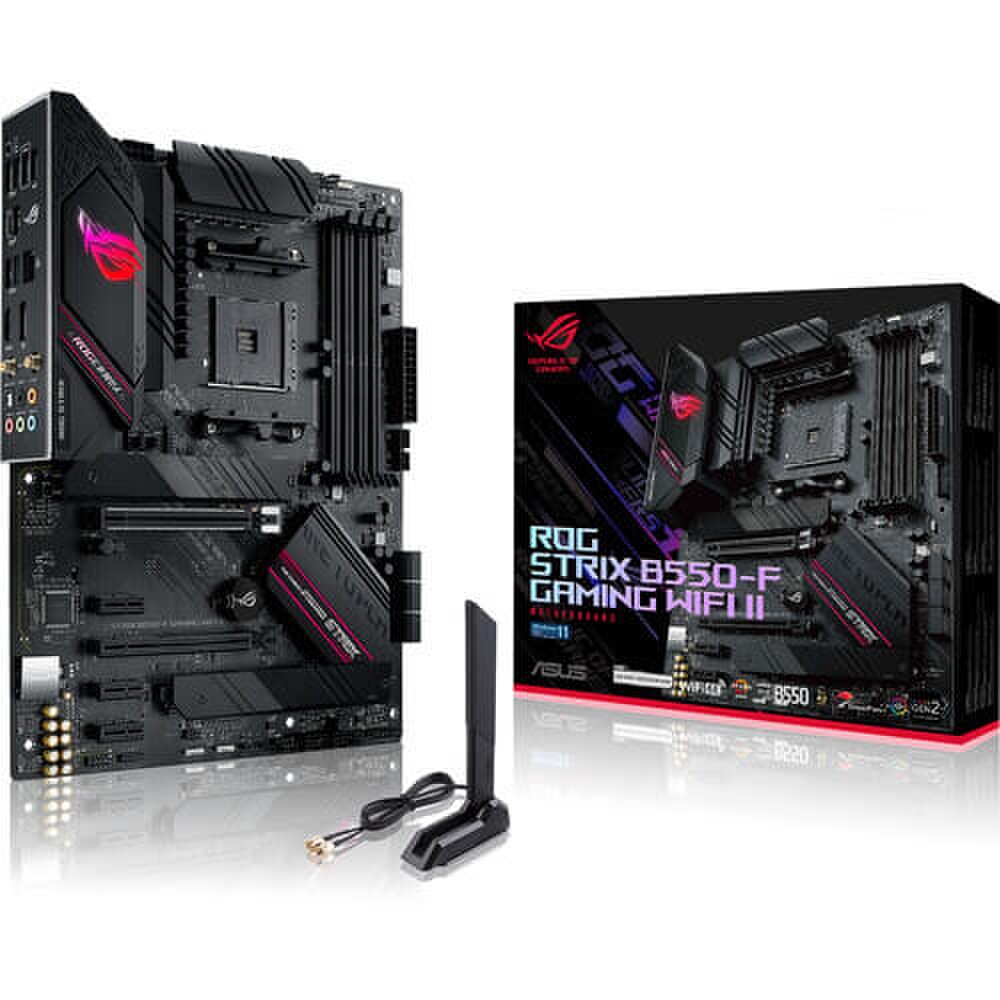

The ASUS ROG Strix B550-F Gaming WiFi II AM4 ATX Gaming Motherboard (ROGSTRIXB550FGAMINGWIFIII) is a high-performance motherboard intended for enthusiast gamers and PC builders. This feature-packed motherboard combines the latest AMD B550 chipset with ROG's gaming-focused design philosophy. It supports the latest AMD Ryzen processors with reliable power delivery, high-speed networking, and innovative cooling technologies. The ROG Strix B550-F Gaming WiFi II, with its elegant design, extensive RGB lighting management, and Wi-Fi 6 capabilities, is an ideal foundation for a powerful gaming rig or content creation workstation. The ASUS ROG Strix B550-F Gaming WiFi II AM4 ATX Gaming Motherboard is a superb choice for gamers and enthusiasts seeking to build a high-performance AMD-based system with cutting-edge features and dependable connectivity.
• AMD AM4 Socket is compatible with 3rd Gen AMD Ryzen processors for high-performance computing.
• PCIe 4.0 Ready supports the latest graphics cards and NVMe SSDs for lightning-fast data transfer.
• Wi-Fi 6 (802.11ax) delivers faster, more reliable wireless networking for lag-free online gaming.
• 2.5Gb Ethernet provides high-speed wired networking for demanding applications.
• SupremeFX Audio delivers high-fidelity sound with a 113dB SNR stereo playback output.
• Robust Power Design with 12+2 power stages with ProCool II power connector for stable power delivery.
• Comprehensive Cooling features multiple fan headers and water cooling support for optimal thermal management.
• Two M.2 Slots supports NVMe SSDs for ultra-fast storage solutions.
• USB 3.2 Gen 2 includes both Type-A and Type-C ports for versatile, high-speed connectivity.
• Aura Sync RGB Lighting with customizable RGB headers for personalized system aesthetics.
• AI Noise-Canceling Microphone ensures clear communication during gaming or streaming sessions.
• BIOS Flashback allows for easy BIOS updates without a CPU installed.
• Addressable Gen 2 RGB Header supports advanced RGB strips with individual LED control.
• Pre-mounted I/O Shield streamlines installation and enhances durability.
• Extensive Software Suite includes ROG-exclusive utilities for performance tuning and system monitoring.
| Manufacturer | ASUS |
| Manufacturer Part Number | ROGSTRIXB550FGAMINGWIFIII |
| Product Name | ASUS ROG Strix B550-F Gaming WiFi II AM4 ATX Gaming Motherboard |
| Product Type | Camera |
Chipset Type | AMD B550 |
Processor Socket | Socket AM4 |
Max Processors Qty | 1 |
Compatible Processors | Ryzen (supports Ryzen 3000 Series/ 4000 G-Series/ 5000 Series/ 5000 G-Series) |
Max Size | 128 GB |
Technology | DDR4 |
Bus Clock | 2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 3200 MHz, 3400 MHz (O.C.), 3466 MHz (O.C.), 3600 MHz (O.C.), 3733 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4266 MHz (O.C.), 4400 MHz (O.C.), 4600 MHz (O.C.), 4666 MHz (O.C.), 4800 MHz (O.C.), 4866 MHz (O.C.), 5100 MHz (O.C.) |
Supported RAM Integrity Check | ECC, non-ECC |
Registered or Buffered | Unbuffered |
Features | Dual channel memory architecture |
Type | HD Audio (8-channel) |
Audio Codec | SupremeFX (S1220A) |
Compliant Standards | High Definition Audio, DTS Sound Unbound |
Network Controller | Intel I255-V |
Network Interfaces | 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2 |
Expansion Slots | 1 x CPU ¦ 4 x DIMM 288-pin ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 3.0 x16 (x4 mode) ¦ 3 x PCIe 3.0 x1 |
Storage Interfaces | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ SATA-600 / PCIe 3.0 -connectors: 2 x M.2 |

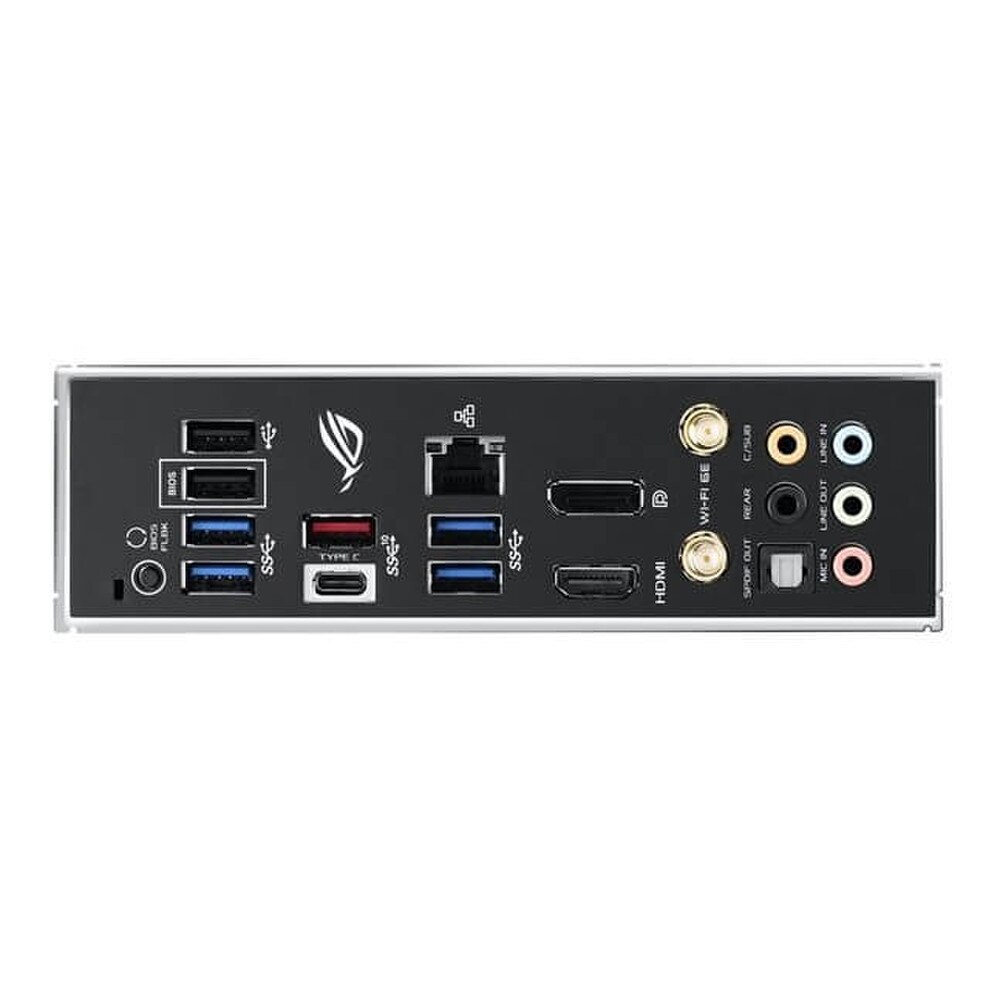

Interfaces | 1 x LAN (2.5Gigabit Ethernet) ¦ 4 x USB 3.2 Gen 1 ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x USB-C Gen2 ¦ 1 x USB 3.2 Gen 2 ¦ 1 x TOSLINK ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 2 x USB 2.0 ¦ 1 x DisplayPort ¦ 1 x HDMI |
Internal Interfaces | 4 x USB 2.0 - header ¦ 2 x USB 3.2 Gen 1 - header ¦ 1 x Thunderbolt - header ¦ 1 x audio - header |
Power Connectors | 4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector |
BIOS Type | AMI |
BIOS Features | BIOS FlashBack, UEFI BIOS |
Sleep / Wake Up | Wake on LAN (WOL), wake on PME |
Hardware Features | Preboot eXecution Environment (PXE), CrashFree BIOS 3, ASUS TurboV EVO, ASUS Fan Xpert 4, ASUS EPU (Energy Processing Unit), ASUS DIGI+ VRM, ASUS Aura Sync, Sonic Radar III, Sonic Studio III, GameFirst VI, ASUS SafeSlot, pre-mounted I/O shield, ASUS ProCool, M.2 heatsink, ASUS Q-Design, Q-DIMM, Q-LED, Q-Slot, jack retasking, audio jack detect technology, 12+2 Phase Power Design, SupremeFX Shielding technology, ASUS EZ DIY |

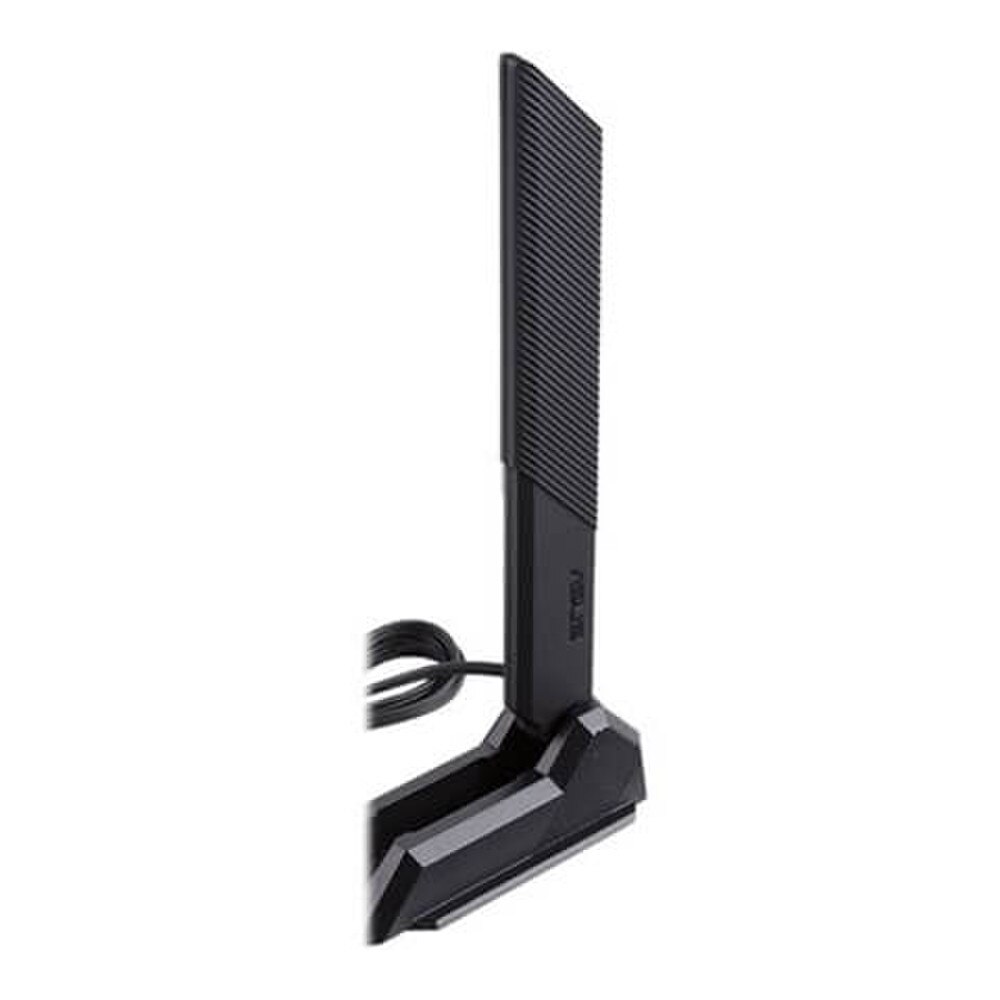

Included Accessories | External antenna, cable ties, 1 x M.2 screw, ROG fan stickers, ROG thank you card, rubber pad, RGB Addressable LED extension cable, ROG key chain |
Cables Included | 4 x Serial ATA cable |
Software Included | ASUS AI Suite III, WinRAR, DAEMON Tools, Norton AntiVirus (Trial), ASUS EZ Update, ASUS EZ Flash 3, AIDA64 Extreme (60 days trial), Overwolf, Antivirus, Sonic Studio Virtual Mixer, ROG CPU-Z, ASUS ROG RAMCache III |
Width | 12 in |
Depth | 9.6 in |
