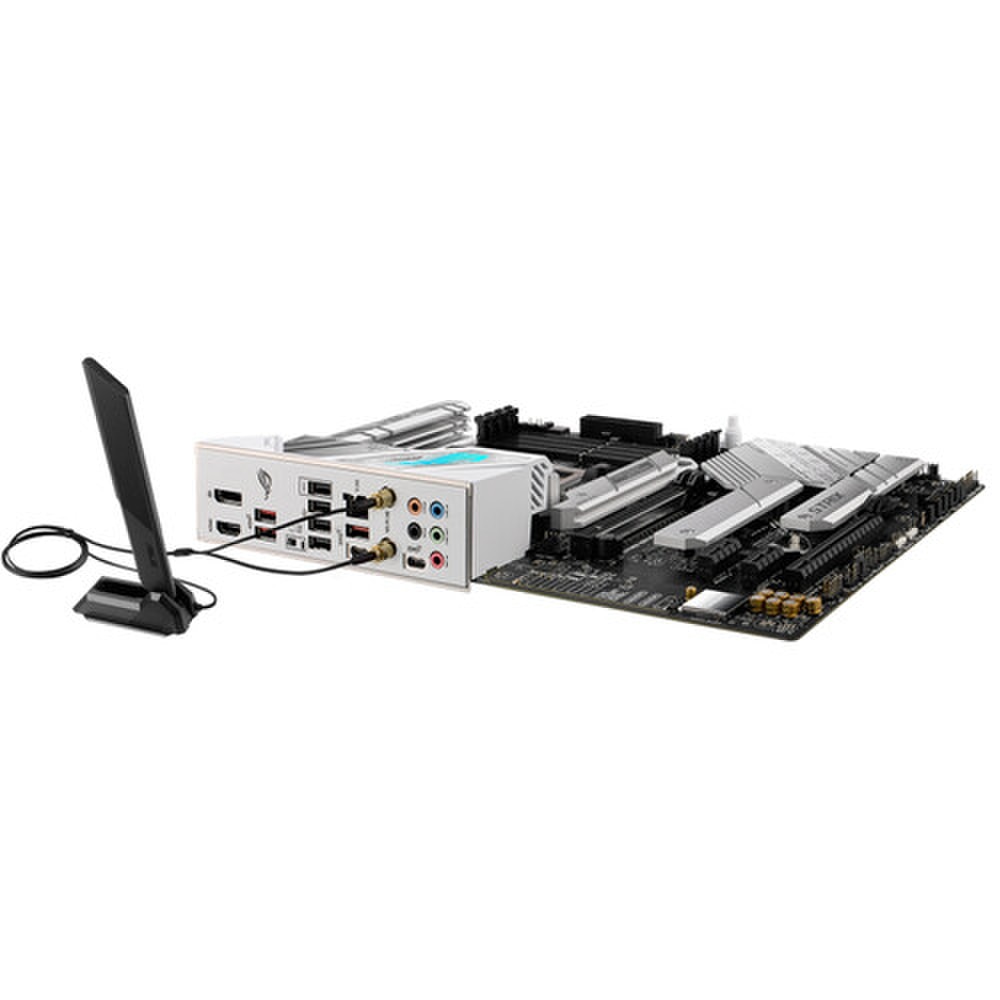

ASUS ROG STRIX B650-A GAMING WIFI AM5 ATX Motherboard | New

ASUS ROG STRIX B650-A GAMING WIFI AM5 ATX Motherboard | New

SKU: ROGSTRIXB650-AGAMINGWIFI-N
(0)No Reviews yet
Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns
$196.99 $196.99
Available Quantity:
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

Overview of ASUS ROG STRIX B650-A GAMING WIFI AM5 ATX Motherboard | New

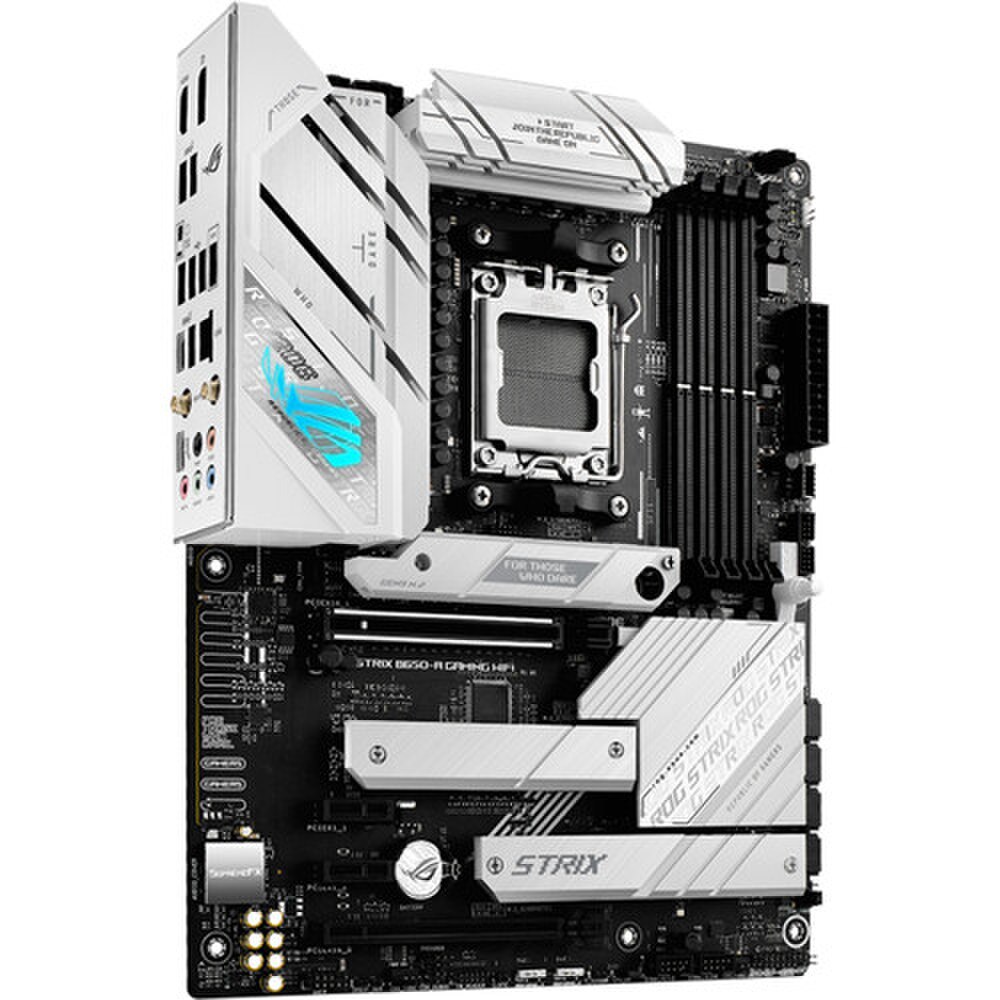

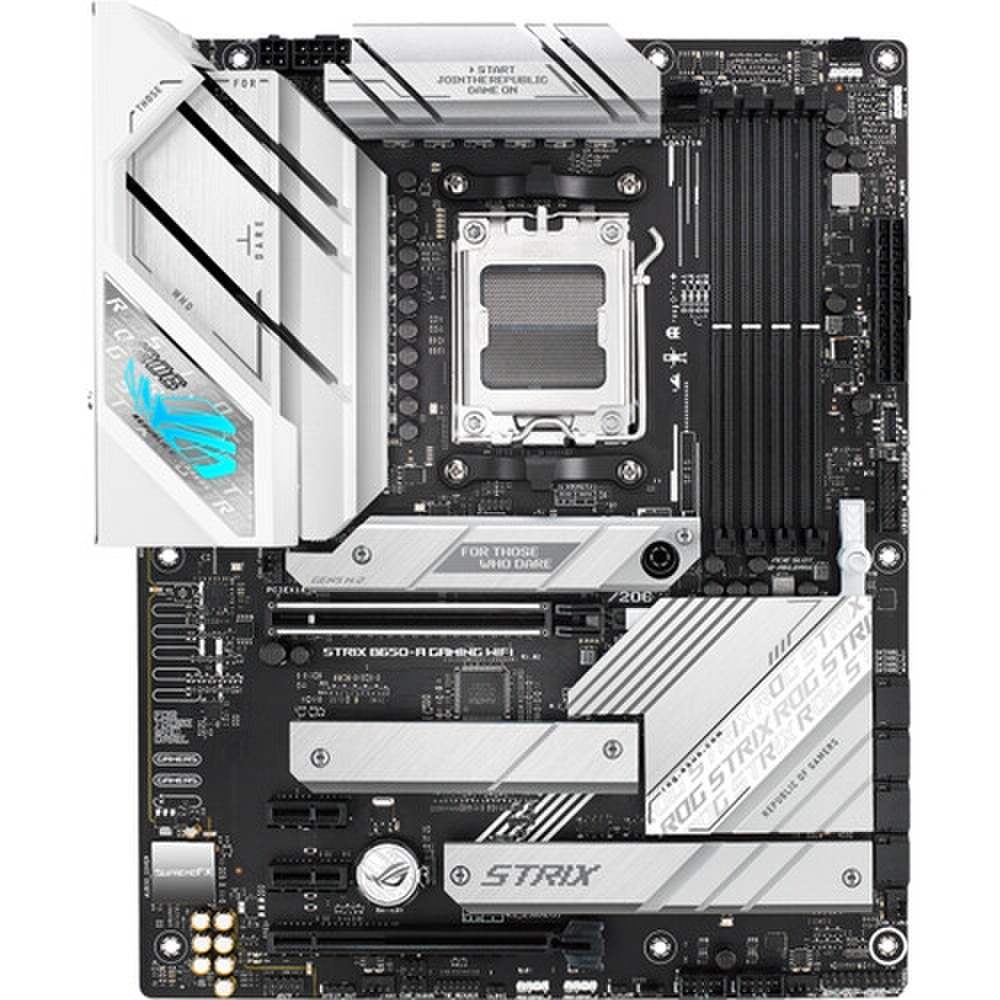

The ASUS ROG STRIX B650-A GAMING WIFI AM5 ATX Motherboard is a powerful platform designed for producers and gamers who require cutting-edge performance, strong connectivity and striking visuals. Based on the AMD B650 chipset, this ATX motherboard offers future-proof compatibility for high-performance gaming and productivity setups, supporting the most recent AMD Ryzen 7000, 8000 and 9000 Series processors with the AM5 socket. It is the focal point of any contemporary PC setup because to its eye-catching white and brushed metal design and adjustable RGB accents. Packed with state-of-the-art technologies, the ROG STRIX B650-A supports up to 192GB of ultra-fast DDR5 RAM (up to 7600+ OC), three M.2 slots, each with a dedicated heatsink for maximum thermal management, and PCIe 5.0 and 4.0 extension for the newest GPUs and NVMe SSDs. It guarantees steady overclocking and dependable performance under high loads because to its sturdy 12+2 stage power delivery and high-quality components. The board has several USB 3.2 Gen 2x2 and Gen 2 ports (USB-A and USB-C), Wi-Fi 6E, Intel 2.5GbE LAN, HDMI 2.1 and DisplayPort 1.4 outputs and SupremeFX audio for rich audio. A full accessory pack, Q-Release for GPUs and an easy-to-use BIOS complete this user-friendly, high-value package.


Key Features of ASUS ROG STRIX B650-A GAMING WIFI AM5 ATX Motherboard


• AM5 Socket & AMD B650 Chipset that supports Ryzen 7000/8000/9000 Series CPUs for next-gen performance and future-proofing.

• DDR5 Memory Support with 4 DIMM slots, up to 192GB, with speeds up to 7600+ MHz (OC) and AMD EXPO profiles for easy overclocking.

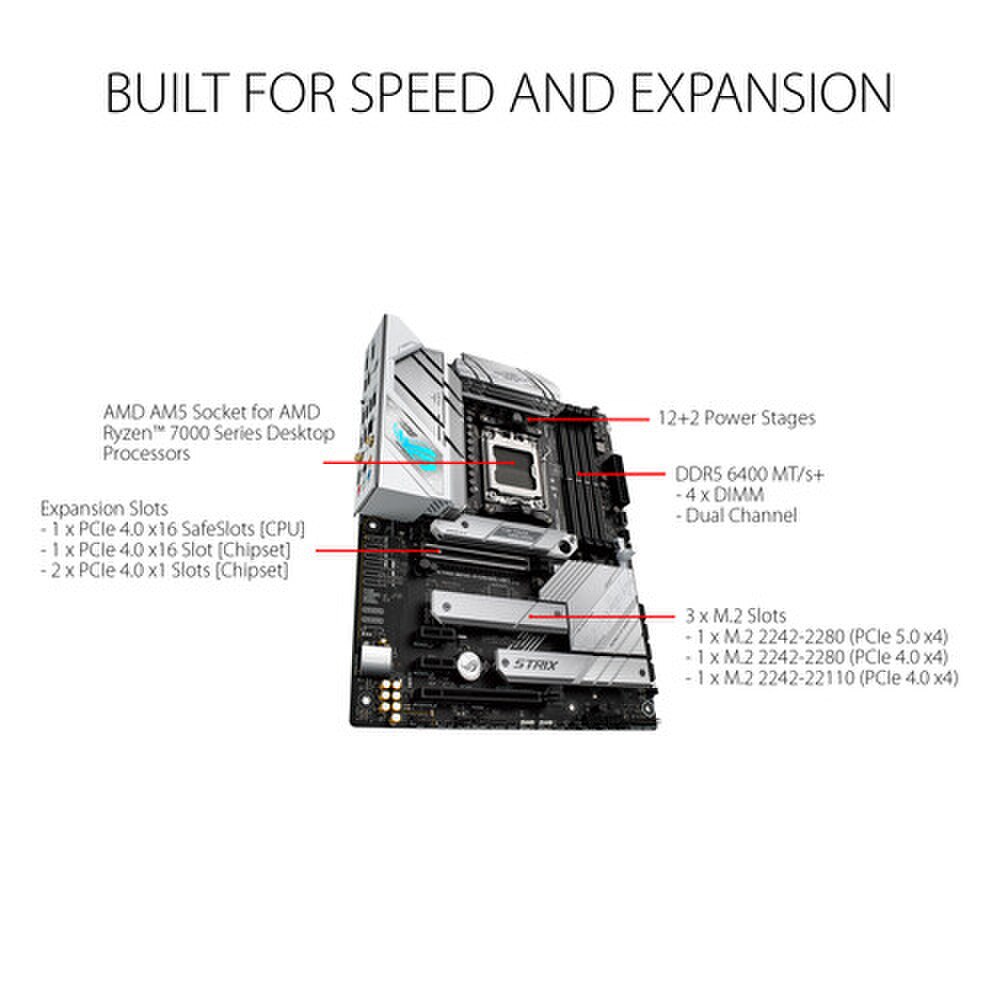

• PCIe 5.0 & 4.0 Expansion with one PCIe 4.0 x16 slot (CPU), two PCIe 3.0 x1 slots, and three M.2 slots (1x PCIe 5.0 x4, 2x PCIe 4.0 x4) for high-speed GPUs and storage.

• Advanced Networking with AMD Wi-Fi 6E and Intel 2.5GbE LAN for ultra-fast wireless and wired connectivity.

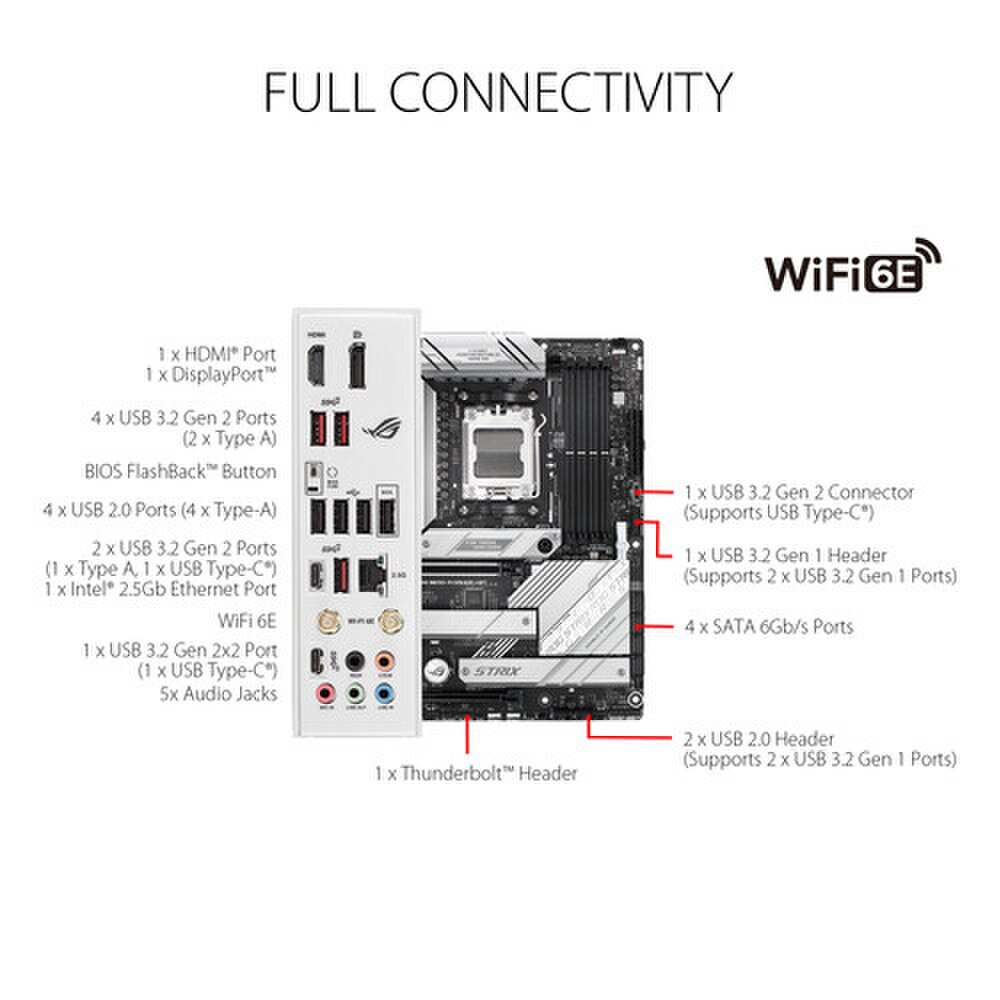

• Comprehensive I/O with multiple USB 3.2 Gen 2x2 (USB-C), USB 3.2 Gen 2 (USB-A & USB-C), HDMI 2.1, DisplayPort 1.4 and BIOS FlashBack.

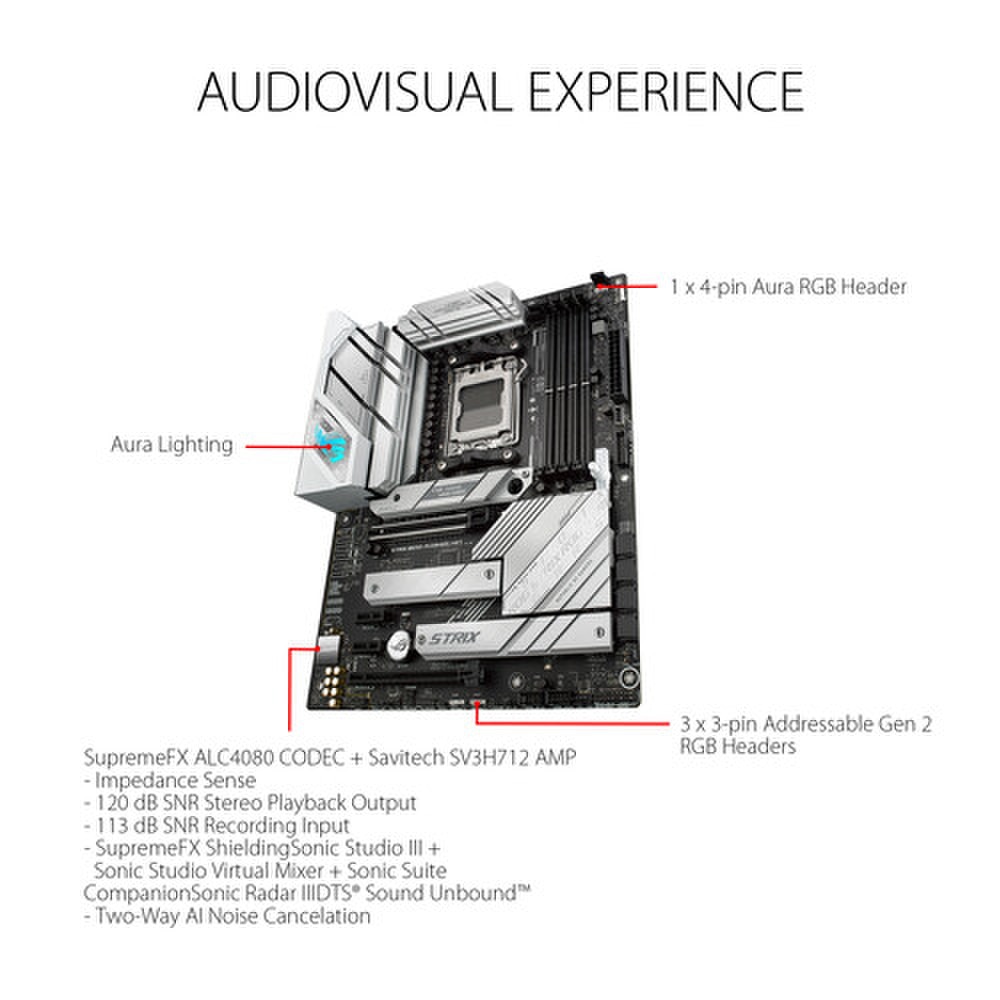

• Premium Audio with ROG SupremeFX Realtek ALC4080 codec and Savitech amp for crystal-clear, immersive sound.

• Robust Power Delivery with 12+2 stage VRM with high-quality power stages for stable overclocking and reliability.

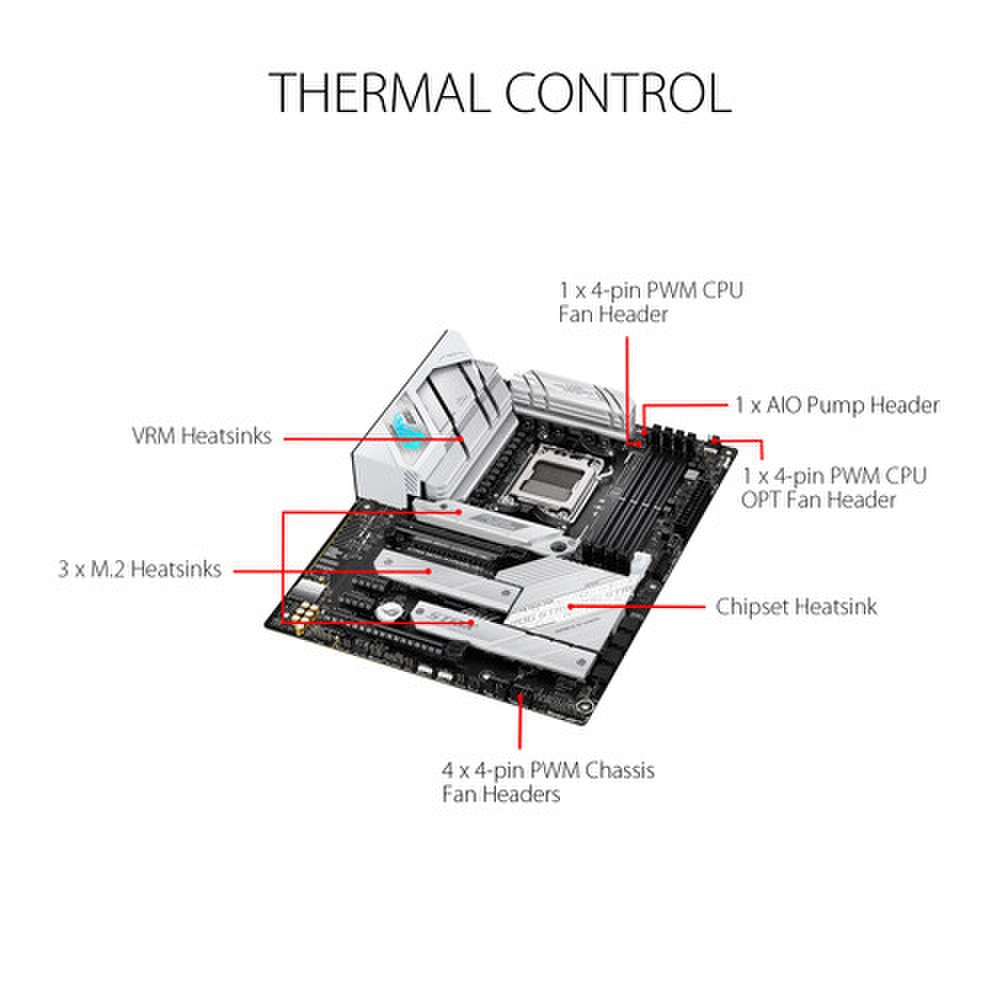

• Thermal Management with dedicated heatsinks for all M.2 slots and VRMs, plus multiple fan and AIO pump headers.

• Aesthetics & Customization with white brushed aluminum heatsinks, customizable RGB and retro-inspired design.

• User-Friendly Features with Q-Release for GPUs, easy BIOS interface, M.2 Q-Latch and extensive accessory kit.


Benefits of ASUS ROG STRIX B650-A GAMING WIFI AM5 ATX Motherboard


🗹 Leverage the latest AMD Ryzen CPUs and DDR5 RAM for lightning-fast gaming, streaming and content creation.

🗹 PCIe 5.0 and DDR5 support ensure compatibility with next-gen GPUs and memory, keeping your build relevant for years.

🗹 Three M.2 slots and multiple PCIe lanes let you add ultra-fast NVMe SSDs and high-end graphics cards with ease.

🗹 Wi-Fi 6E and 2.5GbE LAN deliver low-latency, high-speed networking for competitive gaming and seamless downloads.

🗹 SupremeFX audio technology provides studio-quality sound for gaming, music and media.

🗹 Advanced thermal solutions and robust power delivery maintain peak performance under heavy workloads.

🗹 Q-Release, M.2 Q-Latch, and intuitive BIOS make installation, upgrades and tuning simple—even for first-time builders.

🗹 White and brushed aluminum aesthetics with customizable RGB lighting ensure your PC looks as good as it performs.

🗹 Backed by ASUS’s renowned reliability, support, and a full suite of accessories for a seamless building experience.

Specifications

Specifications for ASUS ROG STRIX B650-A GAMING WIFI AM5 ATX Motherboard | New

ManufacturerASUS
Manufacturer Part NumberROG STRIX B650-A GAMING WIFI
Product NameASUS ROG STRIX B650-A GAMING WIFI AM5 ATX Motherboard
Product TypeMotherboard
Chipset Type
AMD B650
Processor Socket
Socket AM5
Max Processors Qty
1
Compatible Processors
Ryzen (supports Ryzen 7000 Series)
Max Size
128 GB
Technology
DDR5
Bus Clock
6400 MHz (O.C.), 6200 MHz (O.C.), 6000 MHz (O.C.), 5800 MHz (O.C.), 5600 MHz (O.C.), 5400 MHz (O.C.), 5200 MHz, 5000 MHz, 4800 MHz
Supported RAM Integrity Check
Non-ECC, ECC
Registered or Buffered
Unbuffered
Features
AMD EXPO technology, dual channel memory architecture
Type
High Definition Audio (7.1-channel)
Audio Codec
SupremeFX (ALC4080)
Compliant Standards
High Definition Audio, DTS Sound Unbound
Network Interfaces
2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.2
Expansion Slots
1 x CPU ¦ 1 x PCIe 4.0 x16 ¦ 1 x PCIe 4.0 x16 (x4 mode) ¦ 2 x PCIe 4.0 x1 ¦ 4 x DIMM 288-pin ¦ 1 x M.2 socket (PCIe 5.0 x4 mode) ¦ 1 x M.2 socket (PCIe 4.0 x4 mode) ¦ 1 x M.2 socket (auto turn-off if all PCI Express 4.0 x16 slot are occupied)
Storage Interfaces
SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 ¦ PCIe 5.0 -connectors: 1 x M.2 ¦ PCIe 4.0 -connectors: 2 x M.2

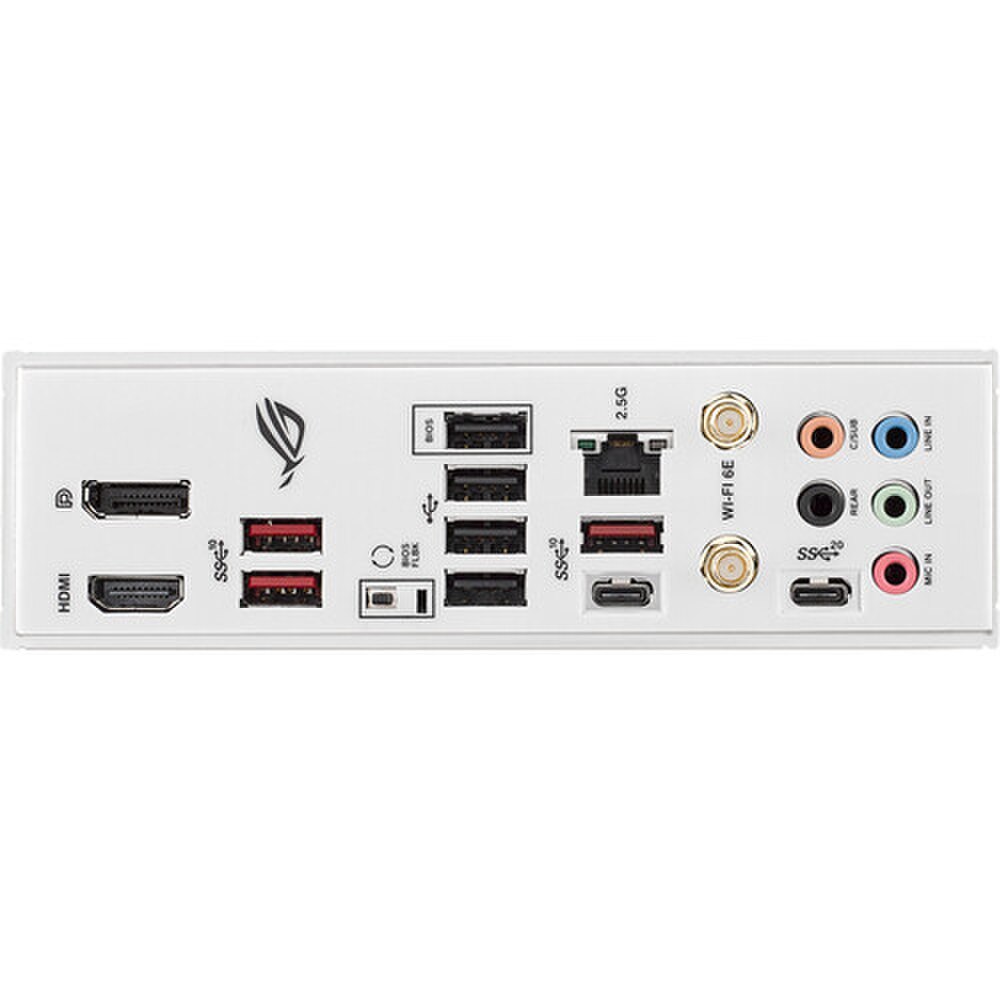

Interfaces
1 x LAN (2.5Gigabit Ethernet) ¦ 1 x audio line-in - mini-jack ¦ 1 x audio line-out - mini-jack ¦ 1 x microphone - mini-jack ¦ 1 x audio line-out (center/subwoofer) - mini-jack ¦ 1 x audio line-out (rear) - mini-jack ¦ 1 x DisplayPort ¦ 1 x HDMI ¦ 2 x antenna ¦ USB 2.0 ¦ 1 x USB-C 3.2 Gen2x2 ¦ 1 x USB-C 3.2 Gen 2 ¦ 3 x USB 3.2 Gen 2
Internal Interfaces
2 x USB 2.0 - header ¦ 1 x USB 3.2 Gen 1 - header ¦ 1 x audio - header ¦ 1 x Thunderbolt - header ¦ 1 x SPDIF out - header
Power Connectors
24-pin main power connector, 8-pin ATX12V connector, 4-pin ATX12V connector
BIOS Type
AMI
BIOS Features
UEFI BIOS
Sleep / Wake Up
Wake on LAN (WOL), wake on PME
Hardware Features
ASUS OptiMem II, Preboot eXecution Environment (PXE), Savitech SV3H712 amplifier, ASUS EZ DIY, FlexKey button, ASUS Extreme Engine Digi+, 5K Black Metallic Capacitors, M.2 Q-Latch, PCIe Slot Q-Release, Q-LED, Q-DIMM, Q-Slot, M.2 heatsink, VRM heatsink design, BIOS FlashBack button, BIOS FlashBack LED, ASUS ProCool, ASUS SafeSlot, ASUS SafeDIMM, ASUS Aura Sync, ASUS Fan Xpert 4, ASUS DIGI+ VRM, LANGuard, Water Pump Header, 12+2 Phase Power Design, pre-mounted I/O shield, audio jack detect technology, jack retasking, ASUS Q-Design
Included Accessories
M.2 Q-Latch, ASUS Wi-Fi moving antenna, cable ties, ROG key chain, STRIX stickers, ROG thank you card, 2 x M.2 rubber package, thermal pad for M.2 SSD
Cables Included
2 x Serial ATA cable
Software Included
AIDA64 Extreme (60 days trial), ASUS AURA Creator, Armoury Crate, ASUS AI Suite III, ASUS Turbo App, PC Cleaner, MyAsus, WinRAR, ASUS EZ Flash 3, ROG GameFirst VI, ROG CPU-Z, Sonic Studio III, Sonic Studio Virtual Mixer, Sonic Suite Companion, Sonic Radar III
Compliant Standards
DisplayPort 1.4
Width
12 in
Depth
9.6 in

User Guides

ASUS ROG STRIX B650-A GAMING WIFI AM5 ATX Motherboard Data Sheet

Frequently Asked Questions

ASUS ROG STRIX B650-A GAMING WIFI AM5 ATX Motherboard
Frequently Asked Questions (FAQ's)



What processors are compatible with the ASUS ROG STRIX B650-A GAMING WIFI motherboard?
  • The motherboard supports AMD Ryzen 7000 series processors using the AM5 socket.
    • Does the ASUS ROG STRIX B650-A support PCIe 5.0?
  • Yes, the motherboard supports PCIe 5.0, delivering enhanced data transfer speeds and bandwidth for GPUs, storage, and other components.
    • Can I use DDR4 RAM with this motherboard?
  • No, the ROG STRIX B650-A only supports DDR5 RAM for faster memory speeds and improved system performance.
    • Does the motherboard have built-in Wi-Fi?
  • Yes, the motherboard features Wi-Fi 6E for fast and reliable wireless internet connectivity, offering improved range and reduced latency.
    • How many M.2 slots are available on the motherboard?
  • The ASUS ROG STRIX B650-A includes three M.2 slots for ultra-fast storage options, allowing you to install multiple M.2 drives.
    • Is there support for RGB lighting?
  • Yes, the motherboard supports customizable RGB lighting with Aura Sync compatibility, allowing you to personalize the lighting effects on your build.
    • Does the motherboard have sufficient cooling options for high-performance components?
  • Yes, it features premium cooling solutions, including M.2 heatsinks, high-quality VRM heatsinks and capacitors, ensuring efficient thermal performance.
    • Can I install a 2nd GPU on this motherboard?
  • Yes, the motherboard includes dual PCIe 4.0 x16 slots, which can be used for multiple GPUs for added performance (depending on your power supply and case).
    • How many USB ports are available on the ROG STRIX B650-A?
  • The motherboard offers a variety of USB ports, including USB 3.2 Gen 2x2 Type-C, ensuring fast data transfer and peripheral connectivity.
    • Is the motherboard compatible with overclocking?
  • Yes, the ROG STRIX B650-A supports overclocking for both the CPU and RAM, allowing you to push your system for enhanced performance.
    • Does this motherboard support multiple monitors?
  • Yes, the motherboard features integrated graphics support for multi-monitor setups, depending on the CPU used.
    • Does the motherboard include a dedicated audio chipset?
  • Yes, the ROG STRIX B650-A is equipped with a premium audio codec, offering high-definition audio for immersive sound during gaming or media consumption.
    • What kind of cooling does the motherboard support for the CPU?
  • The motherboard features multiple fan headers and supports a variety of cooling solutions, including air and liquid cooling for optimal performance.
    • How do I update the BIOS on the ROG STRIX B650-A?
  • You can easily update the BIOS using the ASUS EZ Flash utility, which allows you to update the BIOS directly from a USB drive without booting into the operating system.
    • Can I use this motherboard for content creation?
  • Absolutely! The high-speed storage options, support for powerful Ryzen 7000 series processors and robust GPU and RAM options make it ideal for content creation tasks like video editing, 3D rendering and more.
    • Does the ASUS ROG STRIX B650-A support RAID configurations?
  • Yes, the motherboard supports RAID 0, RAID 1 and RAID 10 configurations for improved storage performance and data redundancy.
    • Can I use an AMD Ryzen 5000 series processor with this motherboard?
  • No, the ASUS ROG STRIX B650-A motherboard is designed for AMD Ryzen 7000 series processors using the AM5 socket. Ryzen 5000 series processors are compatible with AM4 motherboards.
    • How many SATA ports does the ASUS ROG STRIX B650-A offer for storage devices?
  • The motherboard includes four SATA 6Gb/s ports for connecting additional storage devices like HDDs or SATA SSDs.
    • Does the ASUS ROG STRIX B650-A support Bluetooth connectivity?
  • Yes, the motherboard supports Bluetooth 5.2 through an integrated Wi-Fi 6E card, allowing you to connect wireless peripherals such as mice, keyboards and headphones.
    • How does the ASUS ROG STRIX B650-A handle power delivery?
  • The motherboard features 8+2 DrMOS power stages for stable and efficient power delivery to the CPU and other components, ensuring optimal performance during gaming or heavy workloads.
