Overview

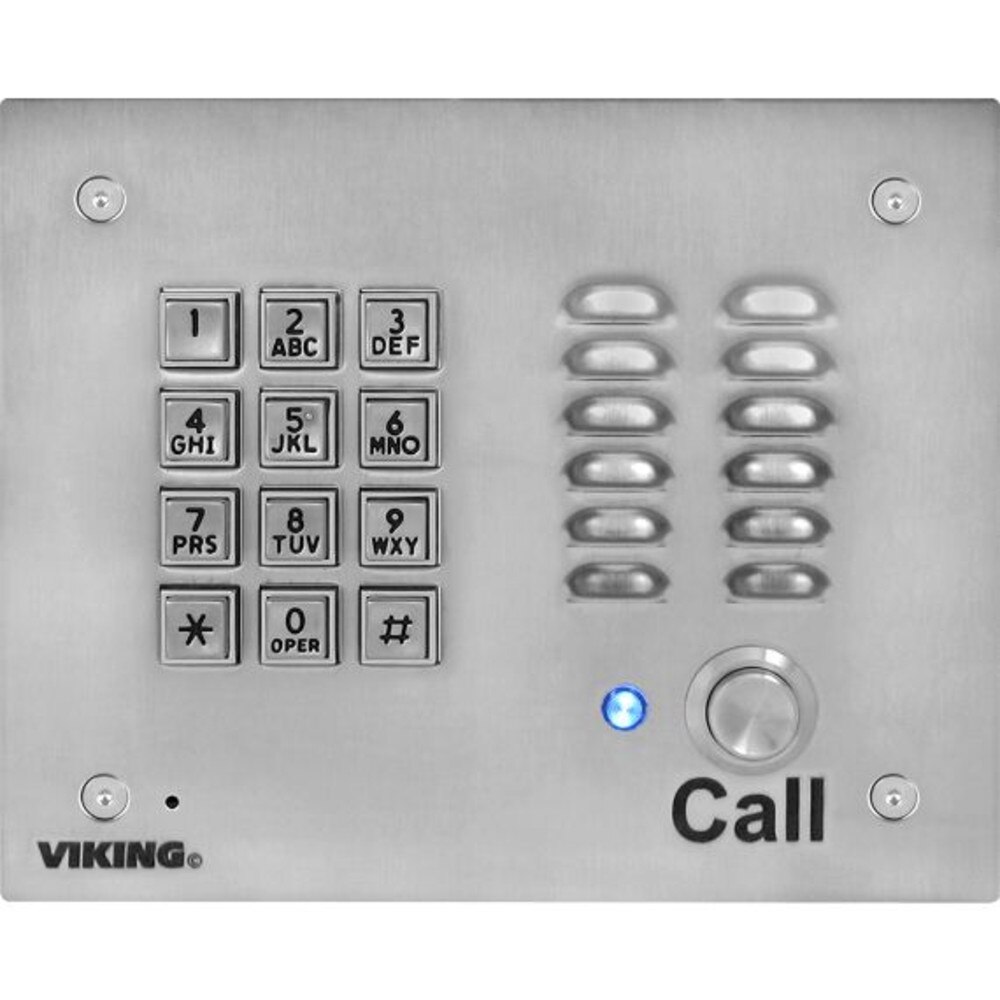

Stainless Steel Vandal Resistant Entry Phone with Keypad Flush Mount with the included Rough-In Box or Surface Mount with an Optional VE-6x7
Product Overview
The K-1700-3 Series entry phones provide a tough and attractive handsfree phone for apartment, and residential door entry or applications requiring a vandal resistant speaker phone. The K-1700-3 Series entry phones are available in two attractive finishes: “brushed stainless steel” and “oil rubbed bronze”. When the “Call” button is pressed, the K-1700-3returns dial tone. The keypad may then be used to dial any number. If no Touch Tone is entered within 8 seconds, CPC is detected, a busy signal is detected, or the programmable maximum call time has elapsed, the K-1700-3will automatically disconnect. Alternatively, the K-1700-3may be disconnected by pressing the “Call” button again. The K-1700-3comes complete with a standard, flush mount, rough-in box.
Features
- Vandal Resistant Features: 14 gauge louvered 316 stainless steel faceplate with permanent laser etched graphics, stainless steel “Call” button, heavy duty metal keypad and T-10 Torx security mounting screws, scratch resistant powder coating (model K-1700-BN)
- Weather Resistant Features: Marine grade 316 stainless steel faceplate, screws and push button switch. Switch internally sealed per IP67. Mylar speaker. Self-draining mic mount. Faceplate, mic and speaker gaskets. Weather resistant powder paint (K-1700-3-BN)
- K-1700-3-EWPis designed to meet IP66 Ingress Protection Rating (see DOD 859for more information)
- Available in 2 standard faceplate finishes: 316 brushed stainless steel or oil rubbed bronze
- Blue “in use” LED
- Telephone line powered
- Volume adjustments for microphone and speaker
- Advanced call progress detection: disconnects on busy signal, return to dial tone, CPC, reorder tone, maximum call time out and 40 second silence time out
- Selectable auto-answer feature for monitoring
- Selectable push button disconnect
- Zinc plated steel rough-in box with (2) 3/4” conduit knockouts
- Optional VE-6x7Surface Mount Box available
- Selectable VOX switching speed
Specifications
Power: Telephone line powered 20V DC/20mA minimum
Dimensions: Overall: 5.5” x 6.5” x 2.6” (140mm x 165mm x 66mm) , Rough-in box: 4.5” x 5.5” x 2.5” (114mm x 140mm x 64mm)
Shipping Weight: 3.5 lbs (1.6 kg)
Environmental: -30°F to 150°F (-34°C to 65°C)
Humidity - K-1700-3: 5% to 95% non-condensing
Humidity - K-1700-3-EWP: Up to 100% condensing
Speaker Volume: Approximately 70 db maximum @1m
CPC Disconnect Time: 500ms minimum
REN #: 0.5 A
Connections: Gel-filled tip and ring connectors
