Overview

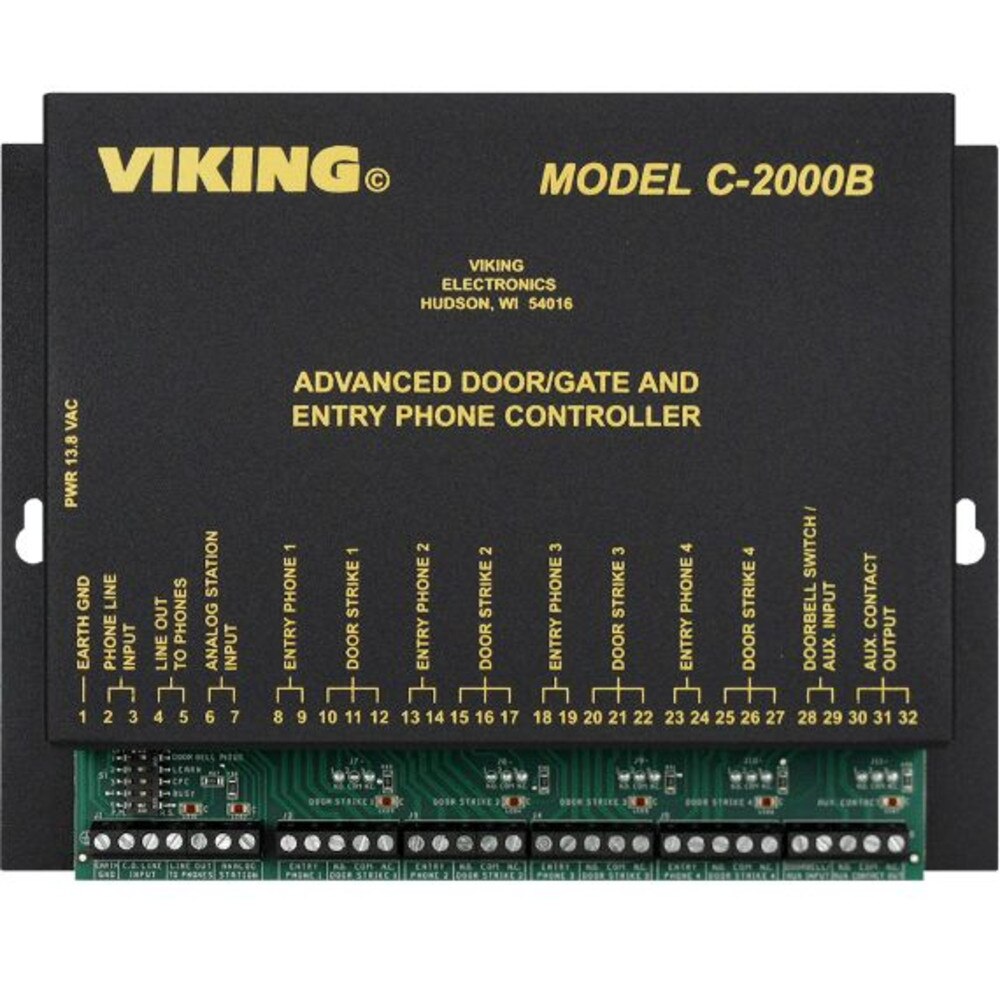

Advanced Door/Gate Entry Phone Controller
Product Overview
The C-2000B offers two operational modes for flexibility. In the Single Line Ring Through Mode, the C-2000B allows single line phones to share a phone line with 1 to 4 entry phones. Tenants may converse with visitors and activate a contact closure to control gates or strikes. The C-2000B provides entry phone “Caller ID” and “Call Waiting Caller ID” and a “Call Waiting” tone when the phone line is in use. Tenants can enter at each location by entering a keyless entry code. In the Analog Station Dial Through Mode, the C-2000B allows 1 to 4 entry phones to share one analog PABX extension or telephone line and place outgoing calls. When a remote party answers, they can converse with visitors and activate a contact closure to control gates or strikes. Monitoring entry phones, forcing door strike relays to operate or remote programming of the C-2000B can be accomplished by calling the analog PABX extension or telephone line connected. Authorized personnel can enter at each location by entering a keyless entry code. In either operational mode, the secure relay control of the C-2000B prevents the entry phone from dialing the activation code on the keypad of the entry phone or using a hand held touch tone dialer. An auxiliary input is available for connecting a lighted doorbell switch, a common garage door opener/receiver or an auxiliary keyless entry keypad.
Features
- Allows 1-4 entry phones to share a single telephone line with a residential or business telephone system
- Compatible with the following Viking entry phones: - E-10A, E-20B, E-30, E-32, E-35, E-40, E-50, E-60, E-65, E-70, and E-75 Phones - K-1500-7 Stainless Steel Panel Phone - K-1700-3 and K-1705-3 Phone with Keypad - K-1900-8 Stainless Steel Panel Phone with Keypad - Or use with any analog touch tone phone
- Provides entry phone activated chimes and whole house paging when used with an SLP-1 or SLP-4
- Up to 6 different keyless entry codes / “one time use” keyless entry codes per entrance
- Up to 6 master keyless entry codes for use at any entry
- Analog Station Dial Through Mode allows entry phones to connect to an analog PABX station, FXS port or telephone line
- Optional “Privacy Number” allows only selected visitors to call from an entry phone
- Provides “Caller ID” and “Call Waiting Caller ID”
- Produces “Call Waiting” tones
- Programmable entry phone Caller ID messages
- Lighted doorbell switch input to activate entry phone call
- One set of normally open and normally closed contacts available for each entry phone
- Programmable door strike activation code
- Programmable contact activation time
- Auxiliary input to activate timed auxiliary contacts
Specifications
Power: 120VAC / 13.8VAC 1.25A, UL listed adapter provided
Dimensions: 8.25" x 6.25" x 1.75" (210mm x 159mm x 45mm)
Shipping weight: 3.2 lbs. (1.5kg)
Environmental: 32°F to 90°F (0°C to 32°C) with 5% to 95% non-condensing humidity
Relay Contacts: 5A @ 30VDC/250VAC
Ring Output: 8 REN, capable of ringing (16) 0.5 REN phones
Talk Battery: 40V DC REN: 0.1A
Connections: (32) cage clamp screw terminals
