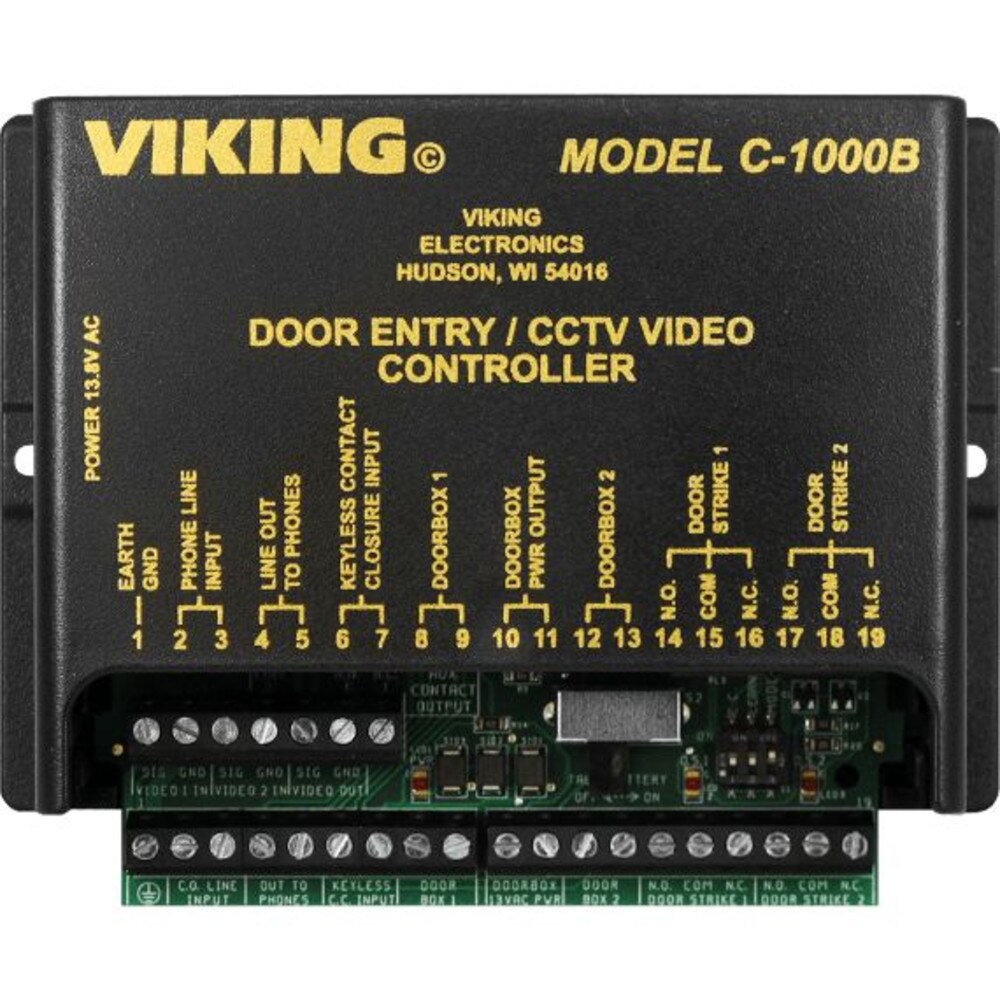

Viking Door Entry Controller (C-1000B) | New

Viking Door Entry Controller (C-1000B) | New

SKU: C-1000B-N
(0)No Reviews yet

Your Product Page
Same Day Shipping Before 4PM EST

$169.99 $169.99
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

Door Entry and CCTV Camera Controller

Product Overview

The C-1000B allows single line phones or phone systems to share a phone line with one or two Viking doorboxes or paging amplifiers. The C-1000B provides two Touch Tone controlled relays to operate door strikes or gate openers and provides doorbox triggered CCTV camera switching. The C-1000B allows Viking doorboxes and paging amplifiers to be used on single line, residential or home office applications as well as on fully loaded systems, because they are no longer limited to installation on unused trunk ports.

Features

  • Allows two Viking doorboxes or Viking paging amplifiers to share a single telephone line with a residential or business telephone system
  • Programmable door strike activation code
  • Doorbox triggered CCTV camera switching
  • Custom ringing mode allows you to distinguish doobox calls from C.O. calls
  • Compatible with up to two of the following Viking doorbox models: W-1000, W-2000A, or W-3000 Alternatively, the Analog PABX/KSU station mode allows compatibility with a single Viking handsfree phone (E-10A, E-20B, E-30, K-1700-3 or 1600A Series, etc.)
  • Compatible with Viking’s Single Line Paging Controller, Model SLP-1
  • Call waiting tones indicate which doorbox is calling and distinguish a doorbox call from a C.O. line call
  • Calls can be placed on hold when visitors call from the doorbox or when paging
  • Provides two Touch Tone controlled N.O. or N.C. dry contact closures (5 amp rating) for door strikes or gate openers
  • Keyless entry/postal lock input
  • Built-in talk battery for “No C.O. Line” applications
  • Auxiliary contact output for doorbells, lights, etc.

Specifications

Power: 120V AC/13.8V AC 1.25A, UL listed adapter provided

Dimensions: 5.25" x 4.1" x 1.75" (133mm x 104mm x 44mm)

Shipping Weight: 2 lb (0.9 kg)

Environmental: 32° F to 90° F (0° C to 32° C) with 5% to 95% non-condensing humidity

Door Strike Relay Contacts: 5A @ 30V DC/250V AC maximum

CCTV/Auxiliary Relay Contacts: .5A @ 125V AC, 1A @ 30V DC

Pulse Dialing Detection: 10 pps

Talk Battery: 28V DC

Maximum Doorbox Power Supply Length: 100 ft, 24 AWG wire

Connections: (1) 7 position terminal block and (1) 19 position terminal block
