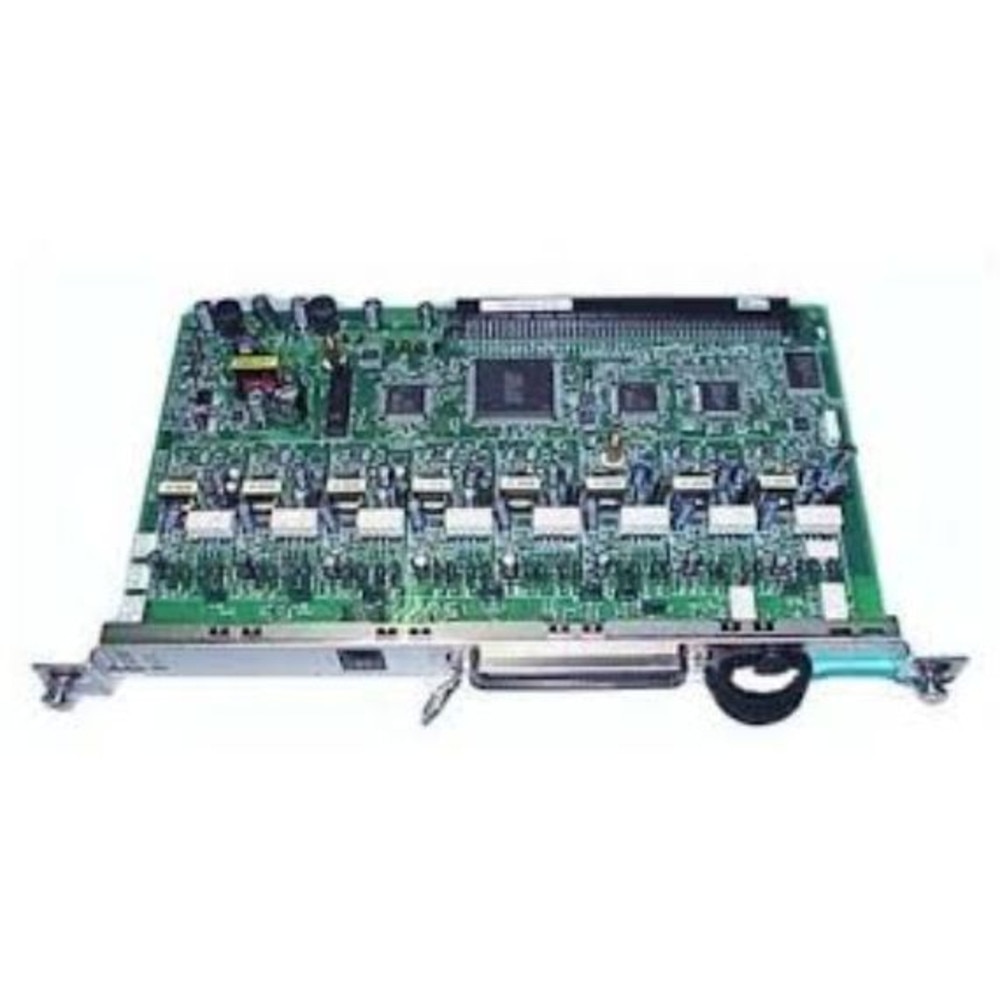

Panasonic KX-TDA0170 8-Port Digital Hybrid Extension Card | New
SKU: KX-TDA0170-N
Same Day Shipping - Arrives in 3-5 Business Days /returns-icon.jpg){kind=icon}
30-day Returns
Have one to sell? Click here to sell to us
Same Day Shipping - Arrives in 3-5 Business Days 30-day Returns Overview
Overview of Panasonic KX-TDA0170 8-Port Digital Hybrid Extension Card | New
- Compatible with KX-TDA100, KX-TDA200, KX-TDA600, KX-TDE100, KX-TDE 200, KX-TDE600 Panasonic Phone Systems
- 8 Port Extension Expansion Card may be used to connect
- Panasonic Digital Phones such as KX-DT300 Series, KX-T7600 Series, or KX-T7400 Series Phones, and DSS Consoles (DPT s)
- Single Line Telephones (SLT s)
- Panasonic Analog Proprietary Phones such as KX-T7700 Series(APT s)
- Connection for DECT Wireless Cell Stations such as the KX T0158, KX-T0155
- Connection for 2.4 GHz Wireless Cell Stations such as the KX-T0151
- Connection for Voicemail System (KX-TVA50 and KX TVA200)
- This card is most commonly used when a customer currently has KXT7700 Series Phones that they were using on a Panasonic Analog Telephone System and wants to upgrade to a Panasonic Digital Telephone System and reuse their phones.
- ports provide power failure transfer
- In order to use this card you must have 1 free slot in your Panasonic Telephone System
Specifications
Specifications for Panasonic KX-TDA0170 8-Port Digital Hybrid Extension Card | New
| Manufacturer | Panasonic |
| Brand | Panasonic |
| Item Dimensions LxWxH | 1 x 1 x 1 inches |
| Style | Classic |
| Item Weight | 1.2 pounds |
| Item model number | KX-TDA0170 |
User Guides
Frequently Asked Questions
Panasonic KX-TDA0170 8-Port Digital Hybrid Extension Card
Frequently Asked Questions (FAQ's)
What is the Panasonic KX-TDA0170 used for? It is used to add 8 digital/analog hybrid extension ports to a Panasonic KX-TDA series phone system.
Which phone systems are compatible with the KX-TDA0170? It is compatible with the Panasonic KX-TDA100, KX-TDA200, KX-TDA600, and KX-TDE phone systems.
How many extensions can the KX-TDA0170 support? It supports up to 8 digital/analog hybrid extensions.
Can the KX-TDA0170 card be used with both digital and analog phones? Yes, it supports both digital and analog telephones.
What is the maximum number of KX-TDA0170 cards that can be installed in a KX-TDA system? The maximum number varies depending on the phone system model, but typically, multiple cards can be installed depending on the system's capacity.
Does the KX-TDA0170 support Power over Ethernet (PoE)? No, it does not support PoE. Power is supplied through the phone system.
Is the KX-TDA0170 hot-swappable? No, the system must be powered down before installing or removing the card.
What type of telephones can be connected to the KX-TDA0170? You can connect Panasonic digital proprietary telephones, analog phones, or fax machines.
Does the KX-TDA0170 require any additional power supply? No, it does not require an external power supply; it draws power from the main phone system.
How do I install the KX-TDA0170 card? The card is installed in an available slot in the KX-TDA or KX-TDE phone system, following proper shutdown procedures.
Can the KX-TDA0170 be used in a VoIP environment? Yes, it can be used in a VoIP environment as part of a hybrid setup, connecting to digital or analog extensions while the system handles VoIP.
What is the difference between a digital extension and an analog extension? A digital extension supports digital proprietary features and phones, while an analog extension supports standard analog devices.
Is any programming required after installing the KX-TDA0170? Yes, the extensions may need to be configured in the system programming for proper operation.
Can the KX-TDA0170 card be used in a residential setup? While possible, it is primarily designed for business phone systems and may be overkill for a residential setup.
What happens if the KX-TDA0170 card fails? If the card fails, the extensions connected to it will be inoperable until the card is replaced or repaired.
How can I tell if the KX-TDA0170 is functioning correctly? The system diagnostics and LEDs on the card itself can indicate its status. You may also check through the system’s programming interface.
Can I mix and match digital and analog phones on the same KX-TDA0170 card? Yes, you can connect both digital and analog phones to the same card.
Does the KX-TDA0170 support Caller ID? Yes, it supports Caller ID on analog devices if the system is configured accordingly.
Can I connect a fax machine to the KX-TDA0170? Yes, analog ports on the KX-TDA0170 can be used to connect a fax machine.
