Grandstream GXP1782 IP phone 8 lines 4 SIP accounts | New

Grandstream GXP1782 IP phone 8 lines 4 SIP accounts | New

SKU: GXP1782-N
(0)No Reviews yet
Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns
$68.99 $68.99
Available Quantity:
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

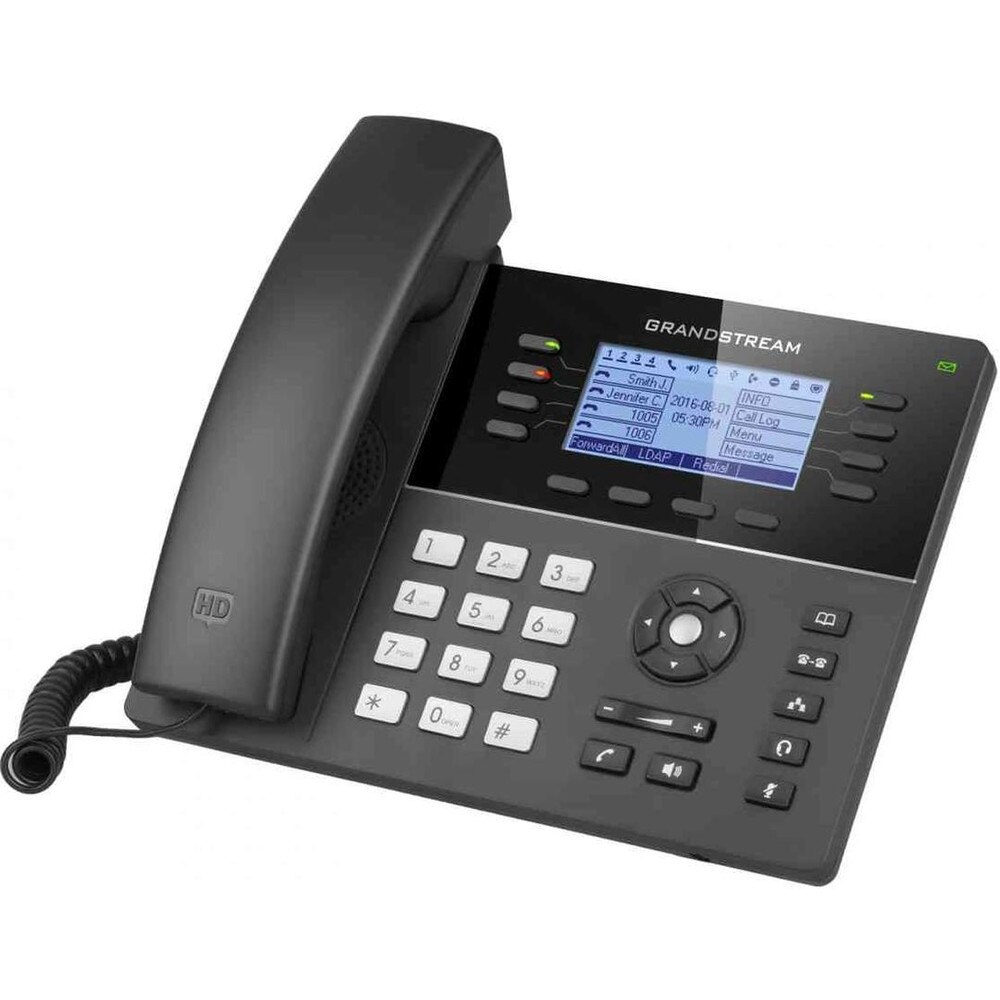

Grandstream GXP1782 IP Telephone


The GXP1782 is a powerful mid-range IP phone with advanced telephony features. This mid-range IP phone comes equipped with 8 lines, 4 SIP accounts, 8 dual-color line keys and 4 XML programmable context sensitive soft keys on a 200 x 80 pixel back-lit LCD display screen. For added personalization the GXP1782 features personalized ring tone/ring back tone music and integration with advanced web and enterprise applications as well as local weather services. It’s also one of the first Grandstream phones to come equipped with a Kensington Security Slot— one of the most popular anti-theft solutions on the market. The GXP1782 supports the fastest possible connection speeds with dual auto-sensing Gigabit network ports as well as automated provisioning features with media access control. The GXP1782 is the perfect fit for users looking for a featured-pack IP phone that delivers high-performance and design at an affordable price point.

Features

  • 8 lines, 8 dual-color line keys (with 4 SIP accounts), 4 XML programmable contextsensitive soft keys
  • 32 digitally programmable & customizable BLF/fastdial keys
  • HD wideband audio, fullduplex speakerphone with advanced acoustic echo cancellation
  • 5-way audio conferencing for easy conference calls
  • Dual-switched Gigabit ports, integrated PoE
  • Built-in USB port for importing and exporting data only
  • Supports headset use with a RJ9 headset jack and EHS support for EHS-capable Plantronics headsets
  • TLS and SRTP security encryption technology to protect calls & accounts and Kensington Security Slot support
  • Large phonebook capacity with up to 2,000 contacts and call history with up to 500 records
  • Use with Grandstream’s UCM series IP PBX appliance for Zero- Config provisioning, also supports automated provisioning using TR-069 or AES encrypted XML configuration file

Specifications

Protocols/Standards

SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS(A record, SRV, NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP,

TR-069, 802.1x, TLS, SRTP, IPV6

Network Interfaces

Dual switched Ethernet ports with integrated PoE. Auto-sensing 10/100Mbps

(GXP1780), 10/100/1000Mbps (GXP1782)

Graphic Display

200 x 80 pixel (3.3'') backlit LCD display

Bluetooth

No

Feature Keys

8 line keys with up to 4 SIP accounts, 4 XML programmable context sensitive softkeys, 5 navigation/menu keys, 8 dedicated function keys for:

PHONEBOOK, TRANSFER, CONFERENCE, HEADSET, MUTE, SEND/REDIAL,

SPEAKERPHONE, VOLUME

Voice Codecs

Support for G.729A/B, G.711p/a-law, G.726, G.722 (wide-band), G.723, iLBC, OPUS, in-band and out-of-band DTMF (in audio, RFC2833, SIP INFO)

Auxiliary Ports

RJ9 headset jack (allowing EHS with Plantronics headsets), USB, and a separate EHS port reserved for external EHS adapter in the future.

Telephony Features

Hold, transfer, forward, 5-way conference, call park, call pickup, shared-call-appearance(SCA)/bridged-line-appearance(BLA), downloadable phonebook(XML, LDAP, up to 500 items), call waiting, call log(up to 500 records), XML customization of screen, off-hook auto dial, auto answer, click-to-dial, flexible dial plan, hot desking, personalized music ringtones and music on hold, server redundancy and fail-over

HD audio

Yes, HD handset and speakerphone with support for wideband audio

Base Stand

Yes, 2 angle positions available. Wall Mount stand sold separately.

QoS

Layer 2 QoS (802.1Q, 802.1P) and Layer 3 (ToS, DiffServ, MPLS) QoS

Security

User and administrator level passwords, MD5 and MD5-sess based authentication, 256-bit AES encrypted configuration file, SRTP, TLS, 802.1x media access control, Kensington Security Slot (Kensington Lock) support

Multi-language

English, German, Italian, French, Spanish, Portuguese, Russian, Croatian, Chinese, Korean, Japanese

Upgrade/Provisioning

Firmware upgrade via TFTP / HTTP / HTTPS, mass provisioning using TR-069 or AES encrypted XML configuration file.

Power & Green Energy Efficiency

Universal power adapter included: Input:100-240V; Output: +5V, 1A;

Integrated Power-over-Ethernet (802.3af)

Max power consumption: 5W

Physical

Dimension: 231mm(W) x 167mm(L) x 86mm(H); Unit weight:0.925kg ; Package

weight:1.55kg

Temperature and Humidity

Operation: 0°C to 40°C

Storage: -10°C to 60°C

Humidity: 10% to 90% Non-condensing

Package Content

GXP1782/GXP1780 phone, handset with cord, base stand, universal power supply, network cable, Quick Installation Guide, GPL license

Compliance

FCC: Part 15 (CFR 47) Class B

CE: EN55022 Class B; EN55024 Class B;EN61000-3-2; EN61000-3-3;EN60950-1 RCM: AS/ACIF S004; AS/NZS CISPR22/24; AS/NZS 60950.1

Frequently Asked Questions

Grandstream GXP1782 IP phone 8 lines 4 SIP accounts

Frequently Asked Questions (FAQ's)



How many SIP accounts can I configure on the Grandstream GXP1782?
  • The GXP1782 supports up to 4 SIP accounts.
    • Can I use the Grandstream GXP1782 with any VoIP service provider?
  • Yes, the GXP1782 is compatible with most SIP-based VoIP providers, but compatibility may vary depending on the provider’s configuration.
    • What is the maximum number of concurrent calls the Grandstream GXP1782 can handle?
  • The GXP1782 can handle up to 4 concurrent calls, one for each SIP account.
    • Does the Grandstream GXP1782 support HD voice?
  • Yes, the GXP1782 supports HD voice (wideband audio) for superior call quality.
    • Can I use the Grandstream GXP1782 with a headset?
  • Yes, the GXP1782 supports both wired and Bluetooth headsets, with dedicated headset and Bluetooth buttons.
    • What type of display does the Grandstream GXP1782 have?
  • The GXP1782 features a 2.8-inch color LCD display with a resolution of 320x240 pixels.
    • Does the Grandstream GXP1782 support PoE (Power over Ethernet)?
  • Yes, the GXP1782 supports PoE (IEEE 802.3af), allowing it to be powered via an Ethernet cable.
    • How many lines can be displayed on the screen at once on the GXP1782?
  • The GXP1782 can display 8 lines on its screen, allowing you to manage multiple calls easily.
    • Can I customize the ringtone on the Grandstream GXP1782?
  • Yes, the ringtone can be customized through the phone’s settings menu.
    • Can I add additional extensions to the Grandstream GXP1782?
  • Yes, you can configure multiple extensions for each SIP account on the phone.
    • Does the Grandstream GXP1782 support call transfer?
  • Yes, the GXP1782 supports both blind and attended call transfers.
    • Can the Grandstream GXP1782 handle call forwarding?
  • Yes, call forwarding can be set up on the GXP1782, either to another number or voicemail.
    • Is the Grandstream GXP1782 compatible with video calls?
  • No, the GXP1782 is a voice-only phone and does not support video calling.
    • How do I update the firmware on the Grandstream GXP1782?
  • Firmware updates can be done manually via a USB drive or automatically via the web interface, depending on your setup.
    • Can I set up a voicemail on the Grandstream GXP1782?
  • Yes, voicemail can be set up through your VoIP provider, and voicemail messages can be retrieved directly from the phone.
    • Does the Grandstream GXP1782 support speed dial?
  • Yes, speed dial is supported and can be configured for quick dialing of frequently called numbers.
    • Can I adjust the screen brightness on the Grandstream GXP1782?
  • Yes, the screen brightness can be adjusted via the phone’s settings menu.
    • How does the Grandstream GXP1782 handle call waiting?
  • The GXP1782 supports call waiting, and you can switch between calls using the call management buttons.
    • Can I use the Grandstream GXP1782 for intercom calls?
  • Yes, the phone supports intercom features, allowing communication between devices on the same network.
    • Is the Grandstream GXP1782 compatible with third-party SIP applications?
  • Yes, the GXP1782 supports third-party SIP applications as long as they comply with SIP standards.
