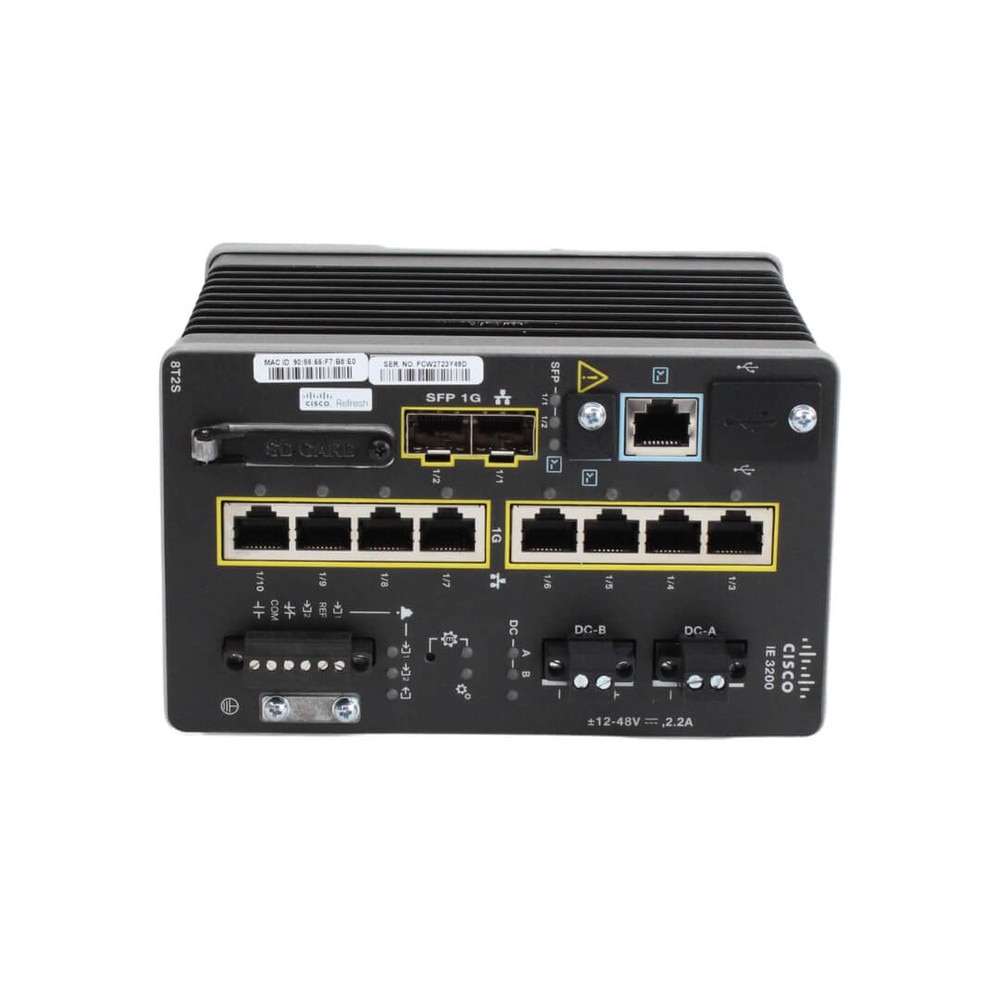

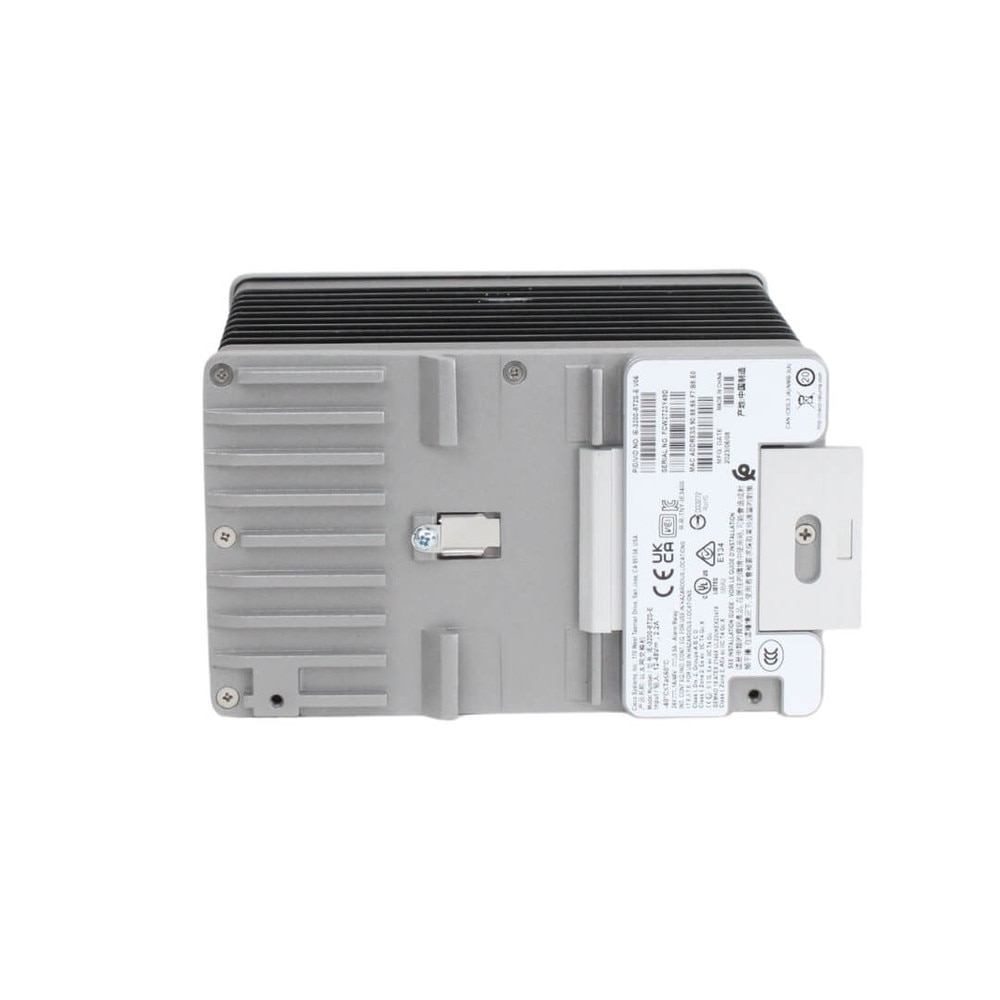

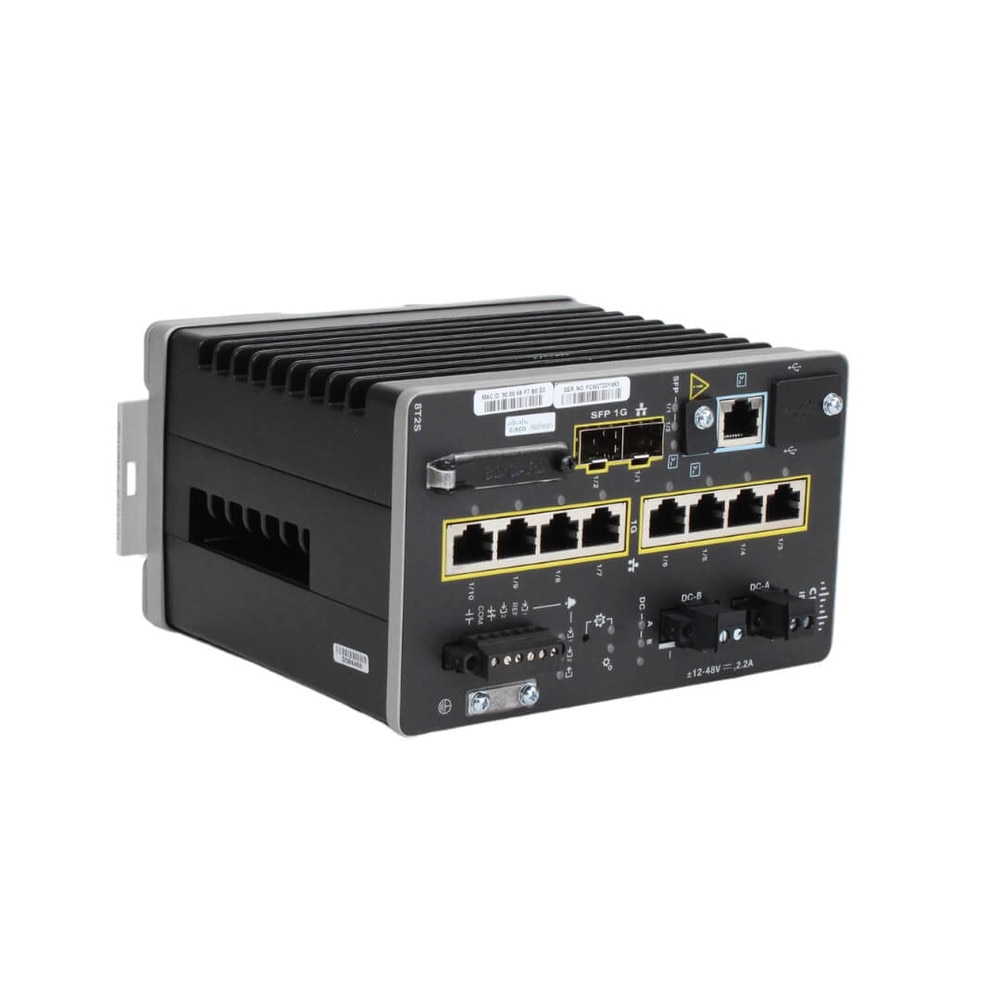

The Cisco IE-3200-8T2S-E Catalyst Industrial Ethernet Network Essentials Switch is a tough and dependable networking solution built for severe industrial environments. This controlled switch is part of the Cisco IE 3200 Series and provides high-speed Gigabit Ethernet connection in a small form factor. It is suited for industries such as industry, energy, transportation, and outdoor installations where dependability and ease of use are critical. The IE-3200-8T2S-E, which supports Gigabit Ethernet and two SFP uplink ports, provides reliable connectivity for industrial devices. It runs on Cisco IOS XE, which provides additional security and management capabilities via tools such as Cisco DNA Center.
• 8 copper Gigabit Ethernet ports and 2 Gigabit Ethernet SFP uplink ports
• DIN rail mountable with an extended operating temperature range (-40°C to +70°C) and IP30 protection rating
• Optimized for size, weight, and power, making it easy to integrate into space-constrained installations
• Includes VLAN support, IGMP snooping, and Spanning-Tree Protocol (STP) for efficient network management
• Robust access control lists, IEEE 802.1X authentication, and SSH/SSL encryption for enhanced security
• Supports redundant voltage feeds for increased reliability
• Compliant with various industrial standards, including EtherNet/IP (CIP)
• Line-rate forwarding for all ports and packet sizes
• Supports up to 8K unicast MAC addresses, 1K IGMP multicast groups, and 256 VLANs
• Can be managed with Cisco DNA Center and Industrial Network Director, and features a user-friendly WebUI for easy setup and monitoring
• Runs on Cisco IOS XE with secure boot, image signing, and a Cisco Trust Anchor module
• Offers API-driven configuration with open APIs and data models
• Supports up to 8996 bytes for efficient data transfer
• Ideal for space-constrained industrial environments
• Supports a wide range of input voltages for flexibility
| Manufacturer | Cisco |
| Manufacturer Part Number | IE-3200-8T2S-E-RF |
| Product Name | Cisco IE-3200-8T2S-E Catalyst Industrial Ethernet Network Essentials Switch |
| Product Type | Switch |
| Enclosure Type | DIN rail mountable |
| Subtype | Gigabit Ethernet |
| Ports | 8 x 10/100/1000 + 2 x Gigabit SFP |
| Capacity | SPAN sessions: 256 ¦ IGMP groups: 1000 ¦ STP instances: 128 |
| MAC Address Table Size | 8K entries |
| Routing Protocol | IGMPv2, IGMP, IGMPv3, MSTP, RSTP, STP |
| Remote Management Protocol | SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, HTTP, TFTP, SSH, SCP, NTP |
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+ |
| Features | DHCP support, BOOTP support, ARP support, IGMP snooping, Syslog support, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, STP support, DHCP snooping, ACL support, QoS, RADIUS support, DHCP server, DAI, PVST+, UDLD, IPv4 support, fanless, LACP support, LLDP support, DHCP relay, Port Security, RSPAN, MIB, 802.1x authentication, PTP, IGMP filtering, IP source guard, REP, SmartPort technology, ICMP, CIP Sync (IEEE 1588), IGMP querier, Voice VLAN, Guest VLAN, UDP, VTP v.3, BPDU Guard, Dying Gasp, VTP v.2 |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP), IEEE 1588v2 |
| RAM | 2 GB |
| Flash Memory | 1.5 GB |
| Built-in Devices | SD card reader |
| Interfaces | 8 x 1000Base-T RJ-45 ¦ 2 x 1000Base-X SFP ¦ 1 x serial (RS-232) RJ-45 ¦ 1 x mini-USB Type B |
| Expansion Slots | 1 (total) / 1 (free) x SD Memory Card |
| Power Device | Internal power supply |
| Power Redundancy | Yes |
| Voltage Required | DC 9.6 - 60 V |
| Electric Current Required | 3.2 A |
| Power Consumption Operational | 33 Watt |
| MTBF | 641,150 hours |
| Compliant Standards | EN55024, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, ICES-003 Class A, EN 61000-4-5, EN 61000-6-2, EN 61000-4-8, IEC 60950-1, EN 61000-6-4, IEC 60068-2-30, IEC 60068-2-27, EN 61326-1, EN 61000-4-16, EN 61000-4-29, IEC 60068-2-14, IEC 60068-2-78, EN 50121-4, VCCI Class A, CISPR 11 class A, EN 61000-4-10, EN 61000-4-18, IEC 61850-3, FCC CFR47 Part 15 B Class A, IEEE 1613, CNS 13438 Class A, EN 300 386, KN35, UL/CSA60950-1, AS/NZS CISPR 32 Class A, KN32 Class A, IEC 62368-1, IEEE 1588, EN 60068-2-52, EN 60068-2-60, EN 60079-15, CB 60950-1, IEC 60079-0, IEC 60079-15, EN 60079-0, EN 55032/CISPR 32 Class A, CISPR 35, EN 61000-4-17, UL 121201, UL/CSA/EN 62368-1, EN 61850-3, UL/CSA 61010-2-201, IEC/EN 61010-2-201, UL/CSA 60079-0, UL/CSA 60079-15 |
| Width | 3.6 in |
| Depth | 5.3 in |
| Height | 6 in |
| Weight | 3.75 lbs |
| Service & Support | Limited warranty - advance parts replacement - 5 years - response time: 10 days ¦ Technical support - 90 days |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 158 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 185 °F |
| Humidity Range Storage | 5 - 95% (non-condensing) |
