Cisco Meraki Dual-Band Patch Antenna 8/6.5 dBi (MA-ANT-25) | New

Cisco Meraki Dual-Band Patch Antenna 8/6.5 dBi (MA-ANT-25) | New

SKU: MA-ANT-25-N
(0)No Reviews yet
Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns
$69.99 $69.99
Available Quantity:
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

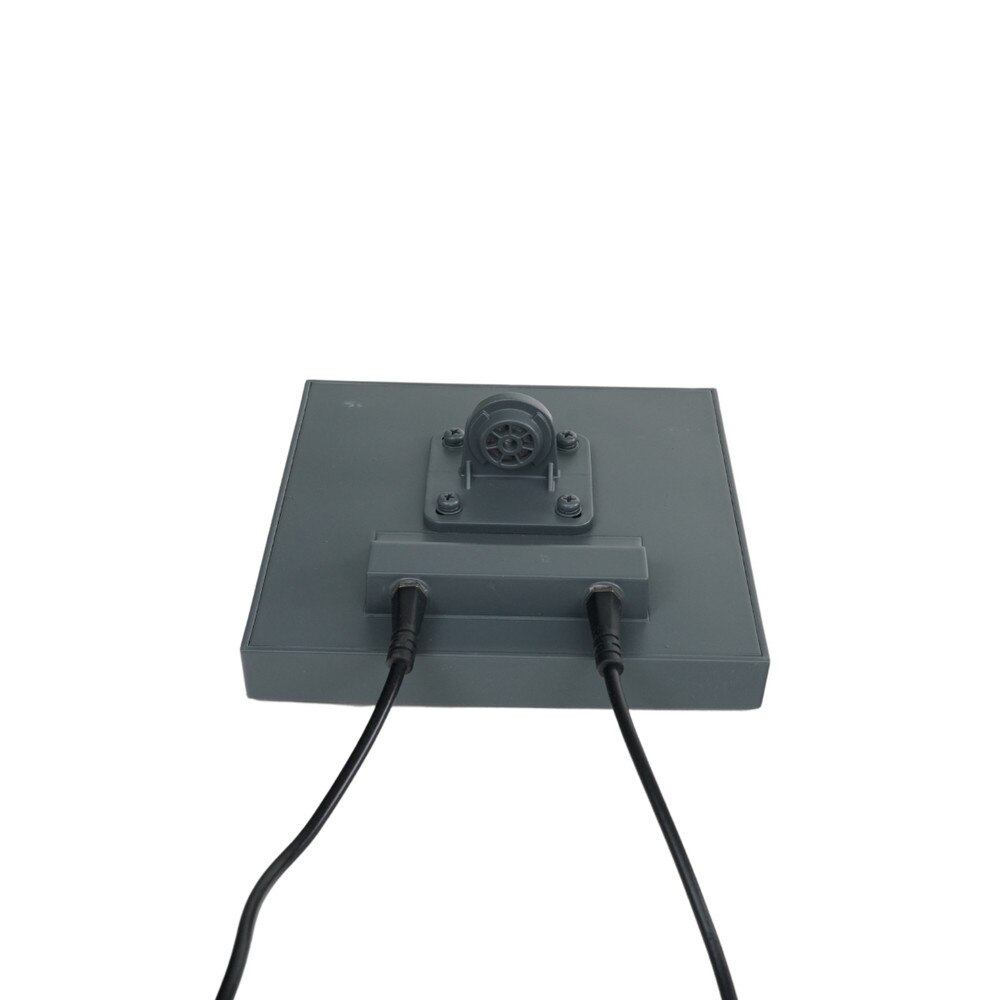

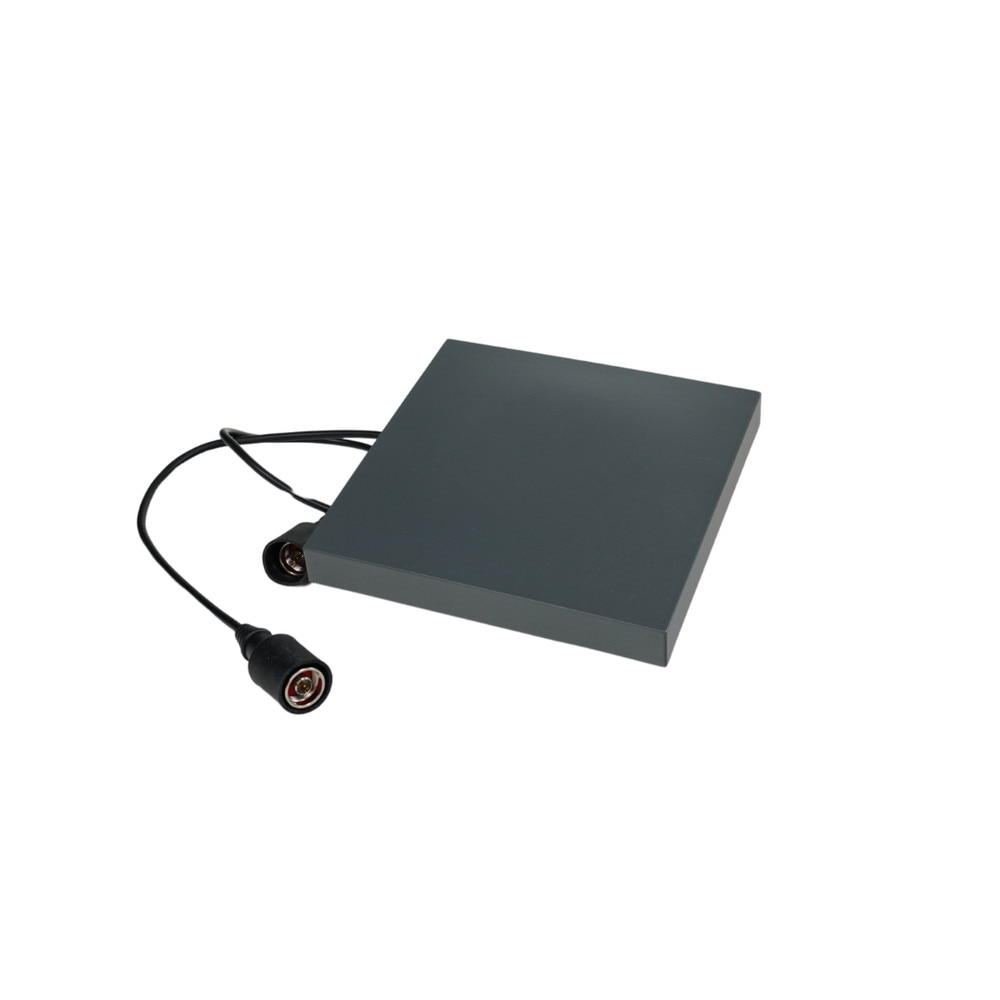

Cisco Dual–Band Patch Antenna (8/6.5 dBi Gain)


Designed for use with Cisco Meraki MR74 and MR84 APs. The patch antenna can extend the range of a Cisco Meraki MR74 or MR84 device by focusing the wireless signal in a specific direction; the best way to establish a medium distance point-to-point wireless link.

Specifications

Cisco Dual–Band Patch Antenna (8/6.5 dBi Gain)


Technical Specifications

Electrical

  • Antenna type: panel
  • Frequency range: 2.400 - 2.500 GHz, 5.150 – 5.850 GHz
  • Gain: 8 / 6.5 dBi
  • Polarization: vertical / horizontal
  • Half power bandwidth / horizontal: 70

Physical & Environmental

  • Dimensions: 7.1" x 7.1" x 1.6" (180 mm x 180 mm x 1.8 mm)
  • Weight: 1.1 lbs (512 g)
  • Material: UV resistant plastic
  • Temperature: -40 F to 158 F (-40 C to 70 C)
  • Connector: 2 x N-type

Mounting

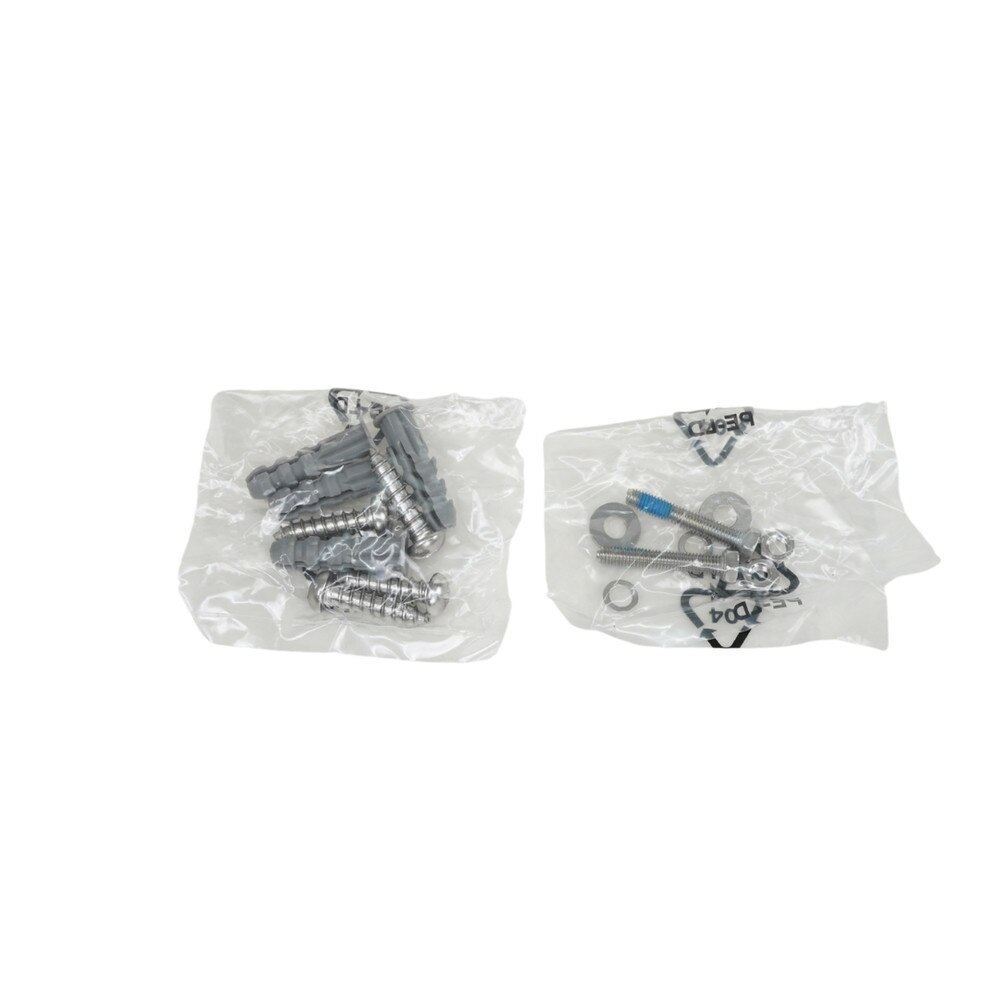

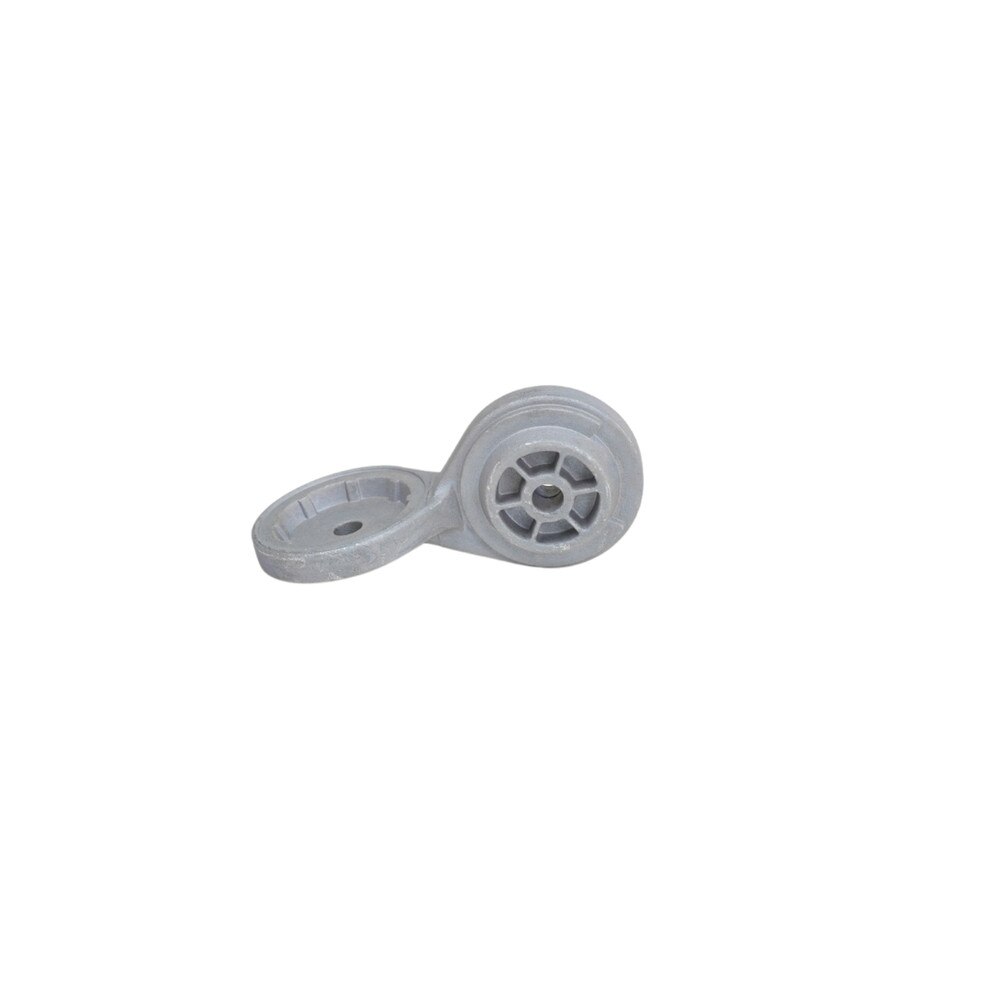

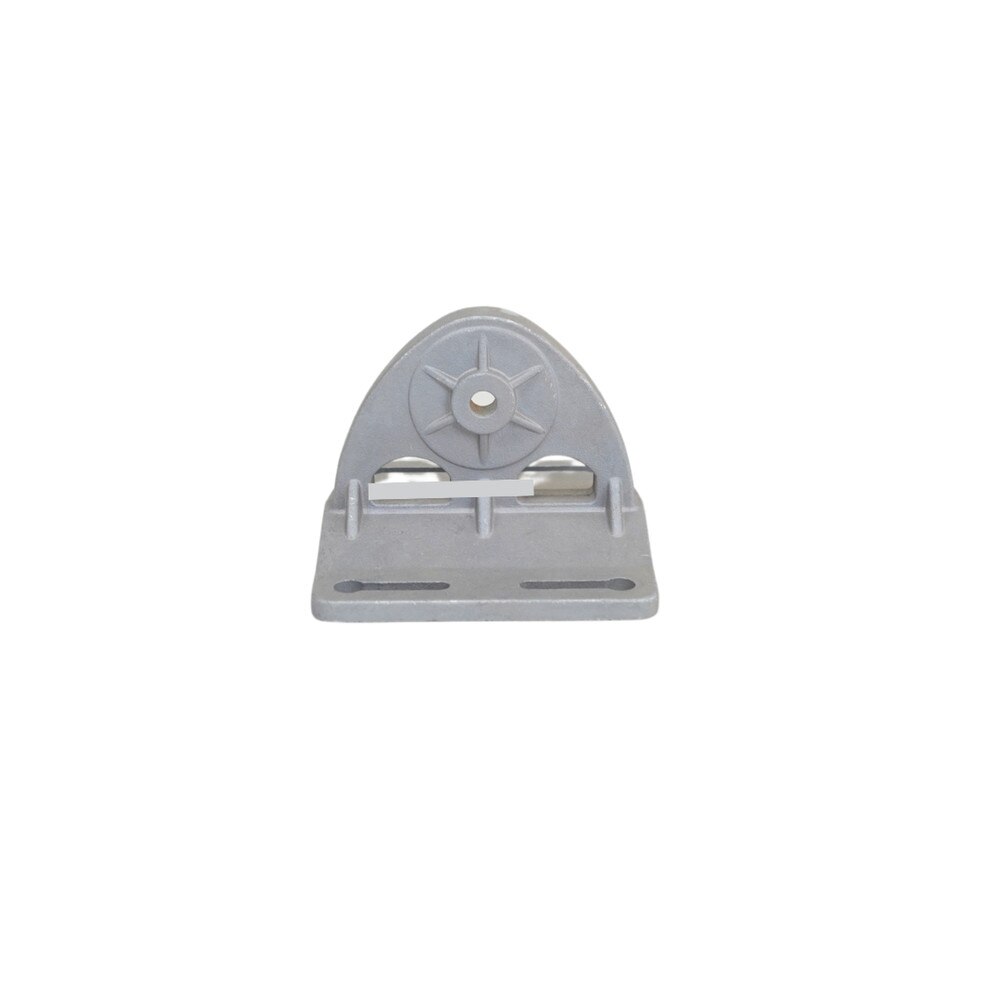

  • Mounting hardware included

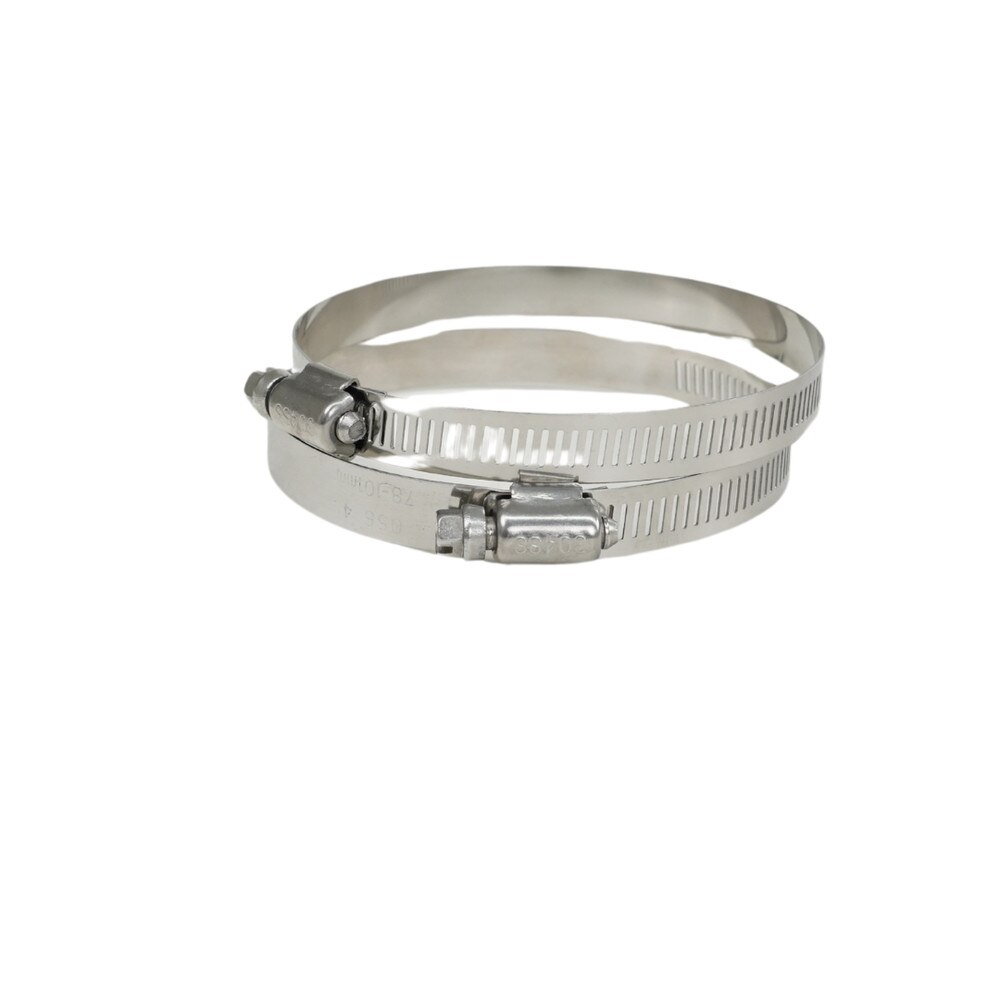

  • Mounts to walls or poles

Cables

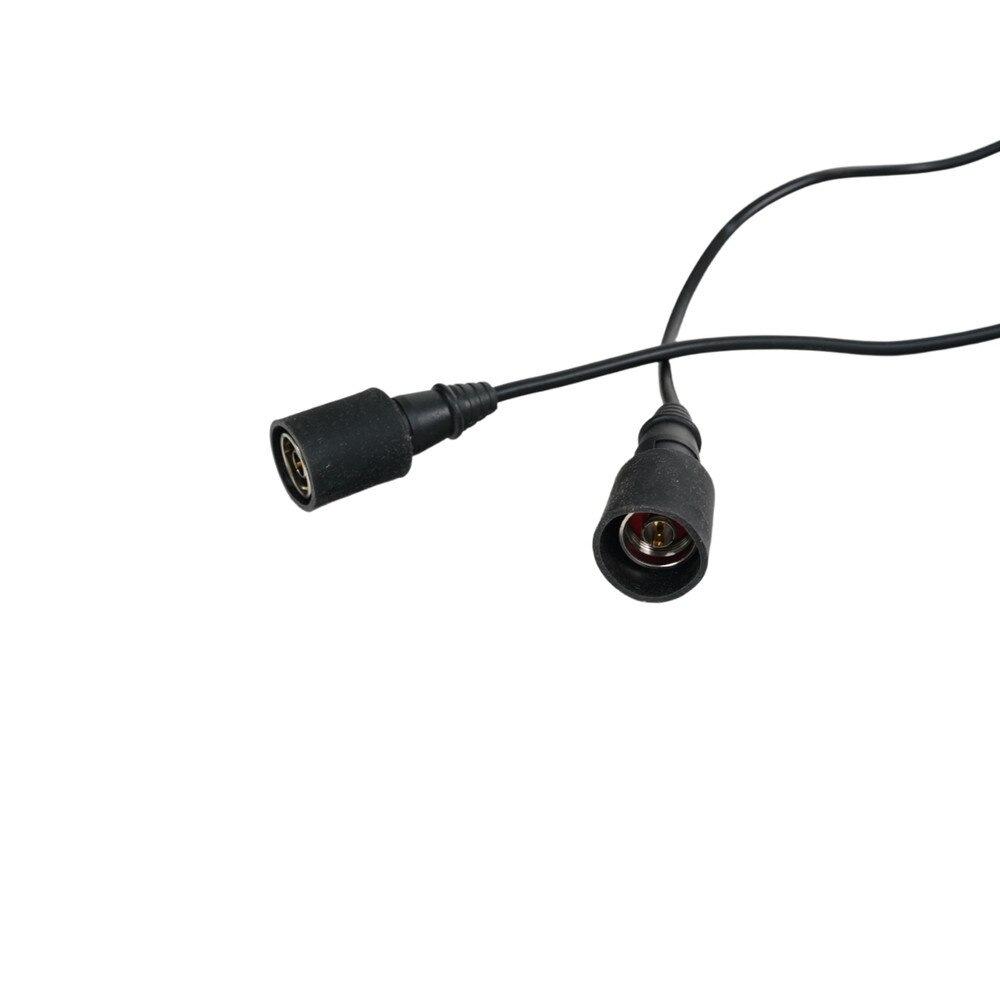

  • Cables with two N-type connectors included

Regulatory

  • Certified for use with the MR74, and MR84

Warranty

Frequently Asked Questions

Cisco Meraki Dual-Band Patch Antenna 8/6.5 dBi (MA-ANT-25)
Frequently Asked Questions (FAQ's)



What is the Cisco Meraki MA-ANT-25 antenna used for?
  • The purpose of this dual-band patch antenna is to maximize the coverage of directional wireless signals for Meraki access points.
    • Is the MA-ANT-25 compatible with all Meraki access points?
  • It works with Meraki models including the MR72, MR74, MR76, and MR86 that accept external antennae.
    • What frequency bands does the MA-ANT-25 support?
  • It supports both 2.4 GHz and 5 GHz frequency bands.
    • What type of antenna is the MA-ANT-25?
  • It is a directional patch antenna with high gain.
    • What is the gain of the MA-ANT-25 antenna?
  • 8 dBi for 2.4 GHz and 10 dBi for 5 GHz.
    • What is the beamwidth of the MA-ANT-25?
  • It has a horizontal beamwidth of 60° and vertical beamwidth of 60°.
    • What kind of connector does it use?
  • It uses RP-TNC connectors.
    • Is the MA-ANT-25 weather-resistant for outdoor use?
  • Yes, it is designed for both indoor and outdoor installations.
    • Does it come with mounting hardware?
  • Yes, it includes wall and pole mounting kits.
    • Can I use this antenna to improve signal range?
  • Yes, its directional design aids in focusing the signal in particular places and extending range.
    • Can it be used to minimize interference?
  • Yes, influence from undesirable directions can be lessened by the directional pattern.
    • Is the MA-ANT-25 suitable for long-range deployments?
  • Yes, it's ideal for point-to-point or point-to-multipoint deployments.
    • What is the operating temperature range?
  • It operates between -40°C to 70°C (-40°F to 158°F).
    • What is the polarization of the MA-ANT-25?
  • It has vertical polarization.
    • Is it MIMO capable?
  • Yes, it supports MIMO when used with compatible Meraki APs.
    • Does it improve throughput performance?
  • Yes, improved signal strength and throughput in specific locations can result from directed coverage.
    • How should the antenna be positioned for best performance?
  • For best performance, point the antenna's flat face in the direction that needs coverage.
    • Can the MA-ANT-25 be used indoors and outdoors interchangeably?
  • Yes, it is made to work in both conditions, however for outside use, adequate sealing is advised.
    • What materials is the antenna housing made of?
  • The antenna casing is composed of UV-stabilized polycarbonate for longevity in harsh situations.
    • Can I mount the MA-ANT-25 on a ceiling?
  • It is not intended for ceiling installation, but rather for wall or pole mounting.
