Overview

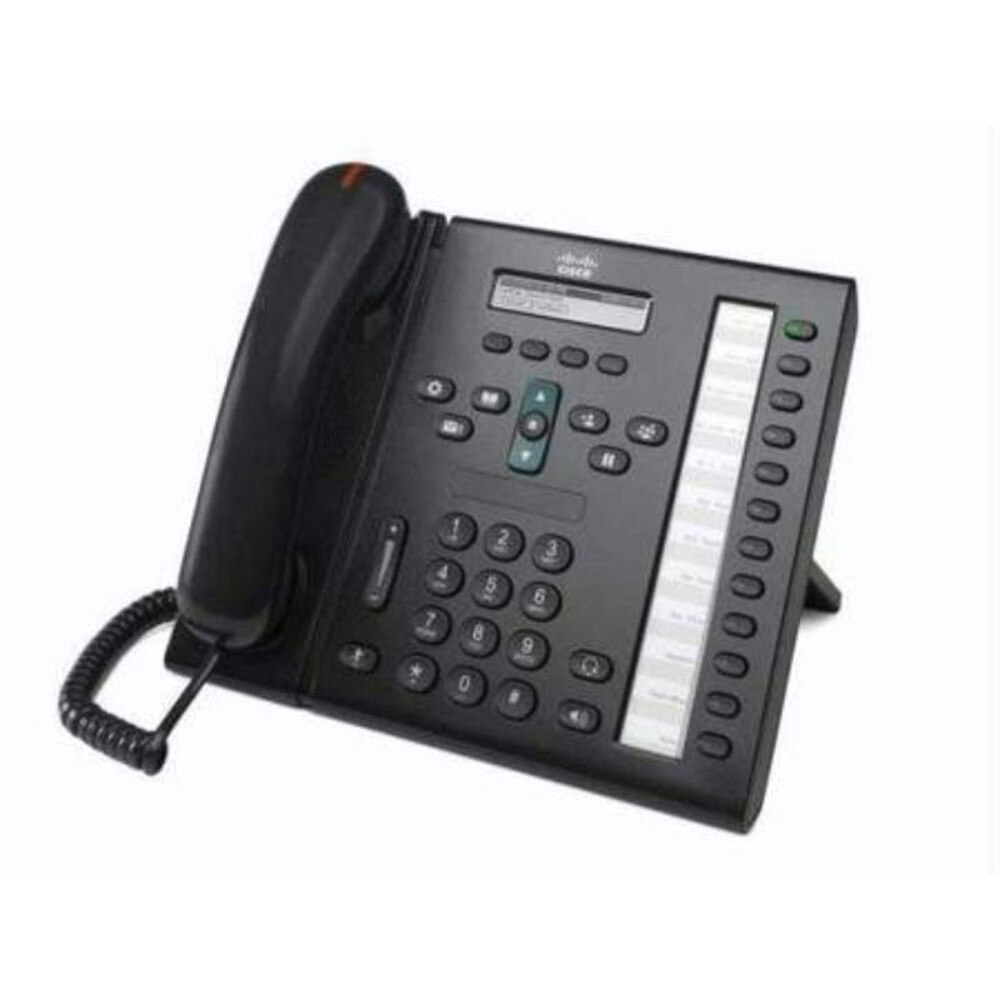

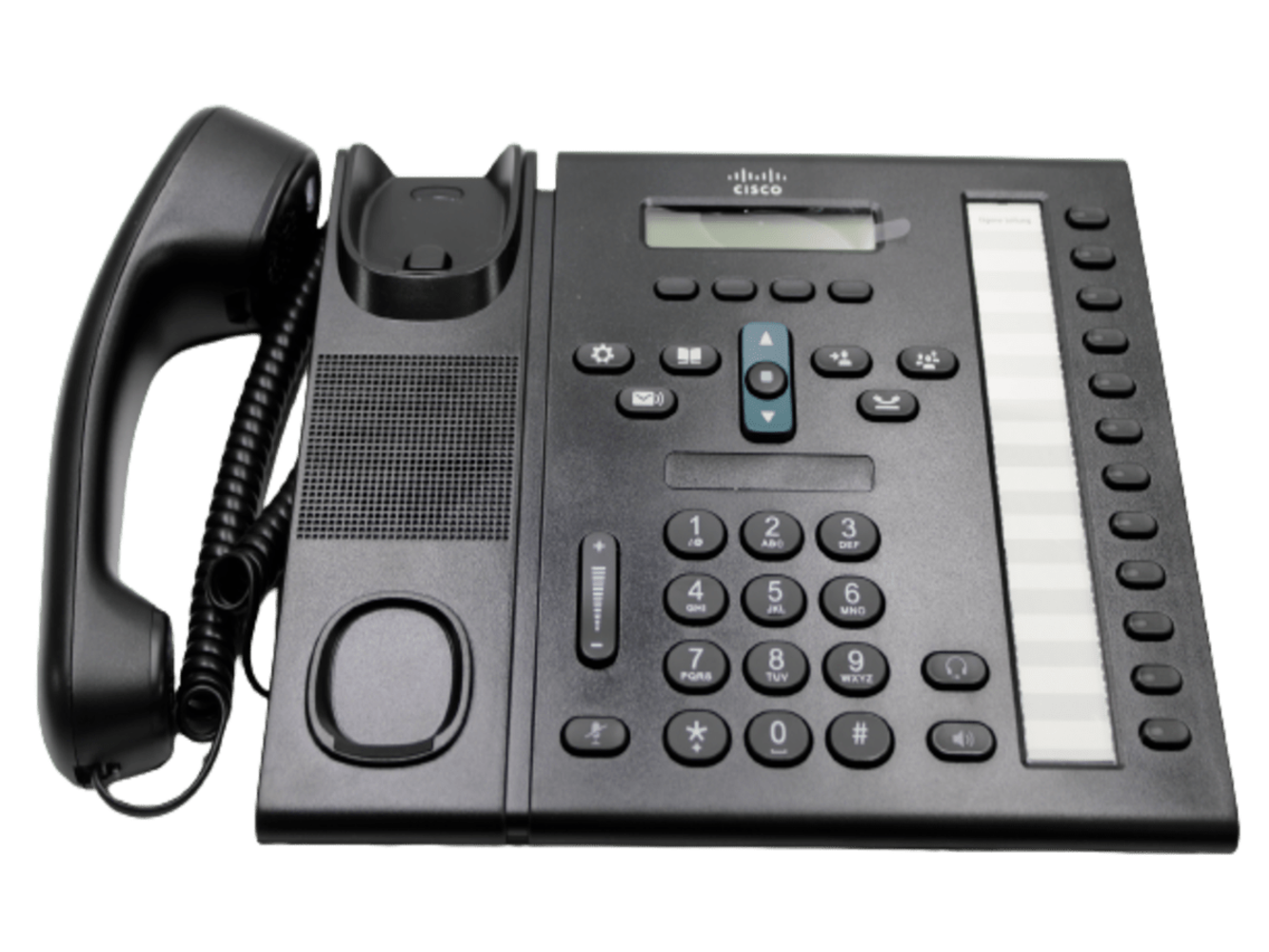

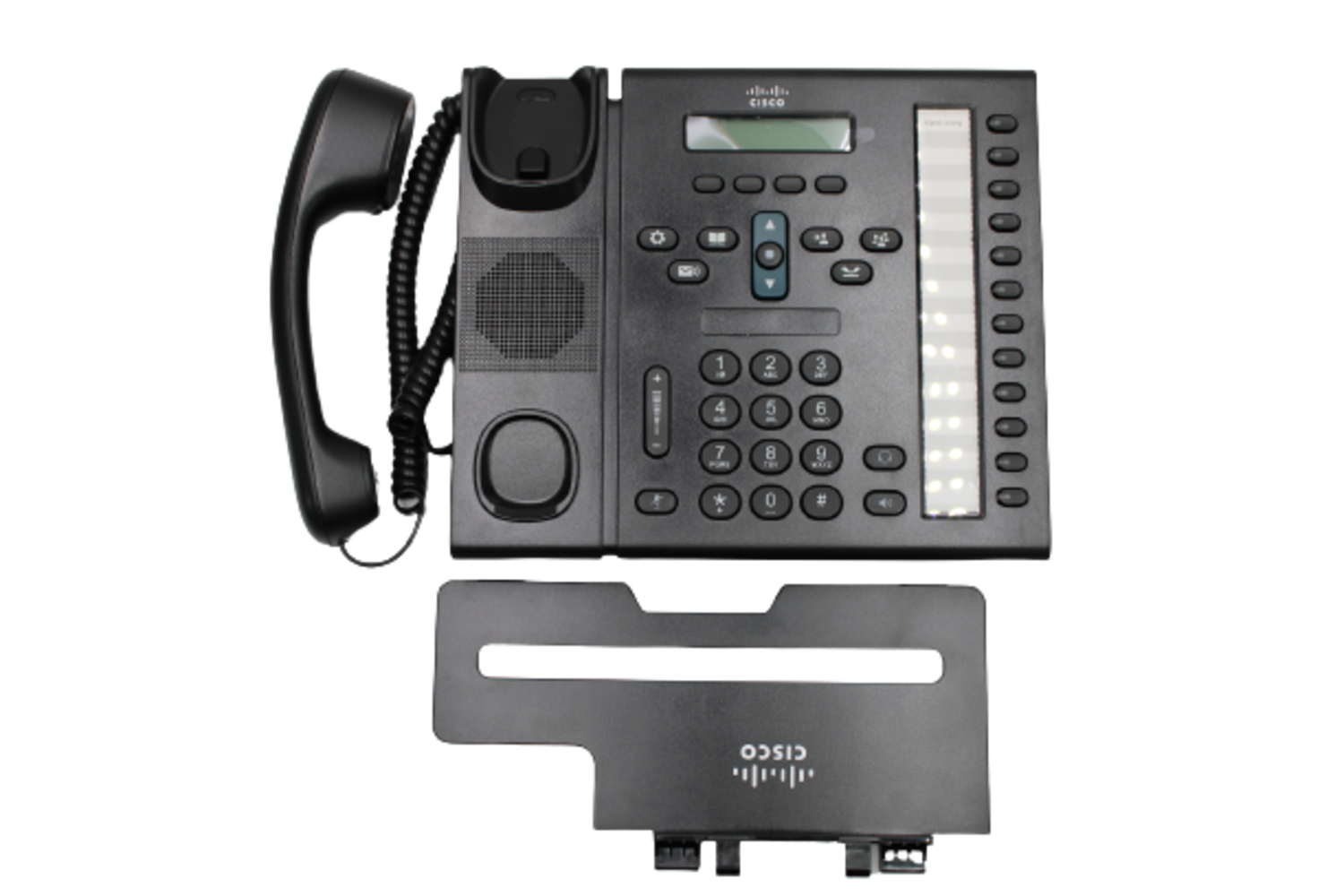

Cisco Unified IP Phone 6961
The Cisco Unified IP Phone 6961 is a new and innovative IP endpoint that delivers affordable, business-grade voice communication and video communication services to customers worldwide. The Cisco Unified IP Phone 6961 supports 12 lines, paper label inserts for line and feature descriptions along with a full-duplex speakerphone for a more productive, more flexible, and easier-to-use endpoint experience. Multi-call per-line appearance is introduced, offering end user the opportunity to handle multiple calls per directory number (DN). Fixed keys for hold, transfer, and conference; tri-color LED line and feature keys also make the endpoint simpler and easier to use. The Cisco Unified IP Phone 6961 offers greater personalization, with the choice of two colors and two handset style options. Right-to-left language presentation is also supported on the displays, addressing the language localization needs of global customers. The Cisco Unified IP Phone 6961 is also more energy-efficient and eco-friendly, in support of customer green initiatives. A Deep-Sleep option provides energy savings. With this option, the Cisco Unified IP Phone 6961 consumes up to 50 percent less power in off-hours versus when the phone is idle during normal business hours. In addition, the Cisco Unified IP Phone 6961 employs use of both recyclable and reground plastics for a more earth-responsible solution.
Specifications
Cisco Unified IP Phone 6961 Specification
Specification | Description |
Firmware upgrades | You can download firmware changes from Cisco.com |
Software upgrades | Software upgrades are supported with a Trivial File Transfer Protocol (TFTP) server |
Dimensions (H x W x D) | Cisco Unified IP Phone 6961: 164 x 240 x 209 mm (6.44 x 9.5 x 8.2 in.) |
Weight | Cisco Unified IP Phone 6961: Standard: 1227g (43 oz); Slimline: 1206g (43 oz) |
Phone casing composition | Polycarbonate acrylonitrile butadiene styerene (ABS) plastic |
Power Requirements | |
Power Requirement | Description |
IEEE 802.3af PoE | The phones can receive power from IEEE 802.3af-compliant blades |
Local power | The phones can also be powered locally with a power adapter (CP-PWR-CUBE-3=) along with one of the power cords listed in Table 4 |
AC Region and Country-Specific Power Cords | |
Part Number | Country |
CP-PWR-CORD-AP= | Asia Pacific |
CP-PWR-CORD-AR= | Argentina |
CP-PWR-CORD-AU= | Australia |
CP-PWR-CORD-CE= | European Community |
CP-PWR-CORD-CN= | China |
CP-PWR-CORD-JP= | Japan |
CP-PWR-CORD-NA= | North America |
CP-PWR-CORD-SW= | Switzerland |
CP-PWR-CORD-UK= | United Kingdom |
Temperature Ratings | |
Temperature Variable | Description |
Operating temperature | 32 to 104ºF (0 to 40ºC) |
Relative humidity | 10 to 95% (noncondensing) |
Storage temperature | 14 to 140ºF (-10 to 60ºC) |
Certifications | |
Regulatory Compliance | CE Marking |
Safety | ? Underwriters Laboratories (UL) 60950 |
? Canadian Standards Association (CSA) C22.2 No. 60950 | |
? EN 60950 | |
? IEC 60950 | |
? AS/NZS60950 | |
? TS 001 | |
Electromagnetic compatibility | ? Federal Communications Commission (FCC) Part 15 (CFR 47) Class B |
? ICES-003 Class B | |
? EN55022 Class B | |
? CISPR22 Class B | |
? AS/NZS CISPR 22 Class B | |
? CISPR 24 | |
? VCCI Class B | |
? EN55024 | |
? EN 50082-1 | |
? EN 61000-3-2 | |
? EN 61000-3-3 | |
? EN 61000-6-1 | |
Telecom | ? FCC Part 68 (CFR47) HAC |
? TIA 810A | |
Regulatory compliance | CE Marking |
