Cisco CBS350-24S-4G 24-Port SFP Gigabit Managed Network Switch (NA) | Refresh

Cisco CBS350-24S-4G 24-Port SFP Gigabit Managed Network Switch (NA) | Refresh

SKU: CBS350-24S-4G-NA-RF
(0)No Reviews yet

Cisco Refresh offers fully remanufactured, Cisco Certified products with SmartNet eligibility (OEM Refurbished).

Clean Serial: YES

Same Day Shipping - Arrives in 3-5 Business Days
30-day Returns
$623.99 $623.99
Available Quantity:
For immediate assistance call our support team at 973-808-4588. For additional information, send an email to website@telquestintl.com.

Overview

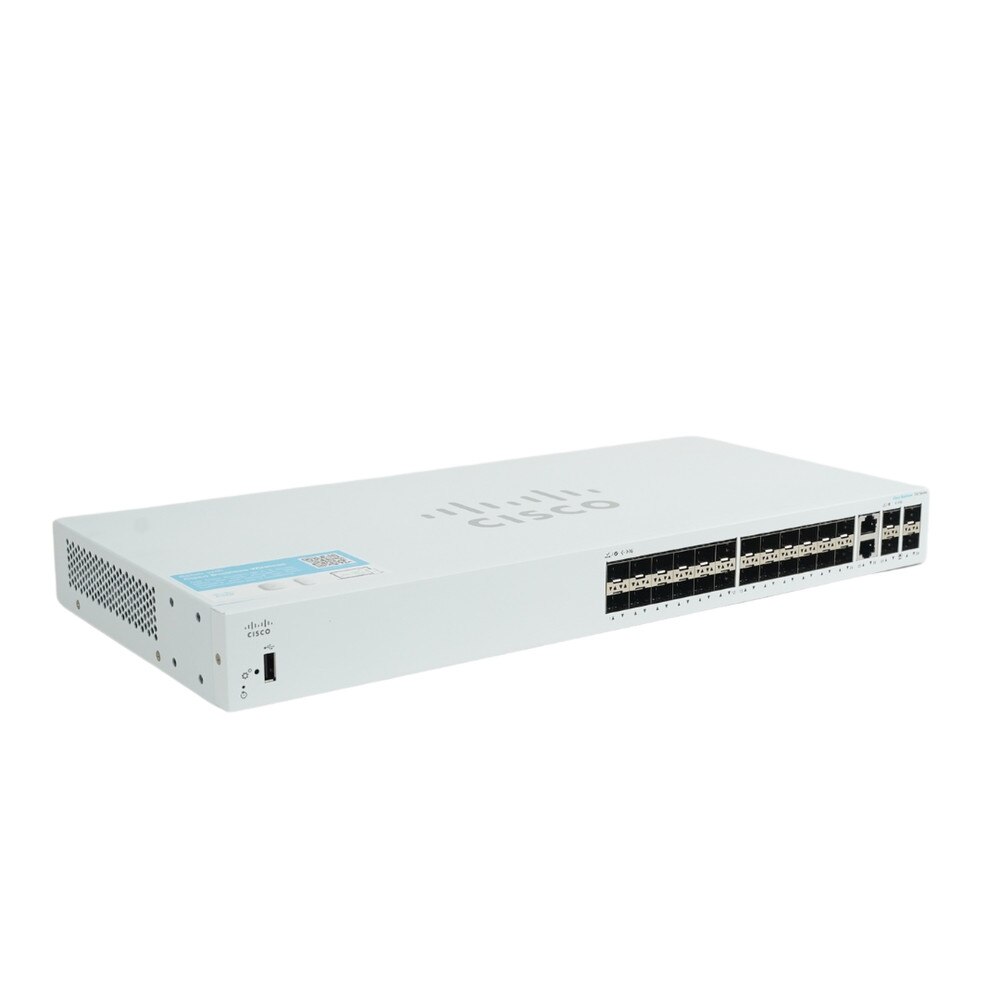

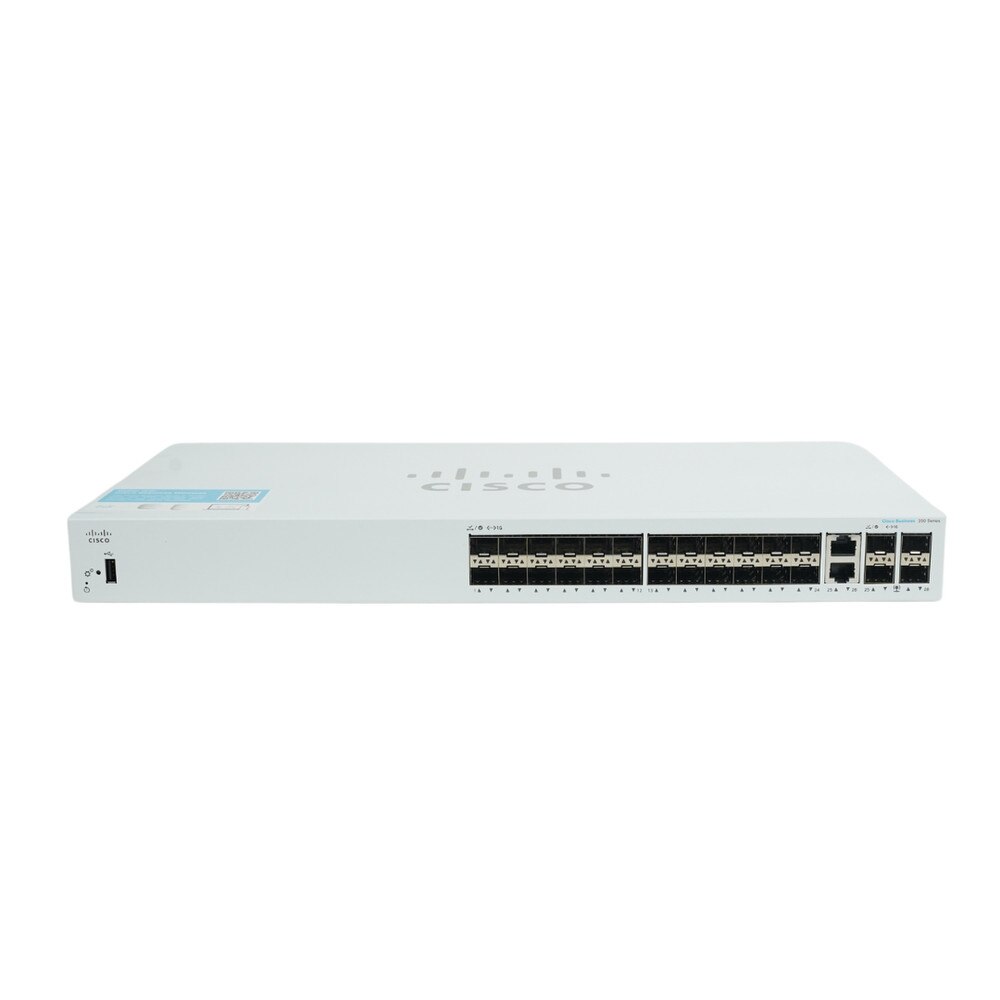

Overview of Cisco CBS350-24S-4G-NA-RF 24-Port SFP Gigabit Managed Network Switch | Refresh

The Cisco CBS350-24S-4G-NA-RF 24-Port SFP Gigabit Managed Network Switch is designed to provide high-performance connectivity for small to medium-sized businesses. With its advanced features and reliable performance, this switch is ideal for organizations looking to enhance their network infrastructure and support a variety of applications. The Cisco CBS350-24S-4G-NA-RF features 24 SFP ports, ensuring high-speed fiber connectivity for a wide range of devices. This switch is equipped with two Gigabit Copper/SFP combo ports, allowing for flexible connectivity options that can accommodate both fiber and copper connections. The combination of SFP ports and Gigabit combo ports makes it suitable for various network configurations, ensuring seamless integration into existing infrastructures. The CBS350-24S-4G-NA-RF is an excellent choice for businesses looking to enhance their network capabilities. Its combination of high-speed fiber connectivity, flexible port options, and advanced management features makes it a valuable asset for any organization.


Key Features of Cisco CBS350-24S-4G-NA-RF 24-Port SFP Gigabit Managed Network Switch


• 24 SFP Ports provides high-speed connectivity for fiber-based networks, ensuring efficient data transfer and reliable performance.

• 2 Gigabit Copper/SFP Combo Ports offers flexibility in connectivity, allowing users to connect either copper or fiber devices as needed.

• Features an intuitive web-based interface and command-line interface (CLI) for easy configuration and management, enabling efficient network monitoring.

• Supports enterprise-class security protocols such as 802.1X port security, DHCP snooping, and Access Control Lists (ACLs) to protect your network from unauthorized access.

• Complies with Energy Efficient Ethernet (IEEE 802.3az) standards, optimizing power usage and reducing operational costs.

• Designed for easy installation in standard 19-inch racks, making it suitable for various environments, including offices and server rooms.

• Provides peace of mind with a limited lifetime warranty and access to Cisco's Small Business Support Center for ongoing assistance.

Specifications

Specifications for Cisco CBS350-24S-4G-NA-RF 24-Port SFP Gigabit Managed Network Switch | Refresh

Manufacturer Cisco
Manufacturer Part Number CBS350-24S-4G-NA-RF
Product Name Cisco CBS350-24S-4G-NA-RF 24-Port SFP Gigabit Managed Network Switch
Product Type Networking Switch
Enclosure Type
Rack-mountable
Subtype
Gigabit Ethernet
Ports
24 x Gigabit SFP + 2 x combo Gigabit Ethernet/Gigabit SFP + 2 x Gigabit SFP (uplink)
Performance
Switching capacity: 56 Gbps ¦ Forwarding performance (64-byte packet size): 41.66 Mpps
Capacity
RPVST+ instances: 126 ¦ MSTP instances: 8 ¦ VLANs supported: 4094 ¦ ACL rules: 1024 ¦ Buffer capacity (MB): 1.5
MAC Address Table Size
16K entries
Jumbo Frame Support
2KB
Routing Protocol
IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), MLDv2, MLD, CIDR, MSTP, RSTP, STP
Remote Management Protocol
SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, ICMP, DHCP, RSTP, TACACS+, RADIUS
Encryption Algorithm
SSL
Authentication Method
Secure Shell (SSH), RADIUS, TACACS, TACACS+, Secure Shell v.2 (SSH2)
Features
Flow control, BOOTP support, ARP support, VLAN support, Syslog support, DoS attack prevention, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, firmware upgradable, SNTP support, DHCP snooping, QoS, DHCP server, DAI, PVST+, reset button, STP Root Guard, UDLD, LACP support, LLDP support, DHCP relay, MIB, MVR, GVRP, 802.1x authentication, ToS, DSCP support, cable test, IP source guard, SmartPort technology, dual image support, DNS client, SCT, PVE, LLDP-MED, IPMB, SSD, ISATAP tunnel support, RA guard, UDP, WRR, HOL Blocking Prevention, loopback detection, Unknown Storm Control, BPDU Guard, LAG, VSDP, RPVST+, DAD
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3az
Processor
X ARM: 800 MHz
RAM
512 MB
Flash Memory
256 MB
Status Indicators
Status, link/activity/speed
Interfaces
28 x 1000Base-X SFP ¦ 2 x 1000Base-T RJ-45 ¦ 1 x USB Type A ¦ 1 x console RJ-45
Power Device
Internal power supply
Voltage Required
AC 100-240 V (50/60 Hz)

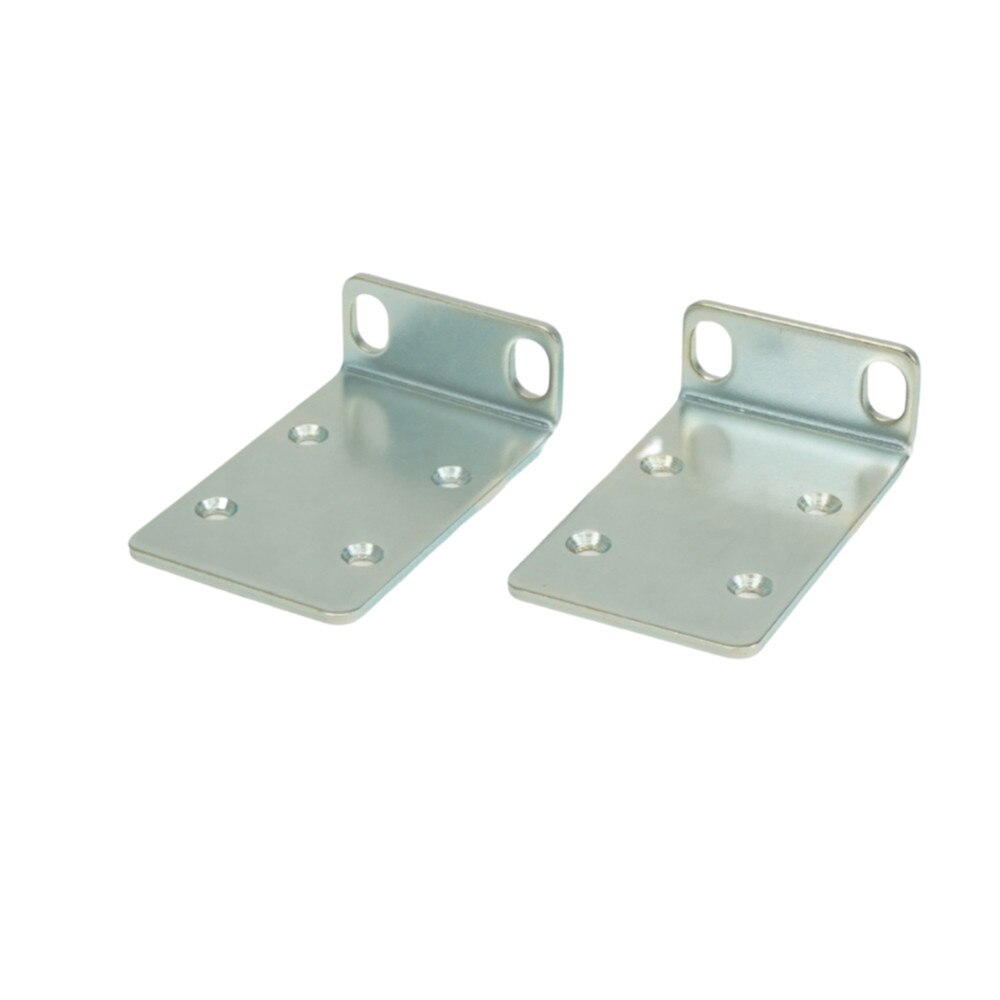

Rack Mounting Kit
Included
MTBF
258,544 hours
Compliant Standards
UL 60950, CSA 22.2, FCC CFR47 Part 15 B Class A, USGv6
Localization
Colombia, Canada, Chile, Mexico, Latin America, United States
Width
17.3 in
Depth
8 in
Height
1.7 in
Weight
5.95 lbs
Service & Support
Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - web support - 1 year ¦ Technical support - phone consulting - 1 year
Min Operating Temperature
32 °F
Max Operating Temperature
122 °F
Humidity Range Operating
10 - 90% (non-condensing)
Min Storage Temperature
-13 °F
Max Storage Temperature
158 °F
Humidity Range Storage
10 - 90% (non-condensing)

User Guides

Cisco Business 350 Series Managed Switches Data Sheet

Frequently Asked Questions

Managed Network Switch (NA)
Frequently Asked Questions (FAQ's)



What is the power consumption of the Cisco CBS350-24S-4G-NA?
  • The switch's typical power consumption is around 45 watts, depending on network load and connected devices.
    • How many SFP ports does the switch have?
  • It has 24 SFP ports for fiber-optic connections that enable high-speed and long-distance connectivity.
    • What types of transceivers are compatible with the SFP ports?
  • The SFP ports are compatible with Cisco and third-party Gigabit SFP transceivers for both short- and long-range fiber connections.
    • What are the Gigabit Ethernet combo ports used for?
  • The four combo ports can be configured as Gigabit Ethernet or SFP ports, allowing for both copper and fiber connections.
    • Does the Cisco CBS350-24S-4G-NA support Layer 3 routing?
  • Yes, it provides static routing for Layer 3 network traffic management.
    • Can the switch be managed through a web-based interface?
  • Yes, it has a user-friendly web-based interface for simple management and configuration.
    • Is CLI (Command-Line Interface) available for managing the switch?
  • Yes, the switch can be managed using the CLI for more advanced configuration options.
    • Does the switch support VLANs (Virtual Local Area Networks)?
  • Yes, it supports VLANs for effective network traffic segmentation and management.
    • What QoS (Quality of Service) features does this switch offer?
  • It supports QoS features, which prioritize network traffic and ensure peak performance for critical applications.
    • Can the switch be used in a data center environment?
  • Yes, it is appropriate for small and medium-sized data center environments that require high-speed fiber connectivity.
    • What is the maximum switching capacity of the Cisco CBS350-24S-4G-NA?
  • The switch has a maximum switching capacity of 128 Gbps.
    • Does the switch support network automation features?
  • Yes, it supports network automation through SNMP, RMON, and LLDP for efficient network management.
    • Can the switch handle jumbo frames?
  • Yes, it can handle jumbo frames up to 9,216 bytes for large data transfers.
    • Is the Cisco CBS350-24S-4G-NA fanless?
  • No, it comes with a cooling fan to ensure peak performance even when under load.
    • Does the switch provide power redundancy?
  • Yes, it can be mounted on a standard 19-inch rack using the included hardware.
    • How do I update the firmware on the Cisco CBS350-24S-4G-NA?
  • Firmware updates can be performed using either the web-based interface or the command line.
    • Can the switch be mounted in a rack?
  • Yes, it can be mounted on a standard 19-inch rack using the included hardware.
    • What security features are available on this switch?
  • It has features like 802.1X authentication, Access Control Lists (ACLs), and secure management protocols.
    • Does the switch support link aggregation?
  • Yes, it does support link aggregation groups (LAGs), which combine multiple ports for increased bandwidth and redundancy.
    • Can the switch be used for high-density fiber environments?
  • Yes, with 24 SFP ports, it is ideal for high-density fiber optic environments that require extensive fiber connectivity.
